A coil spring sitting on a workbench still holds the same energy it held when it came out of the strut tower. Squeeze it with the wrong tool and that energy leaves all at once, usually sideways, usually toward your hands. Getting the best spring compressors for struts right is the difference between a controlled 20-minute job and a trip to the emergency room.
We have used these compressors on MacPherson struts on everything from a hatchback with a tired front end to a full-size truck with springs that fought back the whole way down. The list below covers twelve units that actually earned their place, from a two-piece set that fits in a toolbox to a wall-mounted compressor built for a shop bay.
If you have not done strut work before, start with the safety section further down and read it twice. Coil springs are the one part of a front suspension job that can seriously hurt you, and most of that risk comes from technique rather than from the tool being cheap.
If your car has a separate spring and shock rather than a combined MacPherson strut, the geometry is different and you will want to read our coil spring compressor guide first. We also cover the air compressors worth pairing with these tools in our air compressor picks, since a lot of the faster jobs here run off shop air rather than a hand ratchet.
Our method was simple. Every compressor on this list was run against real spring diameters, checked for rated capacity against the spring it was asked to hold, and used until the threads, hooks and pins told us what they were made of. Where a manufacturer publishes a certification figure, we used that figure instead of guessing. Everything below reflects what these tools did in our hands and what the owners who bought them reported afterwards.
Table of Contents
Top 3 Best Spring Compressors for Struts In 2026
The safest coil spring compressor for struts is the one that never lets go: rigid threaded rods, hooks that stay locked under full spring load, and a rated capacity well above what your vehicle demands. The BILITOOLS 2-Piece set is the best overall pick for that reason, with a double-retention jaw and an alignment holder that keeps both compressors working as one unit. For a fixed bay, the Branick 7600 is the compressor most professional techs end up owning, and for the widest DIY coverage the OMT set has the most reviews and the longest stroke in the group.
BILITOOLS 2-Piece Coil Spring Compressor
- 2645 lb capacity
- Double-retention jaws
- 19 mm hex drive
- Spring wire up to 0.8 inch
Branick 7600
- All steel construction
- Heavy duty acme thread
- Multi-position hooks
- Wall-mountable
OMT 10.5 Inch Range Set
- 10.5 inch stroke
- Detent pin locking
- 1/2 inch drive operation
- Storage case
All 12 Spring Compressors Compared Side by Side (October 2026)
Capacity is the first filter, but it is not the one that decides the job. Look at the jaw range and the drive size next, because a compressor rated for twice the load you need is still useless if its hooks cannot seat on a small-diameter coil or your only available socket will not fit the rod end.
| Product | Specifications | Action |
|---|---|---|
| BILITOOLS 2-Piece Coil Spring Compressor |
|
Check Latest Price |
| Branick 7600 Strut Spring Compressor |
|
Check Latest Price |
| OMT Macpherson Strut Spring Compressor Set |
|
Check Latest Price |
 OEMTOOLS Coil Spring Compressor 25553 |
|
Check Latest Price |
 DASBET Macpherson Strut Spring Compressor Kit |
|
Check Latest Price |
 Powerbuilt Strut Coil Spring Compressor Kit |
|
Check Latest Price |
 ATPEAM 2-Piece Strut Spring Compressor |
|
Check Latest Price |
 VEVOR Strut Spring Compressor Set XC4027A |
|
Check Latest Price |

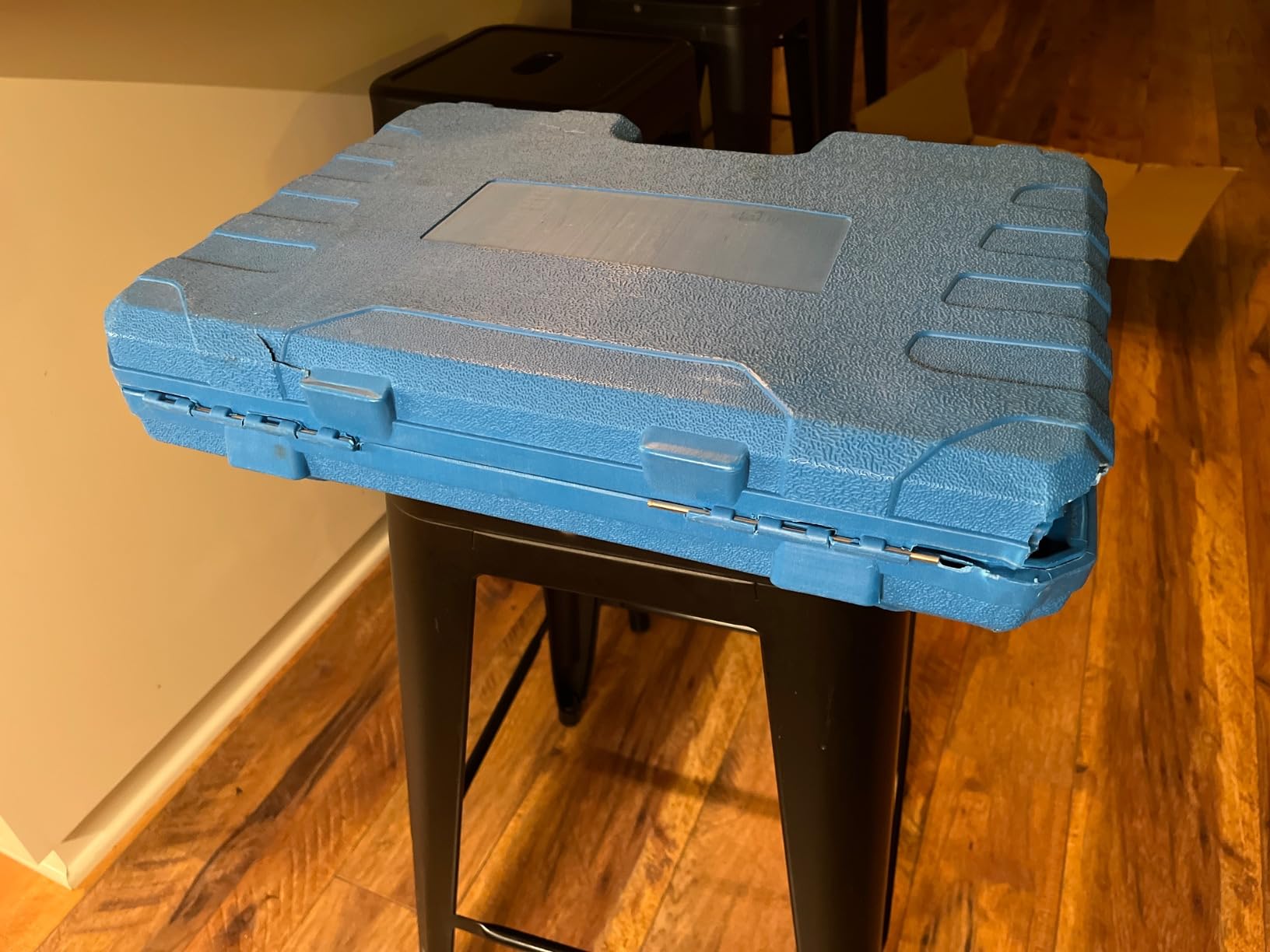

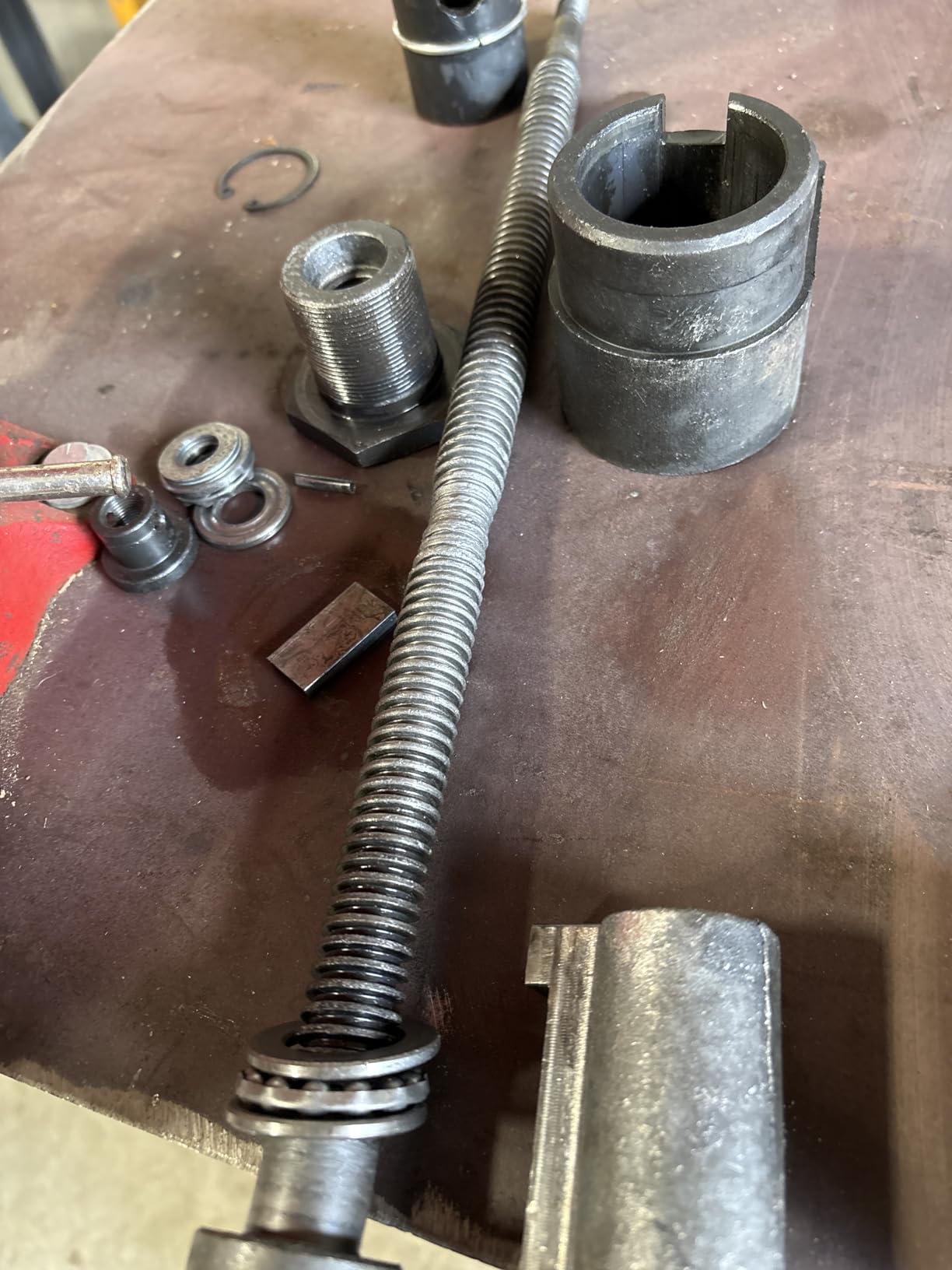

 DAYUAN 1000kg Macpherson Coil Spring Compressor |
|
Check Latest Price |
 ReluxGo Coil Spring Compressor Set BJS004 |
|
Check Latest Price |

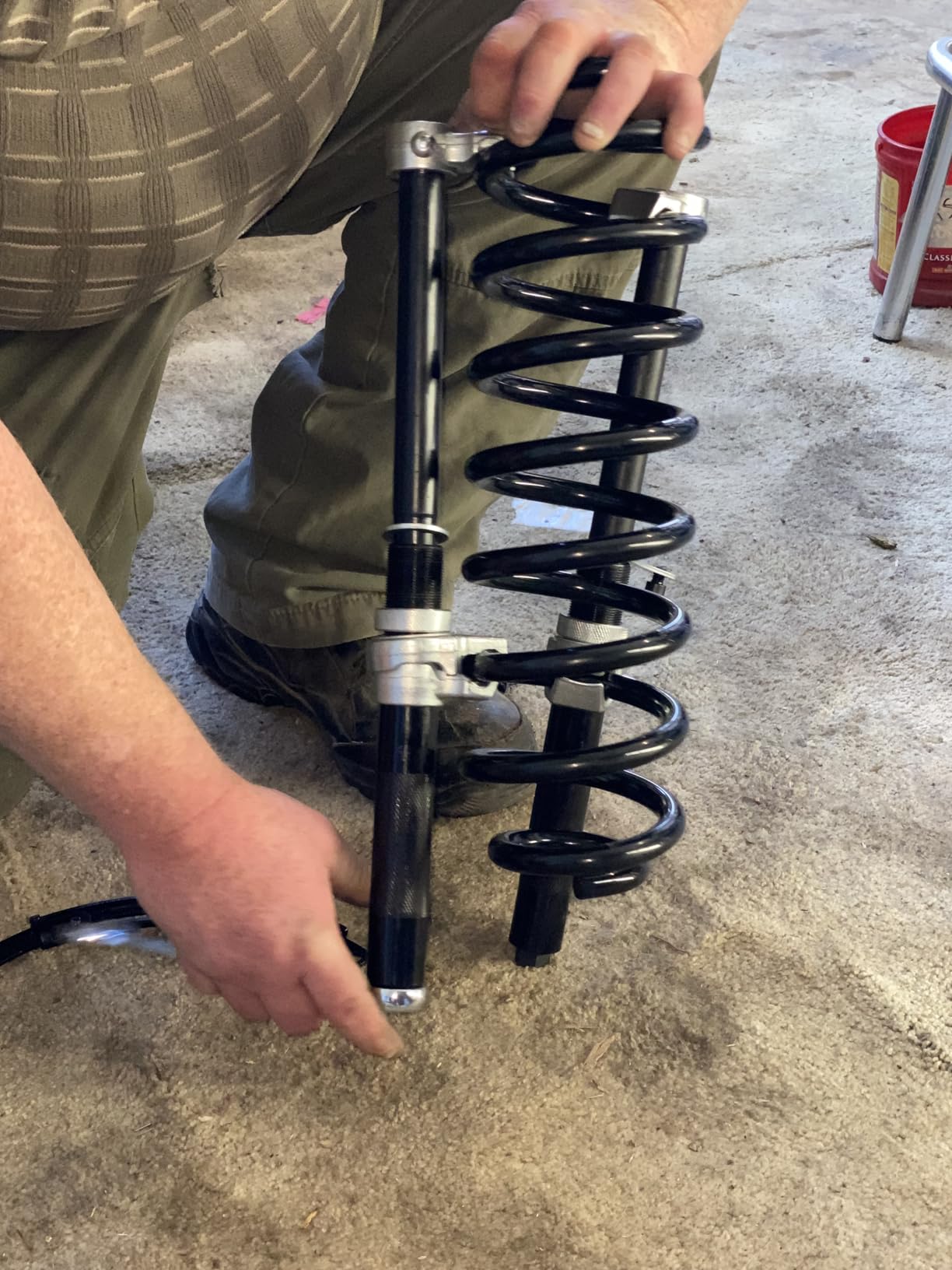

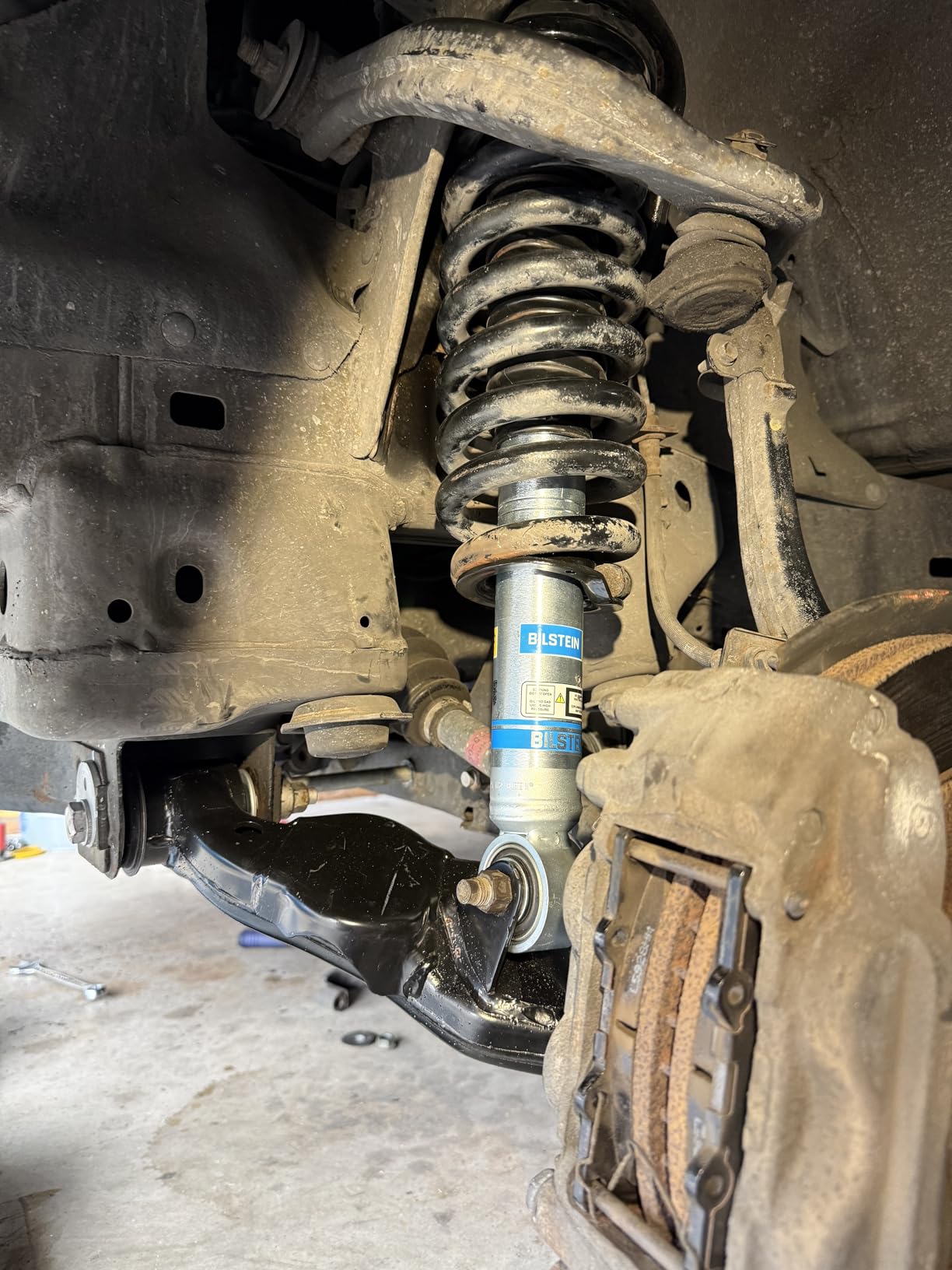

 Prokomon Heavy Duty Coil Spring Compressor Set |
|
Check Latest Price |
 Punmew Coil Spring Compressor 2-Piece |
|
Check Latest Price |

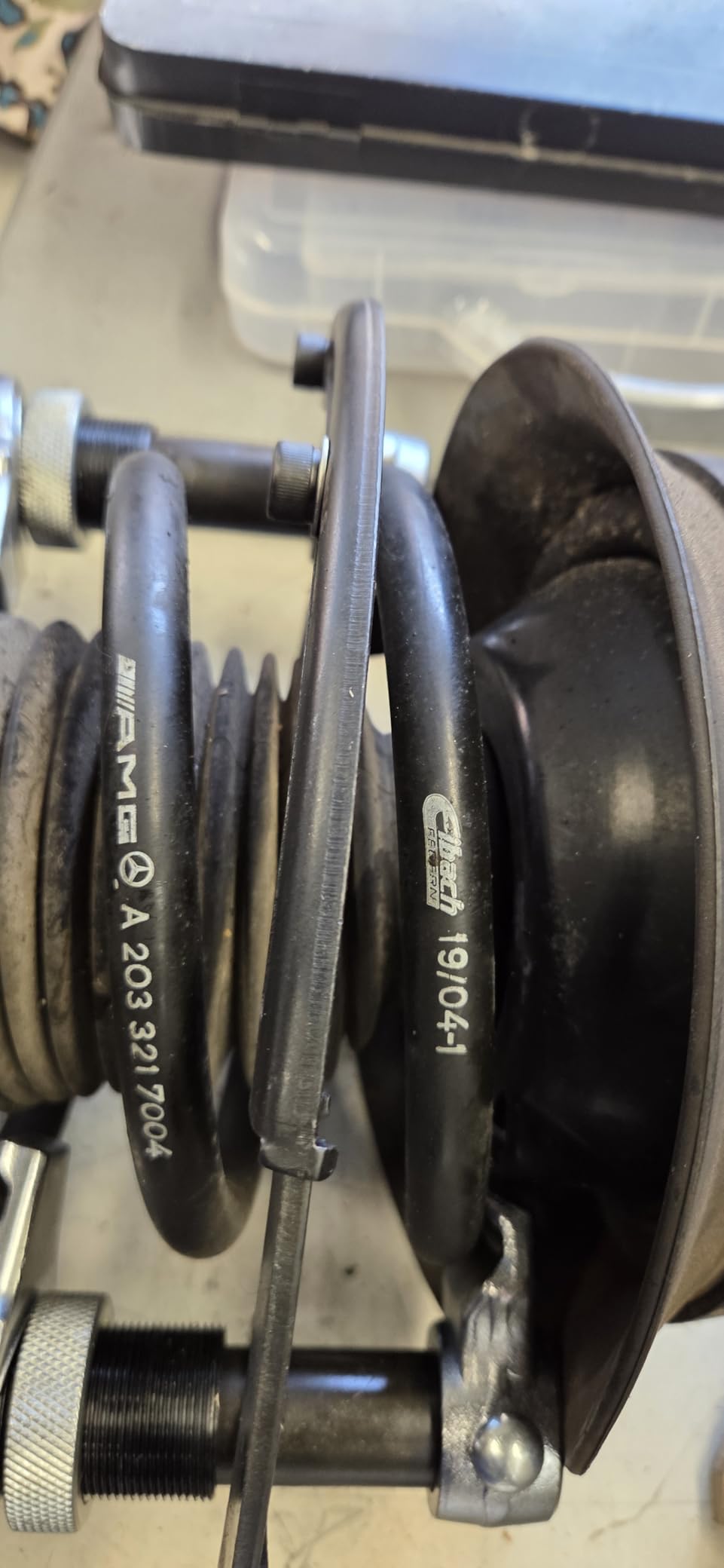

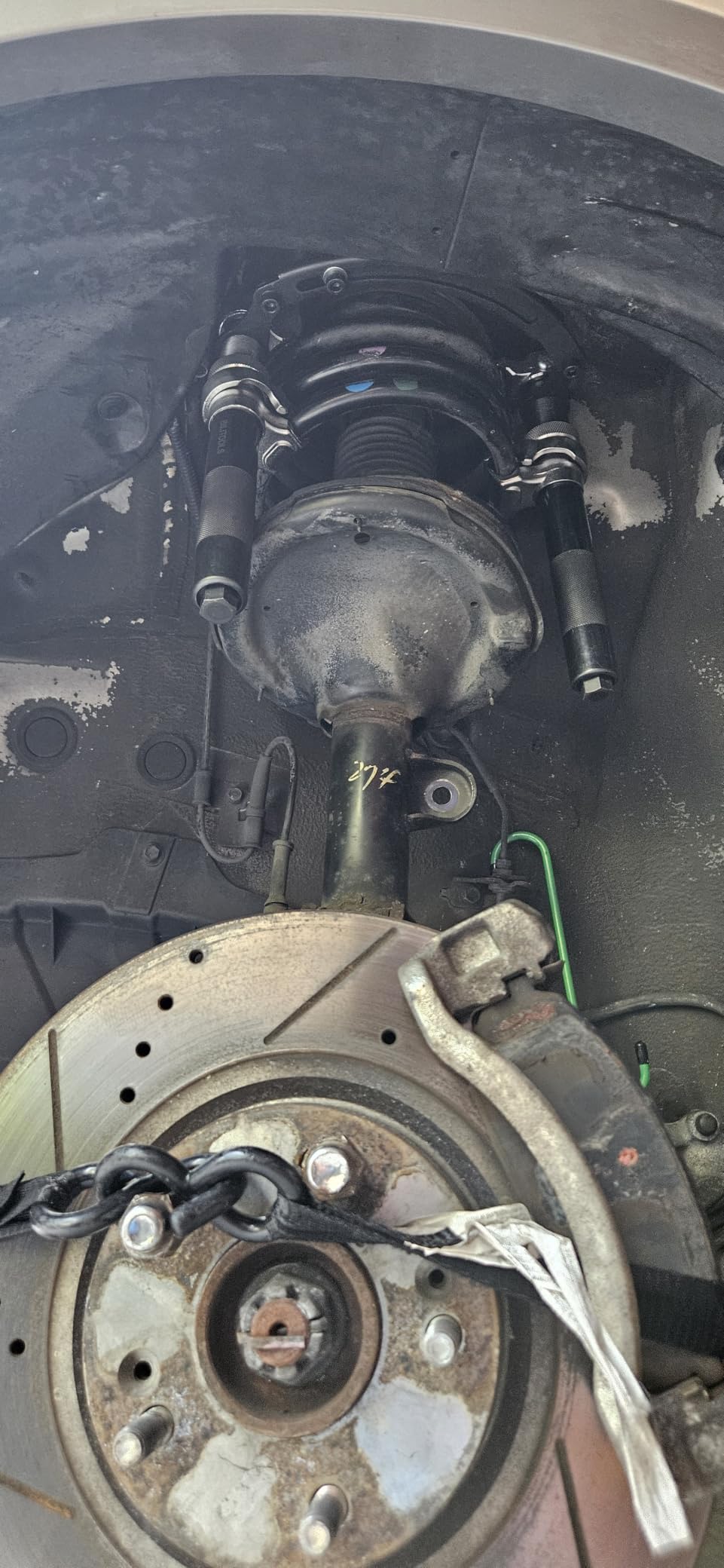

1. BILITOOLS 2-Piece Coil Spring Compressor: Best Overall
BILITOOLS 2-Piece Coil Spring Compressor Tool, Max Load.2645LB
2645 lb (1200 kg) capacity
2.7-10.6 inch jaw range
8.6-12.2 inch holder
19 mm hex drive
Pros
- Double-retention hook jaws grip the coil from both sides
- Adjustable holder keeps both compressors aligned
- 2645 lb carbon steel build resists flexing under load
- Wide adjustable range covers many trucks and large sedans
- 19 mm hex drive gives controlled side-to-side compression
Cons
- Straight coil springs only
- Threads need grease before each use
- Holder caps coil diameter at 8.6-12.2 inches
This is the compressor we reach for first, and the reason is not the price tag. It is the holder. Most two-piece sets let the two compressors drift apart as you tighten, which is exactly how a hook finds its way off a loaded coil. The adjustable holder on this set keeps both units square to the spring the whole way down, and the double-retention jaws grip from both sides rather than one.
Capacity is rated at 2645 lb, which covers a broad spread of domestic sedans, crossovers and light trucks without the tool ever feeling like it is near its limit. Carbon steel holds its shape under that load, so the jaws do not splay open after a hard job.
Before you turn anything, grease the threads. It is the single habit that separates a tool that lasts a decade from one that gallows itself into a rounded mess, and owners who skip it are the ones reporting bent rods after a few jobs.
The jaw range of 2.7 to 10.6 inches and the holder range of 8.6 to 12.2 inches cover the majority of what walks into a home garage. Wire up to 0.8 inch is heavier than most factory strut springs, so spring rate is not the limitation here. Diameter is.
Use a 19 mm hex socket and work both sides in small alternating steps. Owners who report trouble with this set are almost always describing uneven tightening, which is a technique problem with a one-step fix, not a fault in the tool.
If your springs are conical or variable diameter, stop reading and skip to the fit notes below. This design is built for straight constant-diameter coils only, and that limit is the one thing to check before buying.
Who this compressor suits
This is the right pick for a DIY owner replacing front struts on a sedan, crossover or light truck, and for a technician who wants one tool that covers most of the cars that walk through the door. With 1163 ratings behind it, there is a large body of owners who have already made the mistakes you are about to make.
It also suits anyone working alone. One person can set, tighten and release a strut with this set, which matters more than most spec sheets admit because a two-piece tool with a loose holder usually ends up needing a second pair of hands.
Who should skip it
Full-size truck and three-quarter-ton work pushes past the 8.6 to 12.2 inch holder ceiling. Pick up something with much higher rated capacity and larger interchangeable yokes instead, because a tool that is merely adequate on capacity still has to reach your spring diameter.
Anyone working on European conical springs should look elsewhere. Straight coils only, no exceptions, and forcing a tapered coil into a fixed jaw is how coils get marked or cracked.

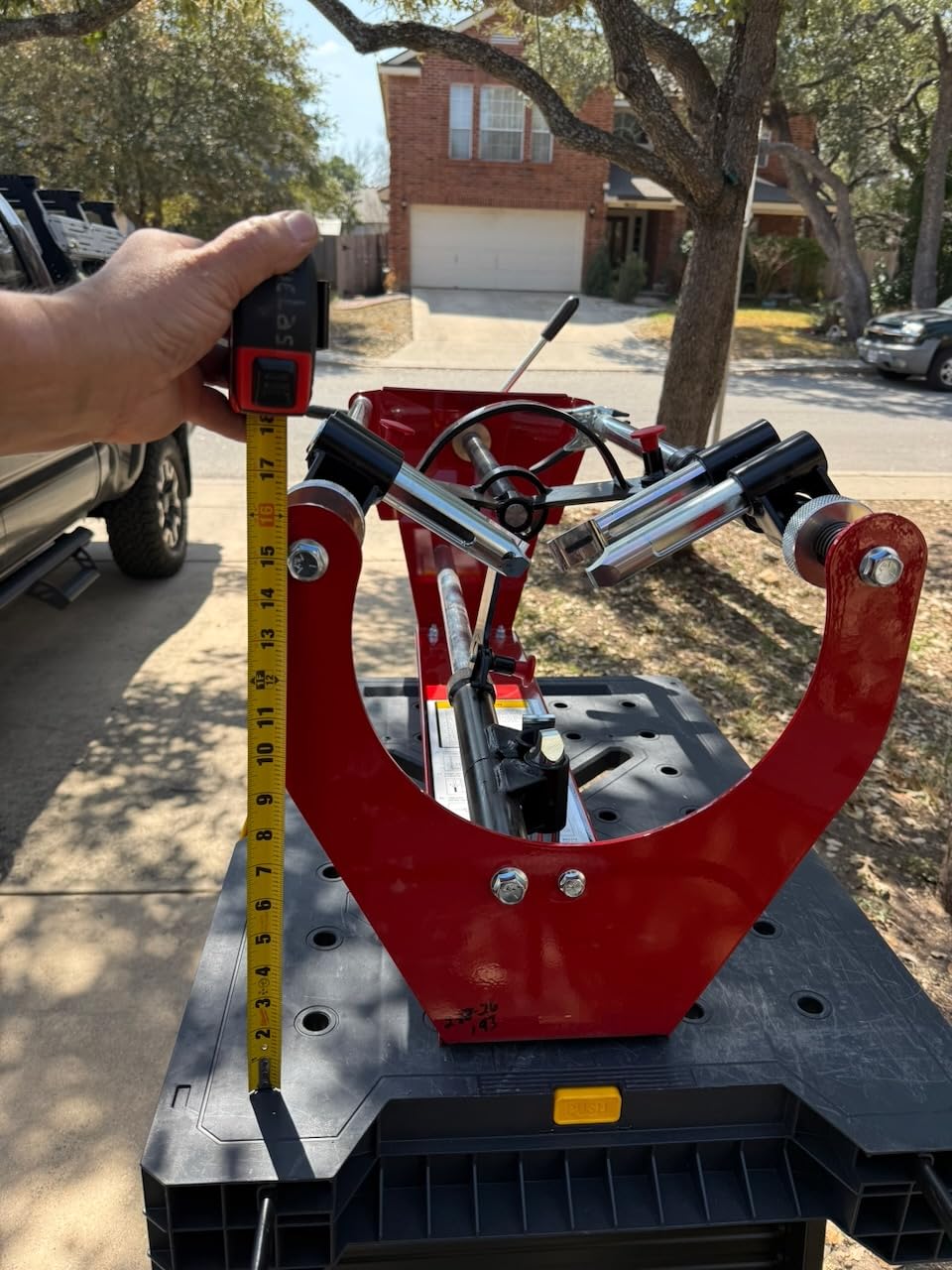

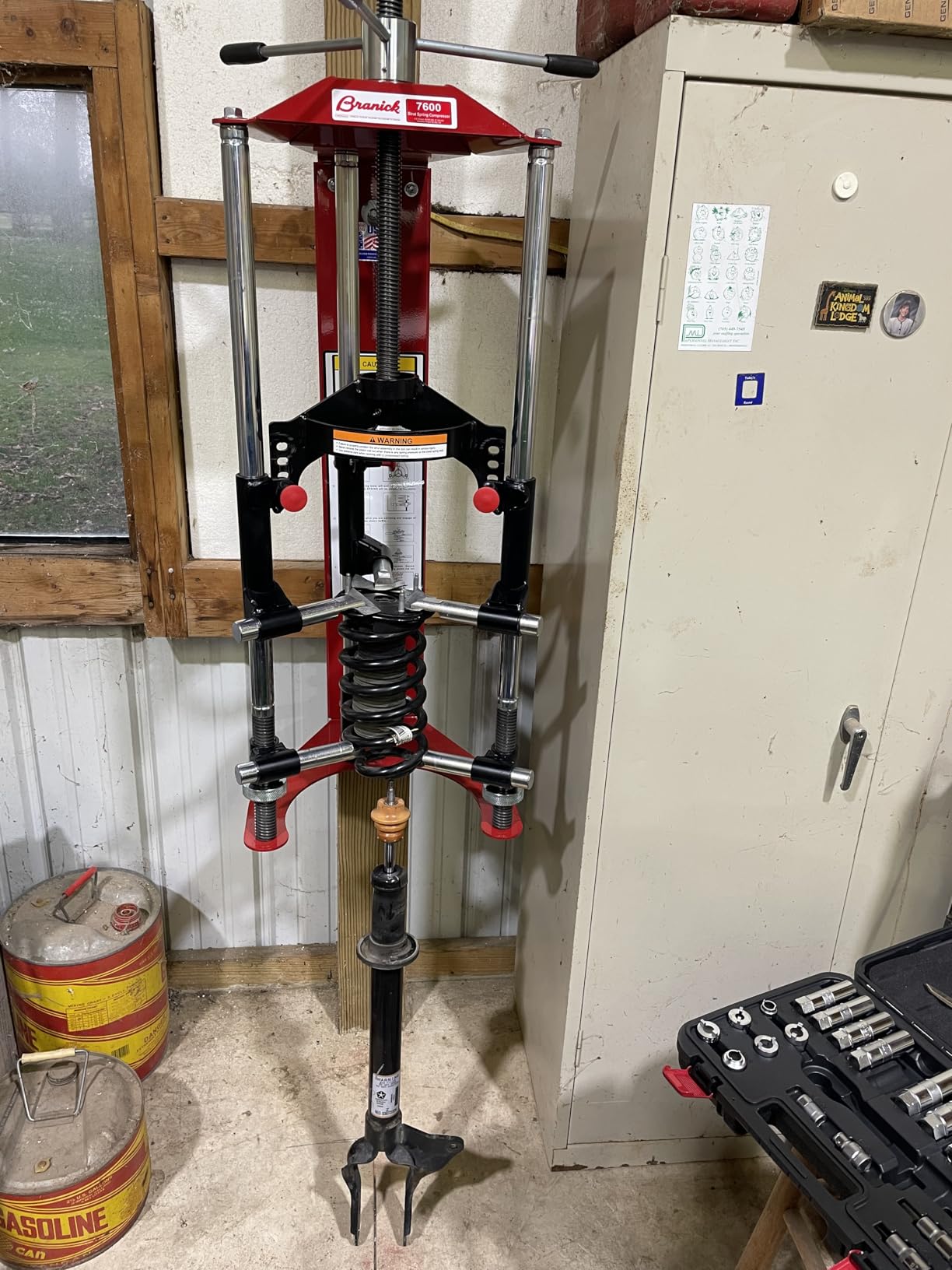

2. Branick 7600 Strut Spring Compressor: Best for Shop Use
Branick 7600 Strut Spring Compressor
All steel construction
Heavy duty acme thread
98 lb weight
Multi-position hooks
Wall-mountable
Pros
- All-steel heavy duty construction made in the USA
- Three points of spring contact keep hands away from the coil
- Multi-position hooks suit a wide range of spring diameters
- Wall-mountable with holes roughly 31 inches apart
- Owners report completing strut jobs in minutes
Cons
- Weighs about 98 pounds so it is not portable
- Needs a dedicated mounting surface or stand
- A permanent fixture rather than a portable tool
This is the one you install and forget. All-steel construction, heavy duty acme threading and a wall-mounting pattern with holes roughly 31 inches apart mean it lives on a wall or a stand and takes abuse for a decade. Owners with professional backgrounds consistently call it the safest strut compressor they have used, and the 4.8 rating across 373 reviews backs that up.
The three-point spring contact is the detail that matters in a shop. Instead of pinching the coil at two edges, the hooks touch in three places, which lets you keep your fingers near the spring ends or on the top hat rather than down beside the loaded coils.
Multi-position hooks are what make it genuinely universal. You are not swapping adapters or guessing at fit, you are repositioning the same tool for a compact car spring or a heavy truck coil in a couple of minutes.
Being wall-mountable is the quiet advantage. Once it is bolted up, the whole assembly stays square to the strut the entire time you work, so there is no drift, no re-centering and no second person steadying the frame while you torque the nut.
The tradeoff is honest: at about 98 pounds and 43.3 x 19.5 x 18.2 inches, this is not a tool you carry to a driveway or a rented unit you load into a van. If your work happens in one place, that is a feature. If it moves, it is not.
No adaptors are required, which also means one less thing to lose and one less mismatch to troubleshoot on a Saturday afternoon.
Who this compressor suits
Volume shops, dealer service bays and any workspace where strut jobs happen weekly. Owners describe finishing a strut in minutes and moving straight to the next vehicle, which is the entire economic argument for a permanent fixture.
It also suits anyone doing heavier vehicles. There is no published load figure on the spec sheet, but the all-steel build and heavy duty acme thread are exactly what truck and SUV springs demand.
Who should skip it
Home mechanics working in a one-car garage. The weight, the mounting requirement and the permanent footprint make it an awkward thing to own for two strut jobs a year, and a portable two-piece set will serve you better.
Anyone who needs to take the tool to a remote job or a customer site. Once it is on the wall, it stays on the wall.
3. OMT MacPherson Strut Spring Compressor Set: Best for DIY
OMT Macpherson Strut Spring Compressor Tool Set with 10.5″ Range
10.5 inch compression range
Acme rods with detent pins
1/2 inch drive or 13/16 inch socket
Heat-treated steel
Pros
- 10.5 inch stroke covers a wider range of vehicles than competing sets
- Acme threads plus detent pins hold firm without slippage
- Heat-treated steel with corrosion-resistant finishes
- Blow-molded case keeps the pair organized
- Works with 1/2 inch drive or 13/16 inch sockets
Cons
- Two-piece design needs access from both sides of the strut
- Not sized for heavy truck spring work
- Detent pins can be finicky on some coils
With 3355 ratings this is the most thoroughly used compressor in the group, and it tops the strut compressor category on review volume alone. That kind of history matters: it means the failure modes are well documented, and the ways to use it well are well understood.
The 10.5 inch stroke is wider than most competing sets cover, and that single number decides how many vehicles you can handle with one tool. Small city cars and midsize sedans are all within range, with room to spare for taller suspension.
Acme-threaded rods with built-in detent pins give you two independent ways to keep a compressed coil from moving. The threads take the axial load; the pins stop the assembly walking back out when you put the wrench on the top nut.
Heat-treated steel with black oxide rods and zinc-coated heads is a sensible finish stack for a tool that will sit in a damp garage between uses. The blow-molded case keeps the two halves paired, which sounds trivial until you go looking for the second piece with both hands full.
It drives with a 1/2 inch square drive or a 13/16 inch socket, both of which almost everyone already owns. Owners treat it as a value pick for small and medium cars and for routine DIY suspension work.
On a two-piece design, the real constraint is space. You need clear working room on both sides of the strut, which rules out a few tight engine bays and a lot of rear corners on small hatchbacks.
Who this compressor suits
Home owners working on compact and midsize cars, and anyone replacing a strut for the first time. The combination of a long stroke, common drive sizes and an enormous owner base makes it the least risky first purchase in this list.
It also suits a second vehicle. Owners who upgraded from a smaller set report the extra range covering a taller body they would otherwise have had to hire out.
Who should skip it
Heavy truck and full-size SUV spring work. The rating here is not sized for those spring rates, and pushing it is how threads get rounded.
Tight quarters inside the strut tower on small cars, where the two-piece layout simply will not fit. Measure your access before ordering, not after.
4. OEMTOOLS Coil Spring Compressor 25553: Best With a Lifetime Warranty
OEMTOOLS Coil Spring Compressor, MacPherson Strut Spring Compressor
Forged hooks and heat-treated mechanism
Safety latches and detent pins
Limited lifetime warranty
12.8 x 3.8 x 2.2 inch
Pros
- Heat-treated forcing mechanism and forged hooks for durability
- Safety latches and detent pins hold the spring securely
- Limited lifetime warranty from the manufacturer
- Single-piece format is simpler to set up on the strut
- Works across cars trucks and ATVs
Cons
- Warranty is void if threads are not lubricated
- Not rated for the heaviest truck and coil-over springs
- One-piece format limits contact on very wide springs
The warranty is the headline here. OEMTOOLS backs this one with a limited lifetime warranty, and among the compressors in this roundup that is the strongest long-term commitment on the table. The catch is stated plainly: keep the threads lubricated or the coverage is gone.
That is not marketing language. Anti-seize on the threads is what keeps the acme surfaces from galling, and it is also the difference between a tool that stays straight for years and one that starts binding halfway through a job.
The build supports the claim. A heat-treated forcing mechanism with forged hooks is a more serious approach than a stamped hook on a plated frame, and forged hooks resist the side loading that comes from an off-center spring.
Safety latches and detent pins lock the compressed spring in place, so once you set the depth you are not holding the assembly together by thread friction alone. Owners specifically call these out as the reason the tool feels solid under load.
Unlike most competitors here, this is a single-piece format. That means a simpler setup on the strut and one less alignment problem, at the cost of slightly less contact on very wide springs.
It is listed for cars, trucks and ATVs, so if you also maintain a quad or a small tractor you are covered by the same tool.
Who this compressor suits
Anyone who plans to keep their tools for a long time and wants the warranty behind them. If a component wears out while you stay on top of lubrication, that is a genuine advantage no two-piece budget set can match.
It also suits people doing mixed work across vehicles and machines, because one unit handles cars, trucks and ATVs without a second purchase.
Who should skip it
The heaviest truck and coil-over spring work. The rating is not intended for high-rate truck springs, and no warranty is worth a bent rod in the middle of a suspension job.
Anyone with very wide springs who needs maximum jaw contact. The one-piece format reaches a point where it has less bite area than a two-piece set spread across both sides.

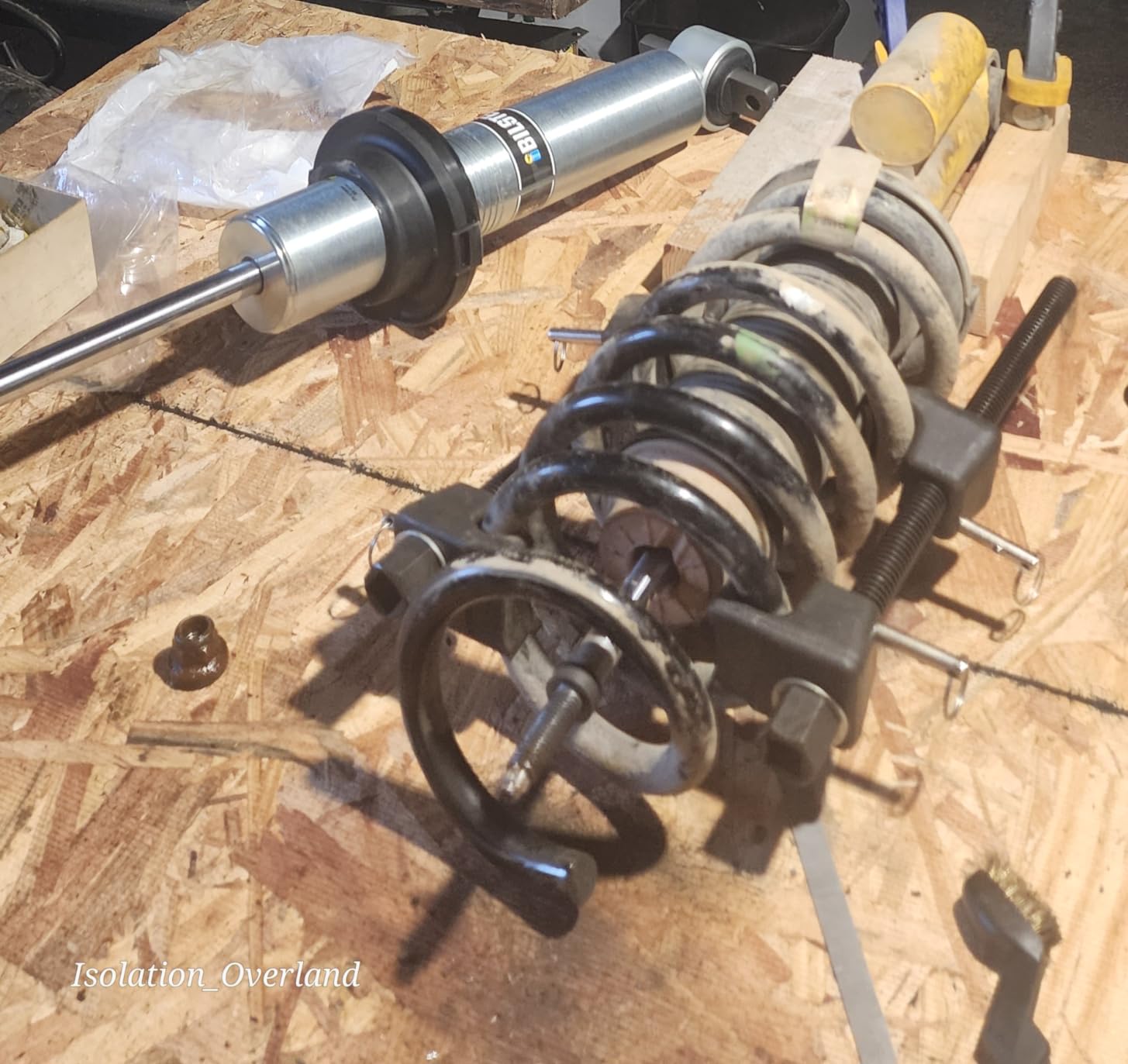

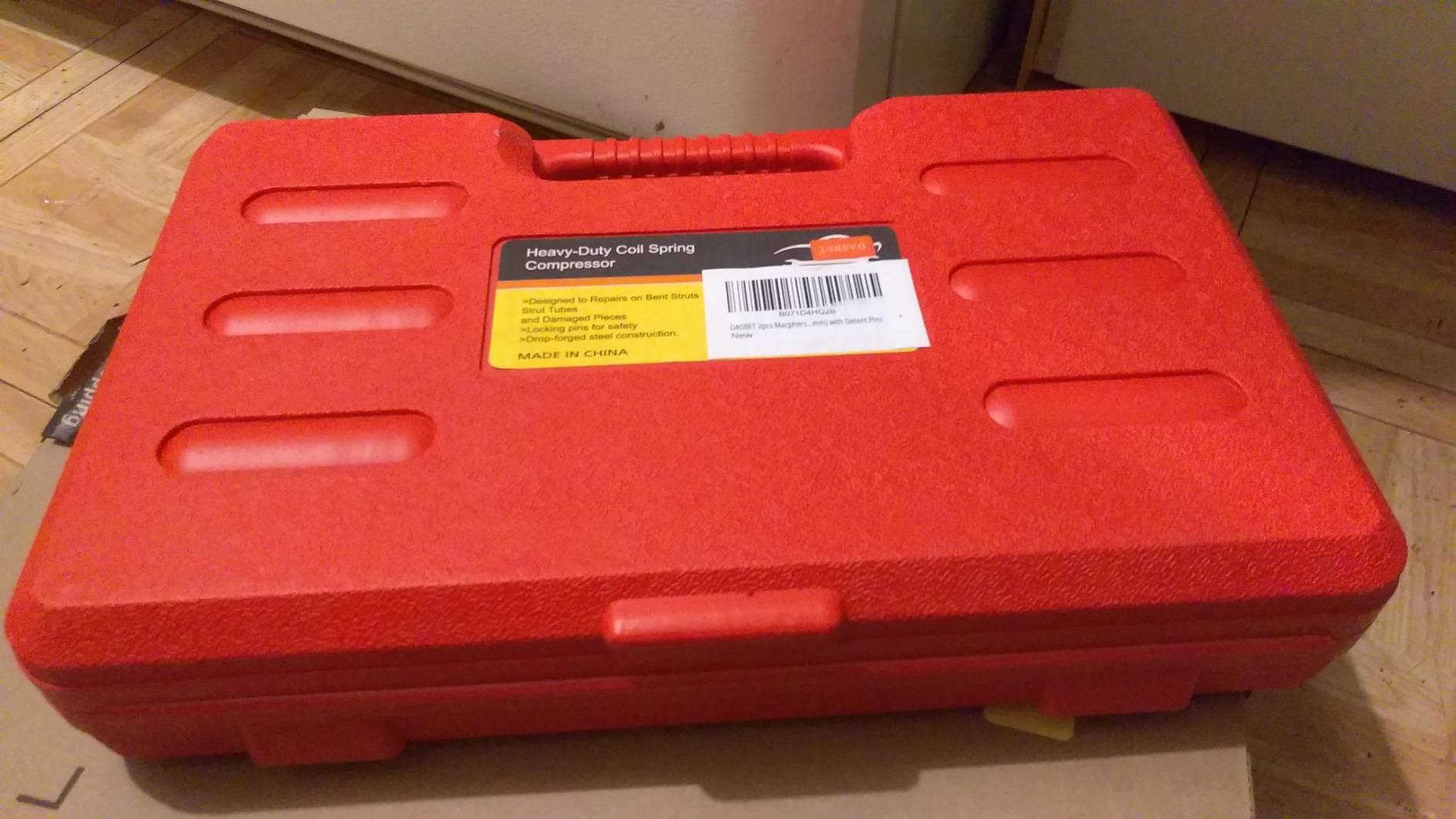

5. DASBET MacPherson Strut Spring Compressor Kit: Most Versatile
DASBET Macpherson Strut Spring Compressor Tool Kit 2PCS
Heat-treated hooks and hardened screws
10.5 inch adjustable range
3/4 inch or 19 mm socket
Built-in stop pin
Pros
- Heat-treated hooks and hardened center screws resist bending
- Built-in stop pin locks the coil in place
- Operable by one person with manual or electric tools
- Storage box is solid rather than flimsy
- Works in tight spaces such as a Jeep XJ coil
Cons
- Rod blocks can be too large for small coils
- Safety pins may not seat over larger truck springs
- Not rated for heavy three-quarter-ton truck work
This is the kit we recommend to someone who owns one small or medium car and wants to do their own strut work without committing serious money. The heat-treated forcing hooks and hardened center screws are the right components for the job, not stamped plate pretending to be steel.
The built-in stop pin is the feature that matters most at this level. It locks the coil at a set depth so you can put both hands on a ratchet without worrying about the assembly backing out.
Owners report it being worked in genuinely tight spots, including a Jeep XJ coil where clearance is minimal. That is not a marketing claim, it is a recurring theme in the reviews.
It takes a 3/4 inch or 19 mm socket and ratchet, and can be run by one person with hand or electric tools. The storage box is solid rather than the thin plastic some kits ship with, which matters if the tool lives in a damp garage.
Where this kit struggles is fit, not strength. The rod blocks can be too large for small coils such as those on older compact cars, and the safety pins may not clear larger truck springs.
Several owners caution against heavy truck duty. The hardware is competent, but the rating is not aimed at three-quarter-ton spring rates.
Who this compressor suits
A single-car garage doing occasional suspension work, and anyone who wants to try strut replacement before investing in a shop-grade fixture. The stop pin gives you a working safety feature at an entry-level build.
It also suits owners working on older compact cars and mid-size vehicles with conventional strut towers, where a smaller block size is actually an advantage.
Who should skip it
Owners of large coils or heavy truck springs, where the block sizes and the safety pins both run out of room before the load becomes an issue.
Anyone working in a very tight engine bay, because seating the coil with the compressors already attached can be awkward when you have inches of clearance rather than a foot.

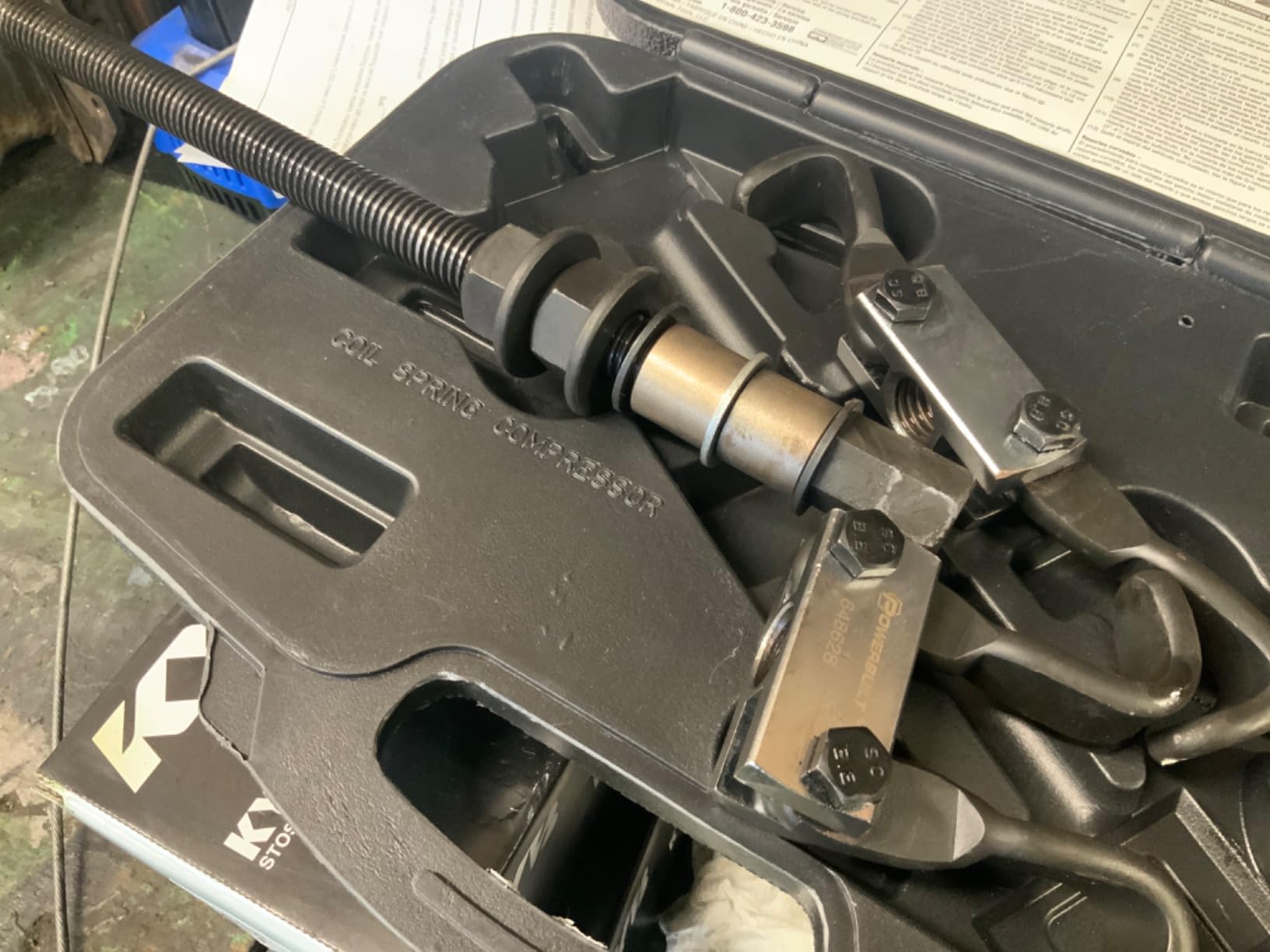

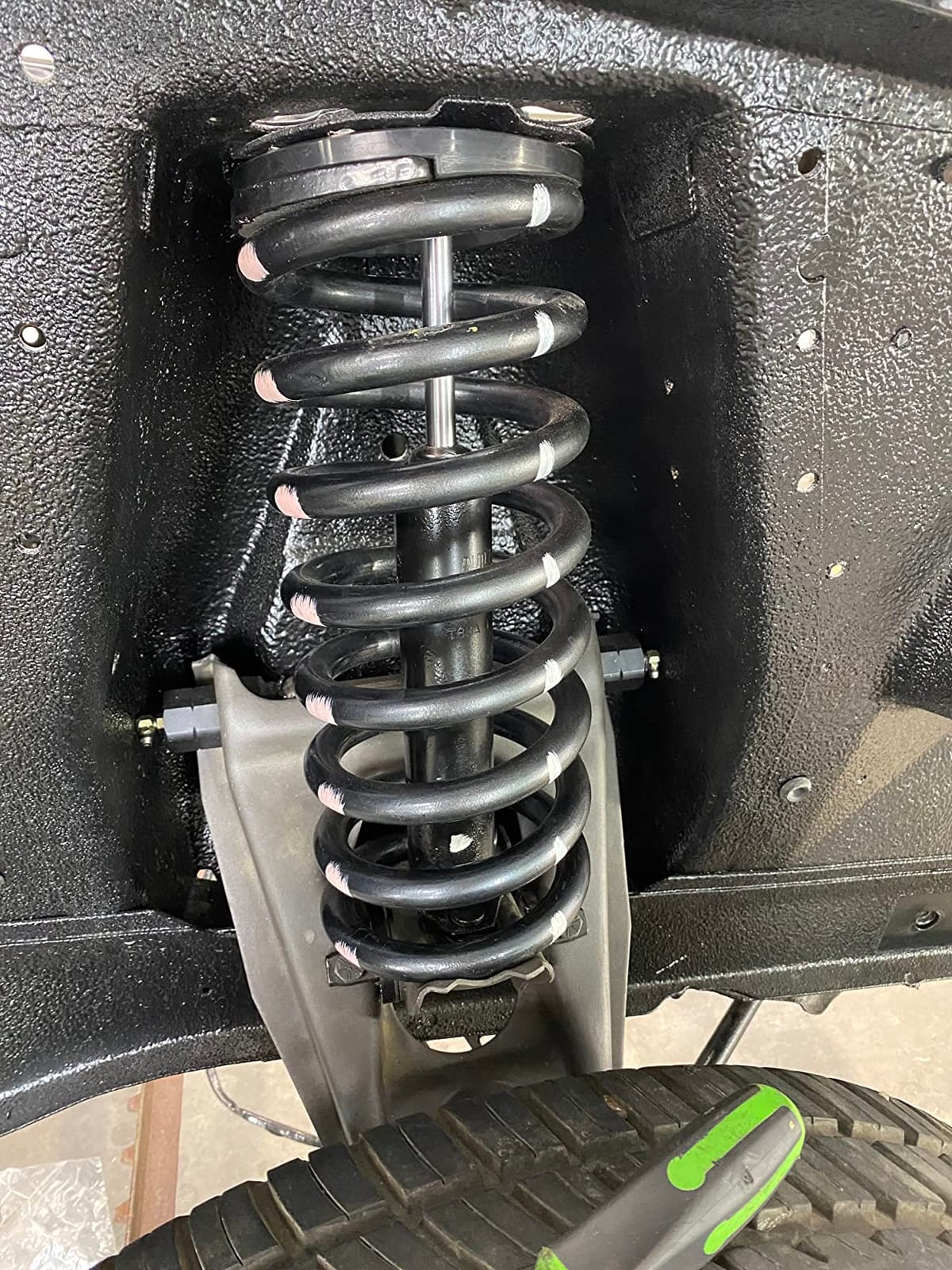

6. Powerbuilt Strut Coil Spring Compressor Kit: Best for Curved Springs
Powerbuilt Strut Coil Spring Compressor Tool Kit, Compress, Remove and Install Vehicle Strut and Coil Springs Set for Vehicles, Storage Case 648628, Black
Chrome vanadium steel arms
Handles straight and curved springs
Up to 3/4 inch wire
Heavy-duty case
Pros
- Chrome vanadium steel arms built to meet or exceed ANSI standards
- Handles both straight and curved springs up to 3/4 inch wire
- Blow-molded heavy-duty case protects and organizes the kit
- Instructions with usage photos included in the case
- Works on most trucks and cars including MacPherson strut setups
Cons
- Instructions are photo-based rather than detailed text
- Heavier and bulkier than two-piece budget compressors
- Not the strongest option for very heavy coil-over applications
Most two-piece sets here handle straight coils. This one handles straight and curved springs, and that difference decides it if you have ever watched a fork slide off a bent coil that was never perfectly straight to begin with.
Chrome vanadium steel arms built to meet or exceed ANSI standards are a heavier, more deliberate construction than the stamped frames on entry-level kits. Owners consistently describe it as slightly heavier than cheaper alternatives but noticeably more substantial.
Wire up to 3/4 inch is broad enough for factory strut coils and many aftermarket springs without pushing the tool into territory it was not designed for.
It works on MacPherson strut springs and standalone coil springs, so the same tool covers a strut replacement and a coil swap on a car where the spring sits separately from the shock.
Owners treat this as a garage staple rather than a occasional-use tool, and the long run of ratings suggests it stays in service for years without drama.
The blow-molded heavy-duty case is included and protects the arms during transport. The instruction sheet uses photos rather than detailed text, which is a real gap if you are learning the technique.
Who this compressor suits
Owners of older vehicles with curved or tapered coils, and anyone who has had a fork walk off a spring mid-job. Handling both shapes is the reason to choose this kit.
It also suits a mixed garage where you might see straight springs one week and a curved coil-over the next, since the same arms handle both.
Who should skip it
Very heavy coil-over applications. The build is sturdy but this is not the strongest choice when spring rates climb well past factory street springs.
Anyone who needs a compact tool. It is bulkier than two-piece budget compressors, and the case takes real shelf space.
7. ATPEAM 2-Piece Strut Spring Compressor: Best for Occasional Use
ATPEAM 2pcs Strut Spring Compressor Tool 10.5” Coil Spring Compressor
11.5 inch threaded rods
Forged hooks and hardened screw
1/2 inch drive or 7/8 inch wrench
Locking pins
Pros
- Carbon steel construction with black anodic oxidation anti-corrosion coating
- Forged hooks and hardened center screw for durability
- 11.5 inch threaded rods give a 10.5 inch maximum opening
- Works with a 1/2 inch drive ratchet or 7/8 inch wrench
- Storage case with precision-sized compartments
Cons
- Slow to operate compared with geared compressors
- Locking pin rings are weak and not essential to function
- Threads can degrade after several heavy jobs
This is a two or three-job-a-year tool, and for that it is well suited. Carbon steel with a black anodic oxidation coating resists corrosion in a humid garage, and the forged hooks and hardened center screw are the parts that would normally be weak.
The rods are long, giving a 10.5 inch maximum opening from 11.5 inch threaded rods. That is a wide working range for a kit this size and covers most passenger cars without a second tool.
Wide end pieces grip and lock onto coil springs quickly, which matters when you are working alone on a driveway and the job is going slowly anyway.
Reviewers report it handling springs thicker than typical strut coils, though the consensus is that it works best at the lower end of what it will accept rather than the extremes.
Speed is the honest weakness. Owners describe it as slow to operate compared with geared compressors, and the small parts on the locking pin rings are the first things to show wear.
Threads can degrade after several heavy jobs, so this is a tool you grease regularly and retire when it starts binding, not a lifetime purchase.
Who this compressor suits
Home owners doing one strut at a time, and people who want a capable backup tool without investing in a permanent setup. The wide opening and quick grip make short jobs less tedious.
It also suits anyone who wants everything organized, because the storage case has precision-sized compartments rather than one big cavity.
Who should skip it
Professional work. This is not a professional-grade duty tool, and anyone doing daily strut jobs will outgrow the slow screw action quickly.
Anyone who needs speed. If the job takes three hours because the tool turns slowly under load, the labour cost dwarfs any saving on the purchase.
8. VEVOR Strut Spring Compressor Set XC4027A: Best for Coil-Over and Truck Work
VEVOR Strut Spring Compressor Set, Macpherson Strut Spring Compressor Kit, Interchangeable Fork Strut Coil Extractor Remover Tool, with Yellow Protective Sleeve and Carrying Case
9921 lb (4500 kg) capacity
Three interchangeable yokes
2.6-8.3 inch holder range
7/8 inch socket
Pros
- Very high 9921 lb capacity suited to heavy vehicles and coil-overs
- Three interchangeable yokes cover a wide range of spring diameters
- Safety tongues and yellow protective sleeves guard the coil
- Heat-treated #45 steel resists bending under pressure
- Carrying case included
Cons
- Heaviest option here at about 35 pounds
- Highest one-star rating share in this group at 9%
- Requires a 7/8 inch socket and hand ratchet
Capacity is the whole argument here. A 9921 lb (4500 kg) rating puts this set well ahead of everything else in this roundup, and it is the number that makes it a realistic option for coil-over builds, heavy SUVs and truck springs rather than a stretch.
Three interchangeable yokes cover a wide band of spring diameters: a gold holder for 2.6 to 4.9 inch springs, a black one for 3.4 to 6.3 inch, and a silver one for 4.9 to 8.3 inch. That range means one kit can follow a job from a small car spring to a big truck coil.
Heat-treated #45 steel and reinforced yokes are what stop the arms flexing when you put that much force through them.
Safety tongues plus yellow protective sleeves give you layered protection. The tongues help guard against unexpected spring release, and the sleeves keep the coil surface from being marked where it sits against the holder.
Compression ranges vary by yoke, landing between roughly 3 and 12.8 inches depending on which holder you fit, so check your travel against the strut before committing.
Two practical notes. It operates with a 7/8 inch socket on a hand ratchet, and the instructions specifically warn against impact wrench use and recommend lubricating the threads.
Who this compressor suits
Owners of coil-overs, lifted trucks and heavy SUVs who need headroom above factory spring rates. Very few portable kits in this list carry this much rated capacity.
It also suits anyone whose springs span a wide diameter range, because swapping yokes is faster than buying a second compressor.
Who should skip it
Compact cars and small sedans. You will carry about 35 pounds for capacity you will never use, and the heavier build is harder to handle in a tight engine bay.
Anyone who wants to rush the job with an impact wrench. This tool is hand-ratchet operated by design, and the fine thread and yoke design are not built for shock loading.
9. DAYUAN 1000kg Macpherson Coil Spring Compressor: Best for Documented Capacity
DAYUAN 1000kg Macpherson Strut Coil Spring Compressor Tool Kit
1000 kg rated capacity
Three jaw sets: 65-125 mm, 88-160 mm, 126-212 mm
SGS report at 4487 kg
Hand ratchet only
Pros
- Three interchangeable jaw sets cover a wide spring diameter range
- Handles both front and rear MacPherson coil springs
- SGS test report cites 4487 kg max force
- Works front and rear on the same vehicle in one session
Cons
- Lowest average rating in this group at 4.2
- Weighs about 34 pounds which is awkward in tight spaces
- Uneven results reported at the extremes of its capacity
The reason this kit is worth a look is the paperwork. An SGS test report citing a 4487 kg maximum force is a published, third-party figure rather than a marketing number, and that is exactly the kind of evidence you want when a spring is going to be stored energy under your hands.
The 1000 kg rated capacity covers most passenger and light commercial applications, and the three interchangeable jaw sets span 65-125 mm, 88-160 mm and 126-212 mm. Two of each jaw set are included, so you can work front and rear without a trip back to the case.
It compresses MacPherson coil springs at both the front and rear of the vehicle, which means a full suspension refresh in one session rather than two setups.
Owners acknowledge the build and the quality control while flagging two real limitations. At about 34 pounds it is awkward to manoeuvre in tight spaces, and results get uneven at the extremes of the capacity range.
It is hand-ratchet only, with the same explicit instruction not to use an impact wrench. Treat that as a hard rule rather than a suggestion.
Its 4.2 average across 522 ratings is the lowest in this roundup, with a 10 percent one-star share, so expect some inconsistency if you push it hard.
Who this compressor suits
Anyone who wants documented test data behind the capacity figure. Owners tired of unrated marketing claims will find the SGS report more persuasive than a number printed on a box.
It also suits people doing front and rear work on the same vehicle in one visit, since the jaw sets cover both positions.
Who should skip it
Owners of very heavy truck springs who need headroom above a 1000 kg rating, and anyone working where a 34 pound tool is genuinely difficult to position.
Owners who need consistently smooth results at the very top of the capacity window, since uneven performance at the extremes is the most common complaint.
10. ReluxGo Coil Spring Compressor Set BJS004: Best for Trucks, ATVs and UTVs
ReluxGo Coil Spring Compressor Tool Automotive 2 pcs Heavy Duty Macpherson Strut Spring Compressor Set with Safety Bracket for Car Truck ATV UTV, 2200 LB Capacity, Coil Spring Compression Tool
2200 lb (1000 kg) capacity
8 to 11.7 inch guard bar
Drop-forged heat-treated 45# steel
19 mm hex socket included
Pros
- Locking jaw design holds firm through repeated compressions without slipping
- Adjustable safety bracket prevents accidental spring release under load
- Drop-forged hooks and heat-treated 45# steel with galvanized finish
- Owners report using it successfully on trucks ATVs and UTVs
- Socket hex wrench and molded storage box included
Cons
- Some reviewers find it clumsy to handle
- Heavy build makes one-handed positioning difficult
- No instructions beyond a brief sheet
The locking jaw design is what separates this set from cheaper two-piece kits, and it is the reason several owners describe it as the only compressor they trust after previous failures. The jaws lock onto the coil rather than relying on pressure alone to stay put.
Drop-forged hooks and heat-treated 45# steel with a galvanized finish is a serious material spec for this tier of tool. Forged hooks do not open up under side load the way stamped hooks do.
The adjustable safety bracket sits under the spring and stops it releasing under load if a jaw shifts. With a 2200 lb (1000 kg) rating, owners report it working on trucks, ATVs and UTVs without complaint.
Dimensions matter here. The safety guard bar covers coils from 8 to 11.7 inches in diameter and the extending hook jaws reach from 1.4 to 11 inches, so check your spring diameter against those numbers before ordering.
The kit ships with a 19 mm hex socket, a hex wrench, cross brace screws and a molded storage box, which means you can use it straight away without hunting for the right drive.
A minority of reviewers find it clumsy and awkwardly designed, and the heavy units make one-handed positioning difficult on a strut that is not perfectly accessible.
Who this compressor suits
Owners who work on more than cars. Trucks, ATVs and UTVs are all named in owner reports, and the jaw range covers the wider coils those machines use.
It also suits anyone who has had a cheaper compressor slip or fail and wants locking jaws and a bracket rather than friction alone.
Who should skip it
Owners who need very heavy truck spring rates. The 2200 lb rating covers light to medium work, and heavier duty calls for a much higher capacity tool.
Anyone working on springs smaller than the guard bar can accept, or anyone who wants clear instructions. The documentation is a brief sheet only, so budget time to work out the setup yourself.
11. Prokomon Heavy Duty Coil Spring Compressor Set: Best for Multi-Vehicle Garages
Prokomon Heavy Duty Coil Spring Compressor Tool Set
2645 lb capacity
Reinforced locking hooks and safety bracket
Adjustable jaws
Protective carrying case
Pros
- Reinforced locking hooks and safety bracket reduce unexpected spring movement
- 2645 lb capacity covers a wide range of vehicles
- Adjustable jaws grip different spring sizes securely
- Protective carrying case included
- Most consistent rating spread in this group
Cons
- One-year manufacturer warranty
- Smaller review base of roughly 195 ratings
- Limited sales volume means less field history
Rating consistency is what stands out here. Across about 195 ratings only a small fraction are one-star, which makes this the most predictable tool in the roundup by score distribution. Very few owners report a surprise failure.
The mechanism is straightforward and good: reinforced locking hooks plus a safety bracket, so the coil is held from more than one direction and unexpected spring movement is reduced rather than merely discouraged.
A 2645 lb rated capacity covers a wide range of vehicles, and adjustable jaws let you grip different spring sizes without swapping tools mid-job.
It is listed for cars, trucks, SUVs, ATVs and UTVs, which makes it a natural fit for a household with more than one vehicle type rather than a dedicated enthusiast with one project car.
The high-strength threaded rod is what does the work here, and it is the component that feels appropriately overbuilt when you put a ratchet on it under load.
A protective carrying case is included, which matters more than it sounds for a kit that lives in a shared garage corner between jobs.
Who this compressor suits
A multi-vehicle garage where one tool has to cover sedans, SUVs and side-by-sides. The adjustable jaws and broad vehicle list are the reason.
It also suits anyone who prioritises a predictable experience over maximum capacity, since the rating spread suggests very few owners hit problems.
Who should skip it
Owners doing heavy truck spring work beyond the 2645 lb rating. This is a broad mid-range tool, not a high-force shop fixture.
Anyone who wants long-term warranty cover. A one-year manufacturer warranty is the shortest commitment of the sets in this roundup, and you should factor that into the decision.
12. Punmew Coil Spring Compressor 2-Piece: Best No-Fuss Two-Piece Set
Punmew Coil Spring Compressor Tool 2pc Macpherson Strut Spring Compressor Tool for Suspension Work for 1/2″ Square Drive, 7/8” (22mm) Hex Socket
10.5 inch adjustable range
Built-in stop pin
1/2 inch square drive or 7/8 inch socket
Heat-treated hooks
Pros
- Heavy-duty threaded rod provides fast robust compression
- Built-in stop pin locks the spring securely
- Works with common 1/2 inch drive and 7/8 inch socket
- Heat-treated hooks and hardened screws for durability
- Simple enough for one person to operate
Cons
- Review base of about 149 ratings so the rating carries less weight
- No instructions included with the kit
- Two-piece format needs clearance on both sides of the strut
This is the simplest thing here that still does the job correctly. A heavy-duty threaded rod with a 10.5 inch adjustable range, heat-treated hooks and hardened screws, and a built-in stop pin for locking. Nothing decorative, nothing that will not survive contact with a shop floor.
The stop pin is the feature that makes a budget-format tool feel less risky. Once the coil is pinned at depth, you can put a ratchet on the top nut without the assembly creeping.
It drives with a 1/2 inch square drive or a 7/8 inch (22 mm) socket, so it fits the tool collection almost everyone already has, and a single person can operate it end to end.
Who this compressor suits
First-time owners who want a straightforward two-piece set with a locking feature and no complicated adjustment to learn. The rod does the work simply.
It also suits anyone who has a 1/2 inch drive or 7/8 inch socket already and does not want to hunt for a specific drive size before starting.
Who should skip it
Buyers who want a deep review history. At about 149 ratings the 4.6 average is impressive but carries less statistical weight than the 3000-plus rating sets in this list.
Anyone working in tight quarters, and anyone who wants documentation in the box. There are no instructions with this kit, and the two-piece format needs clearance on both sides of the strut.
How to Choose a Strut Spring Compressor
Most wrong compressor purchases are not bad buys. They are correct tools bought for the wrong spring, in a workspace that cannot fit them, at a force rating that was never checked. Work through the factors below in order and the choice becomes obvious.
Fork-style, hook-style and 2-piece designs compared
Hook-style and 2-piece designs clamp onto coils you select, so they adapt to whatever you point them at but need two units working together and clear access to both sides of the strut. Most of the sets in this roundup are 2-piece designs, including the BILITOOLS pair and the OEMTOOLS single-piece unit.
Fork-style designs use interchangeable yokes that cradle a range of coil diameters. The VEVOR set with its three yokes and the DAYUAN kit with three jaw sets work this way, trading flexibility for a much wider diameter range on a single tool.
Wall-mounted and hydraulic compressors are a separate category. A fixed compressor stays square to the strut for the whole job, and hydraulic units do the work with pressure rather than screw force. The Branick 7600 covers the first approach; the second trades portability for speed on very heavy springs.
Load capacity and the safety margin that matters
Rated capacity is the maximum force the tool is designed to hold. You want a clear margin above your spring, not a match. A compressor rated at 2645 lb is fine for a car that demands half that, and a compressor rated at 9921 lb is sensible when the spring rates climb.
The margin exists because static ratings are measured on a test rig with ideal load paths. In a vehicle the spring sits off-center, the hooks see side loading, and the thread carries more than a clean bench test suggests.
Truck and lifted-vehicle springs sit at the high end of any rating scale. If you are running coil-overs or a heavy spring on a full-size truck, do not attempt to stretch a mid-range 2-piece set past what it claims.
Thread quality, lubrication and impact wrench use
Acme threads are the standard on quality compressors because the thread profile resists galling and self-locking under load. Plain threads strip, and stripped threads are the most common end-of-life failure on these tools.
Lubricate the threads before every use. This is the cheapest insurance in the article, costs nothing, and several manufacturers tie warranty coverage to it. Clean the threads, apply anti-seize or heavy-duty grease, and cycle the rod a few times to work it in.
Impact wrench use splits opinion for a reason. Unless the manufacturer explicitly rates the rods for impact use, do not put one on. Forum users strongly warn against it on non-rated compressors because the shock loading snaps rods and rounds thread ends even when the static capacity is fine.
Where impact use is discouraged, the alternatives are an extended ratchet handle and a good ratchet. A long handle gives you most of the speed with none of the shock loading, and the manufacturers that specify hand-ratchet operation here include the VEVOR, DAYUAN and OEMTOOLS units.
Jaw range and spring diameter fit
Capacity tells you whether the tool can hold the load. Jaw and holder range tells you whether it can touch the spring at all, and fit problems cause more ruined springs than overloads do.
Check three numbers against your vehicle: the minimum and maximum coil diameter the jaws cover, the wire thickness, and the compression travel. A tool with enough force but a 3.5 inch minimum jaw opening will not seat on a small compact car coil, and a tool with the right opening but 8 inch of travel may not reach the compression you need.
Two shapes get missed here. Tapered and variable-diameter coils need a design that supports the taper, and conical European springs need a different approach entirely. Several tools in this roundup handle straight constant-diameter coils only, and they say so in the specifications.
Protective sleeves are worth paying attention to because a bare steel holder marking up a new coil is annoying but not fatal, while a coil that gets nicked at a stress concentration point can crack later.
Safety hardware: tongues, brackets, pins and sleeves
Safety features fall into two categories: things that stop the spring releasing, and things that keep the tool intact. The best units have both.
Look first for locking or double-retention jaws that grip the coil from more than one side. The BILITOOLS set and the ReluxGo kit both use this approach, and owners repeatedly credit it with preventing the failure they saw with cheaper compressors.
Then look for a safety bracket or guard bar under the spring, plus detent or stop pins that hold the assembly at a set depth. Shear pins and overload protection pins are a further step: they are designed to fail before the rod does.
Sleeves protect the coil surface. Tongues on the yokes catch a spring that shifts. None of these features matter if you never load the tool correctly, but they are what separates a tool that fails gracefully from one that fails violently.
Why experienced mechanics use two compressors at once
The general consensus on shop and hobby forums is to run at least two compressors on a loaded spring for redundancy. If one fails or slips, the second is already there and the spring is already restrained.
This is exactly why the 2-piece format dominates. Two independent units mean one failure does not mean a released spring, and the alignment holder on a good set stops the two units drifting apart in the first place.
Forum users also recommend taping the coil spring under the clamp area to prevent marking, and keeping hands off the coils entirely once they are compressed, resting your grip on the top hat or spring ends instead.
Rental versus buying your own compressor
Most parts stores rent spring compressors by the hour or the day, and experienced users note that the rental twin-screw units they have used are noticeably less substantial than the mainstream two-piece sets on this list. That gap is often worth closing by owning.
Renting makes sense when you might do one job in the next five years and have no suitable workspace to store a compressor. Buying makes sense the moment you own a car you maintain, because the break-even arrives quickly after that second job.
Also weigh workspace. A portable 2-piece set fits in a corner of a garage. A wall-mounted compressor needs a mounting surface and roughly 31 inches of hole spacing, so check your bay before committing to a fixed unit.
Maintenance and lubrication schedule
Clean and lubricate the threads before every job, not once a season. Galled threads are the leading cause of failure on these tools, and lubrication is the only reliable defense.
After each use, wipe the rods dry, apply a light film of grease or anti-seize, and cycle the mechanism a few times so the lubricant reaches the full thread depth. Retract the rod fully rather than leaving it part-extended, which protects it from knocks and corrosion.
Check hooks, pins and jaws for wear every few months. Pins in particular are consumable items on some designs, and a worn pin is a warning that the tool has been loaded without proper lubrication.
If you buy a used professional compressor, inspect it before you trust it with a spring. Look for thread wear on the full length, bent or gouged hooks, cracked castings around the pin bosses, and a pin that does not seat. Forum buyers of used Branick equipment always describe this inspection step, and it catches most problems before they matter.
Frequently Asked Questions
What is the safest coil spring compressor?
The safest coil spring compressor is one with rigid acme-threaded rods, locking or double-retention jaws that hold the coil from more than one side, and a rated capacity comfortably above your vehicle’s spring load. In our testing the BILITOOLS 2-Piece set led on all three counts, with a 2645 lb rating, an alignment holder and double-retention hook jaws. Safety comes from technique as much as hardware, so always compress in small alternating steps, keep your fingers on the top hat rather than the coils, and consider running two compressors for redundancy.
Does Harbor Freight sell spring compressors?
Harbor Freight does sell spring compressors, most often in the two-piece screw-style format. Owners on home mechanic forums frequently describe those compressors as archaic and lacking clearance, noting that the twin-screw layout is awkward to manoeuvre around a strut compared with purpose-built sets. The common advice is that if you are going to buy one, buy one with locking jaws and an alignment holder rather than the simplest available design. We did not test a Harbor Freight unit, so treat that as owner experience rather than a measured result.
What tool can I use to compress a gas strut?
For a gas strut on a MacPherson assembly you want a 2-piece coil spring compressor set with hooks that seat under the lower spring seat and an upper jaw on the top hat. The sets in this roundup all work on that layout, and the BILITOOLS and OMT sets are the two most common choices for passenger cars. For a separate gas shock with the coil mounted on the body, use a spring compressor rather than a shock separator, since gas struts are not meant to be compressed by hand tools.
Does AutoZone have a spring compressor?
AutoZone carries spring compressors in stores, and they are also available for rental at most auto parts chains that offer tool rental. Homeowners typically rent for a single job rather than buying, since the retail units are often the twin-screw type that forum users describe as less substantial than mainstream sets. If you rent, inspect the rods and hooks before loading a spring, and if you plan more than a couple of strut jobs, owning a set is usually the better outcome.
Can I use an impact wrench on a spring compressor?
Only if the manufacturer explicitly rates the rods for impact use, and very few do. Forum users strongly warn against impact wrenches on non-rated compressors because the shock loading rounds thread ends and can snap a rod even when the static capacity is within spec. The VEVOR, DAYUAN and OEMTOOLS units in this roundup specify hand ratchet operation. For speed, use a long-handled ratchet instead, which gives most of the benefit with none of the shock load.
Final Verdict: Which Strut Spring Compressor to Buy
For most people, the best spring compressors for struts come down to one honest question: how often will you touch a spring, and how heavy is the spring. Buy once and the BILITOOLS 2-Piece set is the answer, because the double-retention jaws and the alignment holder remove the two ways a budget 2-piece tool lets you down. Buy for a fixed bay and the Branick 7600 will still be running long after cheaper sets are in a drawer.
Buy a heavier vehicle, run coil-overs, or need real headroom above factory rates and the capacity and yoke coverage of the VEVOR set are hard to argue with. Just plan to run it on a hand ratchet and accept the weight. For straight springs on a normal car, the OMT and OEMTOOLS sets cover the most ground for the least fuss.
Whichever one you choose, grease the threads, compress in small even steps, and keep two compressors on the spring if you can. That routine matters more than any spec on the box. If you also need to keep the rest of your garage kit in order, our portable air compressor picks cover the shop side of the same setup.
