There is a specific kind of frustration that every experienced owner knows. The ABS light comes on, you grab the basic code reader from the glovebox, and it tells you there are no codes. No engine codes, no pending codes, nothing. The light is still on the next morning, and now you own a mystery.
That empty result is not a broken reader. It is a working reader pointed at the wrong module. OBD2 was mandated in 1996 as an emissions standard, so a basic code reader talks to the powertrain module and stops there. The anti-lock braking system, the airbag module and the electronic parking brake sit on the same 16-pin port but answer to entirely different addresses. A scanner that reads ABS codes has to be able to address those modules, and that single requirement separates the cheap readers from the tools worth owning.
Below is our roundup of the best automotive diagnostic scanners for abs codes, covering twelve units that can reach the braking and restraint modules rather than just the engine. We looked at module coverage, live data, service functions, update policy and form factor, and we weighted the things owners repeatedly tell us matter most: reading and clearing ABS codes, seeing wheel speed sensor data live, and not being forced into a subscription after the box is open.
If you want the wider picture of code readers first, our guide to the best OBD2 scanners covers the engine-only tier in more detail, and our Bluetooth OBD2 scanner roundup goes deeper on the phone-based dongles that show up twice in this list.
Table of Contents
Top 3 Picks for Best Automotive Diagnostic Scanners for ABS Codes (October 2026)
The short version: the BlueDriver reads the most systems for the least effort, the Innova 5610 is the only unit here with true bidirectional control, and the ANCEL FX2000 covers the four systems most owners need on a standalone screen.
BlueDriver OBD2 Bluetooth Scanner
- Reads ABS
- SRS
- TPMS and transmission codes
- VIN-matched technician fix reports
- No subscription
- phone and tablet
Innova 5610 Bidirectional Scan Tool
- Active component commands
- Enhanced Data Stream for ABS and SRS
- Free lifetime updates
- US-based ASE support
ANCEL FX2000-US 4-System Scanner
- Engine
- ABS
- SRS and transmission reads
- Standalone with no phone needed
- Free lifetime updates
- Freeze frame and readiness
All 12 Scanners Compared for ABS and SRS Work in 2026
Every tool below reaches at least the ABS module. The columns that separate them are service functions, bidirectional control and how the tool gets its updates, so read the feature list rather than the headline claim.
| Product | Specifications | Action |
|---|---|---|
| BlueDriver OBD2 Bluetooth Scanner |
|
Check Latest Price |
 FOXWELL NT604 Elite |
|
Check Latest Price |
| Innova 5610 Bidirectional Scan Tool |
|
Check Latest Price |
| ANCEL FX2000-US |
|
Check Latest Price |
 LAUNCH CRP123I V3.0 Elite |
|
Check Latest Price |
 FOXWELL NT624 Elite |
|
Check Latest Price |
 TOPDON AD600S |
|
Check Latest Price |
 TOPDON AD500 |
|
Check Latest Price |

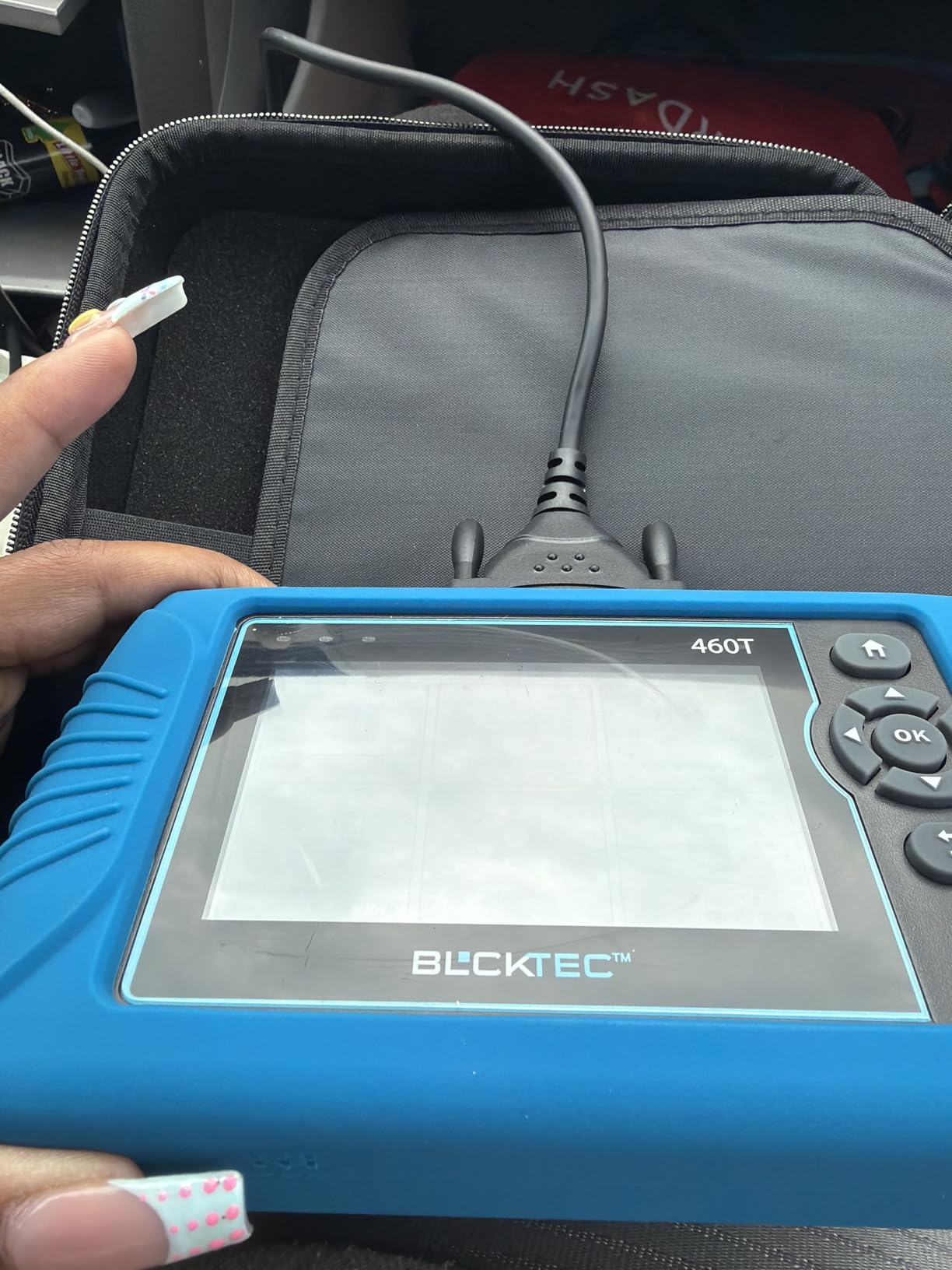

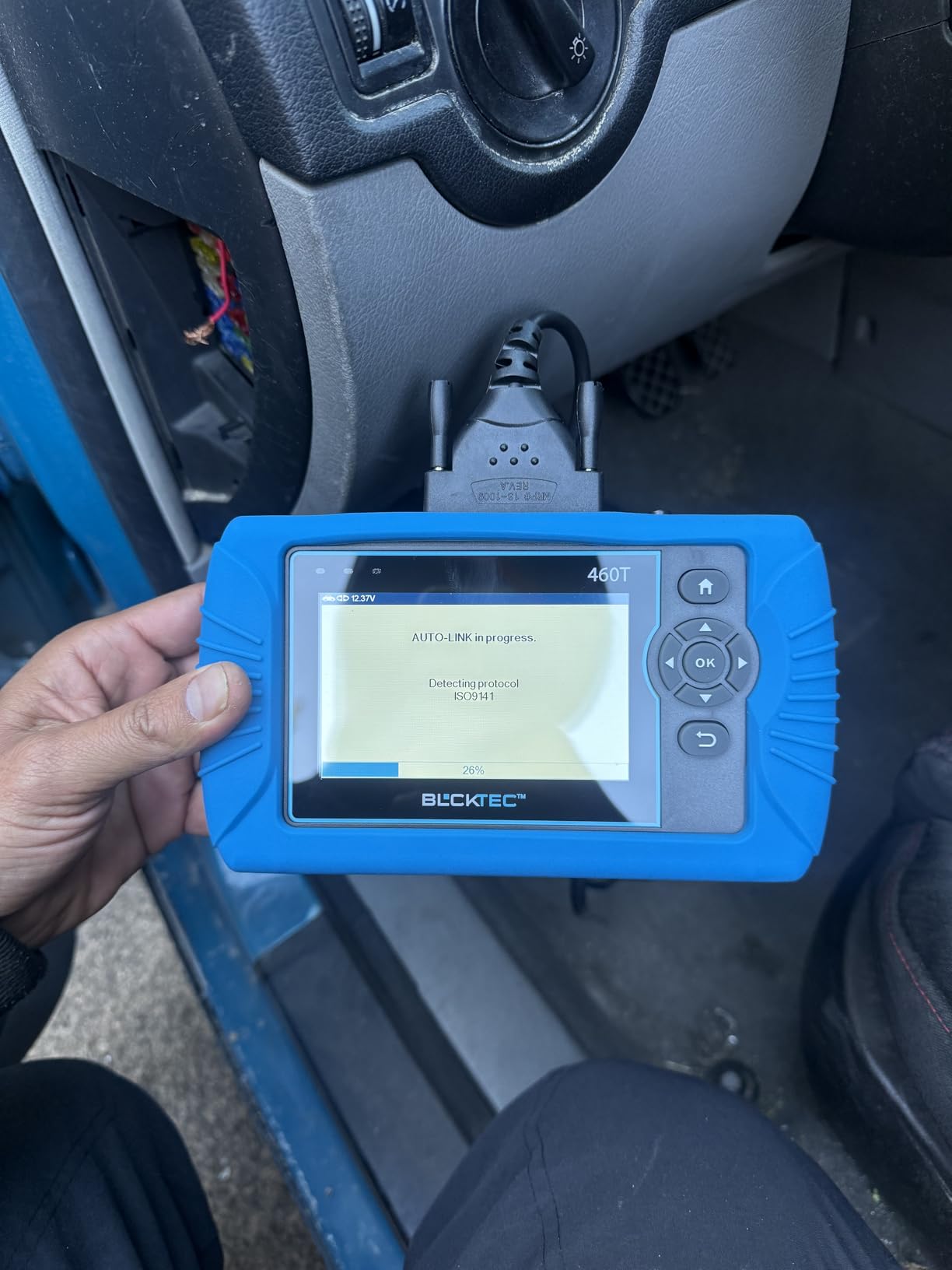

 BLCKTEC 460T |
|
Check Latest Price |

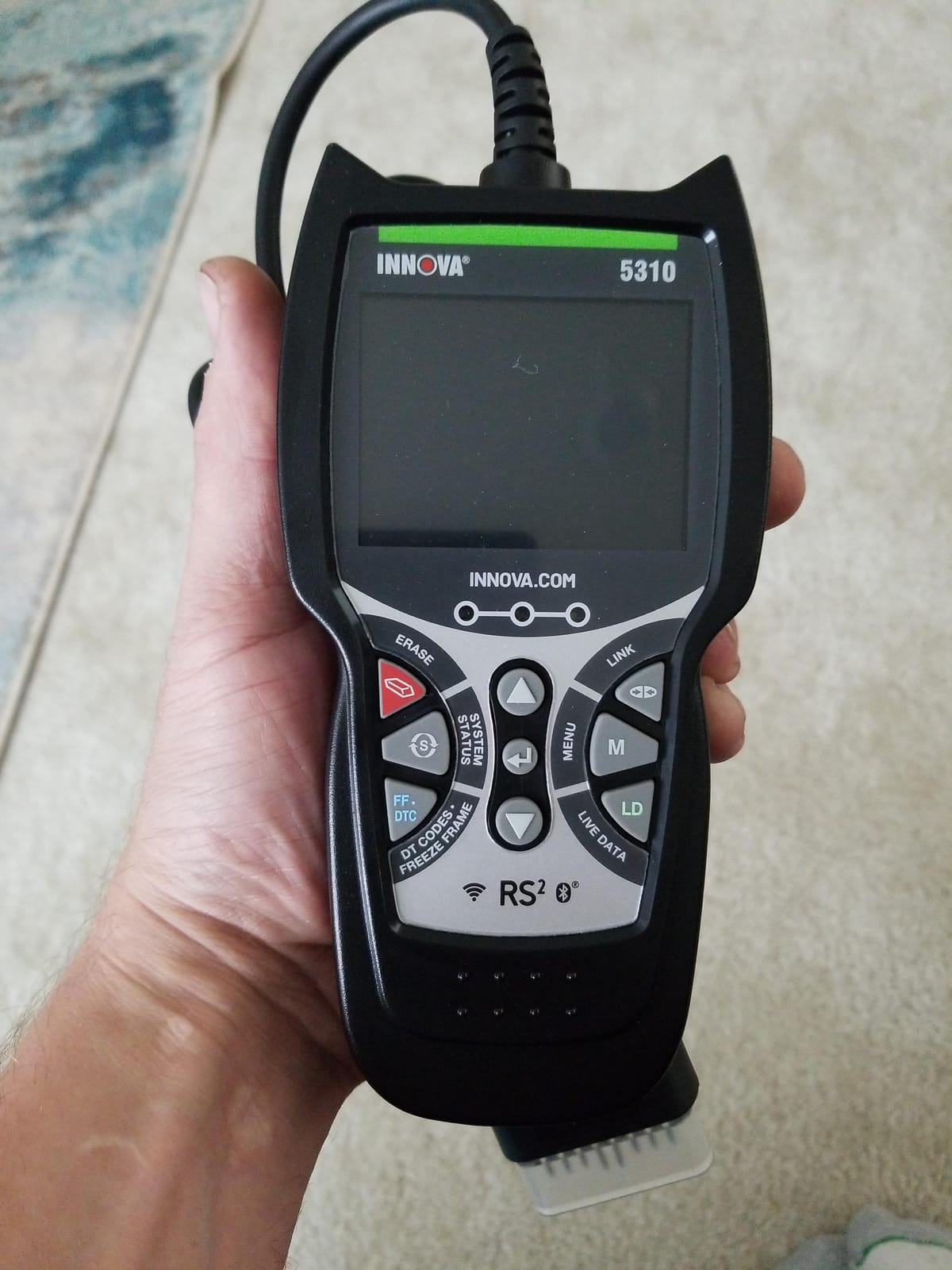

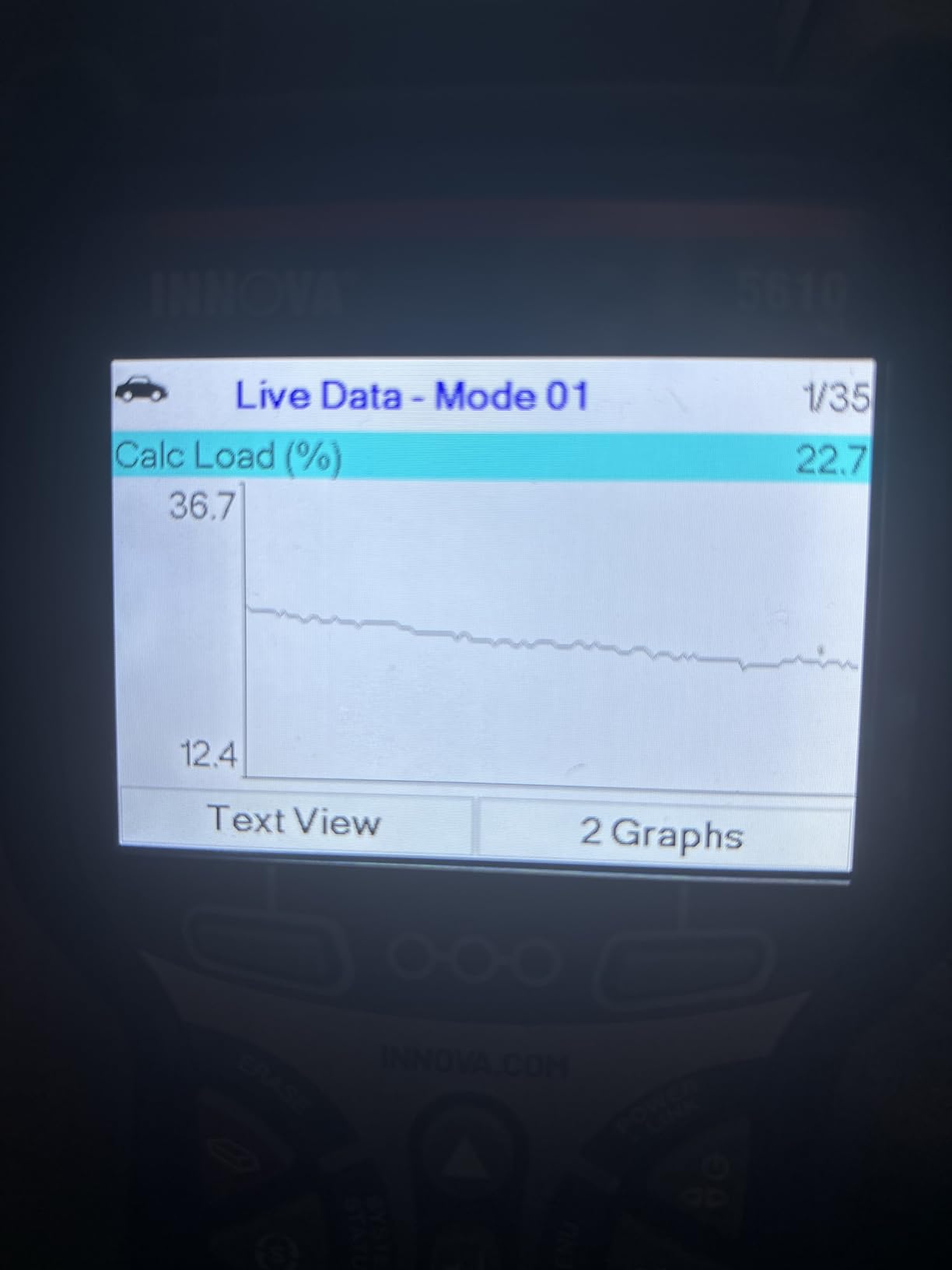

 Innova 5310 |
|
Check Latest Price |

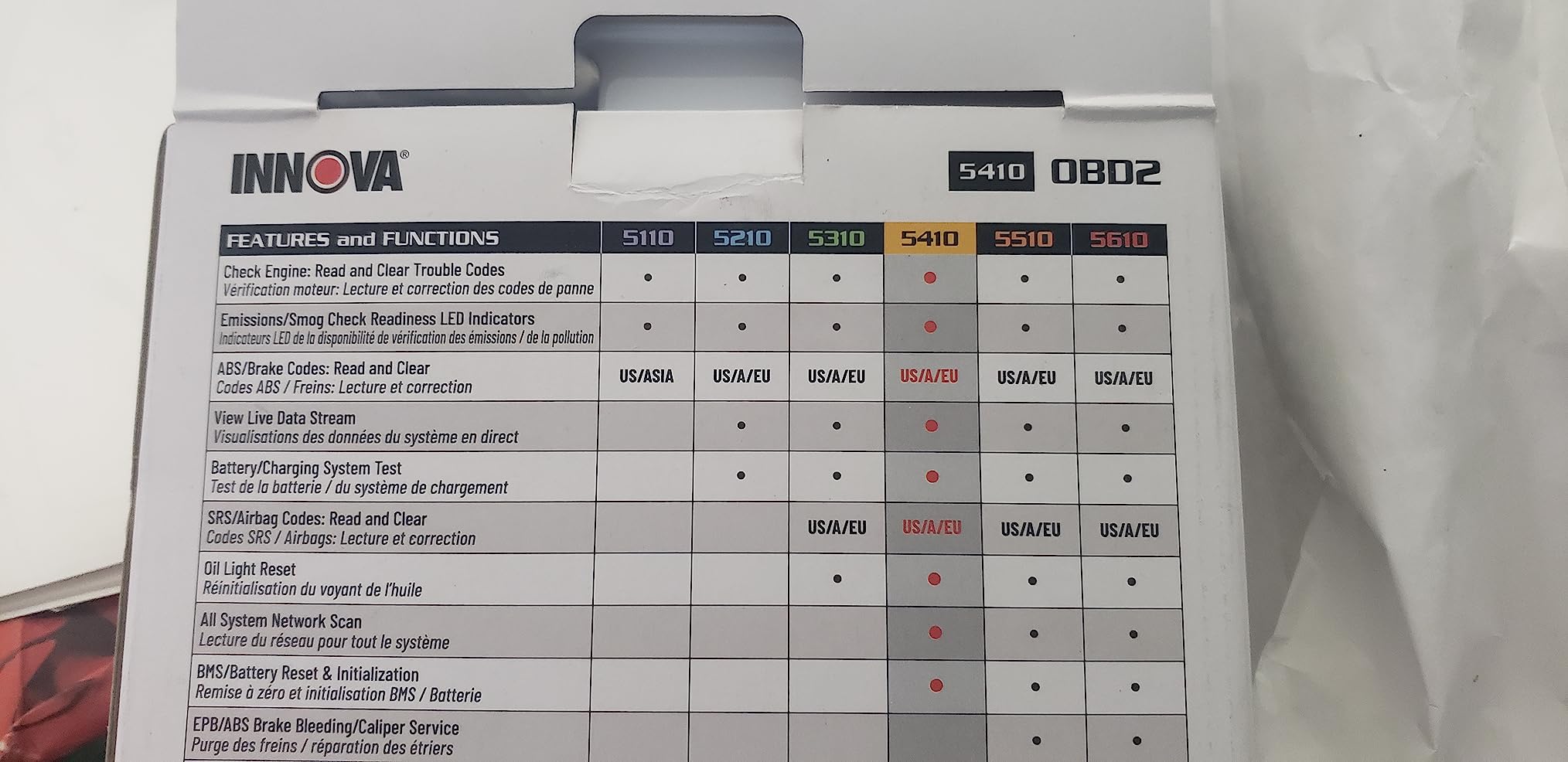

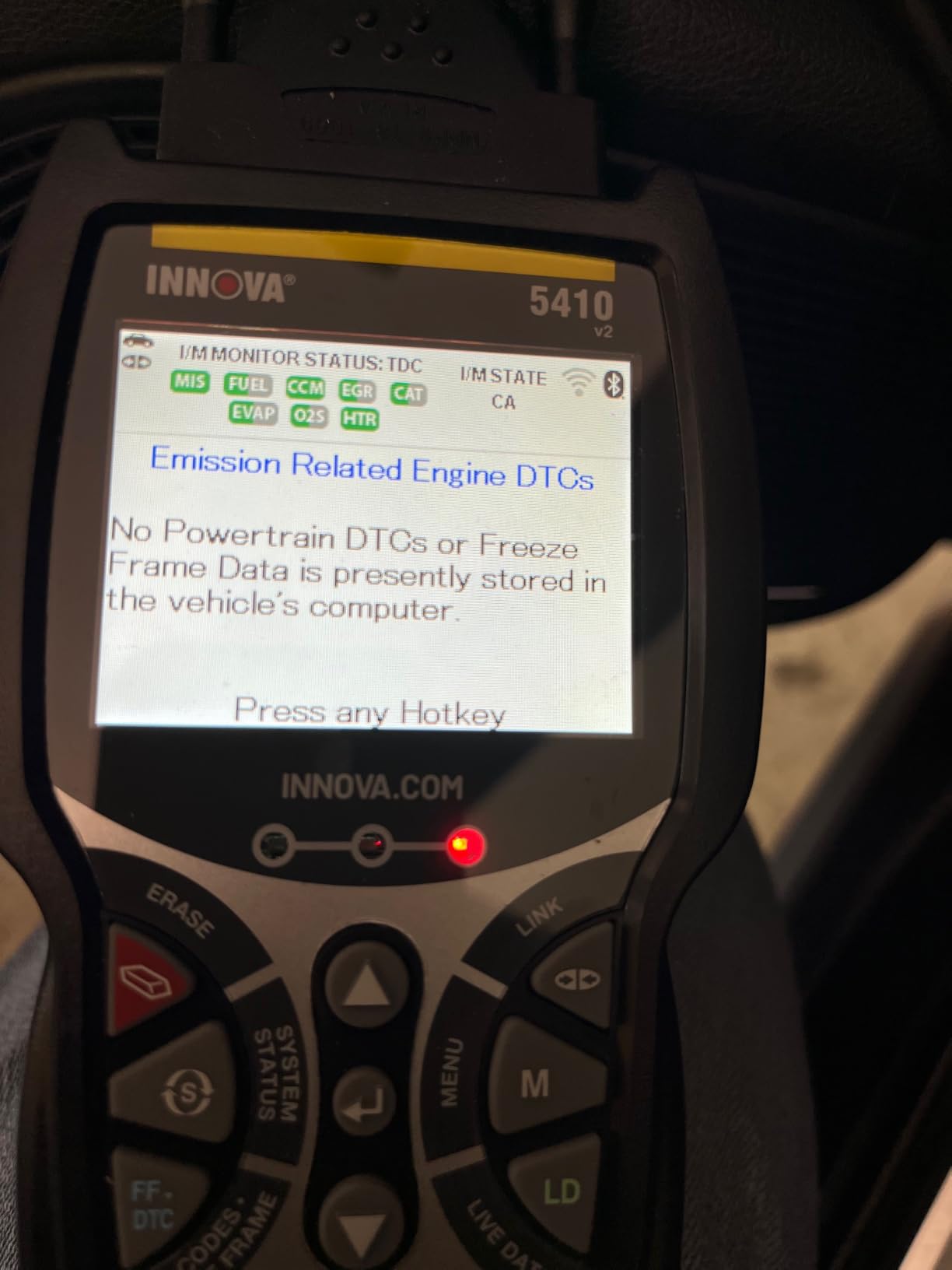

 Innova 5410 |
|
Check Latest Price |
 TOPDON AD900 Lite |
|
Check Latest Price |
1. BlueDriver OBD2 Bluetooth Scanner – Best Overall for ABS Codes
BlueDriver OBD2 Scanner Bluetooth, No Subscription, ABS SRS TPMS
ABS, SRS, TPMS and transmission codes
2.08 oz Bluetooth dongle
1996+ North American gas vehicles
Pros
- Reads and clears ABS
- SRS
- TPMS and transmission alongside engine codes
- Technician-verified fix reports matched to your VIN
- No subscription and no account needed
- Wireless so nothing dangles in the footwell
- 62000-plus reviews and a 4.5 star average
Cons
- Needs a phone or tablet
- no standalone screen
- Limited to 1996+ North American gas vehicles
- Enhanced module data varies by make and model
The BlueDriver is the tool we keep reaching for when a car arrives with an ABS light and a question. It is a Bluetooth dongle, roughly the size of a deck of cards, that pairs with a free app on iOS or Android. You plug it into the OBD2 port, open the app, and the auto-scan walks engine, ABS, SRS, airbag, TPMS and transmission without you having to tell it which module to look at.
That auto-scan behaviour matters more than it sounds. Reading the ABS module is not just about a code list. What separates this one from a bare code reader is the fix data: when it returns a fault, the app matches it to a technician-verified report tied to your VIN, so you get a likely cause and a repair direction rather than a bare number. For an intermittent wheel speed sensor fault on a Lexus, that is the difference between guessing and knowing.
We also like that it is genuinely a full read-and-clear tool for the chassis and restraint systems, not just the powertrain. Live data monitoring, freeze frame, smog readiness and Mode 6 results are all in the same app, and there is no subscription tier and no account requirement. Over four years of ownership that matters, because the subscription model is exactly how an inexpensive scanner quietly becomes an expensive one.
Owners on car forums describe this unit as the most reliable Bluetooth option at the money, and the review numbers back that up at more than 62,000 reviews averaging 4.5 stars. The catch is geography: it covers 1996 and newer North American gas vehicles. If you own a diesel, a pre-1996 truck or anything outside North America, look elsewhere on this list.
What you get for the effort of an app
The phone requirement is real, and it is the single most common complaint. If you do most of your work in a dark driveway with gloves on, swiping through an app is slower than a handheld with physical keys. Innova solved that with a screen unit, and we have covered the Bluetooth form factor in more detail in our Bluetooth OBD2 scanner guide.
Second, the depth of ABS live data is uneven across makes. You will get consistent results on wheel speed data across most supported vehicles, but the deeper module-specific PIDs are strongest on domestic and Japanese makes. Check the coverage list for your exact year, model and trim before you commit.
When to skip it
Skip the BlueDriver if you need bidirectional control, because it cannot command a component. It also will not perform an ABS bleed or an EPB retract. If you regularly do rear brake work on a modern vehicle with an electronic parking brake, you want a tool with service functions rather than a read and clear dongle.
It is also the wrong shape for a shop that wants a tool sitting on the bench all day. At 2.08 ounces it lives in a glovebox, not on a cart, and that is a feature for one owner and a limitation for another.

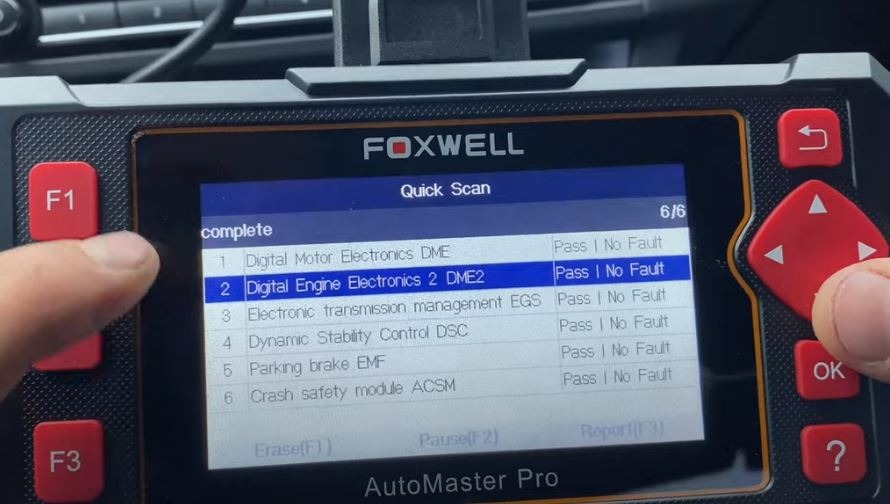

2. FOXWELL NT604 Elite – Best Compact Read-Only ABS Scanner
FOXWELL Car Scanner NT604 Elite OBD2 Scanner ABS SRS Transmission
Engine, ABS, SRS and transmission
4.3-inch screen, corded
Software preloaded, 60+ brands
Pros
- Compact handheld covering four systems
- Works out of the box with newest software preloaded
- AutoVIN with 60-plus brand support and no software fee
- Sturdy protective case rather than a thin plastic bag
- Lifetime software updates
Cons
- No service functions at all
- so no ABS bleed or relearn
- SRS crash and collision data cannot be cleared
- AutoVIN can fail on some older vehicles
The NT604 Elite is the small, honest handheld. It covers engine, ABS, SRS and transmission, and it does not pretend to do anything more. The 4.3-inch screen is not a touchscreen, the body is compact, and the software is already loaded when it arrives, which removes the single most common complaint about cheaper tools that ship empty.
For reading and clearing ABS codes on a supported vehicle, that is genuinely enough. Live data streaming, a built-in DTC library, playback and print are all included, and the autoVIN pulls vehicle details quickly without a separate software purchase. The unit runs on Linux and is powered from the vehicle, so there is no battery to age out.
What you give up is everything active. There are no reset or re-learn functions of any kind, which means no ABS bleeding, no oil reset, no throttle relearn and no EPB. The SRS module also refuses to clear crash and collision data, which is deliberate on many manufacturers and worth knowing before you buy on the promise of a full airbag reset.
Reviewers land on the same read: a well-reviewed mid-tier handheld with roughly 5,000 ratings at 4.4 stars, valued for quick out-of-box setup and read-only breadth. The 4.3-inch screen and included hard case make it easy to keep in a tool bag.
Where it fits in your workflow
Think of the NT604 Elite as a step up from a basic engine reader and a step down from a service-capable tablet. If your ABS light comes on, you want to know whether it is a wheel speed sensor, a low battery voltage or a module fault, and you want to clear it after the repair, this does that job well.
It also works as a second opinion. Owners with several vehicles often keep one of these alongside a phone-based dongle so a dead phone battery does not end the diagnosis.
When to spend more
If you bleed ABS hydraulics, retract an electronic parking brake for pad changes, or calibrate a steering angle sensor, move up. Those are service functions, and this unit has none of them. Trying to work around that with a read-only tool is where people end up replacing parts that were never the problem.
Vehicle coverage is the other limit. The 60-plus brand list is broad, but the autoVIN can stumble on some older vehicles and certain makes, so verify your year and model first.
3. Innova 5610 – Best for Bidirectional Control
Innova 5610 OBD2 Bidirectional Scan Tool – Understand Your Vehicle, Pinpoint What’s Wrong, and Complete Your Repairs with Less Headache, Updates Included, US-Based Technical Support
Bidirectional with active testing
3.5-inch screen, 1.3 pounds
ABS, SRS, transmission and engine live data
Pros
- True bidirectional control that can command components for active tests
- Enhanced Data Stream live data across ABS
- SRS
- transmission and engine
- Very fast wired connection compared with Bluetooth dongles
- Detachable cable with a light for dark footwells
- Free lifetime updates with US-based ASE-certified support
Cons
- Coverage varies by make
- model and year and excludes FCA AutoAuth
- Keys are not backlit for dim cabins
- TechDoc features in the app need a paid subscription
The Innova 5610 is the only scanner in this group that is genuinely bidirectional, and for ABS work that is the feature that separates a diagnosis from a guess. Instead of only reading codes, it can command components: turn the fuel pump on and off, cycle the electronic parking brake, and run active tests to see whether a solenoid or actuator responds when commanded.
Its enhanced data stream gives you live data for ABS, SRS, transmission and engine with module-specific PIDs rather than the small generic set most code readers expose. That is what lets you watch wheel speed sensor values while you spin a wheel and catch the one that drops out. The wired connection is also noticeably faster than a Bluetooth link, which matters when a module is slow to answer.
Build quality is a step above the generic handhelds. The detachable cable is long with a light for dark footwells, it runs off the vehicle, and it keeps data on AA batteries. Support is US-based with ASE-certified technicians, and device updates are free for life with no subscription on the hardware itself.
Reviewers consistently describe it as the middle ground between a consumer tool and professional equipment, and the 4.4 star average across more than 4,000 ratings supports that. It sits high in Amazon’s code reader rankings for a reason.
What bidirectional actually buys you
Active testing lets you narrow a fault to a component without parts guessing. If the ABS pump, valve or solenoid does not respond to a command, you have your answer in seconds. On an intermittent fault, you can also command a component while watching live data to see whether the module reacts as it should.
The reset and re-learn functions are dealership-level procedures, and the app pairing through RepairSolutions2 gives you wireless functionality and printable reports on top of the wired workflow. Interface language switches between English, Spanish and French.
Honest limits before you buy
This is not a universal tool. Coverage varies by make, model and year, and it has no FCA AutoAuth gateway access, so 2017 and newer Chrysler, Dodge, Jeep and Fiat vehicles are out of reach for some functions. It is also US-only coverage.
Two smaller annoyances: the keys are not backlit, which is painful in a dark cabin, and only generic live data can be saved because OEM live data cannot be uploaded or exported. The TechDoc layer inside the app is a separate paid subscription if you want repair documentation beyond the free lifetime device updates.

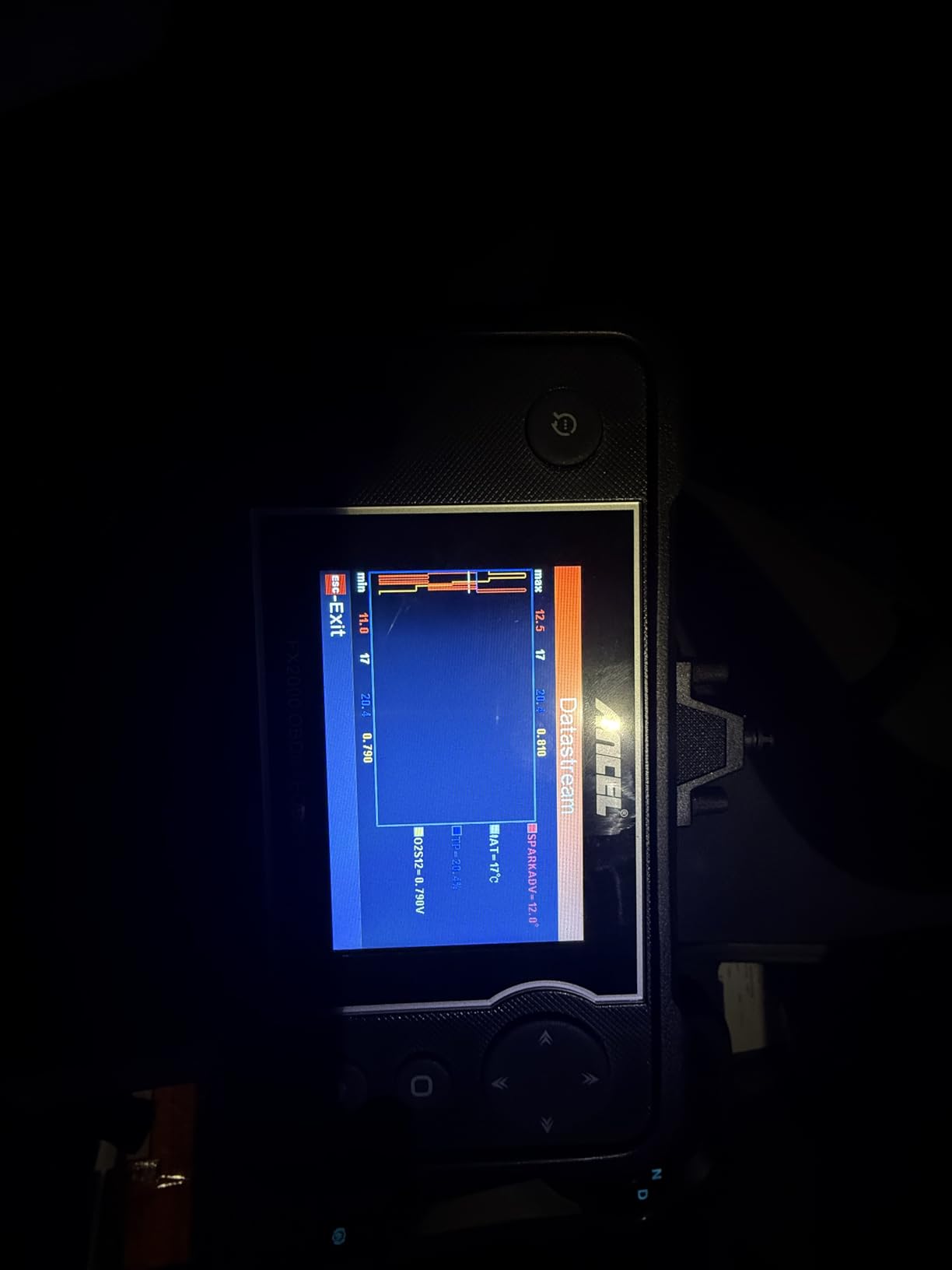

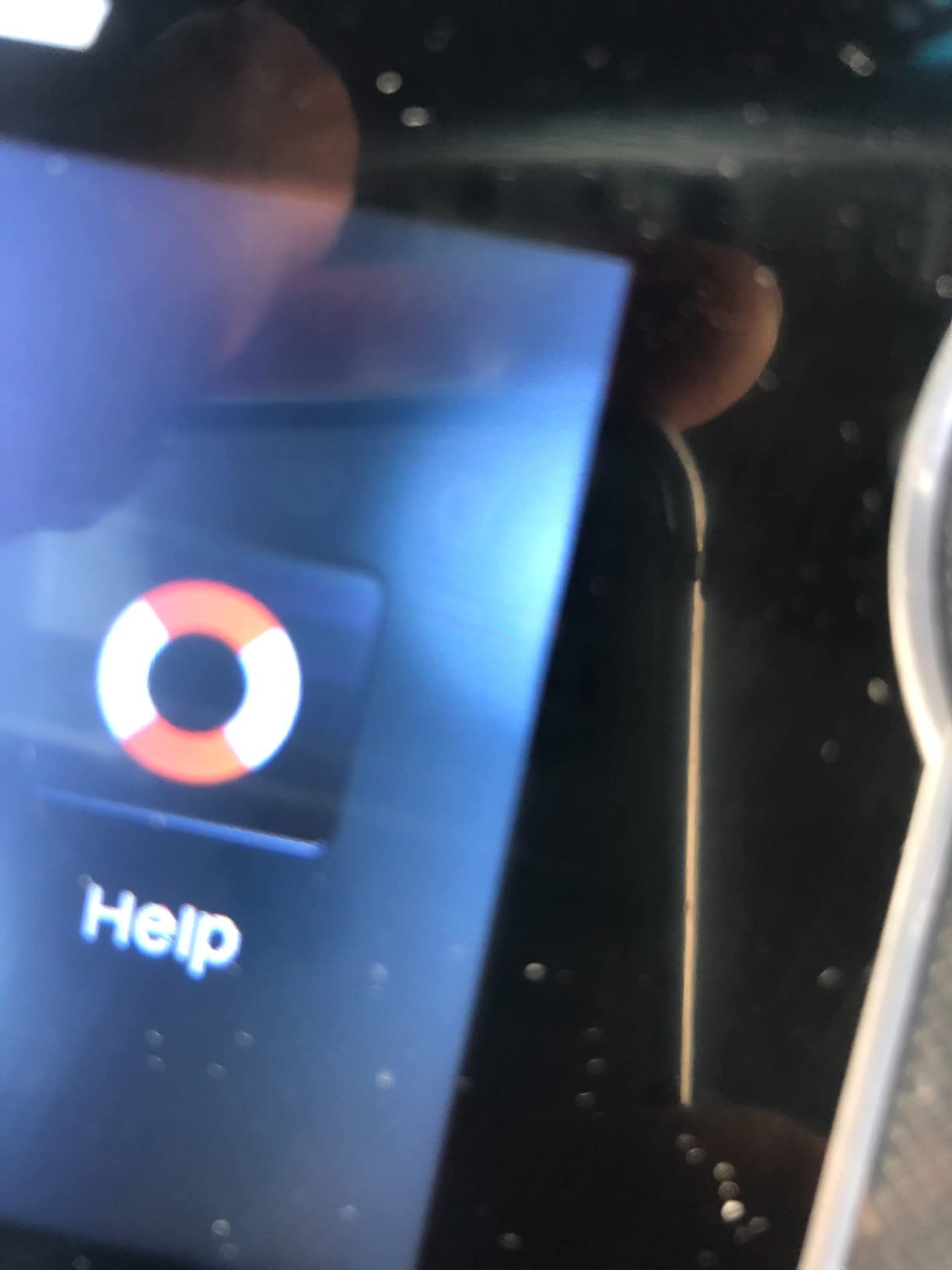

4. ANCEL FX2000-US – Best Standalone Four-System Reader
ANCEL FX2000-US OBD2 Scanner, 4-System Car Diagnostic Tool with Live Data
Engine, ABS, SRS and transmission
4-inch standalone screen
740 g, corded, no phone needed
Pros
- Covers four systems including ABS and airbag in one handheld
- Standalone operation with no phone or app needed
- Four-system real-time live data with freeze frame and readiness
- Free lifetime software updates with no subscription
- Good value for the breadth of coverage
Cons
- ABS
- SRS and transmission coverage depends on make
- model and year
- No bidirectional testing or service functions listed
- Lower sales ranking than the premium scanners here
The FX2000-US does one thing well: it reads and clears codes across engine, ABS, SRS and airbag and transmission without any phone, app or account. You plug it in and use it. For owners who want a genuine ABS code reader and nothing more complicated, that simplicity is the whole value proposition.
It still gives you the full standard OBD2 toolkit. Freeze frame data, I and M readiness checks and built-in DTC definitions are all present, and the real-time data view covers all four systems rather than just the engine. On supported vehicles it even reports transmission fluid temperature alongside the usual parameters.
Updates are free for life with no subscription, which removes the most common long-term complaint about inexpensive tools. The box includes a card reader, diagnostic cable, USB cable and manual, so you are not hunting for a Windows package before the tool will work.
With just over 4,000 ratings at a 4.3 star average, roughly two thirds of owners give it five stars. The pattern in the reviews is consistent: buyers like the standalone format and the system breadth, and they accept that there are no reset or service functions.
Why standalone still matters
A phone-dependent scanner is a liability when your phone is dead, flat or out of credit in a parking lot. A corded handheld with its own screen works every time, and for a weekend mechanic doing brake jobs at home that reliability is worth more than a slick app.
It also travels well. At 740 grams with a detachable cable, it moves between vehicles without ceremony, and four-system coverage means one tool covers the engine, brakes, airbags and gearbox.
Where the budget ends
There are no service functions listed, so no ABS bleed, no oil reset and no EPB retract. There is no bidirectional control either. If your work involves bleeding the ABS modulator after a line replacement, this will not do it.
Second, coverage is vehicle-dependent. The tool claims compatibility with most 1996 and newer OBD2 cars, SUVs and light trucks, but the depth of ABS, SRS and transmission data depends on make, model and year. Confirm your vehicle before buying.

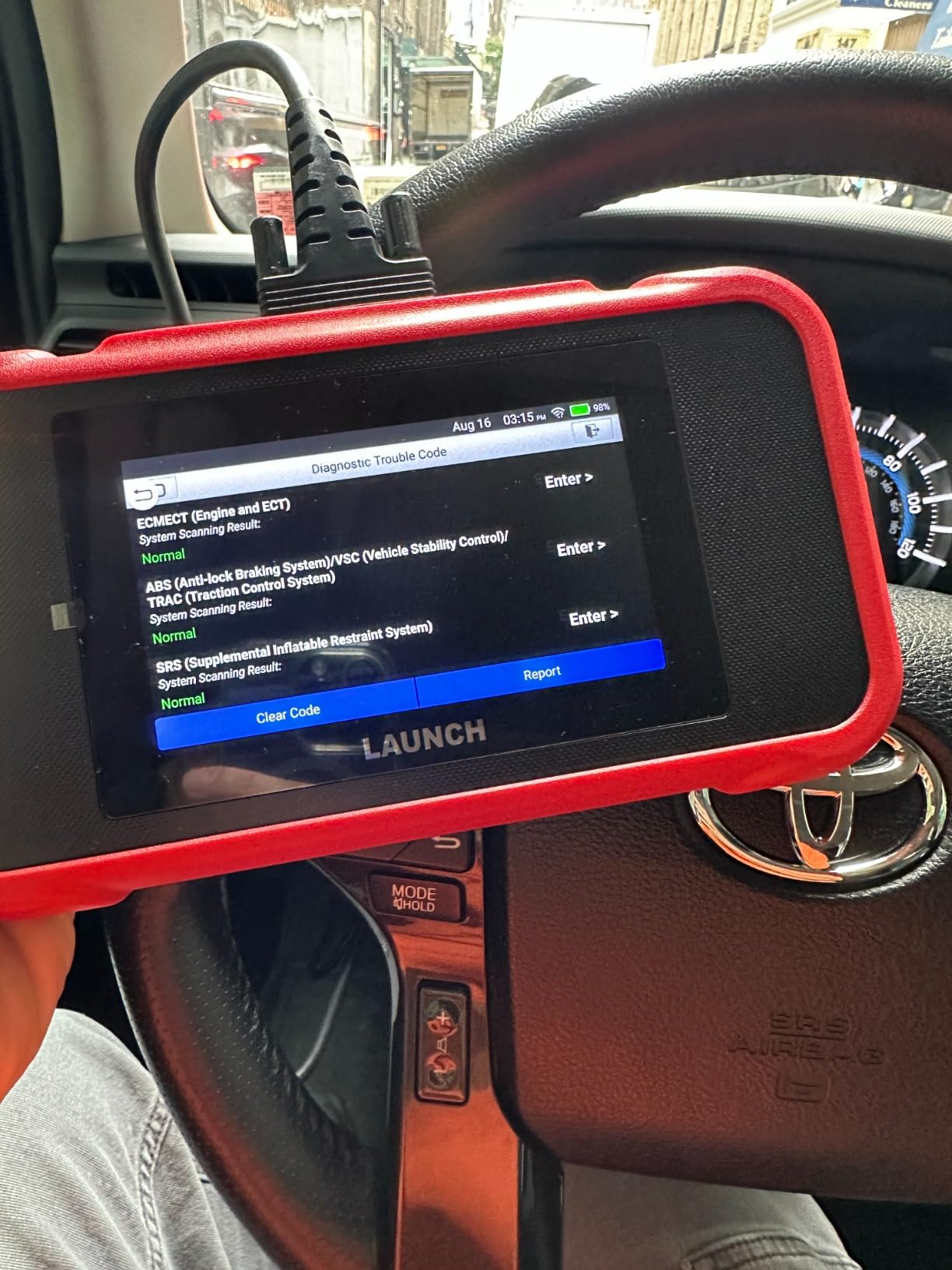

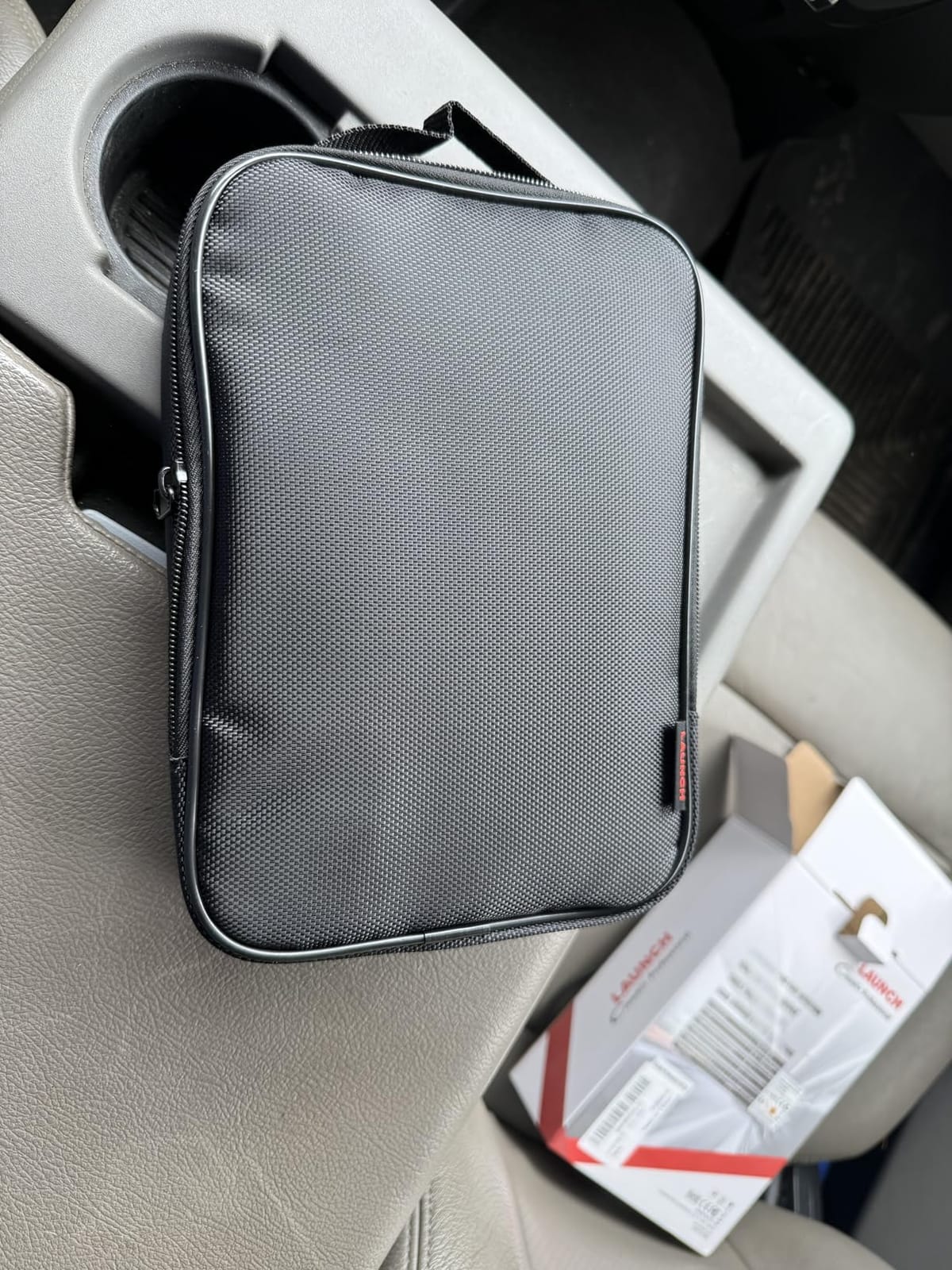

5. LAUNCH CRP123I V3.0 Elite – Best for ABS Bleeding and Newer Protocols
LAUNCH OBD2 Scanner CRP123I V3.0 Elite,7 Resets Car Scanner,Lifetime Update
7 resets including ABS bleeding
5-inch 720P touchscreen, Android 8.1
6000mAh battery, 10+ hours off the port
Pros
- Seven reset functions including ABS bleeding
- throttle adaptation and EPB reset
- FCA SGW AutoAuth plus CAN FD and DoIP protocol support
- 4-in-1 merged live data graphing with PDF and CSV export
- Rechargeable 6000mAh battery rated at 10-plus hours off the OBD port
- One-touch lifetime free WiFi updates with in-device code search
Cons
- Code descriptions are cloud-based and fail without internet
- No OBD1 support for older vehicles
- Mandatory WiFi and email setup stores data on vendor servers
The CRP123I V3.0 Elite is the first tool in our order that combines genuine ABS service work with modern gateway access. Its seven reset functions cover throttle adaptation, oil reset, SAS reset, ABS bleeding, BMS reset, EPB reset and DPF regeneration, and that ABS bleeding routine is the reason this one is worth the jump over a read-only handheld.
Protocol coverage is the other strength. FCA SGW AutoAuth support reaches 2017 and newer Chrysler-group vehicles, and CAN FD plus DoIP support covers newer European and domestic platforms, with extra adapters required for the latter. Coverage spans more than 100 car brands from 1996 onward.
The hardware is a 5-inch 720P touchscreen running Android 8.1 with 2GB plus 64GB of memory, so there is room to store reports. The 4-in-1 merged graphing pulls four data streams onto one screen with record and playback, and a 6000mAh rechargeable battery keeps it working more than ten hours away from the OBD port, which matters if you are not parked next to the car.
It rates 4.4 stars across roughly 3,400 ratings, with about 71 percent at five stars. The interface supports English, French, German, Italian and Spanish, and the box includes a carrying bag, OBD2 cable and Type-C charging cable.
When you actually need an ABS bleed
Bleeding is required after replacing a brake line, a caliper, the ABS modulator or the hydraulic unit. Air in the lines means the modulator cannot modulate pressure, and the pedal goes long. A bleed-capable tool drives the modulator through a controlled sequence while you bleed each wheel in the specified order.
Afterward, some vehicles need a steering angle sensor calibration and a throttle relearn to clear the resulting codes. Both are in the reset list here, which means one tool can finish the job rather than sending you to a second device.
Read this before buying
The recurring complaint is connectivity. Fault code descriptions are looked up through the cloud, so without an internet connection the tool cannot explain a code. That is a genuine problem for off-grid work, rural driveways and any shop with a flaky connection, and the mandatory WiFi and email setup means your diagnostic data sits on the vendor’s servers.
There is also no OBD1 support, so anything before 1996 is out of reach. And a few service functions are only unlocked through separate in-app purchases, so the headline count of seven can overstate what you get out of the box.

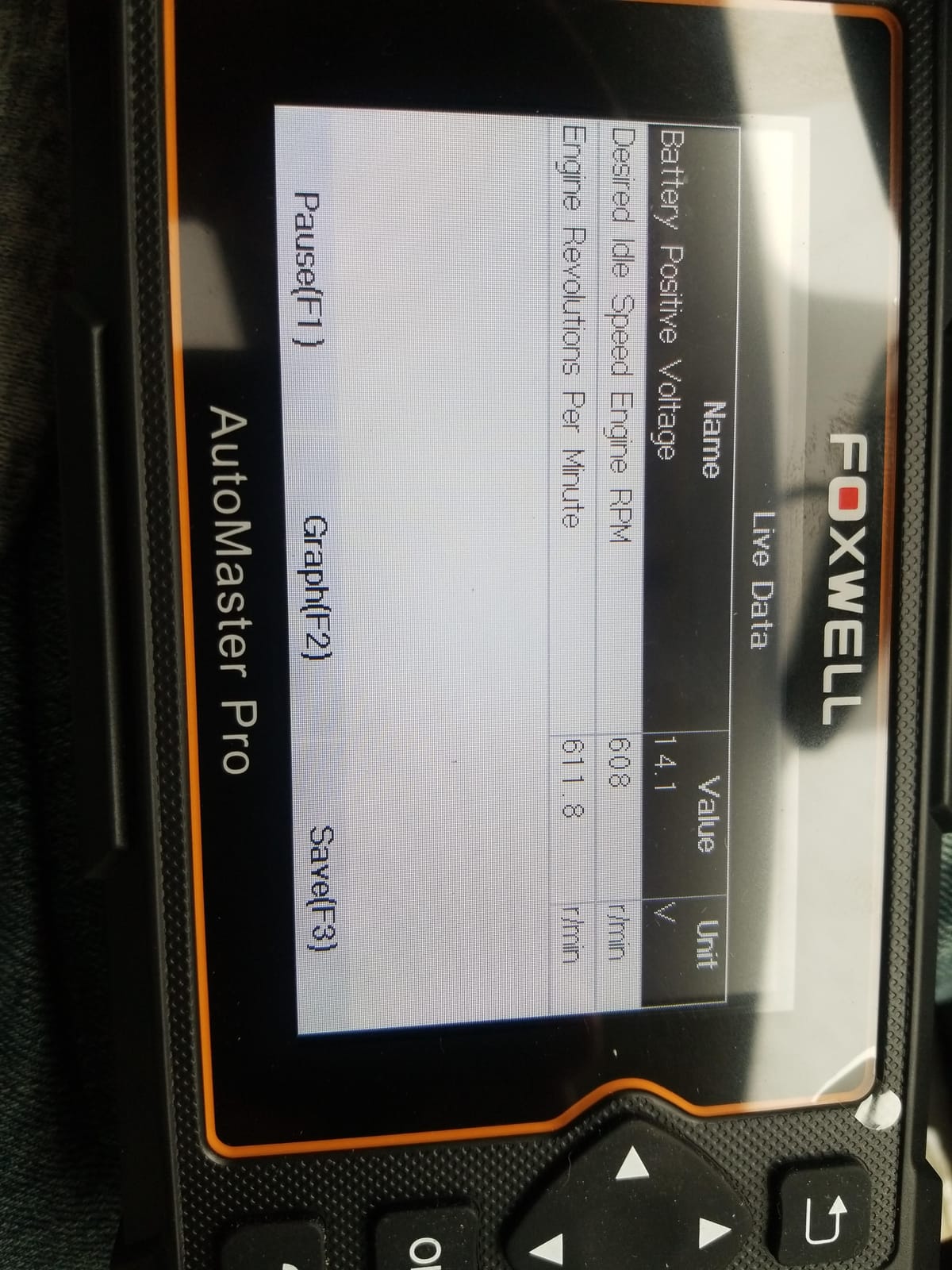

6. FOXWELL NT624 Elite – Best for the Widest Module Coverage
FOXWELL NT624 Elite OBD2 Scanner,All-System Scan Tool,8 Resets Code Reader
12+ modules with 8 service functions
4.3-inch non-touch screen, corded
10,000-plus vehicles, 1996 onward
Pros
- Broadest module coverage here including ABS
- SRS
- TPMS
- SAS
- EPB
- BMS and HVAC
- Eight service functions with ABS bleeding and injector coding
- One-click lifetime free WiFi updates with no account or subscription
- Supports KWP2000
- J1850 VPW
- ISO9141
- J1850 PWM and CAN

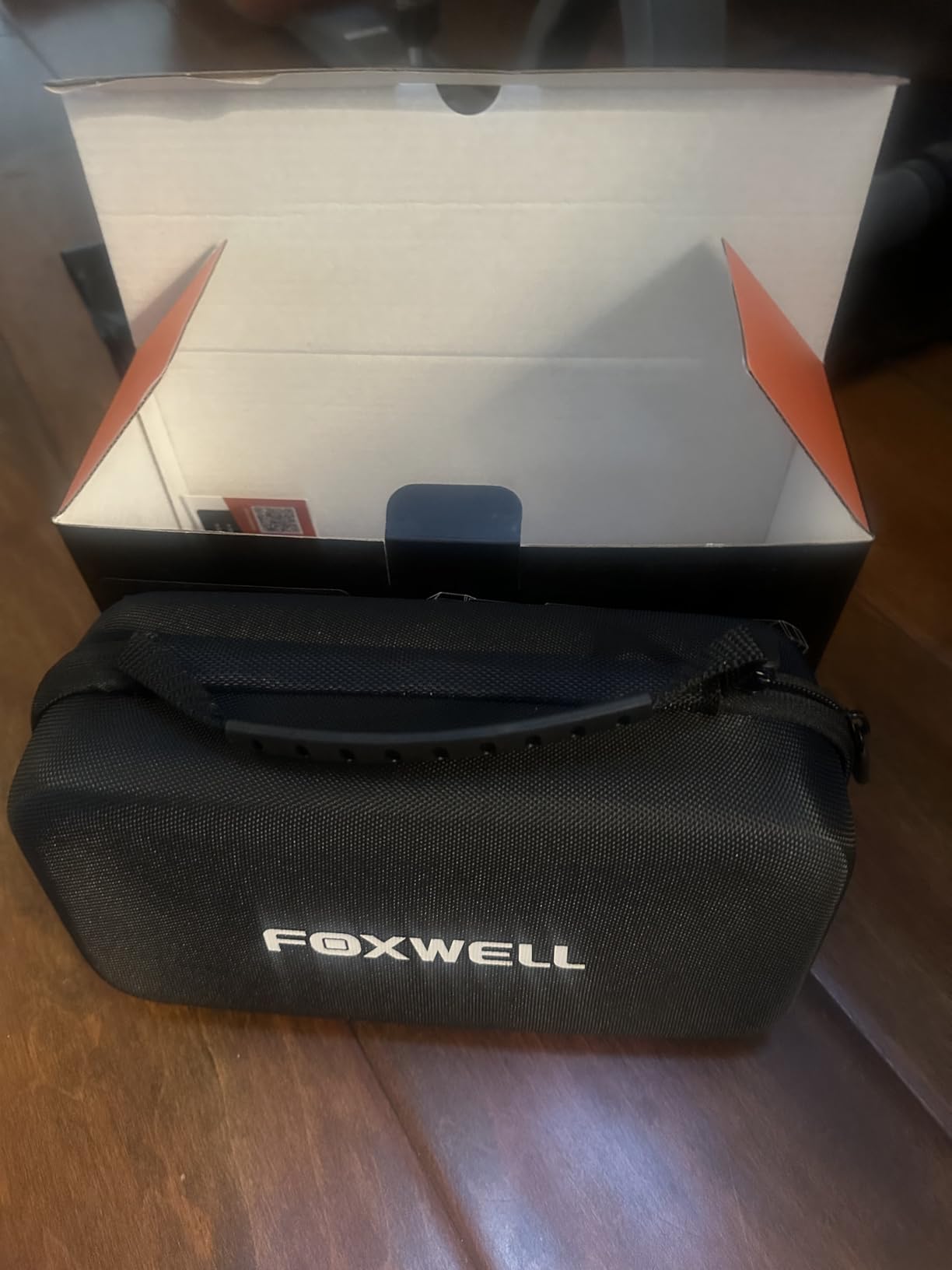

- Durable protective case included
Cons
- Lowest average rating in this group with 9 percent one-star reviews
- No internal battery so it only works while plugged in
- Older Linux interface on a small non-touch screen
The NT624 Elite is the Foxwell step up from the NT604, and the jump is significant. Where the smaller unit stops at four systems, this one reads across engine, transmission, ABS, SRS, TPMS, suspension, HVAC, BMS, EPB, SAS and headlamp modules, which makes it the broadest coverage in this roundup.
Its eight service functions include ABS bleeding, oil reset, EPB reset, SAS calibration, throttle matching, battery registration, injector coding and DPF regeneration. Protocol support covers KWP2000, J1850 VPW, ISO9141, J1850 PWM and CAN, with coverage for more than 10,000 vehicles from 1996 onward.
Updates are a one-click free WiFi operation with no account registration, which is one of the strongest update models in this group and directly answers the subscription fatigue that owners complain about elsewhere. Live data appears in text and graph form with DTC lookup, playback, print and I and M readiness.
It holds a 4.2 star average across roughly 2,400 ratings, the lowest of the twelve, with 65 percent at five stars and about 9 percent at one star. That spread comes from the interface and the power arrangement rather than the diagnostics themselves.
Why module breadth matters for a mixed fleet
If you work on more than one type of vehicle, module count is the metric that pays off. A body-control fault, a TPMS problem or a steering angle sensor calibration all sit in modules that a four-system scanner never addresses, and chasing those with the wrong tool is how afternoons disappear.
For a single-car owner this is less compelling. For a small workshop or someone with a pickup, a family SUV and a project car, having one device that reaches every module removes the guesswork about which tool to grab.
Where it disappoints
There is no built-in battery, so it works only while plugged into the vehicle. That is fine for a shop with a dedicated bay and annoying if you want to pull codes, walk away and think. The interface is an older Linux build on a 4.3-inch non-touch screen, which feels dated next to the Android tablets in this group.
Service function availability varies by vehicle, so confirm the specific function you need against your year, make and model. And with 9 percent one-star reviews, expect some friction around software and support response.

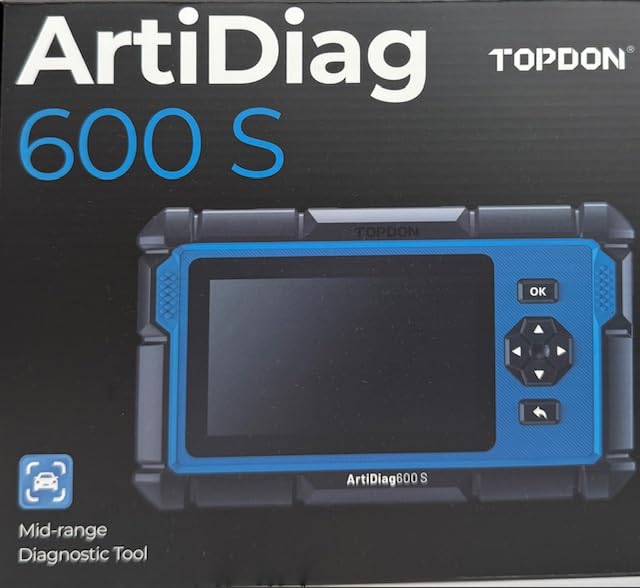

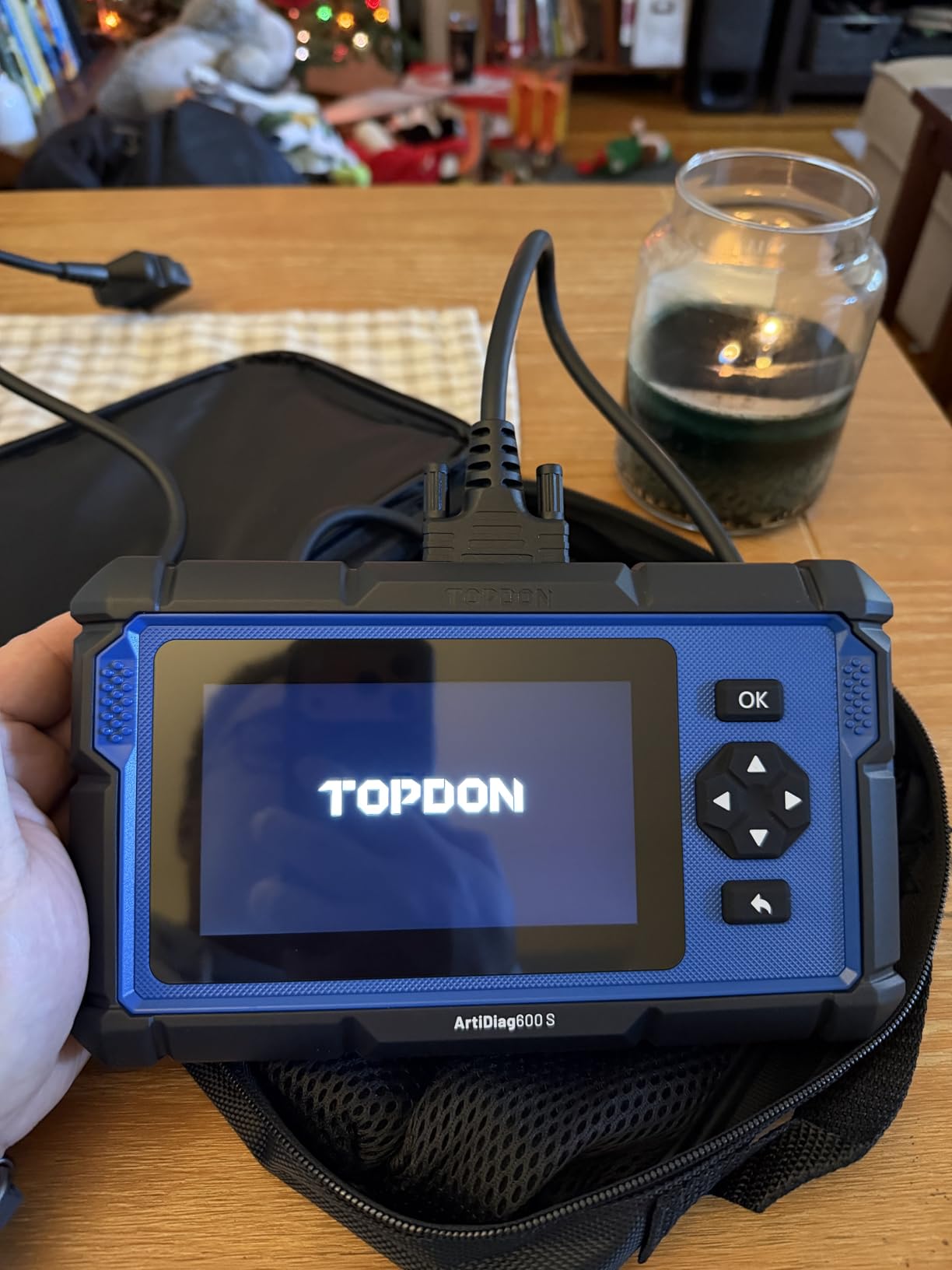

7. TOPDON AD600S – Best for GM and Chrysler Gateway Access
TOPDON AD600S OBD2 Scanner, Engine ABS SRS Transmission Diagnostic Tool
Engine, ABS, SRS and transmission
5-inch touchscreen, Android 11
9 service functions, 630 g
Pros
- Reads and clears four systems with ECU info and live data
- Nine everyday service functions including ABS bleeding and injector coding
- CAN-FD and FCA AutoAuth extend coverage to newer Chrysler
- Jeep and Fiat vehicles
- 5-inch touchscreen with 4-in-1 graphing and shareable reports
- Free lifetime software updates over WiFi
Cons
- WiFi required for initial setup even though basics run offline later
- 30-day trial of premium services expires and reverts to 9 functions
- Internal battery should be charged weekly during storage
The AD600S balances breadth and usability better than most tablets in this price class. It reads and clears engine, ABS, transmission and SRS codes with ten OBD2 test modes, shows ECU identification alongside the codes, and streams live data on a 5-inch Android 11 touchscreen with 32GB of storage.
Its nine service functions cover the daily shop list: oil reset, EPB reset, BMS reset, SAS reset, DPF regeneration, TPMS reset, throttle and ETS relearn, ABS bleeding and injector coding. That ABS bleeding function is the reason it sits ahead of its cheaper sibling, and coverage runs across 90-plus brands from 1996 onward.
CAN-FD and FCA AutoAuth are the differentiators for newer vehicles, particularly Chrysler, Jeep and Fiat models from 2018 onward where the gateway blocks older scanners. The 4-in-1 merged waveform graph lets you compare four streams on one screen, and reports can be saved, shared, printed or emailed straight from the car.
It rates 4.4 stars across just under 2,000 ratings, with 75 percent at five stars, which is one of the highest five-star shares in this group. At 630 grams it is light enough to carry around a lot.
Gateway access is the real reason to step up
Modern vehicles route diagnostic requests through a gateway module. Without the right protocol, a scanner connects and then reports nothing useful on a mid-2020s Chrysler or Jeep. FCA AutoAuth and CAN-FD support are what stop that dead end, and they are the difference between a tool that works on a 10-year-old car and one that works on the car you just bought.
The 90-plus brand list and 1996 cutoff also make it a reasonable second vehicle for most households, though you should still verify your specific model.
The trial that quietly expires
The 30-day trial of premium services is the thing to read carefully. After it ends, the tool reverts to the nine standard functions, so an ABS bleed you counted on may need to be rechecked against what is still unlocked. Buyers mention this more than almost anything else on the tool.
Initial setup also requires WiFi, even though the basic functions run offline afterward. And the internal battery needs a charge every week or so during storage or it may refuse to power on, which is worth remembering over a winter.

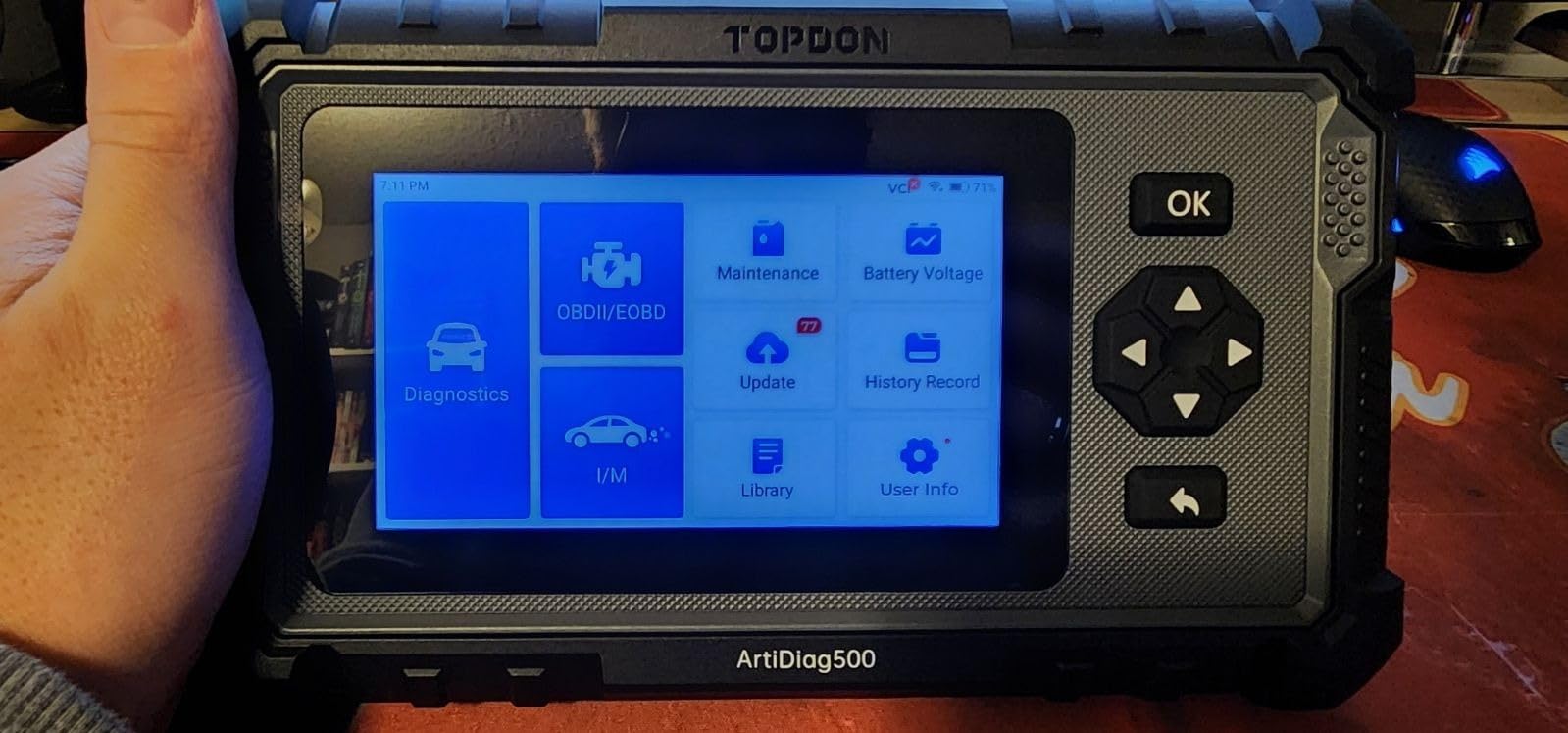

8. TOPDON AD500 – Best Cordless Four-System Scanner Without ABS Bleed
TOPDON AD500 OBD2 Scanner Car Diagnostic Tool, Engine ABS SRS Transmission
Engine, ABS, SRS and transmission
5-inch screen plus physical buttons
3350mAh battery, 1.2 pounds
Pros
- Four-system coverage including ABS and SRS below the AD600S
- Six reset functions for throttle
- oil
- SAS
- TPMS
- BMS and EPB
- 3350mAh battery plus a useful mix of touchscreen and physical buttons
- CAN FD and FCA AutoAuth for 2020+ GM and Chrysler vehicles
- Charted real-time data with storage and playback
Cons
- No ABS bleeding service function
- Not bidirectional so no active component testing
- Coverage of 67-plus brands is narrower than competitors
The AD500 is the AD600S without the ABS bleed, and that single missing function is the entire decision. If you only need to read, clear and diagnose ABS faults, the AD500 does it with the same four-system coverage, the same CAN FD and FCA AutoAuth support and the same 4.4 star rating across roughly 1,900 ratings.
Its six reset functions cover throttle adaptation, oil, SAS, TPMS, BMS and EPB, which is enough to handle most post-service requirements on a modern vehicle. Real-time data is displayed as charts you can store and play back, and the smart autoVIN reads the vehicle rather than relying on manual make, model and year selection.
The 3350mAh battery makes it genuinely portable, and the combination of a 5-inch touchscreen with physical buttons is a small design decision that pays off with dirty hands. At 1.2 pounds it is one of the lighter all-system tools in this roundup, and the 67-plus brand list with 10,000-plus models covers the mainstream fleet.
Reviewers describe it as a value four-system scanner, with the absence of ABS bleeding and bidirectional testing named as the expected trade-off rather than a defect.
When the cheaper four-system tool is the right call
Most ABS faults are diagnostic, not hydraulic. A wheel speed sensor, a corroded connector, a low voltage condition or a module fault all show up as codes and live data, and reading them is what solves the problem. The AD500 handles that entire class of work.
It is also the sensible first tablet for someone moving up from a phone dongle. The physical buttons, the larger screen and the internal battery remove the three biggest frustrations of app-based scanning.
What you give up by skipping the AD600S
No ABS bleeding, which rules out the tool for post-line or post-caliper work. And no bidirectional control, so you cannot command a component to test it. The 67-plus brand coverage is also narrower than the AD600S’s 90-plus, which matters if you own something less common.
Note that its CAN FD and FCA AutoAuth support targets 2020 and newer GM and Chrysler vehicles, so on older trucks in those marques the gateway advantage does not apply.
9. BLCKTEC 460T – Best Free Verified-Fix Repair App
BLCKTEC 460T OBD2 Scanner Car Code Reader Engine ABS SRS Transmission Diagnostic Tool, 12 Reset Services, Oil/TPMS/EPB/BMS/SAS/DPF/Throttle Reset, ABS Bleeding, Battery Test, Auto VIN, Free Update
All-system read and clear
4.3-inch screen, corded
12+ service functions, USA and Canada
Pros
- Auto-scans Engine
- Transmission
- ABS and SRS at plug-in
- 12-plus dealer-level service functions including the ABS bleeding procedure
- Free RepairSolutions2 app translates codes into likely cause
- fix and parts
- Free lifetime firmware updates with no subscription
- Physical buttons work with dirty hands plus a clear touchscreen
Cons
- Firmware update requires a computer and takes a while
- EPB service mode did not work on one owner's 2019 Silverado
- App and support limited to USA and Canada
The 460T is the tool for someone who diagnoses more than they repair. Its auto-scan reads engine, transmission, ABS and SRS as soon as it is plugged in, then autoVIN, autoScan and autoReLink work together to re-gather trouble codes automatically about 30 seconds after a clear, so you can confirm a code is actually gone rather than assuming.
The free RepairSolutions2 app is the differentiator. It pulls technician verified fix reports, technical service bulletins and recall data, and turns a code into a likely cause, a repair and a parts list. One owner reports it flagged a four-figure repair the dealership had already quoted on a used car before purchase, which is exactly the kind of tool that pays for itself in one use.
Service function count is high at 12-plus, including the ABS bleeding procedure, EPB, SAS, DPF, throttle, battery and TPMS routines. Live data covers both OBD2 and OEM parameters with freeze frame and four-stream graphing, and updates are free for life with no subscription.
It holds a 4.4 star average with 71 percent at five stars, across 891 reviews. That is the smallest review base among the multi-system scanners here, so treat the rating as encouraging rather than settled. The interface is available in English, French and Spanish.
Why a fix database changes the workflow
Reading a code tells you what failed. A verified fix database tells you what technicians actually did about it, which shortens the gap between diagnosis and parts order. On an unfamiliar brand, that is the difference between a productive evening and a week of guessing.
The automatic re-gathering after a clear is quietly important too. Many ABS codes return within seconds if the underlying fault is still present, and a tool that re-checks automatically shows you that happening instead of letting you drive away and find out next week.
Known rough edges
Firmware updates run through a computer rather than WiFi, and reviewers report the process takes a while. That is a step backwards against the one-click wireless updates most competitors offer.
Function availability is heavily vehicle-specific, and one owner found the EPB service mode did not work on a 2019 Silverado 1500 Trail Boss. Support and the app are limited to the USA and Canada, so outside North America this is a reduced tool.
10. Innova 5310 – Lowest-Cost Bluetooth ABS and SRS Reader
INNOVA 5310 OBD2 Scanner – ABS & SRS Code Reader, Check Engine Light Diagnostic Tool with Battery Test, Oil Reset, Live Data – Works with Most OBDII Vehicles 1996 & Newer
ABS and SRS code reading
2.8-inch device, Bluetooth dongle
12.8 ounces, vehicle powered
Pros
- Entry cost with ABS and SRS code reading included
- Small Bluetooth dongle that lives in the port or a glovebox
- RepairSolutions2 app supplies verified fixes
- parts and maintenance schedules
- Battery and alternator tests plus oil reset and live data
- Supports hybrid vehicles in English
- Spanish and French
Cons
- App-based only with no on-device screen
- Not bidirectional and no advanced service functions
- Not every feature works on every vehicle
The Innova 5310 does the simplest thing on this list: it reads ABS and SRS codes over Bluetooth and hands the interpretation to the RepairSolutions2 app on your phone. For an owner whose ABS light comes on occasionally and who wants a code and a likely fix without a tablet, that is enough.
It also does total module scans and live data for RPM, speed and oil temperature, plus battery and alternator tests, oil life reset, hybrid diagnostics and trip cycle procedures. Emission-related I and M readiness and smog check status are included, which is a useful extra if you are near an inspection.
What makes it interesting is the pairing. The same app that powers the more expensive Innova tools provides verified fixes, parts lookup, maintenance schedules and access to a workshop database. Owners rate it at 4.4 stars across 873 reviews with 71 percent at five stars, and the recurring comment is that it performs above what the category usually delivers at this tier.
It covers most 1996 and newer OBD2 vehicles including hybrids, and at 12.8 ounces with a 2.8-inch body it is small enough to leave in the port or forget in the glovebox.
The case for a dongle you leave in the car
A Bluetooth reader that lives in the OBD2 port has one advantage a handheld cannot match: it is already there when the light comes on. No digging through the glovebox, no cable, no screen to lose in the dark. You open an app and you have codes.
That is also why it works for pre-trip checks and roadside situations. Two minutes with a phone and a code reader tells you whether the light is a stale code or an active fault.
What a dongle cannot do
It is read and clear only. There is no bidirectional control and no service functions, so no ABS bleed, no EPB retract and no steering angle calibration. If your next job involves any of those, this is the wrong tool and the Innova 5610 is the right one.
It also depends entirely on the app, and coverage varies by make, model and year. Check that your vehicle is supported before you buy, and be aware that the richer RepairSolutions2 features are shared across the Innova range rather than exclusive to this one.
11. Innova 5410 – Best All-System Starter Tool for New Owners
Innova 5410 All-System OBD2 Scanner Diagnostic Tool for Cars & Trucks – Automotive Scan Tools for Engine, ABS, SRS & Transmission, Bluetooth Compatible with America’s Top Car Repair App
Engine, ABS, SRS and transmission
2.8-inch handheld, Bluetooth app
6 by 3.3 by 1 inches
Pros
- True all-system coverage for Engine
- ABS
- SRS and transmission
- Live data includes fuel trims and oxygen sensor performance
- Verified fix reports through RepairSolutions2 with no subscription
- Step-by-step guidance suits first-time users
- Handheld with no cables beyond the OBD connector and no hidden fees
Cons
- No bidirectional control or advanced reset functions
- OBD1 support needs a separate adapter that is not included
- Coverage varies by make
- model and year
The Innova 5410 is the entry point into the all-system category, and its selling point is that it does not read only the engine. Engine, ABS, SRS and transmission are all covered, and codes in each can be read and cleared. That single line is what separates it from every budget reader that caused the empty-results frustration in the first place.
The live data is deeper than basic readers offer. You get RPM, fuel trims, temperature, oxygen sensor performance and battery voltage rather than the handful of generic PIDs a cheap tool exposes, and that trims and oxygen sensor data is what lets you tell a lean condition from a vacuum leak instead of swapping parts.
It pairs over Bluetooth with RepairSolutions2 for verified fix reports, and reviewers note there is no subscription attached. Owners also mention the step-by-step guidance makes it approachable, which matters if this is your first scan tool and you are staring at a code you do not understand.
At 4.4 stars across 763 reviews with 71 percent five-star, it sits in the same band as the other Innova tools in this list. The hardware is a handheld 2.8-inch unit rather than a pure dongle, so it is easier to use with gloves than a phone-only design.
Why the all-system line is the right first purchase
Most warning lights that owners chase turn out to be brakes, airbags or transmission rather than the engine. Starting with an all-system tool means one device covers the light you have and the next one you will have, and you never face the empty-scan problem again.
It is also the natural stepping stone between the two Innova Bluetooth options. Compared with the 5310, you gain transmission coverage and richer live data. Compared with the 5610, you give up bidirectional control and reset functions, which you can add later if your work demands it.
Where the line stops
No bidirectional control means no active component testing, and no advanced reset functions means no ABS bleed, oil reset or EPB service. The OBD1 coverage requires a separate adapter that is not included, so pre-1996 vehicles need extra hardware.
Most importantly, coverage varies by make, model and year, so the answer to whether it reads your ABS module is in the compatibility list, not in the product description. Check it before you order.
12. TOPDON AD900 Lite – Premium Bidirectional Tool for Working Technicians
TOPDON AD900 Lite OBD2 Scanner, Bidirectional Scan Tool, 8″ Large Screen
Bidirectional wireless with 8-inch screen
10000mAh battery, 12 hours
4.8 pounds, Android 11
Pros
- Wireless Bluetooth 5.0 VCI lets you walk around the vehicle during active tests
- Full module coverage including ABS
- Airbag
- ESP
- TPMS and Gateway
- 10000mAh battery for 12 hours of continuous operation
- 8-inch 1280x800 touchscreen with HDMI output for customer-facing display
- One mechanic reports it matches professional Snap-on grade tools
Cons
- FCA AutoAuth gateway access is a paid add-on bundle
- SD card required after a period of use for the app and updates
- Only a one-year warranty with difficult cross-department support
The AD900 Lite is the performance leader in this roundup and the only unit that behaves like shop equipment. Its wireless Bluetooth 5.0 vehicle communication interface reaches up to 33 feet, so during a bidirectional active test you are not tethered to the port inside the fender. You can watch the data graph on the 8-inch screen while walking to each corner of the car.
That active testing covers injectors, coolant pumps, windows, wipers, headlights and mirrors, and the full-system diagnostics reach engine, transmission, airbag, ABS, ESP, TPMS, gateway, steering and HVAC. Eight hot reset services include oil, throttle, EPB, SAS, DPF, ABS bleeding, BMS and airbag, so this one completes the service workflow rather than stopping at the diagnosis.
The 10000mAh battery delivers about 12 hours of continuous operation, which makes it a grab-and-go tool rather than something tethered to a bench. The 8-inch 1280×800 screen plus HDMI output is genuinely useful for showing a customer what you are looking at while you explain it.
It rates 4.3 stars across more than 4,000 ratings with 71 percent at five stars. Coverage spans 1996 and newer vehicles across more than 120 brands, 10,000-plus cars and 12 languages, and the DTC repair guide currently covers Chrysler, Dodge, Jeep and Fiat from 2010 to 2014 with more brands expected.
Who this is actually for
This is a technician’s tool, not a weekend owner’s. The wireless VCI, the 12-hour battery and the 4.8-pound chassis all assume a full day of use across multiple vehicles, and one professional mechanic reports it matches Snap-on grade equipment for routine work. Our professional tool coverage is broader in our professional OBD2 scanner roundup.
For a single-car owner with one ABS light, it is more machine than you need. For someone who does brakes and airbag work every week, the bidirectional wireless testing and the reset list justify themselves quickly.
The friction points are software, not hardware
Almost every complaint here is about the software layer. FCA AutoAuth gateway access is a paid add-on bundle rather than included, which is awkward for a tool whose selling point is reaching new vehicles. You also need an SD card after a period of use to run the app and updates, the app throws frequent sign-in prompts, and updates take a long time when many vehicle files are pending.
Support is limited to a one-year warranty with difficult cross-department contact. Plan for that before you rely on it as a shop workhorse, and keep an eye on electrical fundamentals too with our automotive multimeter guide, since many ABS faults trace back to charging system voltage.
What ABS and SRS Codes Actually Mean
An ABS code tells you the module saw something outside the range it expects. The module monitors each wheel speed sensor, compares all four against each other and against vehicle speed, and watches the modulator valves and the pump motor. When a signal is implausible, it stores a code and lights the ABS warning lamp.
A wheel speed sensor is the usual starting point, because a damaged sensor or corroded connector produces a signal that drops out. Low system voltage does similar damage to the picture, since ABS modules are sensitive to supply voltage and a weak battery or alternator can trigger codes that look like sensor faults.
Generic P-codes tell you the system and the type of fault. Enhanced OEM codes go further, naming the specific circuit, and that extra layer is where a mid-range tool earns its place. Reading the module is only half of it, though, because the light usually returns when the underlying fault survives the code clear.
Why a basic reader shows nothing
OBD2 exists because of emissions rules written in 1996. The powertrain module was the only mandatory one, so budget readers were built to talk to that single address. Chassis and restraint modules were never required, which is why a scanner can report a perfectly clean engine while the ABS light burns in your dash.
This is also the single most common complaint across owner forums, and the reason cheap code readers are described as useless for ABS work. They are not defective; they are pointed at the wrong module.
Bidirectional control, in plain terms
Reading is one direction. Bidirectional means the scanner can also send commands to the car: cycle the fuel pump, switch an actuator, release the electronic parking brake or run the modulator through a bleed sequence. That turns a list of suspects into a confirmed component, which is the difference between diagnosis and guessing.
Two cautions. Service functions are vehicle-specific even on a capable tool, so a listed ABS bleed may not be supported on your exact year and model. And commands sent to the wrong module can actuate real components, so follow the procedure for the vehicle rather than experimenting.
How to Read and Clear ABS Codes: Step by Step
Start with the ignition off and locate the OBD2 port. It sits under the dashboard on most 1996 and newer vehicles, near the steering column or centre console. Plug the scanner in and turn the ignition to the on position without starting the engine.
Run a full module scan rather than an engine scan. Every tool in this roundup except the read-only handhelds can be told to walk all modules, and a targeted ABS scan comes after you know which modules hold code. This is the step that catches the airbag and transmission faults an engine-only scan misses.
Read the code, then the freeze frame. The freeze frame stores conditions at the moment the fault was set, so whether the vehicle was moving, braking or turning tells you a great deal about an intermittent fault. Do not clear the code before you have read the data.
Watch live data for the affected PIDs. Wheel speed sensor values, brake pressure and supply voltage are the ones that matter on ABS work. If a sensor value drops out while you rotate that corner, you have found the fault.
Now fix the cause, then clear the code and let the module relearn. A cleared code returns if the fault is still present, which is the most common reason owners report an ABS light that will not stay off. Drive the vehicle through enough cycles for the ABS and traction modules to re-verify their sensors, then re-scan to confirm.
If a code returns immediately after a clear, the module is telling you the repair did not take. That is information, not a scanner problem, and no tool in this roundup can override it.
Buying Guide: Choosing an ABS-Capable Scanner
Check make, model and year coverage before anything else. This is the number one deal-breaker in owner forums, because a tool that is flawless on one brand is useless on another. Every product here states its coverage in general terms, so confirm your specific vehicle against the manufacturer’s list. JDM and grey-import vehicles are the hardest case, since European protocols and older K-line standards are unevenly supported.
Decide whether you need service functions or just reads. If your work ever includes replacing a brake line, caliper or modulator, or retracting an electronic parking brake for pad changes, you need ABS bleed and EPB retract. That single requirement eliminates half of this list. Reading and clearing codes is a different, much cheaper job.
Understand the update model before you buy. Lifetime free WiFi updates appear on the Foxwell NT624, the TOPDON AD600S and AD500, the LAUNCH CRP123I and the BlueDriver, which means no ongoing cost. The Innova 5610 offers free lifetime device updates with a paid TechDoc layer inside the app, and the TOPDON AD900 Lite sells FCA gateway access as a separate bundle. Cloud-dependent tools like the CRP123I also stop explaining codes when the signal drops.
Choose the form factor that matches your hands. A Bluetooth dongle such as the BlueDriver or the Innova 5310 is the least fuss and the most discreet, but it needs a charged phone. A corded handheld such as the ANCEL FX2000 or the FOXWELL NT604 works every time regardless of your battery. A cordless Android tablet such as the TOPDON AD600S or AD900 Lite gives you a big screen, graphs and service functions at the cost of charging something overnight.
Remember what a cheap ELM327 dongle can and cannot do. A generic ELM327 adapter with a free app is fine for engine codes and, with the right software, can go surprisingly deep on some vehicles. It will not give you reliable ABS module access, bidirectional control or service functions. For electrical work around the car, our automotive multimeter guide covers the testing side that no scan tool replaces.
If your vehicle is older than 1996, plan for extra hardware. OBD1 used different connectors and protocols, and only a few tools here address it at all, and then only with a separately purchased adapter. The LAUNCH CRP123I has no OBD1 support whatsoever.
Finally, count the five-year cost, not the sticker. A tool with lifetime free updates stays a tool. A tool with an annual subscription, a trial that expires, or paid add-on bundles quietly becomes a different product the second year, and that is the complaint that shows up most often in long-term ownership reports.
Frequently Asked Questions
What is the best OBD2 scanner with ABS capability?
The BlueDriver OBD2 Bluetooth Scanner is our top pick because it reads and clears ABS, SRS, TPMS and transmission codes alongside engine codes, pairs with a free phone app that needs no subscription, and covers 1996 and newer North American gas vehicles. If you want a standalone screen instead of a phone, the ANCEL FX2000-US covers the same four systems on its own 4-inch display. If you need bidirectional control, the Innova 5610 is the only tool in our roundup that can command components for active testing.
Is there an OBD reader that can read ABS codes?
Yes, but only a full-system model rather than a basic engine code reader. OBD2 was created as a 1996 emissions standard covering the powertrain module, so inexpensive readers query that one address and report nothing while your ABS light stays on. A scanner with ABS capability explicitly addresses the braking module, reads and clears its stored codes, and streams wheel speed live data. That module access is the single feature to verify before you buy anything.
What kind of scanner can I use to check my ABS light?
Any scanner that lists ABS or all-system coverage in its specifications. Mid-range handhelds such as the ANCEL FX2000-US and the FOXWELL NT604 Elite read and clear ABS and SRS codes on a built-in screen with no phone required, while Bluetooth models like the BlueDriver and the Innova 5310 do the same job through an app. What you avoid is a powertrain-only code reader, which will return no codes while the warning lamp remains lit.
What scanner will clear ABS codes?
All twelve scanners in this roundup can clear ABS codes, but clearing is not the same as fixing. A code returns if the underlying fault is still present, which is the most common reason an ABS light will not stay off. Tools with service functions such as the LAUNCH CRP123I V3.0 Elite, the FOXWELL NT624 Elite and the TOPDON AD600S also run ABS bleeding and EPB reset routines, which you need after brake line, caliper or parking brake work.
Can a basic scan tool read ABS codes on any car?
No. Coverage depends on make, model, year and how deeply the manufacturer exposes the module. Most tools here cover 1996 and newer vehicles, but the depth of ABS live data varies considerably, and some functions are listed yet unsupported on particular models. Newer Chrysler, Dodge, Jeep and Fiat vehicles also need FCA AutoAuth gateway access, which several tools in this roundup do not include without an extra adapter or paid bundle.
Final Verdict: Which ABS Scanner to Buy in 2026
The BlueDriver is our pick for the best automotive diagnostic scanners for abs codes because it covers the most systems with the least friction, carries the largest review base of anything we tested at 4.5 stars, and never asks you for a subscription. Pair it with the broader OBD2 scanner guide if you also want to understand engine codes properly.
Choose the ANCEL FX2000-US if you refuse to troubleshoot through a phone. Choose the Innova 5610 if you want bidirectional control and dealership-level reset functions. Choose the LAUNCH CRP123I V3.0 Elite or the TOPDON AD900 Lite if ABS bleeding is part of your work, and the FOXWELL NT624 Elite if you need the widest module coverage available without stepping up to shop equipment.
Whatever you pick, confirm coverage for your exact year, make and model before the box is opened, and fix the fault before you clear the code. Updated for 2026.
