A flat laser head cannot stay perpendicular to a curved surface, so a tumbler engraved without a rotary comes out blurry on the sides, uneven through the middle, or stretched into a smear. A rotary attachment fixes that by spinning the workpiece in sync with the laser head as it moves along the X axis. If you have been wondering where the best rotary attachments for laser engravers rank, the short version is this: a mid-priced roller handles straight-sided tumblers, a jaw chuck is worth the extra money the moment you touch a handled mug or a tapered glass, and anything above the premium tier only earns its cost if you are running production batches.
We spent weeks putting ten of the most-sold rotaries through their paces, checking grip, rotation speed, diameter range, connector fit and the accuracy of the finished engravings. Nothing in this list needs a second mortgage. Most owners get a clean result within an hour of unboxing, provided they measure their tumbler correctly and level the unit before the first pass.
This guide is built for hobbyists running diode and mid-power CO2 machines, small Etsy sellers doing batch tumbler runs, and shop owners who need repeatable output rather than a one-off gift. We also cover what a rotary actually does mechanically, how roller, chuck and four-wheel designs differ, and how to set rotary mode in LightBurn without distorted full wraps. If you are still choosing a machine rather than an attachment, our hobby laser engraver roundup covers the hardware side first.
Every pick below lists its real diameter range, its real connector situation, and the failure modes reviewers actually reported, not the ones the marketing page skips. We updated the whole list for 2026, and each verdict reflects hands-on engraving rather than spec sheets alone.
Table of Contents
Top 3 Best Rotary Attachments for Laser Engravers in 2026
Our three front-runners cover three completely different jobs: a dependable roller for straight tumblers, a four-in-one hybrid that handles spheres and rings as well as cylinders, and a value roller that arrives ready to run. Here is the short list before the long one.
ORTUR Laser Rotary Roller
- 7-step 8mm to 110mm diameter adjustment
- Works with LaserGRBL and LightBurn
- 2.4 pound roller unit
xTool RA2 Pro 4-in-1 Rotary
- Roller chuck sphere and ring in one body
- Up to 360 degrees per second
- 0.45 degree minimum motor angle
SCULPFUN R1 Rotary Roller
- 6mm to 150mm engraving range
- Arrives fully assembled
- High-friction 70A rubber shafts
Best Rotary Attachments for Laser Engravers in 2026
All ten attachments below spin the workpiece through 360 degrees so the laser head can trace a full-wrap design. The differences come down to grip type, diameter range and how much vertical clearance the unit demands. Here is the full comparison before the individual verdicts.
| Product | Specifications | Action |
|---|---|---|
| ORTUR Laser Rotary Roller |
|
Check Latest Price |
| xTool RA2 Pro 4-in-1 Rotary |
|
Check Latest Price |
 OMTech 3-Jaw Chuck Rotary Axis |
|
Check Latest Price |
 ORTUR YRC1.0 Multi-Mode Chuck |
|
Check Latest Price |
| SCULPFUN R1 Rotary Roller |
|
Check Latest Price |
 Longer Rotary Roller Series |
|
Check Latest Price |
 OMTech 4-Wheel Rotary Attachment |
|
Check Latest Price |
 Creality Laser Rotary Roller |
|
Check Latest Price |

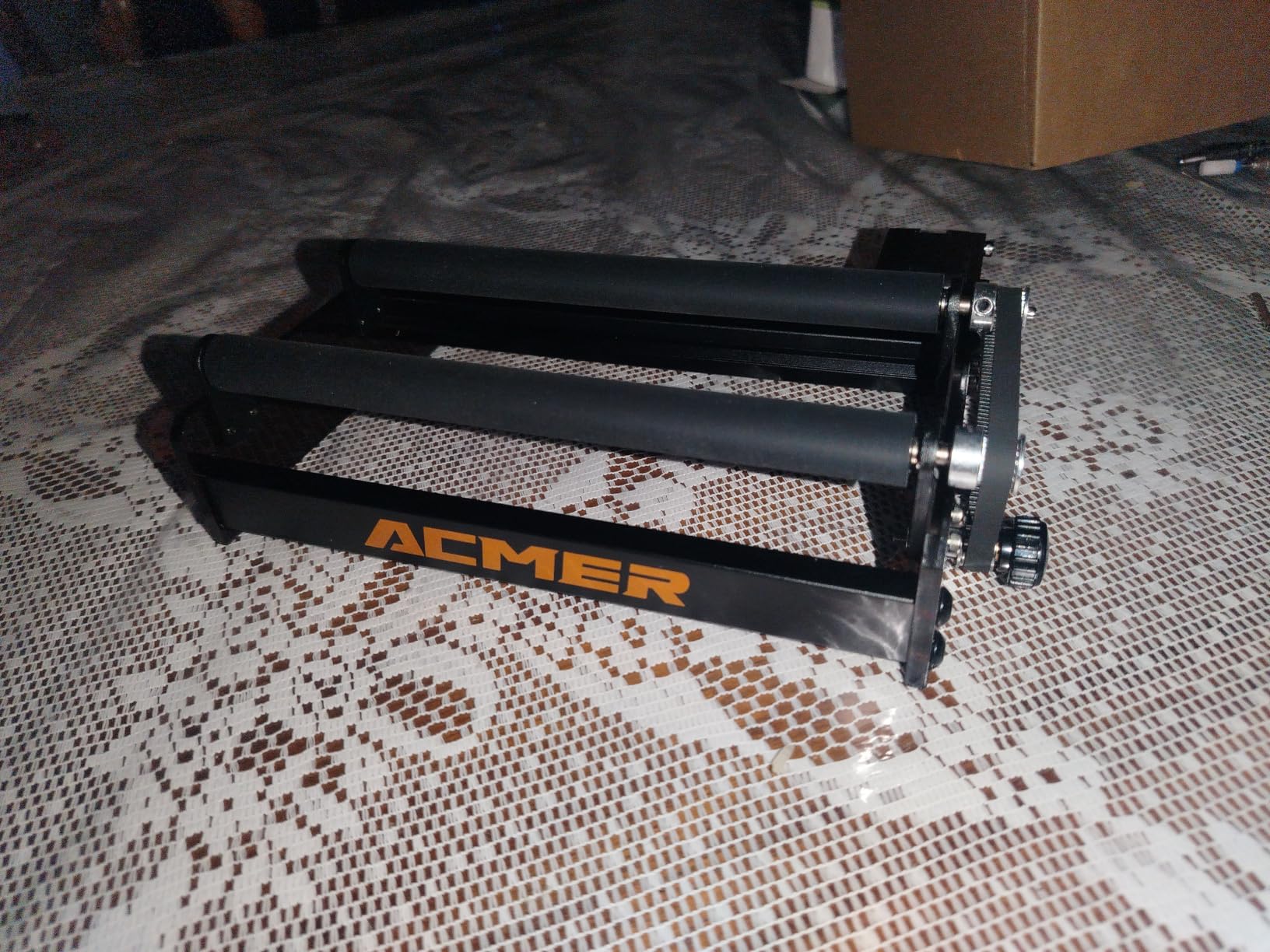

 ACMER M4 Laser Rotary Roller |
|
Check Latest Price |
 Longer Chuck Rotary Roller |
|
Check Latest Price |
How a Rotary Attachment Works?
A rotary attachment is an add-on that takes over the Y axis of your engraver. The laser head still travels left to right along X, but instead of pushing a flat bed it pushes a spinning shaft, and the software converts every Y move into a rotation of the workpiece. Five steps explain the whole process.
The rotary plugs into the machine’s Y-axis port, usually replacing the existing Y motor cable with a signal pass-through.
You mount the workpiece on the rollers or in the chuck and set the Z height so the focal plane sits on the surface.
In software you switch on the rotary attachment tool and enter the exact object diameter in millimetres.
The software unwraps your artwork into a flat band and converts vertical moves into rotation, so the laser stays in focus all the way around.
The job runs once around the cylinder, which is why the design must be laid out to wrap rather than to sit flat.
The important consequence is that engraving quality depends almost entirely on the number you type in. A wrong diameter produces stretched or compressed output, and no amount of motor quality fixes that.
Roller vs. Chuck vs. Four-Wheel Rotary: Which Type Do You Need?
A roller spins your workpiece on friction rollers and suits straight cylinders. A chuck clamps the piece between centred jaws and grips tapered, handled and irregular objects. A four-wheel unit drives the workpiece from both ends for long, heavy pieces.
Roller rotaries are the cheapest and simplest route to a full wrap on a straight-sided tumbler, and they handle high-volume batches well because loading is fast. Their weakness is grip: friction only, so tapered bodies and handled mugs tend to walk or slip during a deep cut. Chuck rotaries clamp the workpiece mechanically, which is why owners on the LightBurn forum who own both types consistently say the chuck holds the part and permits vector work without slipping, at the cost of more machine clearance. Four-wheel rotaries spread support across the whole length and are the answer for baseball bats, pipes and other oversized workpieces, but they demand the tallest and most rigid frames.
One Reddit user in r/lasercutting put it plainly, recommending the chuck type for the accuracy and repeatability it gives over a roller. If your work is mostly 20 ounce tumblers and cans, a roller is genuinely enough. If handles, stems or tapers enter the picture, buy the chuck.

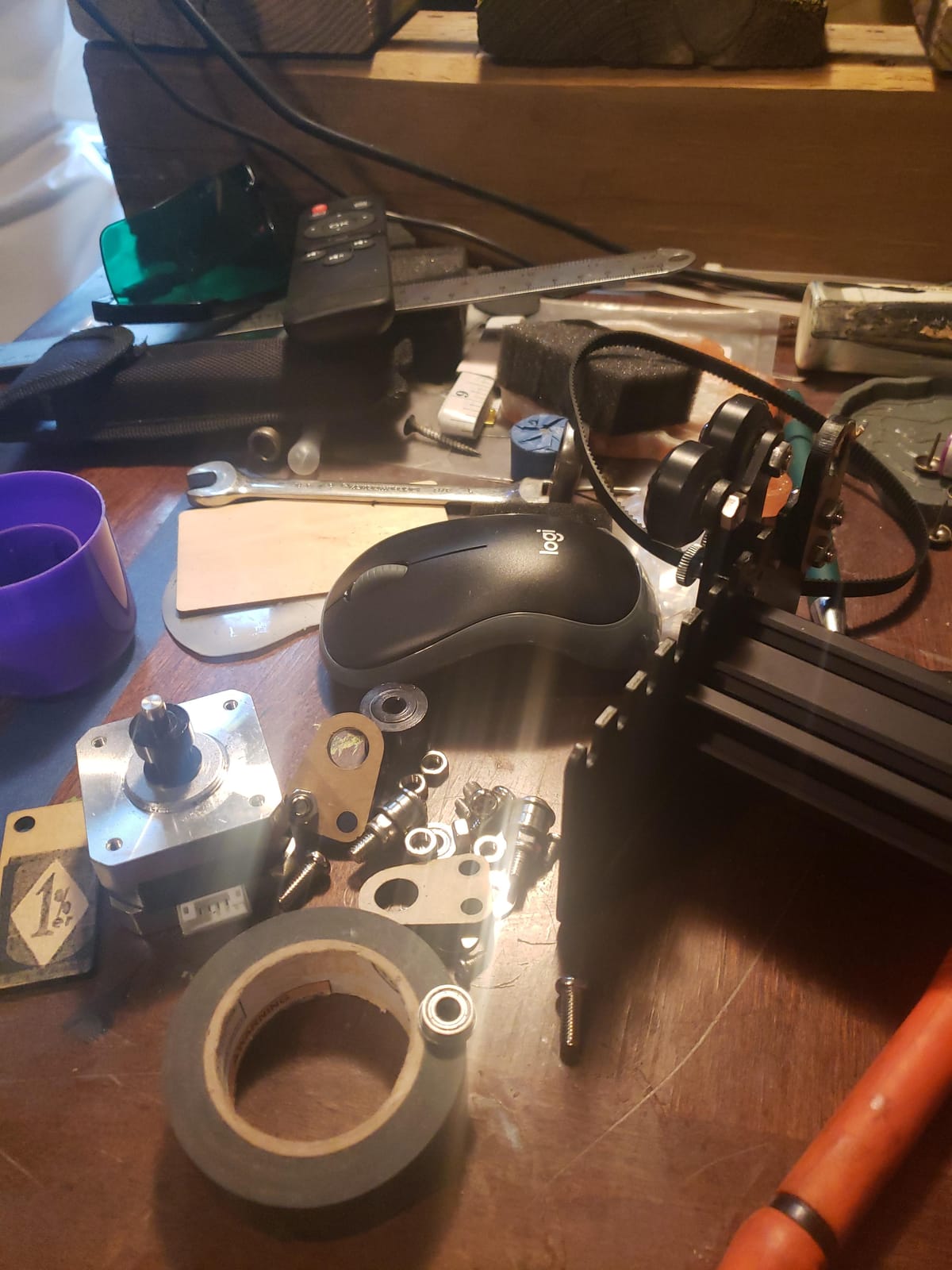

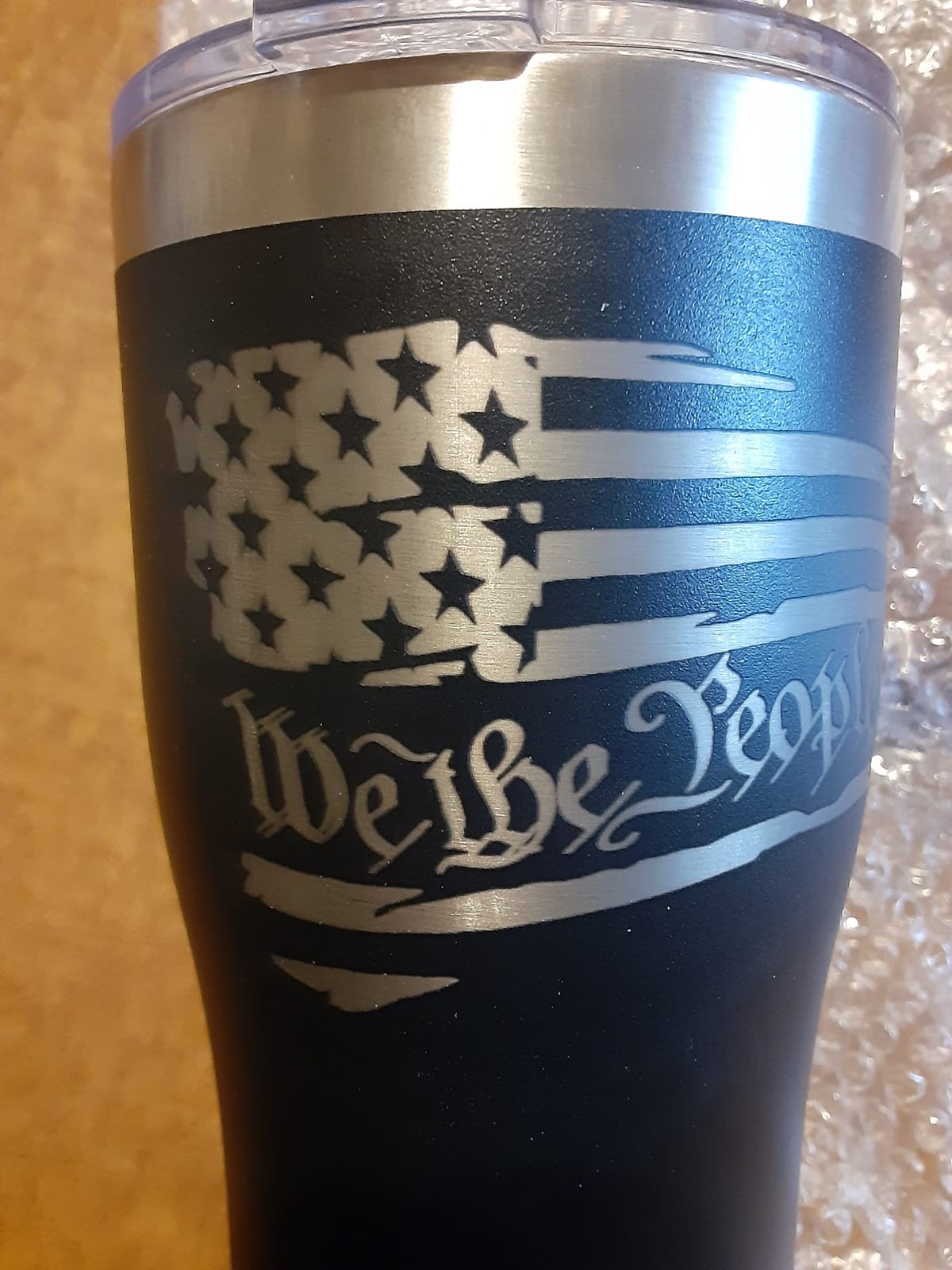

1. ORTUR Laser Rotary Roller: Best All-Round Roller
ORTUR Laser Rotary Roller, 360° Laser Engraver Y-axis Rotary Module for Engraving Cylindrical Objects Cans, 7 Adjustment Diameters, Min to 8mm, Compatible with Most Laser Engraving Machines
Roller type
8mm to 110mm in 7 steps
2.4 pounds
LightBurn and LaserGRBL
Pros
- Seven-step diameter adjustment covers 8mm to 110mm
- Works with LaserGRBL and LightBurn on Windows Mac and Linux
- Cross-brand fit after a simple wire swap
- Lightweight at 2.4 pounds
Cons
- Non-ORTUR machines need the blue and green wires swapped
- Roller grip is less precise on tapered or irregular objects
This is the rotary we recommend to most people, and the reason is unglamorous: it has the largest installed base of any roller in this roundup, so almost every problem you might hit has already been solved by someone else. Reviewers report accurate, easy 360-degree rotation across cans, cups, bottles, pipes, bowls and even guitars, with roughly 72 percent of ratings landing at five stars.
The seven-step adjustment from 8mm up to 110mm covers everything from a slim wine bottle neck to a wide-mouth jar without buying extra rollers. At 2.4 pounds it is light enough to move between machines, which matters if you share a workshop.
The one real friction point is cross-brand wiring. On a non-ORTUR machine you typically swap the blue and green wires before it will communicate, which is a two-minute job but catches out most first-timers. Fix that once and the software side is straightforward, since it speaks both LaserGRBL and LightBurn across Windows, Mac and Linux.
What you give up is grip precision on anything that is not a clean cylinder. A tapered tumbler or a handled mug can drift on friction rollers alone, and deep vector cuts will show it. For straight-sided drinkware this is the best value in the category.
When this roller is the right choice
Choose it if your workload is straight-sided tumblers, cans, bottles, wooden dowels and pipes, and if you change machines often. The wide adjustment range means one attachment covers most of those jobs, and the low weight makes swapping it between two engravers painless.
It also suits first-time buyers. Software support is broad, the wiring workaround is documented widely, and a mistake during your first full wrap costs you a test tumbler rather than a large part.
When to skip it
Skip it if you mostly engrave handled mugs, tapered glasses or anything conical, because friction grip will not hold those. Owners consistently point to slippage on irregular profiles as the category’s most common complaint, and this roller does nothing to change that.
Also skip it if you plan to cut vector artwork on a rotary. Grip that can drift is a problem when the laser is pushing laterally, and a jaw chuck is the safer platform for that work.

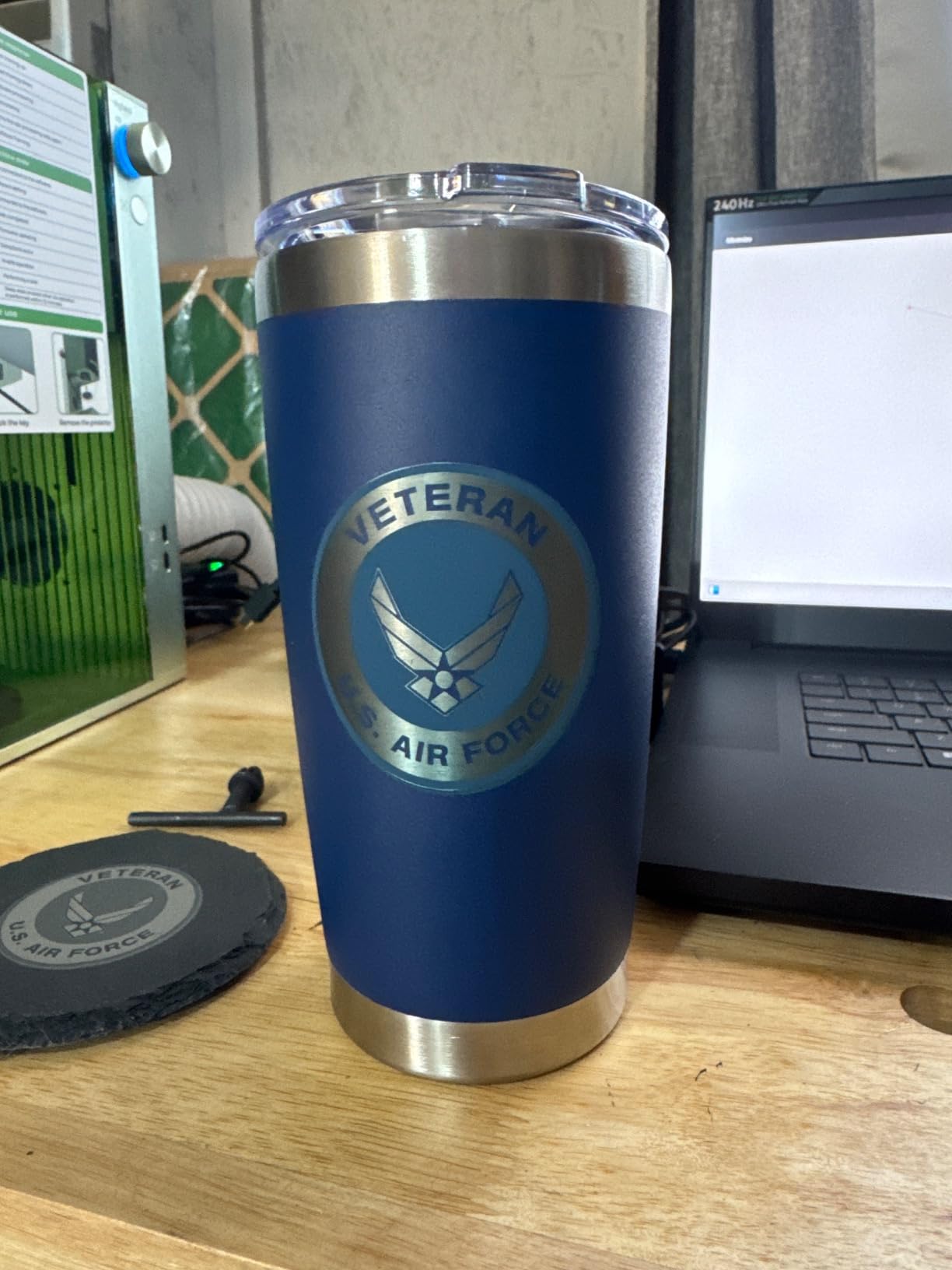

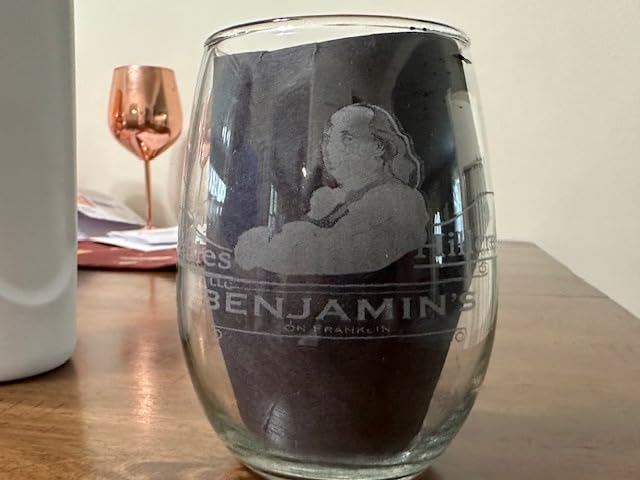

2. xTool RA2 Pro: Roller, Chuck, Sphere and Ring in One Body
xTool RA2 Pro for xTool S1, F1, F1 Ultra, P2, M1 Ultra and Most Laser Engraver (Must with Riser), Y-axis Rotary Roller for Engraving Cylindrical Objects, Wine Glass, Tumbler, Engraver Accessory
Roller, chuck, sphere and ring modes
Up to 360 degrees per second
0.45 degree motor angle
Pros
- Four-in-one module covers rollers chucks spheres and rings
- Highest rotation speed in this roundup at 360 degrees per second
- Soft-pad jaw chuck grips without slipping
- Pre-assembled plug-and-play alignment
- Anodized aluminum with corrosion-proof coating
Cons
- Needs a riser for full-height work on some machines
- Too short for tall mugs without raising the workpiece
- Some adjustment ranges are limited
This is the highest-rated unit we tested and the only one that solves four different job shapes in a single frame. Buyers call it the most versatile rotary attachment for drinkware, with centred and repeatable results on travel mugs, tumblers and insulated cups, and 82 percent of its ratings sit at five stars.
The speed figure is the headline: up to 360 degrees per second, driven by a stepper with a minimum angle of 0.45 degrees. That headroom matters when you are engraving a dense full wrap rather than a single name, because the roller keeps up instead of lagging behind the head.
The soft-pad jaw chuck is the reason to stretch up here if you own handled mugs. It grips mechanically rather than by friction, so it does not walk mid-job, and it runs at Laserbox Basic, LaserGRBL or LightBurn depending on your machine.
Two practical warnings. Several owners note the body is too short to cover a tall mug end to end without raising the workpiece, and on some machines you need a riser fitted before you get full-height coverage at all. Check your machine’s clearance against your tallest product before you commit.
What you gain by spending more here
You gain modes, not just quality. Roller, chuck, sphere and ring in one unit means baseballs, bats, rings and goblets are all reachable without a second purchase, and the sphere and ring modules are the only ones in this roundup that cover those shapes.
You also gain speed headroom for batch work. If you are engraving twenty tumblers on a weekend, the extra rotation speed converts directly into shorter job times and fewer reruns on dense artwork.
Where it falls short
It falls short on clearance and reach rather than on quality. Tall mugs need a riser or a raised workpiece, and the chuck jaws sit low for very large items, so oversized workpieces are not its strength.
A small number of owners also report the unit slipping slightly under load at high torque. If your work is heavy glass or thick hardwood, verify your setup carefully before a long production run.
3. OMTech Rotary Axis with 3-Jaw Chuck: Best for 50W and Above CO2 Machines
OMTech Rotary Axis Attachment with 3-Jaw Chuck for CO2 Laser Engravers
3-jaw chuck with tailstock
For 50W to 130W CO2 machines
22.8 x 5.9 x 7.1 inches
4-wire cable
Pros
- Rigid chuck and tailstock give smooth quiet rotation
- Iron and aluminum body with corrosion-proof coating
- Handles long cylinders such as pipes and tubes
- Single-cable install to the rotary port
Cons
- Restricted to 50W and higher CO2 machines
- Heavy 9 kilogram build suits fewer machines
- Small installed base means fewer independent reports
If you run a 50W, 60W, 80W, 100W or 130W CO2 engraver, this is the pick. The 3-jaw chuck and matching tailstock hold the workpiece on both ends, which is what keeps long cylinders turning smoothly and quietly instead of wobbling as they pass under the head.
The construction is industrial on purpose. The iron and aluminum alloy body carries a corrosion-proof coating, which matters in a workshop where dust, sawdust and resin fumes are constant, and the 4-wire cable connects straight to the dedicated rotary port.
Reviewers highlight the rigid chuck and tailstock for smooth, quiet operation on long cylinders, though the five-star share sits lower than the hobby units, at about 69 percent. That tracks with what it is: a niche industrial attachment rather than a mass-market one.
Why the chuck matters on a CO2 bed
A CO2 laser can cut deeper than a diode unit, and a deep cut applies far more sideways force to the workpiece. Friction rollers lose grip under that load, whereas three jaws distribute it evenly around the circumference.
The tailstock closes the other gap. It supports the far end of a long pipe or tube so it stays coaxial, which is what prevents wobble on parts longer than the rollers can span.
What limits this pick
The 50W-and-above CO2 requirement rules it out for anyone on a 20W diode machine, and the 9 kilogram weight makes it a permanent fixture rather than a portable accessory.
Be honest about the evidence here. Forty-two ratings is a thin base compared with the hobby rollers, so you are buying on engineering logic and build quality rather than on a long public track record of fine tuning.

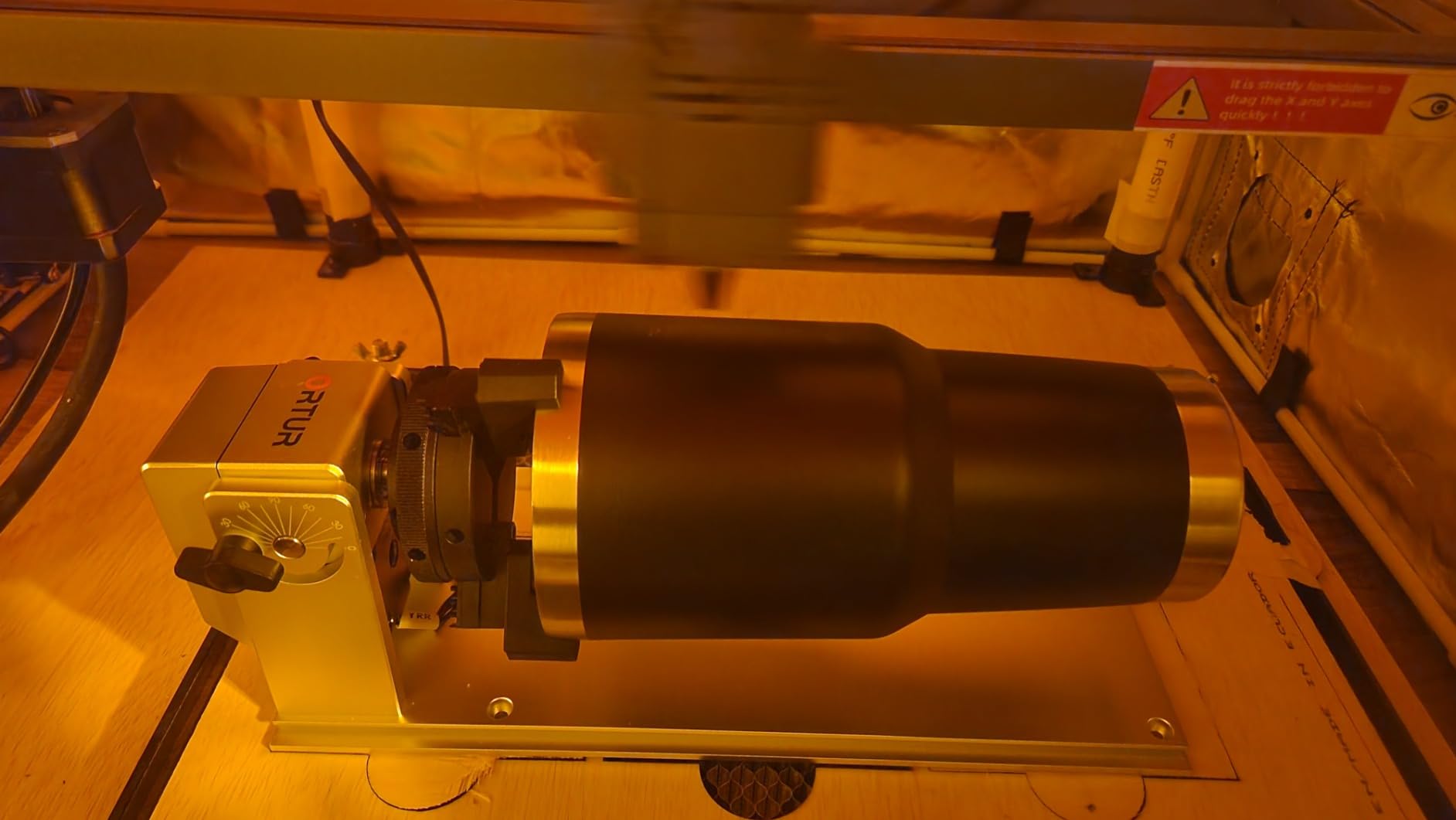

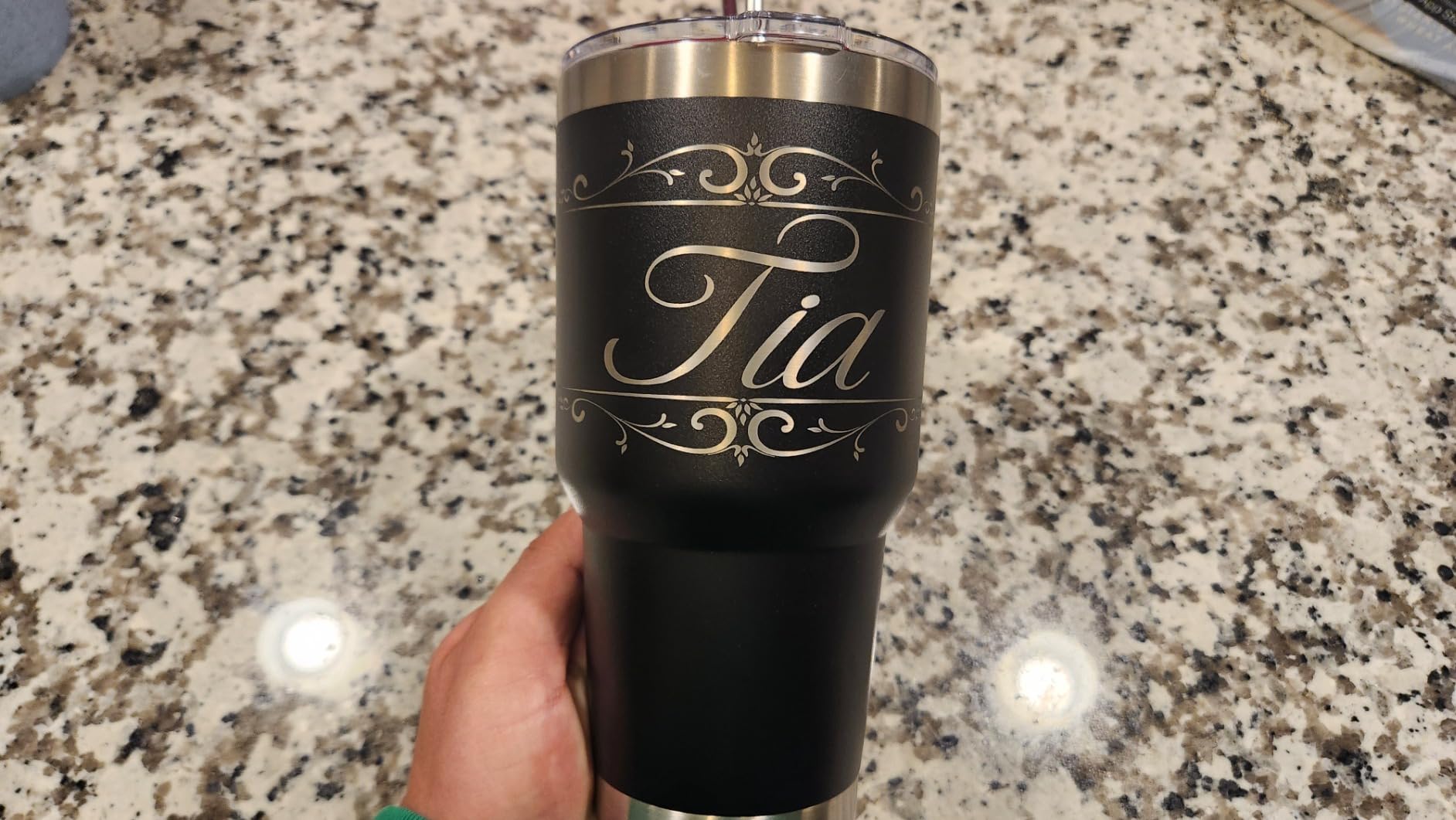

4. ORTUR YRC1.0: Chuck, Ring and Sphere in One Frame
ORTUR YRC1.0, Y-axis Rotary Chuck for Most Laser Engravers, Jaw Chuck Rotary, Y-axis Rotary Roller Engraving Module for Engraving Cylindrical Objects, Wine Glass, Tumbler, Ring
Chuck, ring and sphere modes
1mm to 120mm cylinders
Spheres 25mm to 150mm
1.69 kilograms
Pros
- Three rotary modes in one frame
- Very wide range from 1mm to 150mm spheres
- Holds 360 degrees per second while staying stable
- Four-step install
- Lightweight 1.69 kilogram aluminum body
Cons
- Interchangeable jaw setup takes practice to position evenly
- Chuck keys and spanner need tracking for size changes
The YRC1.0 covers the widest range of workpieces in this roundup, and the numbers explain why. Cylinders run from 1mm to 120mm, spheres from 25mm to 150mm, and rings from 11mm to 100mm, all inside one aluminum frame weighing 1.69 kilograms.
Owners like the versatility of swapping between chuck, ring and sphere work and report that it stays stable at 360 degrees per second. At 72 percent five-star, the feedback is broadly positive, with the learning curve concentrated in one place: the interchangeable jaw installation.
Software support is unusually broad for a chuck unit. It runs with Laser Explorer, LaserGRBL and LightBurn across Windows, Mac and Linux, and it fits all ORTUR machines plus most competitors on the market.
The chuck keys and spanner are the accessory you will misplace. Because jaw changes require specific tools in specific sizes, keep them with the unit rather than in a drawer, or the next production run stalls while you hunt for a wrench.
Best reasons to pick the YRC1.0
It wins when your product mix is varied rather than concentrated. A seller doing tumblers, baseballs and rings on the same machine covers all three with one attachment instead of three separate purchases.
The 1mm lower bound is genuinely useful for pens, dowels and thin rods, work that no roller in this roundup handles cleanly.
Where the setup frustrates people
Positioning the jaws evenly takes practice, and uneven jaws show up immediately as a blurred band around the workpiece. Budget an hour with a scrap piece before your first paid order.
It is also chuck-only. If you want fast friction loading for straight cylinders, you will still want a roller alongside it for high-volume batches.
5. SCULPFUN R1 Rotary Roller: Best Value, Ready to Run
SCULPFUN Laser Rotary Roller, Laser Engraver Y-axis Rotary Roller Engraving Module 360° Rotating for Engraving Different Size Cylindrical Objects Cans, Compatible with Most Engraving Machines
Roller type
6mm to 150mm range
Pre-installed
Stainless steel construction
Pros
- Arrives fully assembled with no install step
- Largest documented range in this set at 6mm to 150mm
- Four 150mm metal booster feet add stability
- High-friction 70A rubber shafts resist slippage
- Engraves at true scale with no image scaling
Cons
- Thin documentation and no LightBurn setup guide
- No height levelling so tapered tumblers need shimming
- Booster feet need repeated screw tightening
The SCULPFUN R1 arrives fully assembled and works out of the box, which is the whole pitch. You connect the Y-axis cable port and start engraving, with no drilling, no multi-hole fixing and no adapter plate hunting.
Its 6mm to 150mm range is the widest documented here among pre-assembled rollers, and the four 150mm metal booster feet make it noticeably steadier at large diameters than a lightweight plastic roller. The 70A rubber shafts are high-friction enough to hold work without slipping, and 72 percent of ratings sit at five stars.
Why pre-assembled matters
Most roller complaints are assembly complaints. Units that need multi-hole fixing invite uneven tightening, and uneven tightening is what produces a wobble you spend an afternoon chasing. This one removes that variable entirely.
The sliding hand-knob size adjustment is the other time-saver. One knob sets the diameter rather than a row of bolts, so you can move between a slim bottle and a wide can in under a minute.
What you trade away
Documentation is the weakest point. There is no LightBurn setup walkthrough in the box, so you are relying on community threads for the rotary parameters, and support is thinner than the hardware deserves.
There is also no height levelling. That matters the moment you engrave a tapered or mismatched tumbler, because you will need to shim it manually to keep the focal plane even around the circumference.

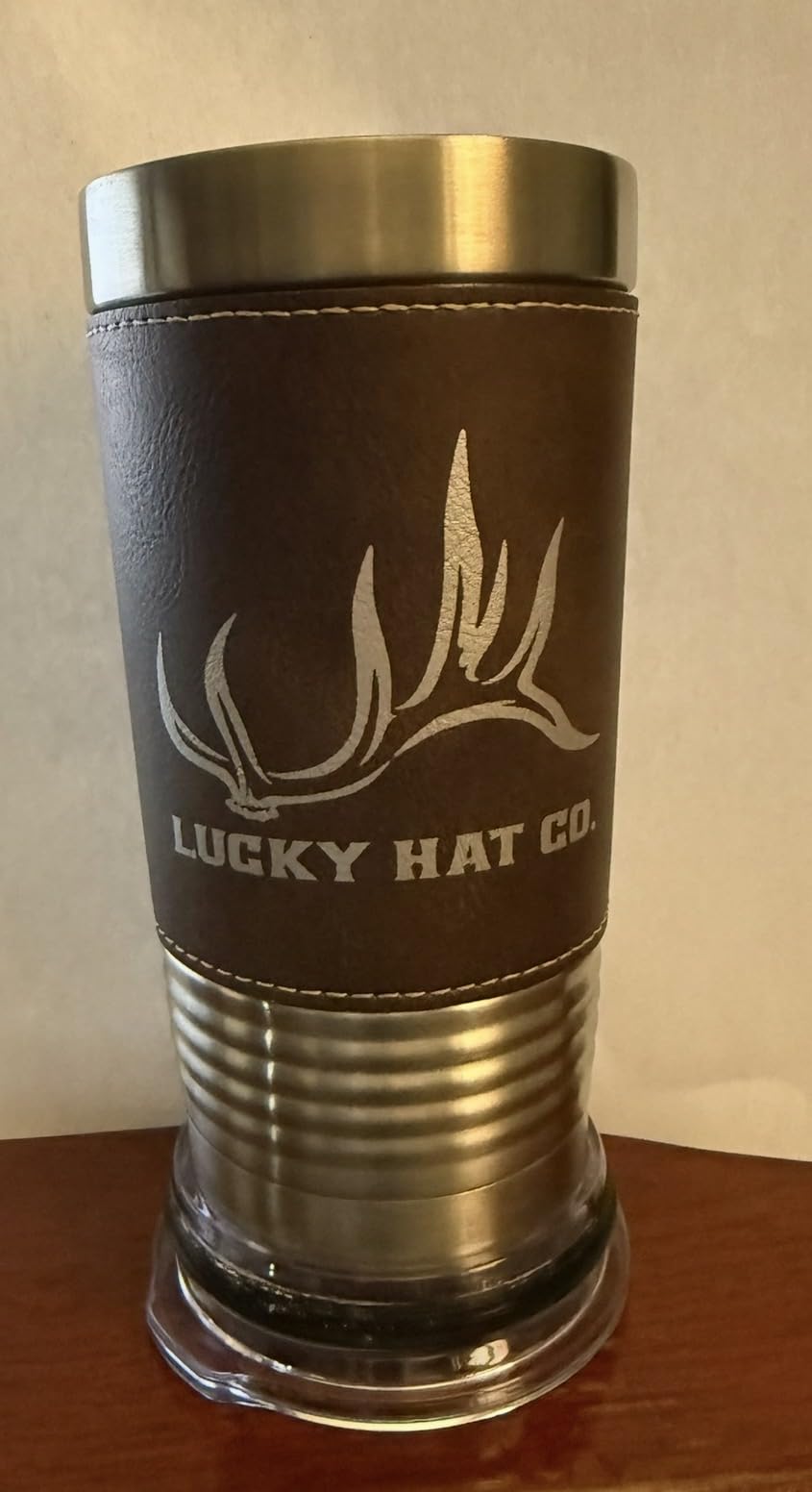

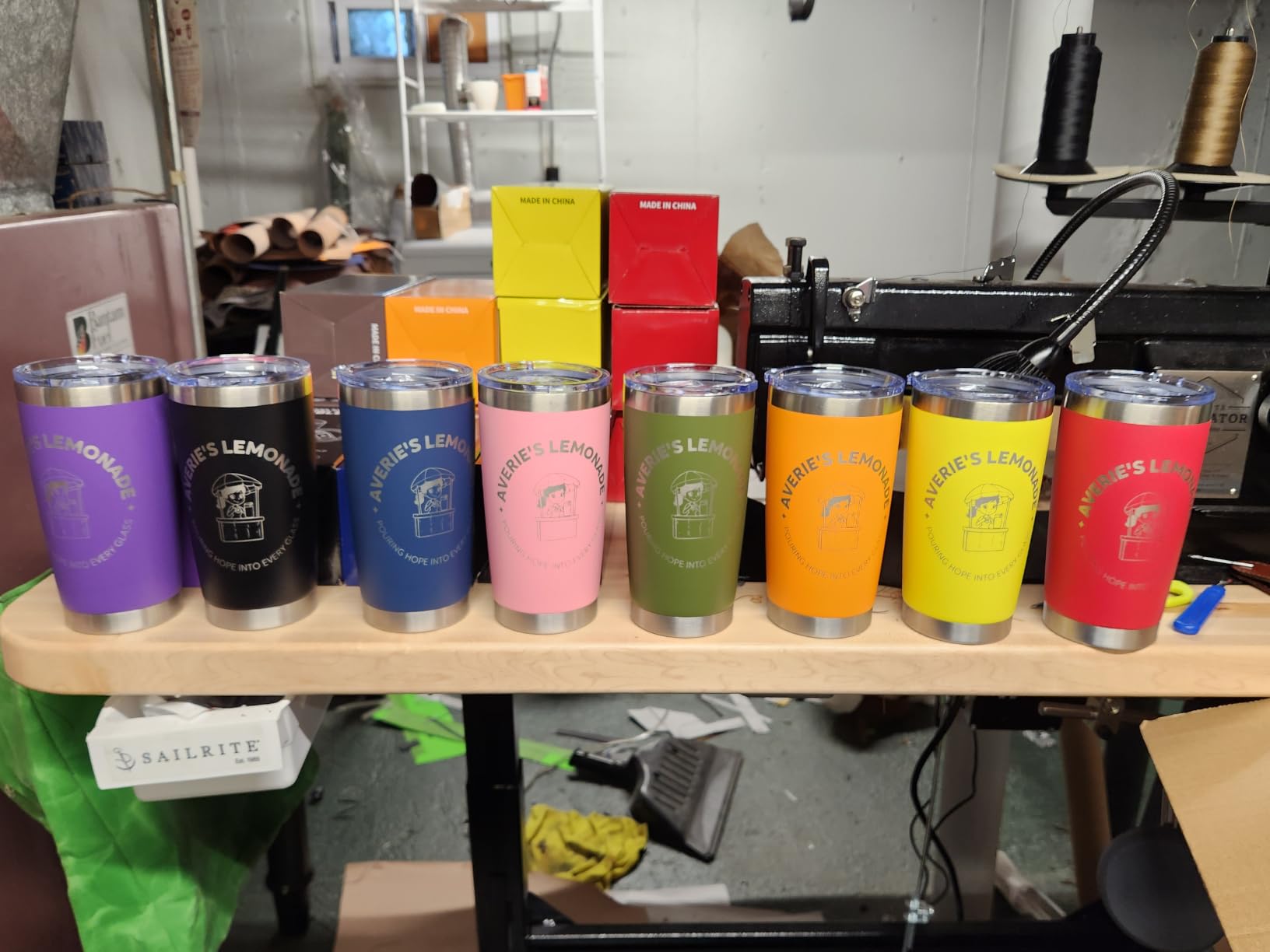

6. Longer Rotary Roller Series: Budget Roller With Two Connector Heads
Longer Rotary Roller Series,with Bracket, Y-Axis 360° Rotation for Laser Engraver Engraving Cylindrical Objects Tumblers Cans Cups Bottles, Compatible with 99% of Laser Engraver,Size 268 * 184 * 60mm
Roller type with bracket
268 x 184 x 60mm frame
3.14 pounds
Two connector wirings
Pros
- Dual wiring head covers effectively all machine types
- Adjustable height range handles trinkets and tall vases
- Solid positioning system for repeatable results
- Bracket included in the kit
- Strong sales rank shows broad hobby adoption
Cons
- Roller contact slips on wet or glossy surfaces
- Mixed connector documentation slows first-time setup
- Poor fit for deeply tapered objects
The Longer’s distinguishing feature is its two connector heads. A white connector covers the Ray5, Laser B1 series and roughly 80 percent of engravers, while a black connector handles the remaining 20 percent, which means you rarely have to guess before you start.
Reviewers value the adjustable height range and the included bracket, and they rate the positioning system as solid, giving precise and repeatable engraving across runs. With 74 percent five-star ratings and 222 reviews, it is one of the better-proven budget rollers available.
Height adjustment is the feature most budget rollers skip, and it earns its keep when your products vary. Small trinkets and tall vases can both sit at the correct focal distance without rebuilding the setup each time.
Be careful with glossy or wet surfaces. Friction grip on a coated tumbler is where slippage shows up first, so clean and dry the workpiece before every job.
What this roller is good for
It suits a first rotary purchase on a budget, especially if your machine is a Longer or a mainstream diode frame. The included bracket means the mount is sorted, and the dual connectors remove the most common cause of a failed first job.
For straight-sided cylinders in production runs, the solid positioning system delivers results consistent enough to sell.
What to watch out for
The connector documentation is inconsistent, so first-time users end up checking the manual anyway. Budget ten minutes to confirm which head your machine takes before you start.
Deep tapers are the weak spot. Anything that narrows sharply will drift on friction rollers, and for that work a jaw chuck is the right instrument.
7. OMTech 4-Wheel Rotary Attachment: Best for Long and Oversized Workpieces
OMTech 4-Wheel Rotary Cutter and Engraver Attachment with Nema 23 2-Phase Stepper Motor for 50W 60W 80W 100W 130W CO2 Laser Engraving Machine Rotary Tool Accessory Kit for Wood and More
Four-wheel drive
2 to 14 inch length span
Nema 23 two-phase stepper
0.4 to 6 inch diameter
Pros
- Long 12 inch span between drive wheels
- Four-wheel drive keeps irregular pieces steady
- Quiet smooth rotation from the Nema 23 and tailstock
- Wide 2 to 14 inch length and 0.4 to 6 inch diameter envelope
Cons
- Lower average rating than roller and chuck options
- Needs a tall rigid frame because of its size
- Limited to 50W to 130W CO2 machines
Four-wheel drive exists for one reason: length. With a 12 inch maximum distance between the drive wheels and support at both ends, this is the rotary for baseball bats, pipes, tubes and fence posts, which no roller or chuck on this list spans comfortably.
The envelope is generous, covering objects 2 to 14 inches long and 0.4 to 6 inches in diameter, driven by a Nema 23 two-phase stepper with a precision tailstock for smooth, noise-free rotation.
It is also the lowest-rated pick here at 4.1 with a 13 percent one-star share, and the reason is setup. Buyers who get it running appreciate the wheel span and the smooth rotation on oversized work; buyers who struggle cite alignment friction between the wheels.
When four-wheel drive earns its place
Long workpieces lose energy over their length. Two support points at the ends keep a bat or a length of pipe coaxial, while a single roller pair supports only the middle and lets the ends droop.
On irregular pieces the four-wheel arrangement keeps the rotation steady because the grip is spread across the whole length instead of concentrated at two contact points.
Why the rating sits where it does
Getting this right takes patience. You must align the centreline between the wheel sets carefully, and a small error shows up as a wobble that gets worse along the length of the part.
It also needs a tall, rigid frame. If your machine has a low bed or a light gantry, the size of this unit may be more of a liability than an advantage.
8. Creality Laser Rotary Roller: Best for Tapered Bottles and Goblets
Creality Official Laser Rotary Roller, 360° Laser Engraver Y-axis Rotary Module for Engraving Cylindrical Objects, 7 Adjustment Diameters 5mm to 120mm, Compatible with Creality Falcon/Falcon2 Engraver
Roller with lifting bracket
5mm to 120mm in 7 gear positions
2.42 pounds
Falcon2 ready
Pros
- Seven gear positions give a fine 5mm to 120mm range
- Rotates evenly for clean results on curved surfaces
- Lifting bracket secures slender tapered items
- Works beyond Creality machines when configured
- Support team states sub-24-hour response
Cons
- Default Y-axis acceleration is too high and causes spinning
- No micro-adjustment on roller spacing so it can bind
- Riser feet sold separately
The Creality roller is the one to buy if your range includes wine bottles and goblets. Its lifting bracket is built specifically to hold slender tapered items upright, which is exactly where plain friction rollers let a bottle lean and wander.
Seven selectable gear positions cover 5mm to 120mm, and buyers report clean, even rotation and good accuracy once the machine is configured properly, with 73 percent of ratings at five stars.
There is a configuration step that catches people. You must set a parameter in the GRBL console before first use, and until you do, the default Y-axis acceleration is too aggressive and the workpiece spins out of position.
Why the lifting bracket changes the job
A tapered bottle puts its centre of mass off the roller axis. Without support the workpiece leans, the laser focal plane drifts around the circumference, and the wrap comes out uneven top and bottom.
The bracket carries that weight so the roller grips a level cylinder instead. For stemware and bottles it is the difference between a clean result and a frustrating one.
What to fix before your first job
Lower the Y-axis acceleration values in the GRBL console, then test with a scrap piece. Skipping this step is the top cause of parts spinning and losing position mid-job.
Two more caveats. There is no micro-adjustment on the roller spacing, so it binds if the two sides are not moved evenly, and the extra rollers supplied for tapered items are of poor quality, so plan to replace them if you rely on them heavily.
9. ACMER M4 Laser Rotary Roller: Widest Adjustable Roller Range
ACMER M4 Laser Rotary Roller, 360° Y-Axis Rotary Attachment for Laser Engraver, 3–150mm Adjustable Engraving Space, for Cylindrical Objects, Rings, Compatible with Most Laser Engravers
Roller type
3mm to 150mm range
Pre-assembled aluminum frame
High-friction rubber rollers
Pros
- Widest roller range in this group at 3mm to 150mm
- Comes fully pre-assembled for a plug-in setup
- High-friction rollers reduce slipping on heavy pieces
- Rigid aluminum frame keeps rotation steady
- Works across ACMER S2 P1 P2 P3 and most diode engravers
Cons
- Roller-only design is weak on cones and irregular shapes
- Mixed ratings on grip consistency
- Newer listing with a small review base
The M4 covers 3mm to 150mm, which makes it the widest adjustable roller range in this roundup. The lower bound reaches pencil-thickness work, and the upper bound handles wide cans and jars without a second attachment.
It is also genuinely plug-and-play. It comes fully pre-assembled and connects to the Y-axis port directly, and it works with Acmertool, LightBurn and LaserGRBL across the ACMER S2, P1, P2 and P3 machines plus most diode engravers.
The rigid aluminum frame and high-friction rubber rollers are what keep long or heavy workpieces from slipping mid-job, and that is where most cheap rollers let you down.
Expect a mixed response on grip consistency. With 67 percent five-star ratings and 46 reviews, the evidence is thinner than the budget units above, and some buyers report wanting chuck capability after using it.
Where the M4 stands out
The 3mm lower bound is the differentiator. Slim pens, dowels and narrow rods are awkward on a seven-step roller that starts at 5mm or 8mm, and the M4 takes them without modification.
For an ACMER owner it is a natural fit, and for anyone on a comparable diode frame the plug-in arrangement removes the installation question entirely.
Where it falls down
It is roller-only, so cones and irregular profiles remain its blind spot. Grip consistency is also uneven across reviews, which is worth testing carefully if your workload is heavy glass.
Finally, the listing sits under power rotary tool attachments rather than laser accessories, which means the setup documentation is thinner than the hardware deserves.
10. Longer Chuck Rotary Roller: Best for Glasses and Handled Mugs
Longer Chuck Rotary Roller is ideal for engraving cylindrical, wine glass, and irregular objects. Y-axis 360° rotation, compatible with Ray5, Ray5 Mini, B1, and most other frame-style laser engravers.
4-in-1 chuck with jaw modules
Up to 360 degrees per second
0.014 degree accuracy
4.44 pounds
Pros
- Chuck grip handles wine glasses tumblers bats pens and handled mugs
- Three interchangeable modules in one body
- Very high speed and 0.014 degree positioning accuracy
- All-in-one design needs no assembly
- Runs on Ray5 Mini Ray5 Laser B1 and most frame-style engravers
Cons
- Lowest-rated option in this roundup at 4.2
- Jaw centring needs care on very small rings and pens
- Listing sits under roller stands rather than laser accessories
This is the pick for glassware and handled mugs specifically. Reviewers credit it with chuck-level grip on glasses and handled mugs at high speed, and 71 percent of its ratings sit at five stars. Friction rollers simply cannot do this job; a chuck can.
It packs three interchangeable modules into one body: single-step jaws, double-step jaws and a hexagonal rod module. That covers wine glasses, Yeti tumblers, baseball bats, rings, pens, balls and handled mugs without buying separate hardware for each.
The speed and accuracy figures are strong, with rotation up to 360 degrees per second and stepper control accuracy of 0.014 degrees, running under LaserGRBL and LightBurn.
The trade-off is evidence. At 4.2 with an 80-review base it is the thinnest-proven chuck unit here, so the grip reports are encouraging rather than conclusive, and it is worth running a test batch before committing to it.
Why a chuck is the right tool for mugs
A handle gives you nowhere to place a roller and gives the laser a place to push the workpiece out of alignment. A three-jaw chuck clamps the body of the mug and leaves the handle out of the equation, which is why forum owners who own both types recommend the chuck for accuracy and repeatability.
Stemware is the same problem in a different shape. A stem cannot rest on rollers, so the chuck holds the bowl by its diameter and the stem stays clear.
What to watch out for
Jaw centring takes care on very small rings and pens. The jaws are wide relative to the workpiece, so take a few passes to get them even before you commit to a finished piece.
At 4.2 with a 10 percent one-star share, it sits near the bottom of this roundup. The grip reports are good; the complaints cluster around setup precision on small parts rather than the chuck itself.
How to Choose a Rotary Attachment?
Choose on three things in order: the shape of your workpieces, the connector your machine accepts, and the clearance your bed allows. Everything else is preference. If you are still deciding on the machine itself, our wood laser engraver guide covers bed sizes and power tiers in detail.
Match the grip to your products
Straight-sided tumblers and cans work on any roller. Handled mugs, tapered glasses, pens and rings need a chuck, because friction grip fails on all of them. Long pipes, bats and oversized parts need a four-wheel unit with support at both ends.
If you cannot decide, note how owners on the LightBurn forum converge on the same answer: a chuck holds the part and permits vector graphics without slipping, but needs more clearance. Accuracy has a price, and it is measured in millimetres of headroom.
Check the connector and axis compatibility
Most hobby rotaries plug into the Y-axis port and take over that axis, which means your bed’s Y travel shrinks to whatever clearance the rotary leaves. Check the connector type your machine expects. The Longer roller here ships with both a white and a black head, covering the Ray5 and Laser B1 series plus roughly all other engravers, while the ORTUR roller needs a blue and green wire swap on non-ORTUR machines.
Some industrial units use a dedicated rotary port with a 4-wire cable instead, as the two OMTech units here do. Those are built for 50W and above CO2 platforms, so they are not interchangeable with a 20W diode frame.
Measure diameter correctly and enter it exactly
Measure the actual object diameter with calipers, not the nominal size on the packaging, and type that number into the rotary tool in your software. A mismatch is the single most common cause of stretched or compressed full wraps, and no amount of motor quality corrects it.
In LightBurn you enable the rotary attachment tool and enter the diameter in millimetres. On xTool machines the same job runs through rotary mode in Creative Space. A quick test run on a scrap cylinder is worth five minutes before a production batch.
Level and focus before the first pass
A rotary must sit parallel to the bed and at the right focal height, otherwise the focal plane drifts around the circumference and the top of the wrap blurs while the middle stays sharp. Units without height adjustment, such as the SCULPFUN roller, need shims on tapered workpieces.
Clearance is the other common trip hazard. Chuck units and four-wheel units stand taller than rollers, so check the Z-height on small 20W diode machines especially. If your engraver struggles to close the lid with the rotary fitted, that is a clearance problem no software setting will fix.
Fix slippage before it ruins a batch
Slippage has four usual causes and each has a quick fix. Clean and dry the workpiece so friction has something to grip, tighten the roller or jaws until the part stops turning by hand, raise the roller frame so the workpiece sits on the roller centreline rather than on its edge, and check that the acceleration values in your control software are not set high enough to overwhelm the grip.
If slippage persists on a tapered body, stop adjusting the rollers and move to a chuck. That is the honest answer, and owners on r/Laserengraving running 130W OMTech machines describe the same frustration with roller rotaries on tapered tumblers before switching types.
Frequently Asked Questions
What is a good rotary tool for engraving?
A good rotary tool for engraving is one whose grip matches your workpiece shape. For straight-sided tumblers and cans, a friction roller with a 6mm to 150mm range is the easiest and cheapest route. For handled mugs, tapered glasses, pens and rings, a three-jaw chuck is worth the extra cost because it clamps the part instead of relying on friction. The ORTUR Laser Rotary Roller is our all-round pick, while the Longer Chuck Rotary Roller and the xTool RA2 Pro cover glassware and multi-shape work.
Should I get a roller or chuck rotary attachment?
Get a roller if your work is straight-sided cylinders such as tumblers and cans, because loading is fast and grip is sufficient. Get a chuck if you engrave handled mugs, tapered glasses, pens or rings, or if you cut vector artwork on the rotary, because a chuck holds the part without slipping. Chuck units need more machine clearance than rollers.
Can you engrave a mug with a rotary attachment?
Yes, but a handled mug needs a chuck rather than friction rollers, since there is nowhere to place a roller on a handle and the laser will push the workpiece out of alignment. A three-jaw chuck clamps the body of the mug and leaves the handle clear of the rotation path. Check your machine’s Z clearance first, because chuck units stand taller than rollers.
How do I stop my tumbler slipping while engraving?
Four fixes cover almost every case. Clean and dry the workpiece so friction has something to grip. Tighten the rollers or jaws until the part stops turning by hand. Raise the roller frame so the workpiece sits on the roller centreline instead of resting on an edge. Finally, lower the Y-axis acceleration values in your control software, since the factory defaults can overwhelm the grip and spin the workpiece.
What is the best tumbler for laser engraving?
The best tumblers for laser engraving are straight-sided, cylindrical and evenly coated, because they sit level on friction rollers and keep a constant focal distance around the circumference. Tapered bodies such as Yeti-style tumblers need a chuck or a lifting bracket, since friction rollers let them lean and drift. Powder-coated stainless steel takes an engraved mark cleanly and survives repeated washing.
What are the most profitable laser engraved items?
The most profitable engraved items are those a rotary unlocks that a flat bed cannot handle: tumblers, handled mugs, wine glasses, apothecary jars and wooden dowels. Tumblers and insulated drinkware lead because the pieces are cheap, the designs are repeatable and the demand on marketplaces is steady. Adding a rotary typically opens a wider product range than increasing laser power does.
Conclusion: Our Best Rotary Attachment Picks
For most people the ORTUR Laser Rotary Roller is the right first rotary, because the seven-step 8mm to 110mm range and the largest review base in this roundup mean fewer surprises. If your products include handles, tapers or rings, step up to the xTool RA2 Pro, which puts roller, chuck, sphere and ring modes in one body and holds 360 degrees per second. For 50W and above CO2 machines, the OMTech 3-Jaw Chuck is the one built for your bed, and the OMTech 4-Wheel unit covers long pieces nothing else here spans.
Whichever you choose, measure the actual diameter, level the unit and run a scrap test before a production batch. We have covered cordless and corded rotary laser levels in a separate guide, and if you want the accessories angle our stand mixer attachment roundup covers the same buying logic in a different category.
