A trailer brake controller is the box in your cab that makes your trailer’s electric brakes actually do something. Without one, those brakes sit dead and your truck’s own brakes have to stop the entire rig alone, which is exactly how jackknifes start on the highway. If your pickup pulls anything with a 7-way plug and electric brakes, this is the most cost-effective upgrade you can make to a rig you tow regularly, and getting the wrong controller costs you in stopping distance every single trip.
We spent weeks reading manufacturer specs, warranty terms and owner feedback across the ten controllers below, then matched each one to the way it is actually used. Some of these drivers tow one trailer behind one truck. Some move a fifth wheel between two vehicles. Some own a bucket-seat truck where there is nowhere clean to hang a knob. The best trailer brake controllers for pickups are not the ones with the longest feature list — they are the ones that match your axle count, your dash, and how often you tow.
Two things surprised us while putting this together. First, five of the ten controllers reviewed here come with no wiring harness, which is the number-one complaint pickup owners raise in towing forums and the reason many first installs stall. Second, several listings reuse a genuine part number on a third-party housing, so you have to check the manufacturer field before you buy. We flag both below so you can skip the expensive surprises.
This page is updated as new controllers reach the market. Every product here is a real, currently listed model, and everything we state comes from the published specification or owner feedback for that exact unit.
Table of Contents
Top 3 Best Trailer Brake Controller Picks for Pickups in 2026
Our three headline picks cover the three most common pickup situations: towing more than one vehicle, a factory-looking dash in a half-ton, and a portable setup that needs no drilling.
CURT 51180 Echo Mobile
- Bluetooth app control
- Plugs into 7-way
- Triple-axis accelerometer
- 1-2 axles
CURT 51170 Spectrum
- Hidden main module
- 1-4 axles
- 10 tri-color LEDs
- Limited lifetime warranty
The Echo wins for the sheer volume of owners running it and for solving the no-wiring problem outright. The Liberty takes the daily half-ton towing slot because its compact dial and smooth proportional ramp never get in the way. The Spectrum is the one to buy when appearance matters as much as function.
The Best Trailer Brake Controllers for Pickups at a Glance (October 2026)
Every controller below, ranked with its axle range, control type and the towing situation it suits best.
| Product | Specifications | Action |
|---|---|---|
| CURT 51180 Echo Mobile Bluetooth |
|
Check Latest Price |
| REDARC Tow-Pro Liberty |
|
Check Latest Price |
| CURT 51170 Spectrum |
|
Check Latest Price |
 Hopkins 47235 Impulse |
|
Check Latest Price |
 REDARC Tow-Pro Elite |
|
Check Latest Price |
 HRepair 90160 Replacement |
|
Check Latest Price |
 Timilge BC06 Proportional |
|
Check Latest Price |
 briidea BR-121 Time-Delay |
|
Check Latest Price |
 briidea BR-122 Proportional |
|
Check Latest Price |
 CURT 51116 Venturer NEXT |
|
Check Latest Price |
1. CURT 51180 Echo Mobile Bluetooth Trailer Brake Controller
CURT 51180 Echo Mobile Bluetooth Trailer Brake Controller, 7-Way, 1-2 Axles
Bluetooth app control
Plugs into the 7-way
1-2 axles
8.8 oz, 6.63 x 1.63 x 2.88 in
Pros
- No under-dash wiring at all
- Moves between vehicles in seconds
- Triple-axis accelerometer for smooth stops
- Saved trailer profiles in the app
Cons
- Long body can hang low and scrape

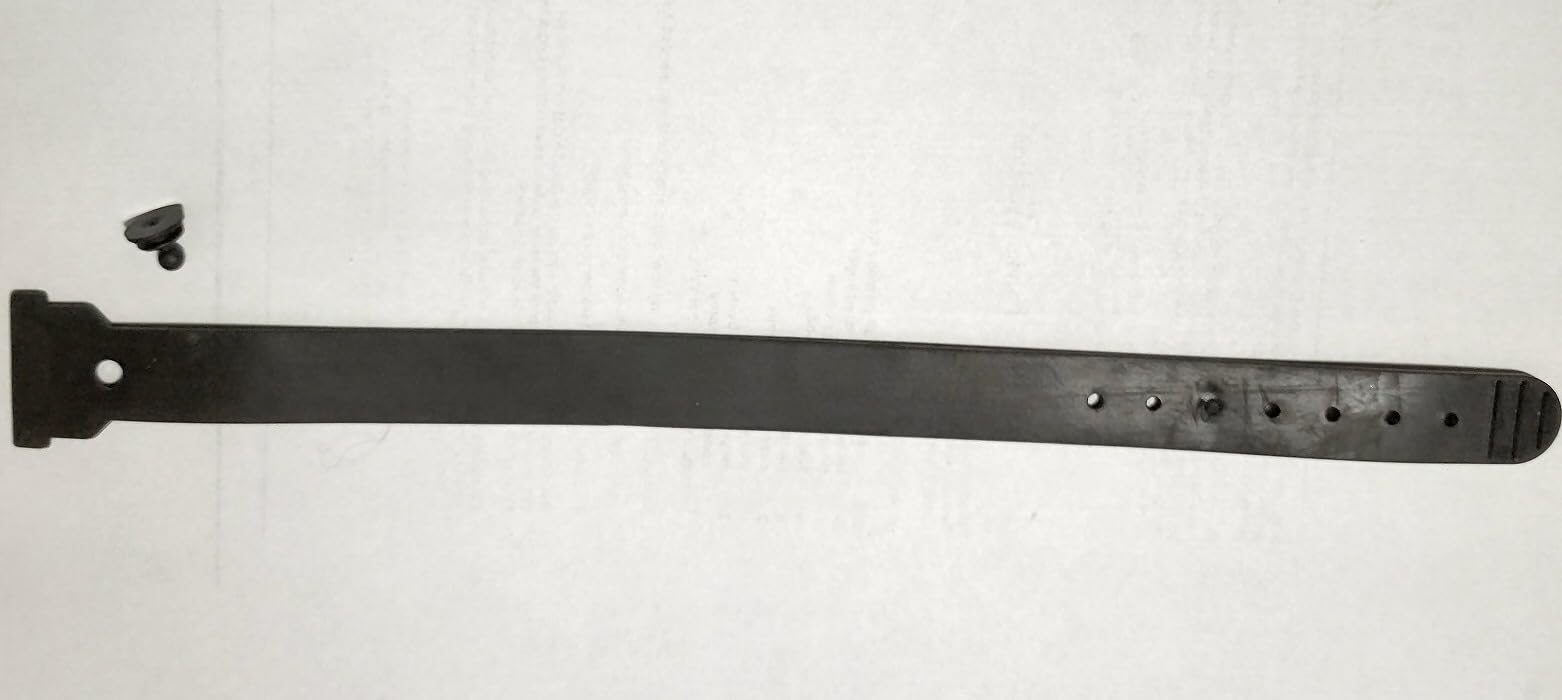

- Strap stud pops out easily
- App dependency for adjustments
This is the controller we kept coming back to, and the reason is simple: it installs in seconds with no under-dash wiring at all. It slots in between the truck’s 7-way connector and the trailer’s plug, draws power and ground from the vehicle side, and starts braking. For a pickup with no factory tow package, or a rental truck, or a family that owns two vehicles and one trailer, that is a genuinely different use case from everything else here.
Braking itself is proportional via a triple-axis accelerometer, so the trailer pushes back in line with how hard you press the pedal. Owners reviewing it at scale consistently describe smooth, predictable stops, and several mention it entirely removes the knee-knocking bulge of a conventional under-dash box.
The trade-off is that all adjustment happens inside the OneControl Auto app, which needs iOS 14 or Android 9 or newer. Saved vehicle and trailer profiles mean the gain you use for the utility trailer is remembered separately from the gain for the fifth wheel, which saves real setup time when you swap. Bluetooth range is rated up to 50 feet unobstructed, so you can read the app from outside the cab on a hot day.
What gave us pause is the mounting arrangement. The body is 6.63 inches long and hangs below the connector, so on a truck whose 7-way is mounted low or angled inward it can contact the bumper on rough roads. Several owners add a hook-and-loop strap as insurance. Others report the latch feels insecure against some blade-style trailer connectors.

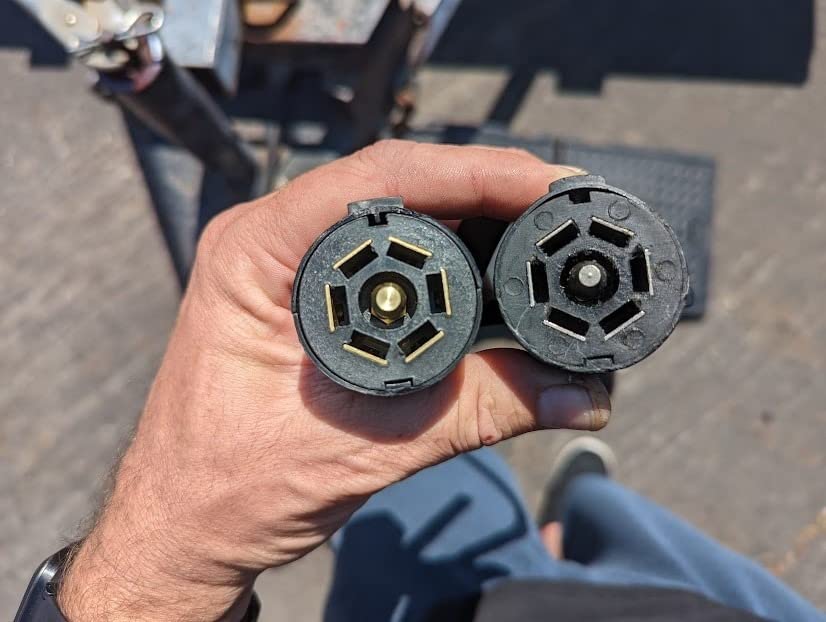

Check the 7-way position before you commit
Portable controllers only work if your truck’s 7-way supplies continuous battery power and a ground at the connector. If your receptacle is a simple trunk-mounted outlet with no auxiliary circuit behind it, you will need the pig tail and relay install anyway, and the advantage shrinks to nothing. Look up your truck’s tow package: a factory tow package normally includes the powered circuit.
A portable unit also stops working the moment your phone does. If you lose Bluetooth connection mid-drive, the controller keeps applying the last output setting rather than cutting out entirely, but you lose the ability to trim gain on the fly.
Where it falls short for heavy or multi-vehicle use
Two axles is the ceiling here, so a three-axle equipment trailer or a loaded gooseneck is out of range. Owners also report inconsistent or excessive braking force on a minority of examples, which is a fault you cannot trim away with the app.
If you own one truck, one trailer and a factory tow package, this controller is doing a job a wired unit does better. Buy it for portability first, not for braking feel second.
2. REDARC Tow-Pro Liberty Proportional Brake Controller
REDARC Tow-Pro Liberty Electric Trailer Brake Controller, Universal Fit for 1 to 2 Axle Cars, Trucks, SUVs, Proportional Braking, 12V Compatible to Tow RV, Camper, Trailer, Boat
Proportional braking
Compact dash dial
1-2 axles
8.8 oz, 6.7 x 6.3 x 2.2 in
Pros
- Dial is small and out of the knee zone
- Reduces push and pull
- Active calibration and sway control
- Stores settings for multiple setups
Cons
- Harness sold separately
- English-only documentation
- Setup menus take a little learning
This is the one we would fit to a half-ton that lives on the road. The Liberty delivers smooth proportional braking on the highway, which is exactly where a pickup spends its time, and the remote head is a compact dial rather than a full box hanging under the dash. Owners say it reduces push and pull from the trailer noticeably compared with a time-delay unit set to the same level.

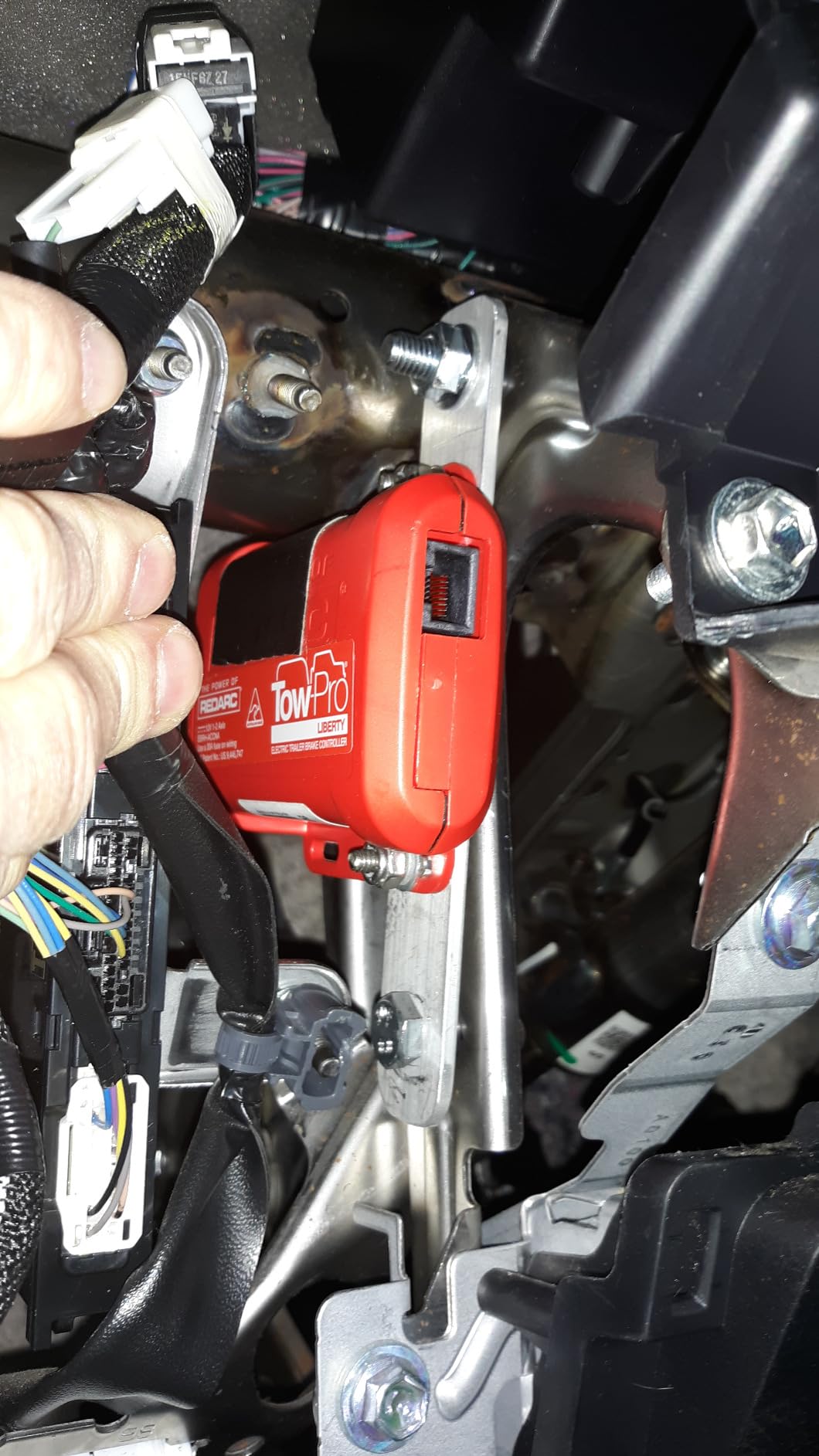

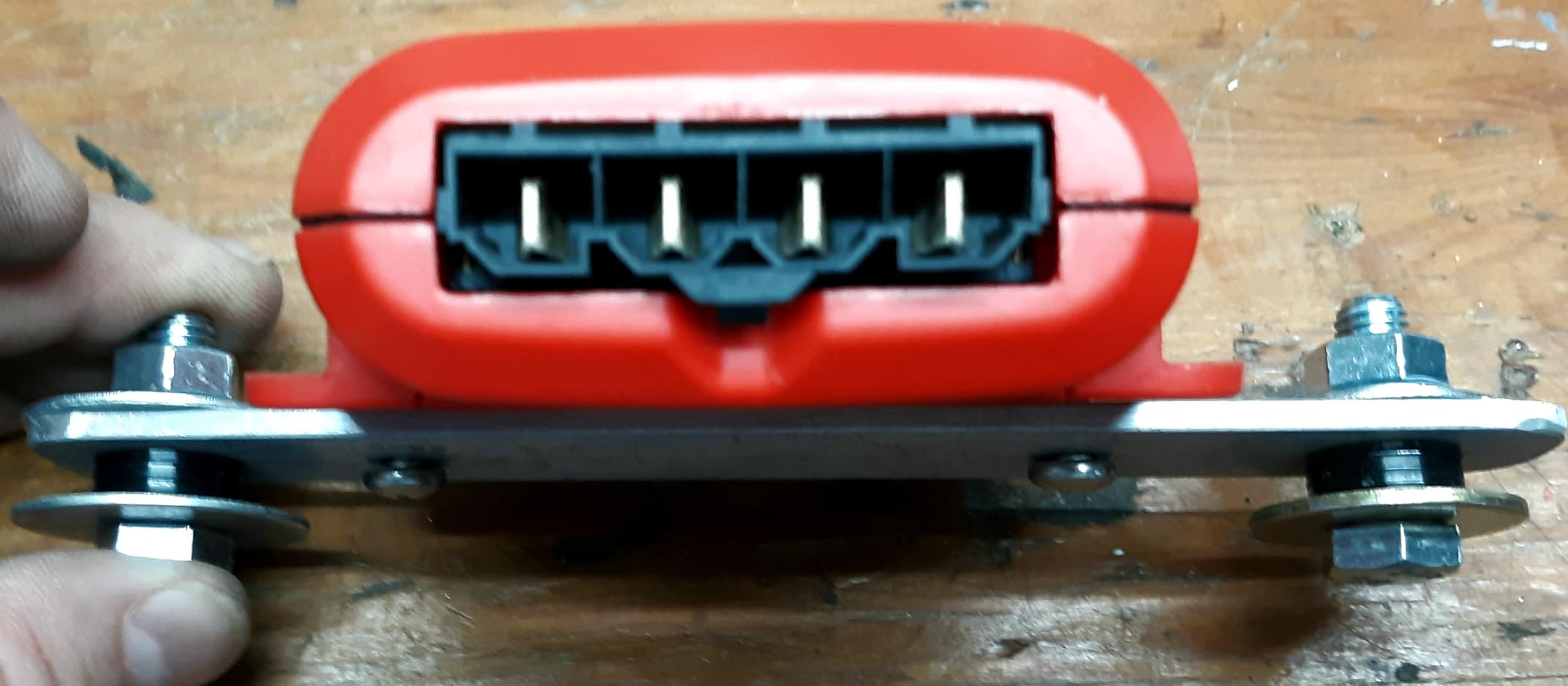

The main unit separates from the dash dial with a three foot cable, so you can tuck the module behind a trim panel and leave only a small knob visible. Active Calibration handles the self-leveling step, which matters on a truck that rides differently loaded than empty.
The Liberty covers one to two axles at 12 volts, which covers utility trailers, boat trailers, toy haulers and most campers. It is 12V only, so it is not the choice for a medium-duty or heavy-duty truck running a 24-volt system, and it cannot drive four brakes.
Settings can be saved for multiple trailer setups, which pays off when you move between a light utility trailer and a much heavier camper with the same controller. Pickup forums consistently point to the Liberty and the Tekonsha units as the two most-recommended proportional controllers, and the Liberty repeatedly wins the build-quality comparison.
Budget for the harness in your plan
The box includes the remote head, knob, bezel and cable, but the wiring harness is not included. You need either the universal pig tail or a vehicle-specific harness, and the vehicle-specific route is the cleaner install on any modern pickup.
Owners who buy the correct harness describe setup as straightforward. Those who try to improvise the brake-light signal connection are the ones who report difficulty, so the documentation being English-only matters much less than getting the right harness for your truck.
Where it stops being the right answer
Two axles is the limit, and there is no user-controlled off-road mode here. If you back a loaded trailer down a steep grade and want to feather the brakes yourself, you want the Elite instead.
The dial also takes some getting used to, and several owners describe the menu as confusing on day one. Budget an afternoon rather than assuming a ten-minute job.
3. CURT 51170 Spectrum Proportional Trailer Brake Controller
CURT 51170 Spectrum Proportional Trailer Brake Controller, Dash-Mount Knob
Hidden main module
Push-button rotary knob
1-4 axles
10.4 oz, 11 x 9 x 4 in listed
Pros
- Main module hides out of sight
- Handles up to four axles
- Limited lifetime manufacturer warranty
- Auto leveling and manual override
Cons
- Quick-plug harness sold separately
- No integration with the truck display
- Some owners report odd LED behavior

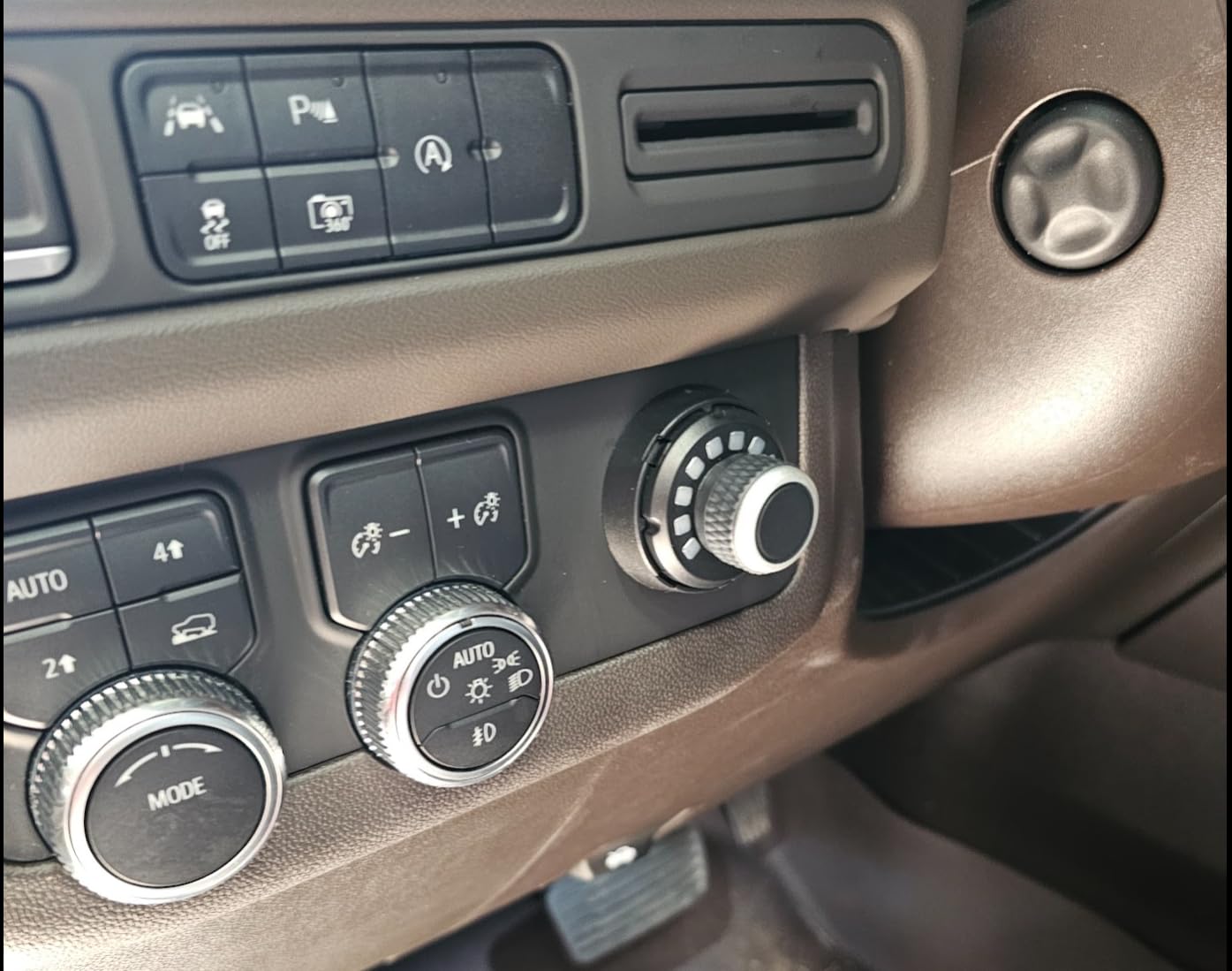

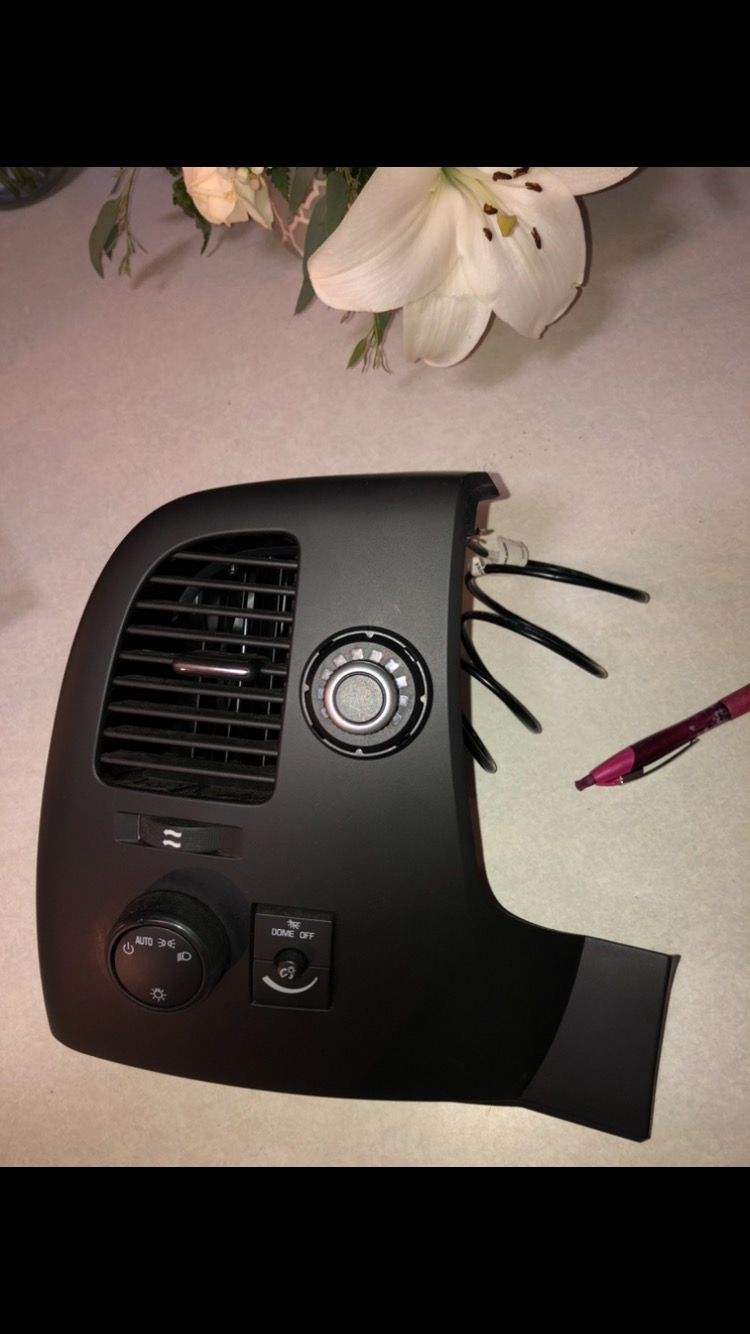

The Spectrum is the one that disappears into the dash. You mount the main module out of sight and keep only a push-button rotary knob and ten tri-color LEDs in view, which is the entire point for a truck owner who just spent money on an interior upgrade.
Braking is proportional through a triple-axis accelerometer, and owners report that once you set it, you rarely have to touch it again. Manual override is a button press away, which is the fast way to pull trailer braking back when you are descending a grade with a light load.
Axle capacity is the headline spec here: one to four axles, two to eight brakes, with the axle count switchable from the knob. That range covers everything from a single-axle utility trailer to a four-axle equipment or gooseneck trailer, and it means one controller can stay in the truck when you change jobs.
The Spectrum carries a limited lifetime manufacturer warranty, and that is the warranty detail pickup owners cite most often as a reason to buy one controller instead of replacing it later. Auto leveling means the mounting angle does not have to be exact, which removes the most common install error.
Buying the harness is part of the purchase
The quick-plug wiring harness is sold separately. Budget for it up front, and buy the vehicle-specific version for your truck so the brake switch signal comes from the correct factory port instead of being spliced into the brake light circuit.
A minority of owners report blinking or random indicator behavior with no trailer connected. If the LEDs misbehave with nothing plugged in, disconnect before assuming the trailer has a fault.
Where it falls short
There is no integration with the truck’s native infotainment screen, so you are adjusting a physical knob rather than a menu. On a truck with a large center display, that can feel like a step back.
The module is also a hidden box you have to route and secure somewhere, which is more installation work than the portable Echo and only marginally more than the Liberty.
4. Hopkins 47235 Impulse Plug-In Brake Control
Hopkins 47235 Impulse Plug-in Simple Brake Control, Mounts At Any Angle, Controls Up To 6 Trailer Brakes
Time-based braking
5% to 99% power
Mounts at any angle
10.2 oz, 6.88 x 5.88 x 2.63 in
Pros
- Digital readout shows exact percentage
- Mounts at any angle for tight dashes
- Handles up to six trailer brakes
- Short circuit protected
Cons
- Time-based control needs re-tuning per load
- Often needs a separate pig tail
- Instructions assume wiring familiarity
This is the simplest thing on this list that still gives you a real number to work with. Its digital screen displays the braking percentage from 5 to 99 rather than a coded scale of dots and bars, so setting the gain is a matter of watching a figure instead of guessing from a color.
Because it mounts at any angle, it suits trucks with awkward under-dash space — the bucket-seat and wide-center-console pickups that owners complain about constantly in towing forums. It will also control up to six trailer brakes, which is unusual for a time-delay unit at this level.
This design has been in production since 2004, and that longevity shows in the feedback. It is short circuit protected, and owners with basic wiring knowledge describe the install as straightforward.
Understand what time-based means before you buy. The controller ramps to a preset level every time the pedal is pressed, whether you are easing to a stop in a parking lot or standing on the brakes in a panic. That is fine for a heavy trailer at a moderate setting and frustrating for a light one.
Pickup owners who tow a single trailer with a consistent load rate this well. Those who swap between a utility trailer and a loaded camper will be readjusting it every time, which is the single honest drawback of the category.
Check your pig tail before ordering
A plug-in brake control needs the vehicle side of the 7-way to supply power and ground, and many trucks need the separate pig tail and relay to make that happen. Buyers report the pig tail is not universally compatible with every vehicle, so verify against your make and model before you commit.
The instructions assume you already understand brake light wiring and are comfortable with a multimeter. If you have never wired a 7-way, expect to borrow a diagram or ask for help.
Where a time-delay unit makes more sense
If you tow the same trailer most weekends with a load that does not change much, time-based control is genuinely adequate for that pattern of use. You set it once and forget it.
If you tow heavy loads downhill often, or you carry varying cargo in the bed, a proportional controller responds to the pedal instead of the clock and will feel far better.

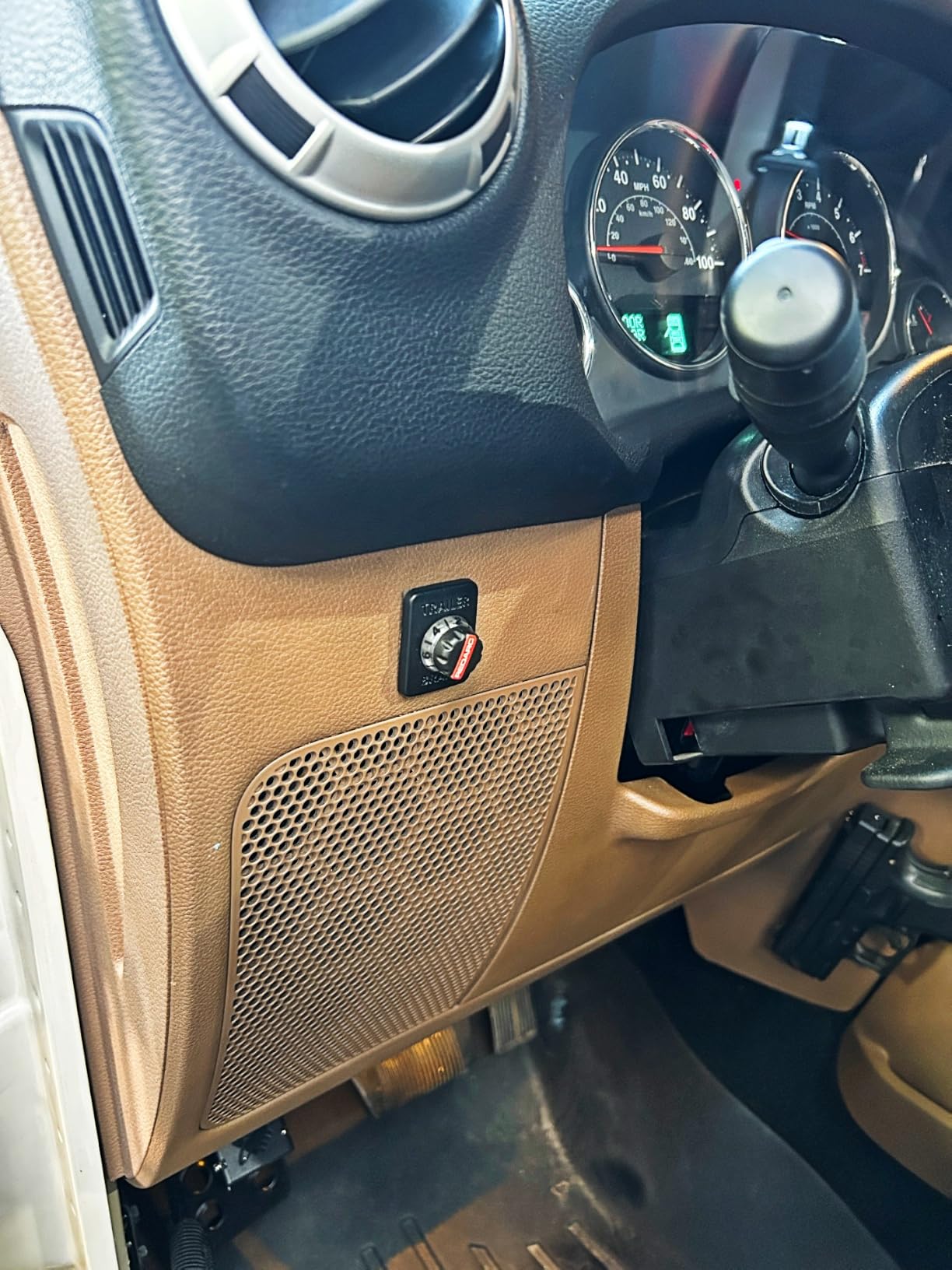

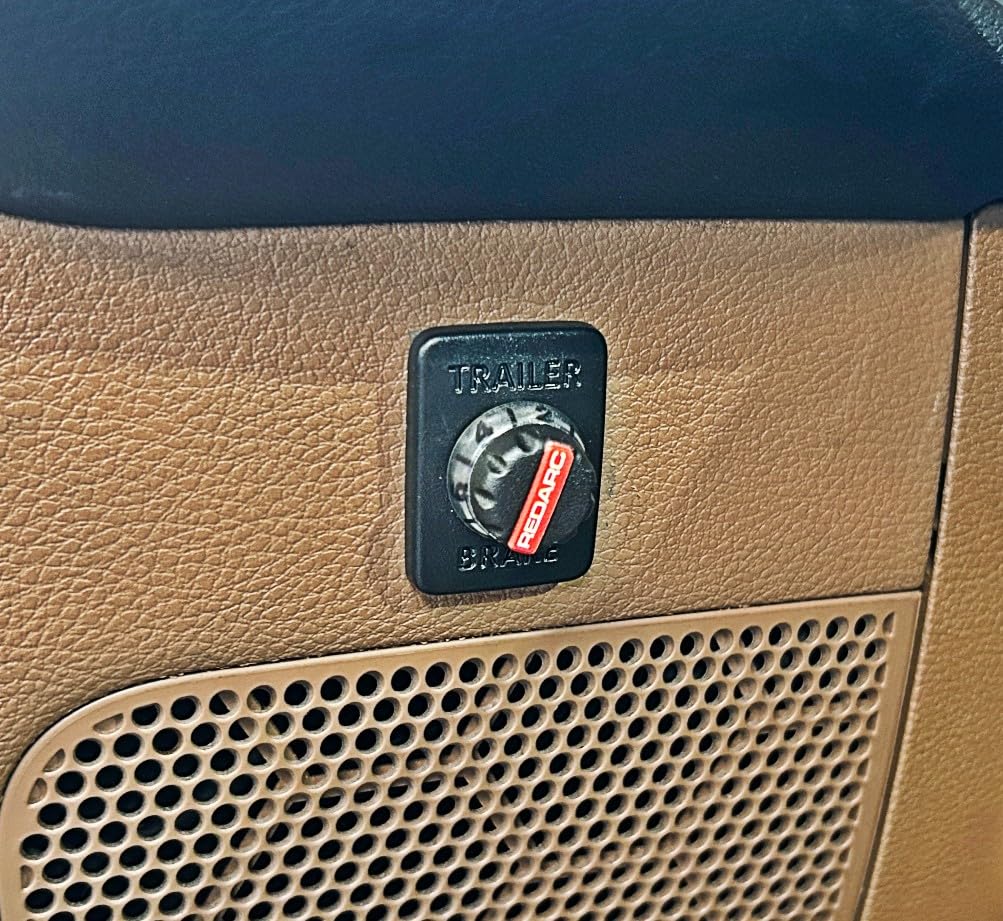

5. REDARC Tow-Pro Elite Dual-Mode Brake Controller
REDARC Tow-Pro Elite Electric Trailer Brake Controller, Universal Fit for 1 to 3 Axle Trucks, SUVs, Dual Braking Modes, Plug and Play Install, 12V/24V Compatible to Tow RV, Camper, Trailer, Boat
Proportional and off-road modes
1-3 axles
12V and 24V
12.3 oz, 7 x 7 x 3 in
Pros
- Off-road user-controlled mode for grades
- Handles three axles and 12V or 24V
- Self-calibrates in any orientation
- Strong customer support
Cons
- Vehicle harness sold separately
- Universal switch plate may not fit the dash
- Costs more than entry models
The Elite is the strongest-rated unit in this group and the one that earns a spot on a truck doing real work. Its second braking mode lets you apply trailer brakes yourself at a fixed level, which is the feature that matters on a descent with a heavy trailer where you want controlled braking rather than the pedal reading.
Everything else about it is built for heavier duty. It drives one to three axles, works on both 12-volt and 24-volt systems, and the module mounts in any orientation while calibrating itself automatically. That combination makes it the natural choice for a duffel-hauling truck or an equipment hauler.
Owners rate the proportional ramp as easy to dial in and describe the dial plus hidden module as looking factory-fitted. There is also a sway control function on the proportional mode, and REDARC’s warranty is two years limited.
One owner theme worth noting is support. Several buyers report a quick replacement of a faulty unit, which matters a lot when your trailer is loaded and your controller is the part that failed.
Why the extra modes earn their keep
In user-controlled mode, the output is set on the dial and applied whenever the brake pedal is pressed, independent of pedal travel. On a long downgrade with a heavy fifth wheel or equipment trailer, that is a genuinely useful tool rather than a novelty.
It also gives you a fallback if the inertial sensing ever feels conservative on a particular load. You can override the ramp deliberately instead of living with it.
Where it is more than you need
A half-ton that tows a single-axle boat trailer twice a month will not use three axles, 24 volts or the off-road mode. In that case the Liberty gives you the same core braking feel and one less thing to learn.
Budget for the vehicle-specific harness, and check the universal switch insert plate against your dash opening because it does not fit every aperture.

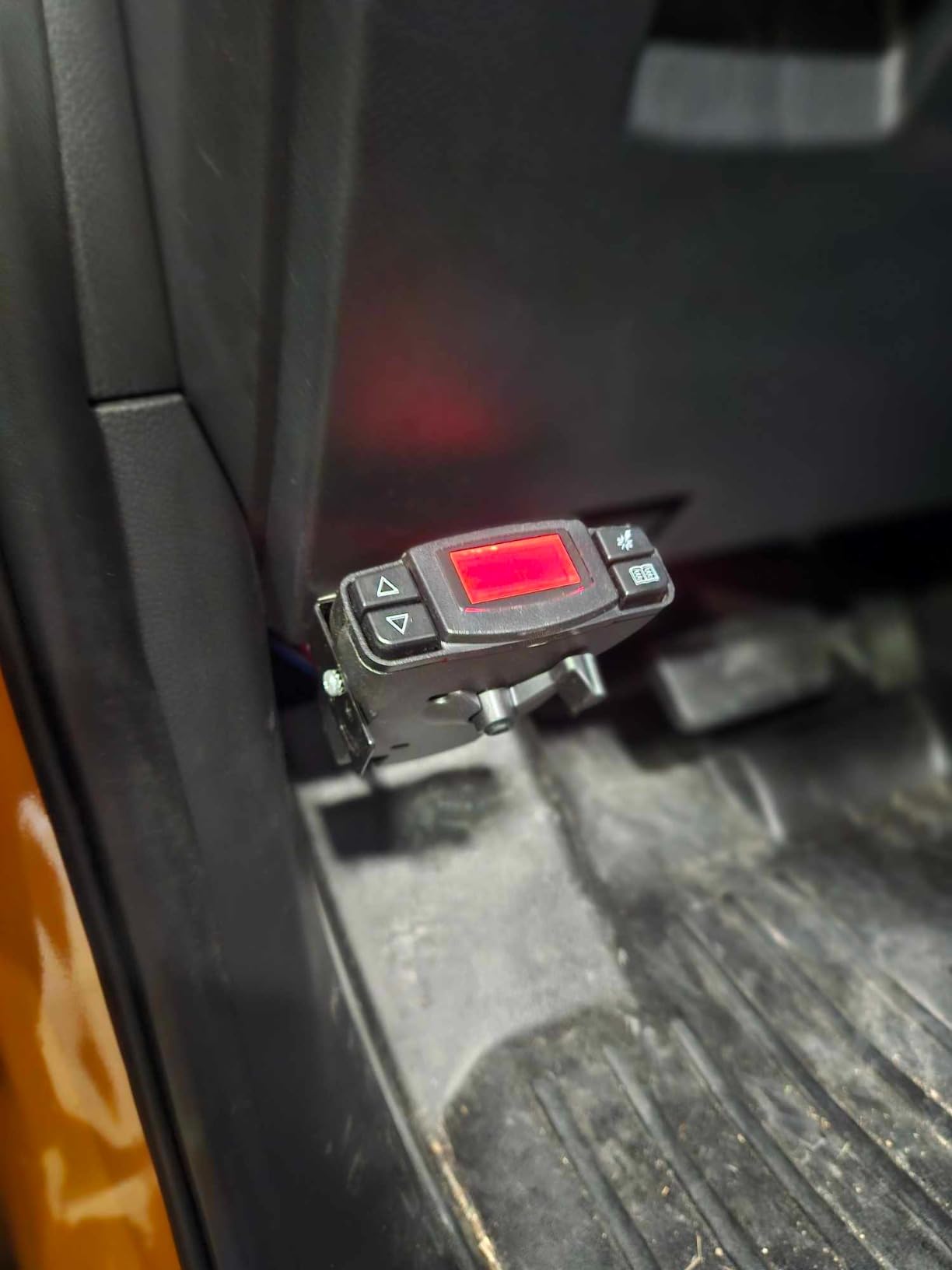

6. HRepair 90160 Replacement Brake Controller
HRepair Universal Trailer Brake Controller for Trailers with 1-3 Axles Compatible with Ford GM Chevy Dodge RAM Toyota Jeep etc. Replacement 90160 Primus IQ Brake Controller
Replaces the 90160 form factor
1-3 axles
Digital fault display
1.08 lb, 7.64 x 5.63 x 2.76 in
Pros
- Installs where the unit it replaces sat
- Digital readout reports faults
- Three boost settings plus manual lever
- Self-leveling tolerates mount angle
Cons
- Newer brand with a shorter record
- Needs the correct vehicle harness
Many pickups leave the factory with a controller that is dead or marginal after a decade or more. This unit exists for exactly that situation. It follows the same form factor and mounting pattern as the 90160 it replaces, so if you already have that harness on your truck, the swap is close to a plug-and-play job.

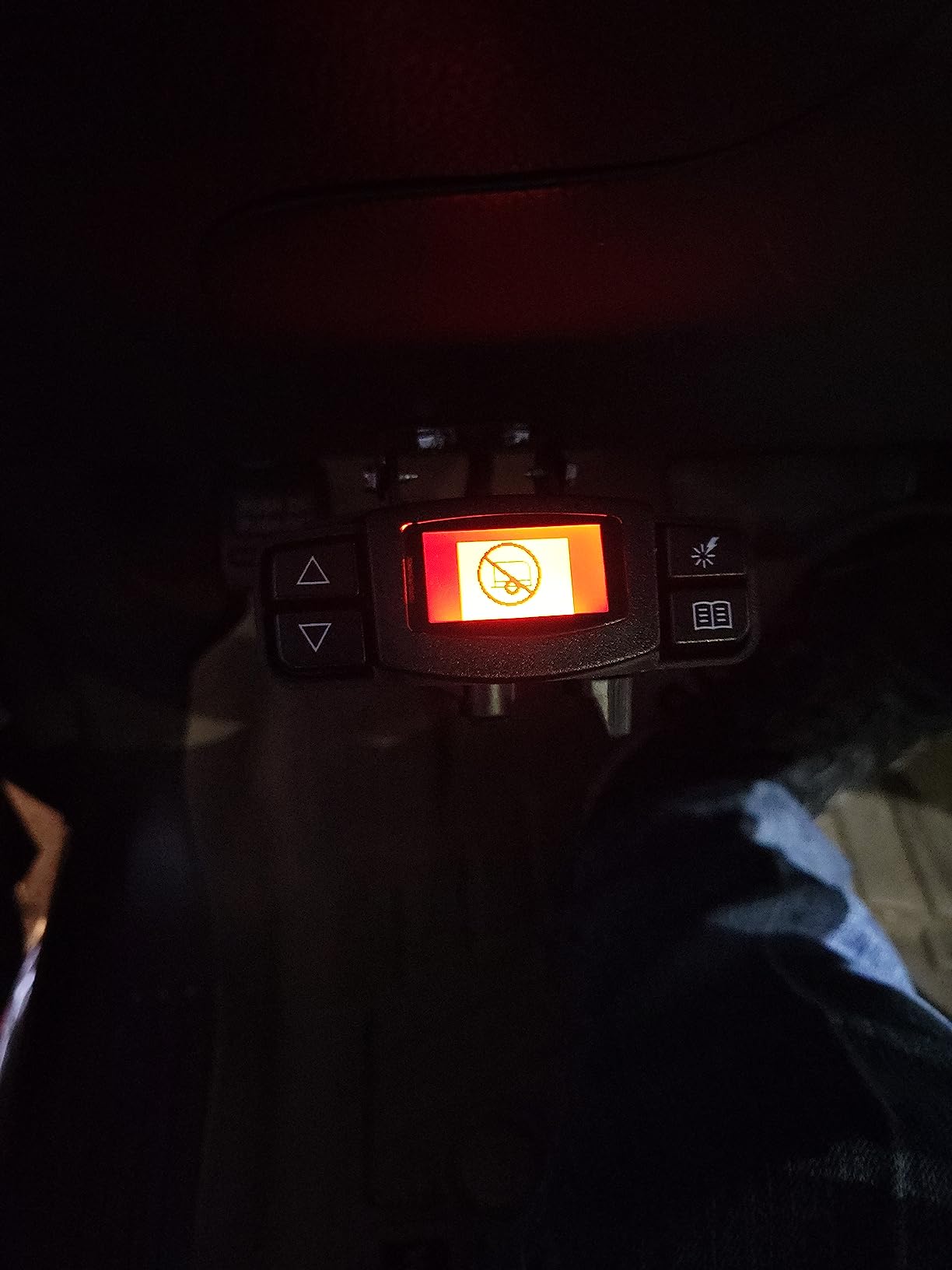

The digital display shows real-time brake settings and continuous diagnostics, which is the feature most owners mention first. Rather than guessing why the trailer is not braking, you can read the fault indication directly.
Braking is proportional with a self-leveling element, and there are three boost settings plus a manual override lever for fine tuning. Mounting is by snap-in clip or bracket, adjustable within a 180-degree range.
A 90195 variant covering one to four axles is also listed, so you can match the axle count to your trailer rather than settling for the three-axle ceiling. Buyers report that once installed, braking feels proportional and behaves as expected.
This is a recent release, so the long-term record is short compared with established brands. That is the trade you accept for a direct-fit replacement rather than a full re-plumb.
Confirm the form factor matches your truck
Check the controller already in your dash against the listing before buying. The fit depends on the existing mount points and the bracket space, not just the connector, and a mismatch means cutting or drilling the dash trim.
You still need the correct vehicle wiring harness for plug-and-play installation. Reusing the harness already on your truck is what makes this upgrade quick rather than a weekend job.
When a full replacement makes more sense
If your existing unit is a different brand or a much older time-delay design with no diagnostics, a clean install of a current proportional model is the better outcome. You gain the display and the sensing rather than just restoring old behaviour.
Warranty terms here are stated as lifetime free replacements with support, but there is not the decades-long installed base that a long-running brand offers. Judge that on your own risk tolerance.
7. Timilge BC06 Proportional Brake Controller
Proportional Trailer Brake Controller 8508211 Digital Electric LED Display
Proportional braking
LED voltage display
1-4 axles
8.4 oz, 4.33 x 2.76 x 1.1 in
Pros
- Shows real-time output voltage on the LED screen
- Self-leveling needs no fine adjustment
- Handles one to four axles
- Quick install with the right harness
Cons
- Some reports of over-braking on descents
- Wiring color codes are easy to mix up
- Occasional defective pieces

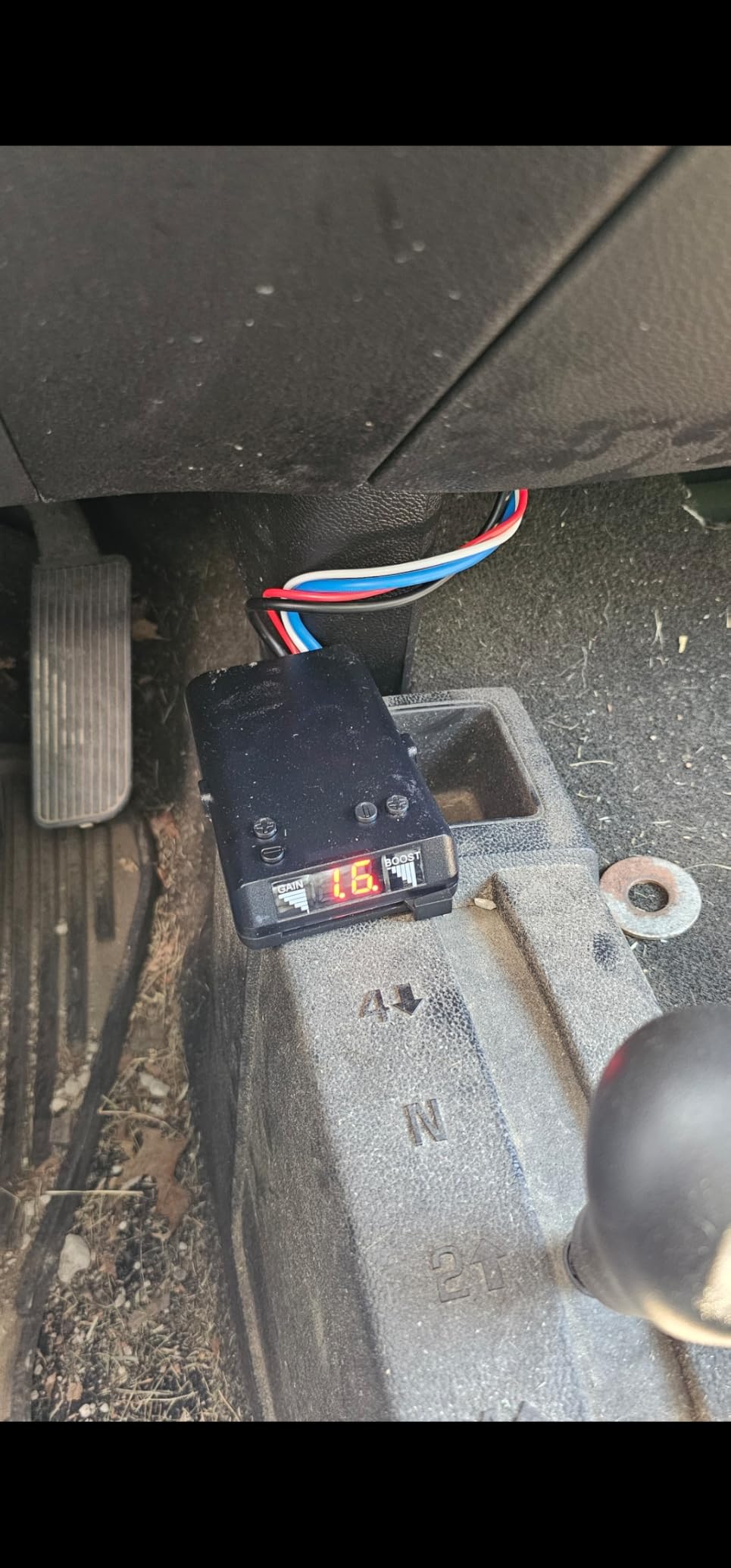

This unit is thin, with a listed height of just over an inch, and the display is the reason to like it. The LED screen reports the voltage being delivered to the trailer brakes in real time, so you can watch brake output rise and fall as you brake instead of inferring it from brake light brightness.
Braking is proportional and self-leveling, which means the mounting angle does not need to be precise. Owners report reduced trailer tire wear compared with a time-delay unit, which tracks with how the output follows pedal pressure.
Four wiring leads are labeled by function: black for vehicle power, red for the stop light signal, white for vehicle ground, blue for the trailer brakes. The body also accepts vehicle-specific harnesses directly, so the install is short when you have the right one.
One to four axles is covered, so this small box handles a wide range of trailers despite its footprint. It suits a pickup with a shallow dash where a deeper controller would not sit properly.
Use the voltage readout as your diagnostic tool
Because the screen shows output, you can test the controller in a few seconds. Press the pedal with the trailer connected and watch the number climb. No reading means no output, which points you at power, ground or the brake switch rather than at the brakes themselves.
Mount it where you can see it easily for the first test, then set it back once you have confirmed output under braking and at low speed.
Where owners report trouble
A small number of buyers report the controller locking up trailer brakes on steep descents, and a few arrived completely dead, with no power at all. Manufacturer support is also less established than the long-running brands, so a warranty claim may take more persistence.
Double-check the wire color mapping against your truck diagram during install, since mixing the stop light and trailer brake leads is the most common self-inflicted fault here.
8. briidea BR-121 Time-Delay Brake Controller
briidea Trailer Brake Controller, Time-Delay Brake Controller for 1-4 Axle Trailers, Safety Protection with Overload/Short-Circuit Alerts for Light-Duty & Occasional Towing
Time-delay braking
LED gain and fault codes
1-4 axles
11.6 oz, 5.43 x 3.5 x 2.99 in
Pros
- Low cost with an LED gain readout
- Overload and short-circuit protection
- Bracket mounts at any angle
- Handles one to four axles
Cons
- Time-delay control needs re-tuning per load
- Not aimed at heavy or frequent towing
- Build feels basic
This is the basic time-delay option on this list, and the useful part is the LED display, which shows the gain setting alongside real-time output voltage and fault diagnosis. Owners buying for light trailers say the visibility of the gain number removes most of the guesswork that comes with a dot scale.
Protection circuitry is the other talking point: overcurrent protection, short circuit protection and fault detection with a real-time output readout. For a unit at the entry level, that is more diagnostic capability than the category used to offer.

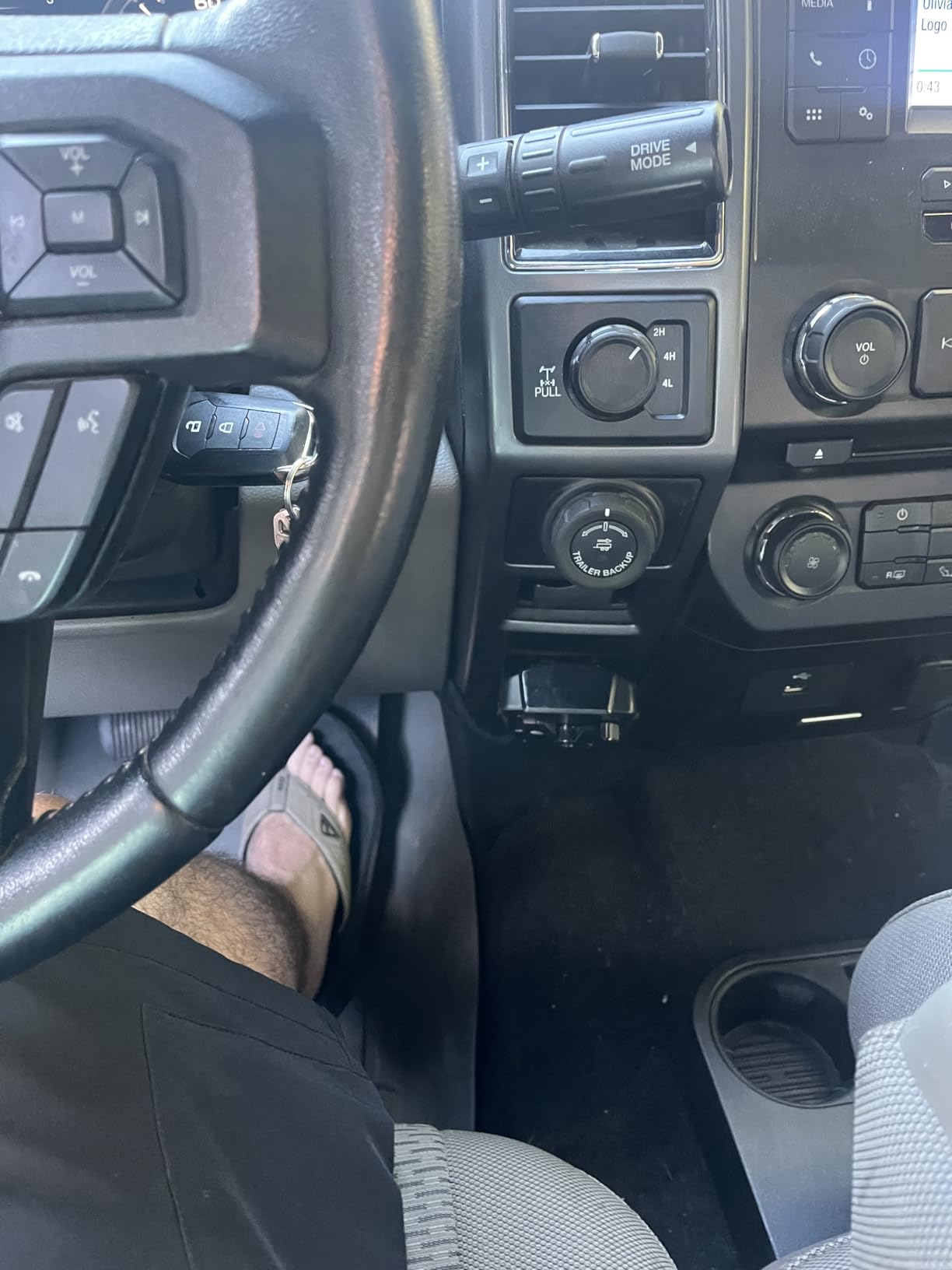

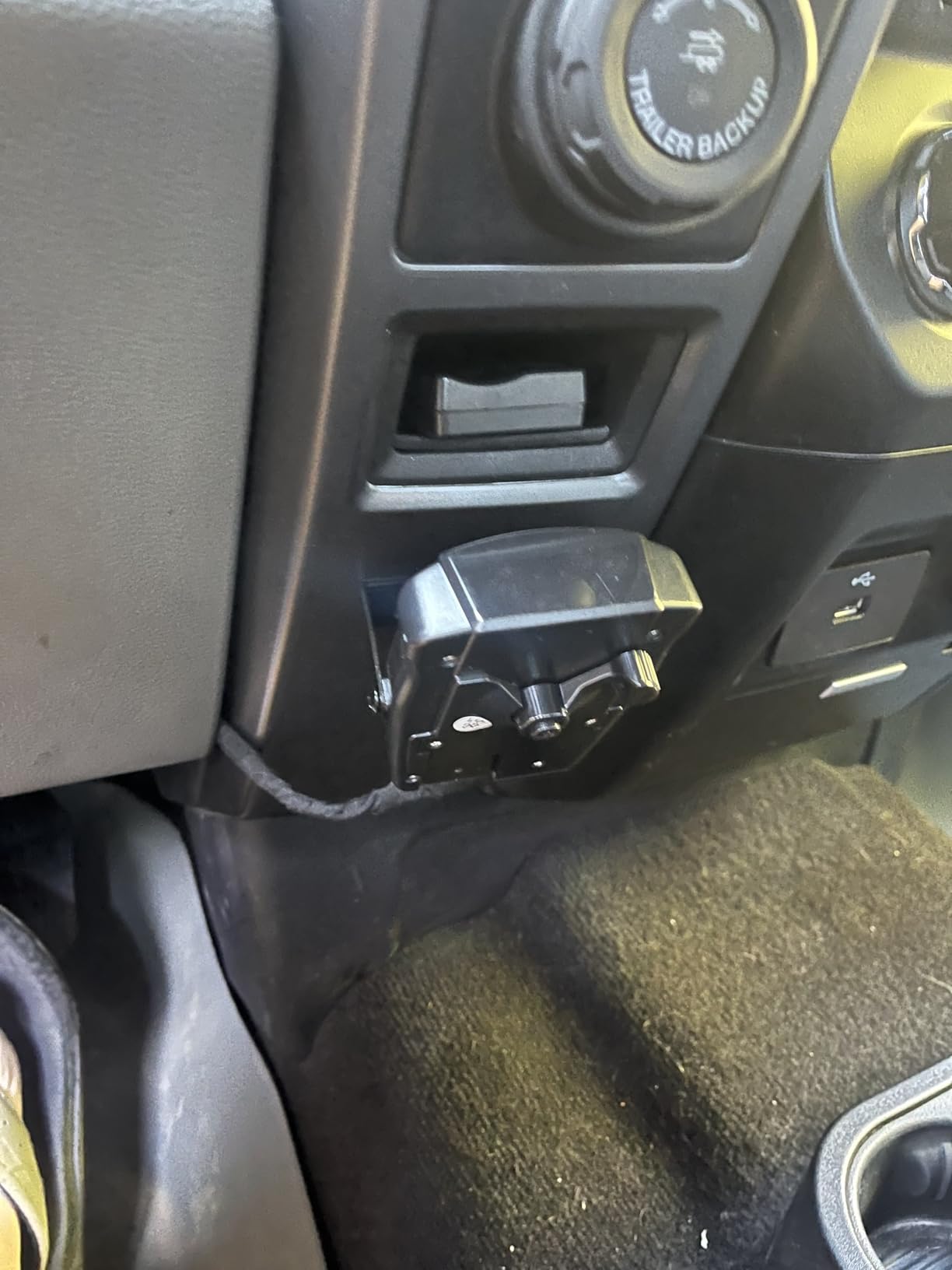

The mounting bracket installs at any position or angle, with under-dash mounting recommended, so it fits trucks with awkward space better than most box-shaped controllers.
Match the controller to the towing you actually do
The rated use is light-duty and occasional towing. Operating one to four braked axles, two to eight brakes, it is technically capable of more, but time-based control on a heavy load means the same output regardless of how firmly you press.
If you tow a small utility trailer to a job site a few times a month, that limitation rarely surfaces. If you tow a loaded camper, choose a proportional unit instead.
Where it is the wrong purchase
The trade-off is constant re-tuning. Every load change means going back to the dial, and a time-delay controller has no way to sense that you are braking harder this time.
The build also feels light next to a wired proportional unit, and there is no boost function for correcting weight distribution on a nose-heavy trailer. Add the harness cost before you finalize the install budget.
9. briidea BR-122 Proportional Brake Controller
briidea Proportional Trailer Brake Controller, Digital Electric Brake Control for 1-4 Axle Trailers, Smooth Stop Technology with Boost Mode, Compatible with Ford/GM/Chevy/Dodge/RAM/Toyota
Proportional braking with boost
LED diagnostics
1-4 axles
11.6 oz listed weight
Pros
- Proportional control at a budget level
- Boost helps with heavy or uneven loads
- LED reports output voltage and faults
- Bracket mounts at any angle
Cons

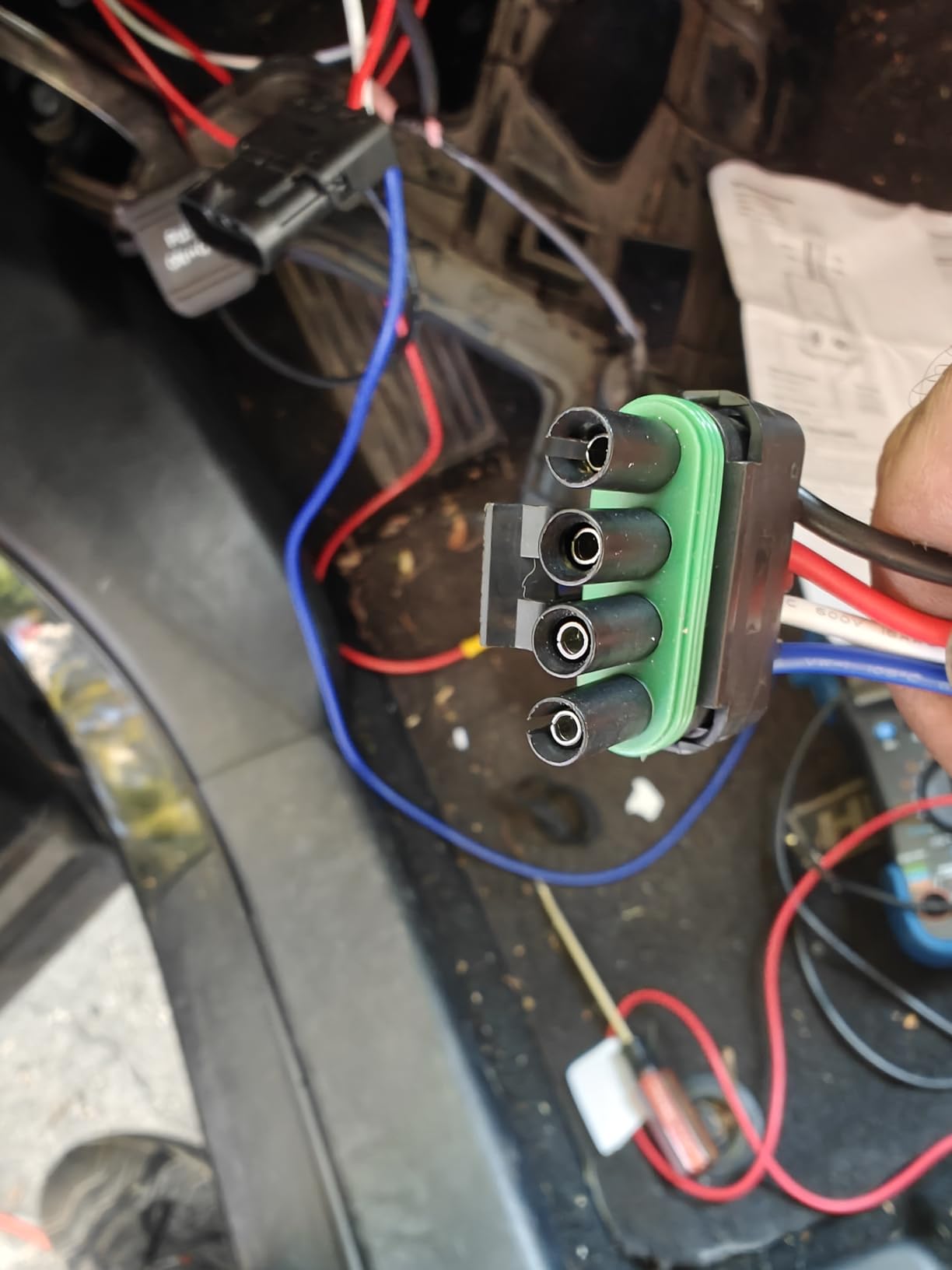

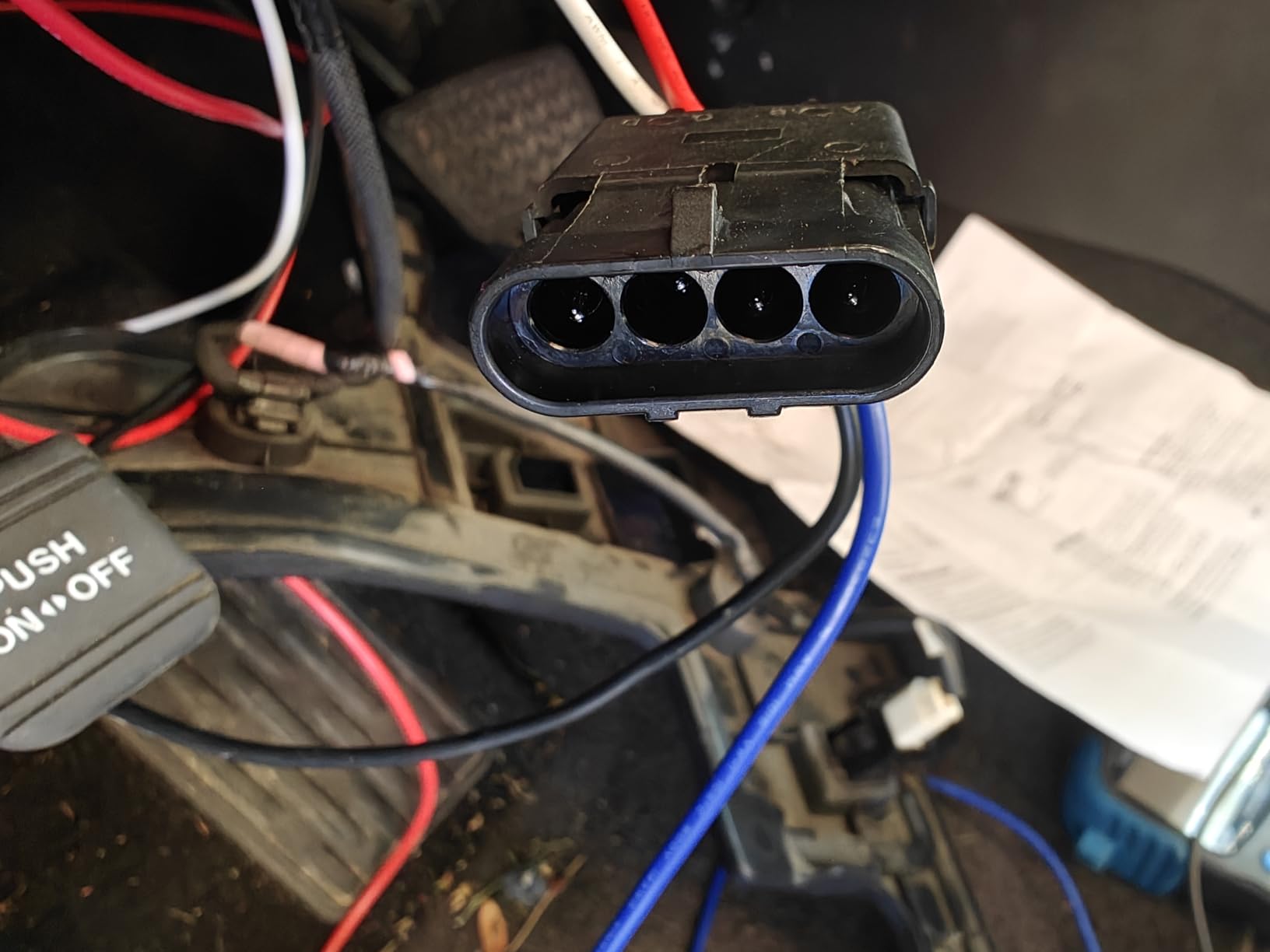

- Connector does not fit a standard 4-prong adapter as supplied
- Build quality feels inexpensive
- Some orders arrive defective
This is the one to look at if you want proportional braking without paying for a factory-style knob. High-precision motion sensors adjust trailer brake output to match vehicle deceleration, so the trailer follows your pedal rather than the clock, and it covers one to four braked axles.
Boost is the feature that separates it from a basic time-delay unit. When a trailer is nose-heavy, boost adds braking ahead of the set level to help bring the trailer back in line, and there is an emergency manual switch on the unit as well.
Owners commonly report installing it in a bucket-seat truck without difficulty and finding it performs better than more expensive factory-style hardware they had run before.
The LED display reports settings, output voltage and fault codes, with adjustment buttons on the face for power and sensitivity. Overcurrent and short circuit protection are included, and the bracket mounts at any angle under the dash.
The maker lists it for commercial, travel, cargo and boat trailers, which is a broad claim for a unit at this level. Treat that as a range of intended uses rather than a load rating.
Plan the connector before you start
The supplied connector does not adapt to a standard four-prong adapter without the provided connector block. If your truck’s trailer brake output terminates in a four-pin rather than a seven-way, count that extra part before the project begins.
Verify the connector type against your truck before ordering, because this is the most commonly reported install snag with this unit.
Where the budget shows
Owners describe the plastics as feeling inexpensive, and a minority of orders arrive defective and do not power on. Allow room in your plan for a return rather than treating it as a keeper in every case.
There is no setting memory in the sense a factory unit gives you, so if you run several very different trailers, expect to re-tune between them rather than switching profiles.

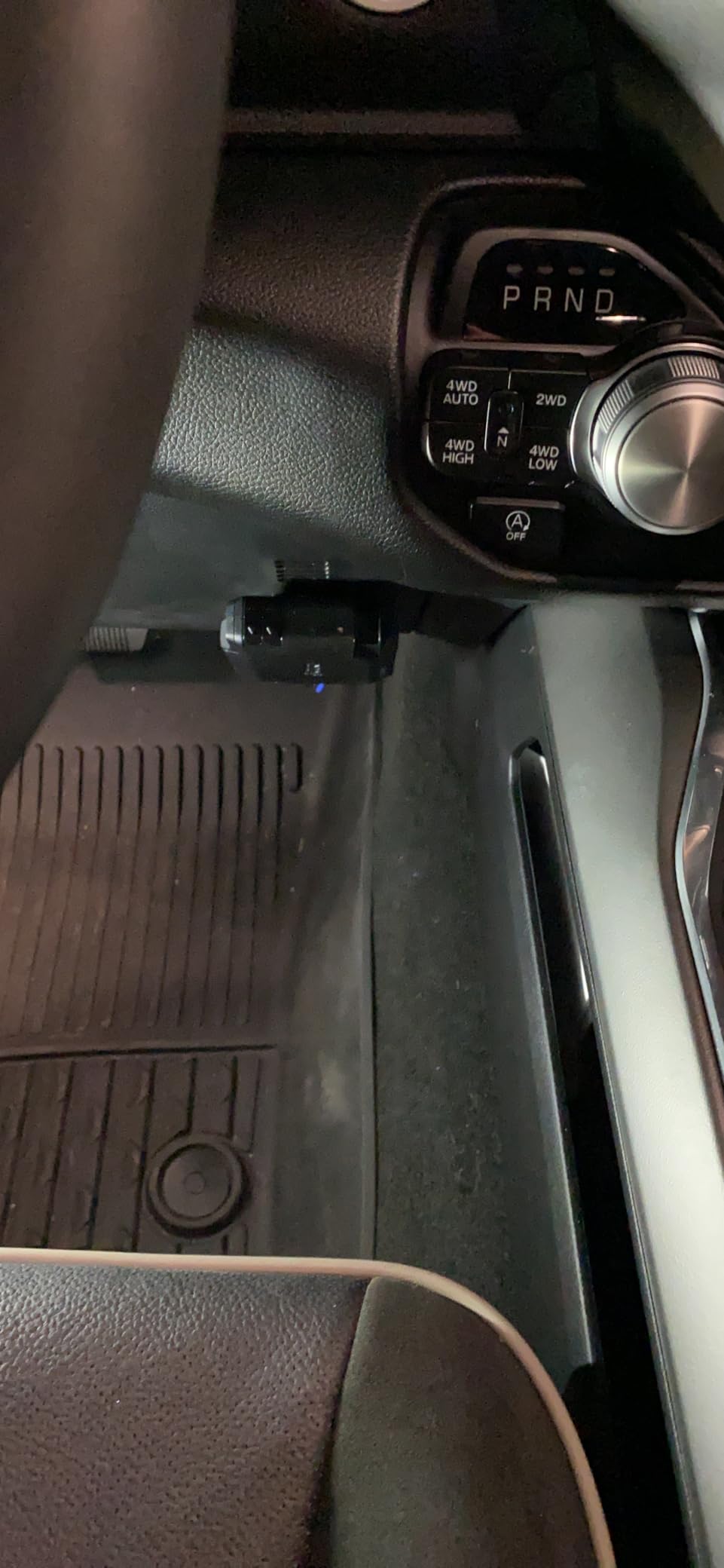

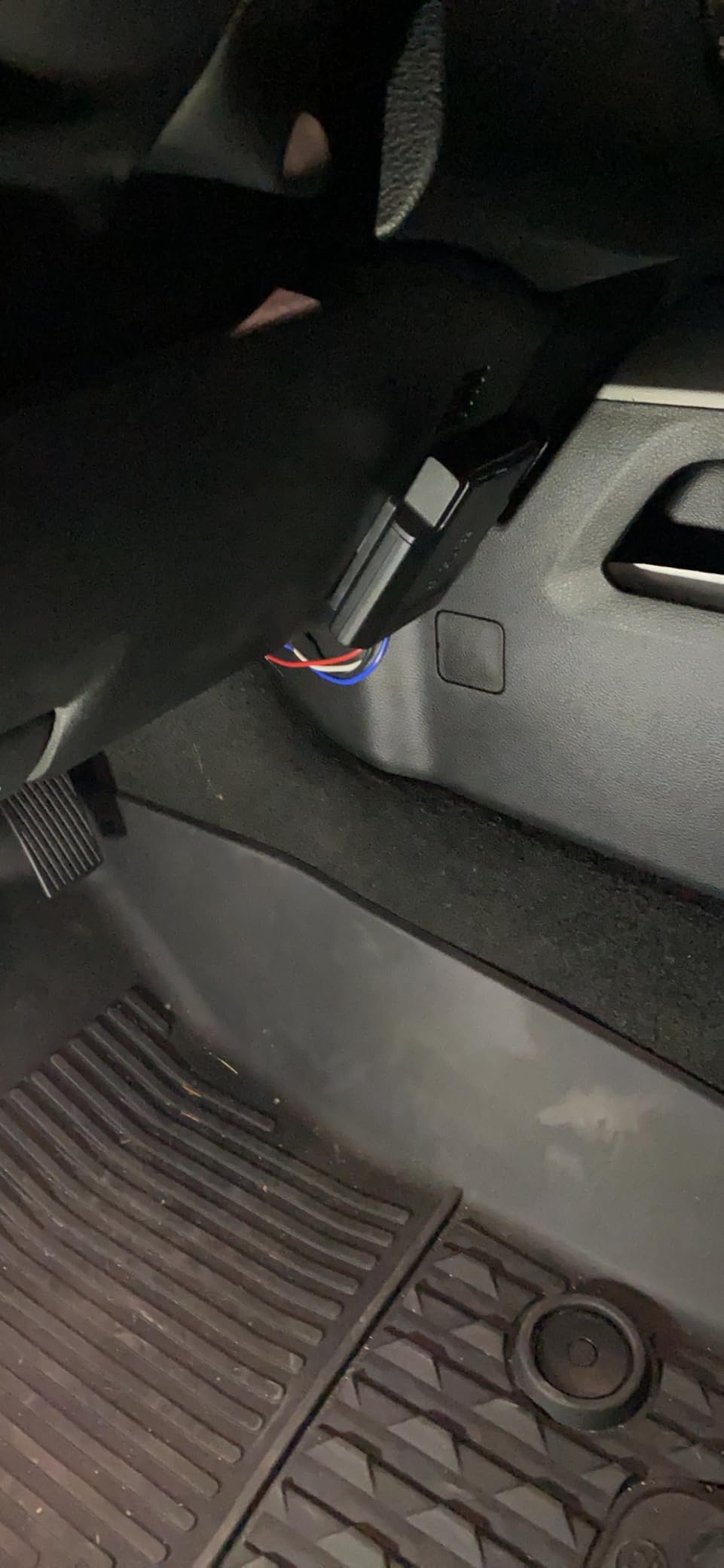

10. CURT 51116 Venturer NEXT Low-Profile Time-Delay Controller
CURT 51116 Venturer Next Electric Trailer Brake Controller, Time-Delay, Fully Adjustable, Low Profile, 1-3 Axles, Plug-and-Play
Slim low-profile housing
1-3 axles
Adjustable power and ramp
9.6 oz, 8.13 x 5.38 x 2.75 in
Pros
- Slim body clears the dash and your knees
- Fully adjustable power and ramp time
- No leveling and no moving parts
- Plug-and-play with a CURT harness
Cons
- Time-delay control needs re-tuning
- Vehicle harness sold separately
The Venturer NEXT solves a physical problem the rest of this list barely acknowledges: dash clearance. Its housing is slim and low profile, and the bracket system is designed to push the body up and out of the way of your knees in a truck with a low dash line or a large center console.
Power and ramp time are both fully adjustable, so you have control over how quickly output builds as well as how much it reaches. It operates two to six trailer brakes, covering one to three axles.
Owners rate the housing quality and the straightforward adjustment highly, and the absence of internal moving parts means there is nothing mechanical to wear out over a decade of use.
Why a slim time-delay unit still makes sense
If your trailer is light and your trips are short and flat, proportional sensing buys you very little. What matters more in that use is that the controller fits, stays put and does not interfere with your leg.
No leveling required means it works the same whether it is mounted flat or tilted, which simplifies mounting in an awkward under-dash location.
Where to look elsewhere
Time-delay control needs re-tuning whenever the trailer or the load changes, and that is the whole limitation of the category. A proportional unit at a similar price point removes it.
The wiring harness for your vehicle is sold separately, so the complete install needs the controller plus the harness. Plan both before you order.
If you are still assembling your trailer kit, our guides to trailer wheels and trailer jacks cover the hardware most owners pair with a new controller.
Proportional vs. Time Delay Brake Controllers
Proportional is the better choice for almost every pickup owner. A proportional controller reads how hard the truck is decelerating with an internal accelerometer and applies matching brake power in real time, while a time-delay controller ramps to a fixed preset level every time the pedal is touched, regardless of pedal pressure.
The practical difference shows up in three places: a light stop at a stop sign, a hard stop in an emergency, and a long downgrade with a heavy trailer. A proportional unit handles all three correctly. A time-delay unit over-brakes on the first and under-brakes on the second unless you dial it down to where it feels vague on the third.
Time-delay units remain reasonable when you tow one light trailer on short, flat trips and never change the load. That is the entire case for them.
One correction worth making because it circulates widely: there is no single federal weight figure at which trailer brakes become mandatory. Thresholds vary by state, and some states require brakes based on trailer weight, others on the ratio of trailer weight to tow vehicle weight. Check your state rule rather than trusting a fixed number quoted in a forum post. Electric brakes do nothing at all without a controller, though — a seven-way plug alone only supplies the wiring.
How to Choose a Trailer Brake Controller for Your Pickup
Axle count is the first filter. A single-axle utility trailer needs one axle, a tandem camper needs two, and an equipment or gooseneck trailer can need three or four. Every controller here covers at least one axle, but the ceiling ranges from two axles up to four, and that ceiling is what should drive your shortlist.
Do I actually need a controller?
If your trailer has electric brakes, you need a controller for them to function at all. The plug and the wiring get you power to the brakes, but nothing modulates that power unless a controller is in the circuit.
Whether brakes are required legally depends on your state’s weight thresholds and on your trailer’s actual loaded weight. Because those rules vary widely, the honest answer is to check your state requirement directly rather than relying on a number you saw in an article.
Wired or wireless — which suits a pickup?
A wired under-dash controller is the standard and the more reliable choice for a single truck. It gets power directly from the vehicle, it does not depend on your phone, and it keeps working when nothing else does.
A portable Bluetooth unit earns its place when you move one trailer between vehicles, when you rent trucks, or when your truck has no factory brake port and you want to avoid drilling the dash. The trade is that adjustments move into an app and the connection becomes one more thing to think about.
Is the wiring harness included?
This is the detail that decides whether your install takes an hour or an afternoon, and it is the one most often missed. The Liberty, the Elite, the Spectrum, the Hopkins Impulse and the Venturer NEXT all require a separate harness.
Buy the vehicle-specific harness for your truck rather than a universal pig tail where possible. The vehicle-specific version plugs into the factory brake output port and gives a clean, reliable brake switch signal without splicing into the brake light circuit.
Our guide to trailer wheel and tire setups is worth a read before you commit to a load rating, because the controller choice and the axle load rating should agree.
Does it have an on/off switch?
Controllers without an on/off switch draw a small standby current continuously, which is the complaint pickup owners repeat most often about older designs. Over a long layup with a battery maintainer attached, that draw adds up.
If your truck spends weeks parked, either choose a controller with a power switch or install a quick-disconnect on the controller feed so you can cut the circuit yourself.
What to look for in a warranty
The Spectrum’s limited lifetime manufacturer warranty is the longest published coverage on this list, and it is what the long-running brands compete on. REDARC units carry a two-year limited warranty.
Coverage, though, is not the same as better service. Consider whether the maker has a real support path, because a controller that fails with a broken harness or a cracked connector needs a human who answers.
How to avoid listings that reuse a genuine part number
Clone listings that reuse a genuine manufacturer part number are common enough in this category to be worth checking every time. The part number on a third-party housing can be identical to a genuine model, so the number alone proves nothing.
Look at the manufacturer field in the listing details, not the title. If the brand does not match the model you expected, or the listing shows a recently added date with a familiar old part number, treat it as a clone. Third-party housings also frequently omit the physical power switch, the sync switch or the self-leveling sensor that the genuine unit has, so compare the feature list against the maker’s published specification.
If a listing claims to be a genuine Tekonsha, CURT or REDARC unit, the maker field should say so. Everything on this list comes from a brand with an established service path.
Why the diagnostic readout matters
A controller that reports output voltage and fault codes turns a guessing game into a measurement. Several controllers here display real-time voltage, including the Timilge BC06, the briidea pair and the HRepair replacement.
A light reading on that display with the pedal pressed means the problem is upstream — power, ground or the brake switch — not at the brakes themselves. That single capability can save an afternoon of chasing wiring.
Which Controller Fits Which Truck?
Every pickup needs the same four things from the wiring: constant battery power, a ground, a brake switch signal and a trailer brake output. A factory tow package supplies all four; a truck without one gives you power and ground at best.
On an F-150, Silverado, Sierra or RAM with a factory tow package, the brake controller port sits at the lower dash near the steering column, and a vehicle-specific harness plugs straight into it. That is the clean path and the reason we keep recommending the vehicle-specific harness over a universal pig tail.
Tacoma and Tundra owners should read the third-party controller question carefully. Pickup forums report that Toyota has advised against some aftermarket controllers on certain configurations, so check your model year and trim before cutting a dash panel. Where a factory controller is advised, it protects the vehicle’s brake output electronics.
Jeep Gladiator and Wrangler owners face the same missing-port problem without a factory tow package, and the bucket-seat seating in those trucks removes most under-dash space. A portable unit or a low-profile body like the Venturer NEXT is a better fit there than a deep box.
On any truck with no factory tow package, you are adding a fused power circuit and a relay for the trailer feed. That is the job, and it is why the plug-in Echo or a universal harness both beat a dash-mounted unit for a first install.
If your rig also needs recovery gear or a loading winch, our guides to trailer winches and trailer jacks cover the rest of the hardware.
How to Install a Brake Controller Without a Factory Tow Package
Installing an aftermarket controller on a truck with no tow package means adding the missing brake output circuit yourself. The controller body is the easy part; the wiring is the project.
Confirm the controller’s axle capacity covers your trailer, and check the harness type before you start.
Mount the main unit out of sight or under the dash, keeping it clear of the steering column and any moving pedal component.
Route the red stop light lead to your brake switch. With a universal pig tail this taps the brake light circuit; with a vehicle-specific harness it uses the factory port.
Connect the black power lead through an add-a-fuse to a constant 12-volt source, and the white lead to a solid chassis ground.
Connect the blue trailer brake lead to the trailer brake output on the seven-way, adding a relay and fused circuit if the truck has none.
Set the axle count on the controller to match the number of braked axles on your trailer before its first use.
Verify braking with the trailer connected at low speed before you set gain, using the manual override to confirm the brakes respond.
Four leads run the length of the controller harness: black for vehicle power, red for the stop light signal, white for vehicle ground, blue for the trailer brakes. A multi-pin vehicle-specific harness carries those four functions in one connector and plugs into the factory port instead.
If a controller displays output voltage, use it during step seven. A number climbing as you press the pedal proves the whole chain is live from brake pedal to trailer brakes.
How to Set Brake Gain
Gain is the maximum brake power your controller can send, and the correct setting changes with trailer weight and load. Set it once, then re-tune whenever the trailer or cargo changes meaningfully.
Load the trailer to a realistic weight with the tongue properly on the hitch ball.
On level ground, accelerate to a moderate road speed and increase gain in small steps until you feel the trailer brakes lock up.
Back the gain down two increments from the lock-up point, which is the standard margin owners use.
Re-test at low speed to confirm the trailer stops tracking with the truck rather than pushing back.
If a controller has boost, add boost only when a nose-heavy trailer pushes back on a slow-speed stop, and only one step at a time.
Write the final setting down. Owners who switch between a light utility trailer and a heavy camper re-tune rather than trying to find one number for both.
On a proportional controller, the sync setting is usually automatic or set to the highest trailer axle rating you might tow. On a time-delay unit, you are setting both power and ramp time, and both need revisiting when the load changes.
If the setting that works for the empty trailer still locks up with the camper loaded, the gain is not wrong — the load is different. Re-tune rather than assuming a fault.
Frequently Asked Questions
Who makes the best trailer brake controller?
For most pickup owners, the CURT 51180 Echo is the strongest overall choice because it needs no under-dash wiring and moves between vehicles. For a single truck with a factory tow package, the REDARC Tow-Pro Liberty gives the smoothest proportional braking, and the REDARC Tow-Pro Elite is the pick for three axles or heavy loads. There is no single winner because axle count and wiring situation decide it.
Which trailer brake controller is better, Redarc or Tekonsha?
Both brands have a strong reputation and both use proportional braking with an internal accelerometer. REDARC builds the most common entry unit in the Liberty, which suits one to two axles and a 12-volt system, while Tekonsha is frequently named as the first choice in pickup forums for build quality and lifetime warranty coverage. Choose based on your axle count and harness availability rather than brand loyalty.
Is a proportional or time delay brake controller better?
Proportional is better for almost every pickup owner. It reads how hard the truck is decelerating and applies matching brake power, so it brakes correctly on a gentle stop and a hard stop alike. A time-delay unit applies the same preset level every time the pedal is pressed, which over-brakes on light stops and under-brakes on hard ones unless you set it low.
Do I need a brake controller if I have a 7 pin trailer plug?
Yes, if your trailer has electric brakes. The seven-way connector only supplies the wiring and power to the brakes. Without a controller, nothing modulates that power, so the brakes stay inactive and your truck’s own brakes have to stop the entire rig alone, which lengthens stopping distance and is where trailer sway begins.
Do I need a brake controller for a 3000 lb trailer?
If your 3000 lb trailer has electric brakes, a controller is required for them to work at all. Whether brakes are legally mandatory at that weight varies by state and is often tied to the ratio of trailer weight to tow vehicle weight rather than a fixed number, so check your own state’s rule instead of relying on a figure quoted elsewhere.
Are wireless trailer brake controllers any good?
They are good, provided you use them for the reason they exist. A Bluetooth unit such as the CURT 51180 Echo plugs in at the seven-way connector, needs no under-dash wiring and moves between vehicles in seconds. The trade is that adjustments move into an app, so braking quality depends on a phone connection and the controller needs a powered seven-way to draw from.
What is the best gain setting for a trailer brake controller?
Increase gain in small steps on level ground until the trailer brakes lock up, then back off two increments. That margin is the standard setting because it leaves braking authority in reserve. Re-tune whenever the trailer or cargo changes, since the correct gain for a loaded camper is higher than for the same trailer empty.
What We’d Fit to Your Pickup in 2026
The best trailer brake controllers for pickups come down to three decisions: how many axles you brake, whether your truck has a factory brake port, and how often you swap vehicles. Get those right and the choice makes itself.
Our pick of the ten is the CURT 51180 Echo. It installs in seconds with no drilling and moves between vehicles instantly, which solves the problem a surprising number of pickup owners actually have. If you tow one trailer behind one truck with a factory tow package, choose the REDARC Tow-Pro Liberty instead and add the vehicle-specific harness to your plan.
For a dash that should look factory-fitted, or for a trailer with three or four axles, the CURT Spectrum handles up to four axles and carries a limited lifetime warranty. For light occasional towing on a set budget, a time-delay unit like the CURT Venturer NEXT does the job, provided you re-tune when the load changes.
Whichever you pick, confirm the harness situation before you order, set gain loaded rather than empty, and check that the manufacturer’s field on the listing matches the brand you intend to buy. Our guides to snowmobile trailer accessories and trailer wheels cover the rest of a tow setup that works as well as the controller does.
