Shallow water is a frequency problem, not a power problem. The best fish finder transducers for shallow water are the ones running 200 kHz and above, because a high frequency pulse returns quickly off a bottom that is only a few feet away and resolves individual fish, weed edges and stump fields that a deep-water transducer smears into one unreadable band. More kilowatts will not fix that. Reach does.
I have mounted and compared more than a dozen transducers across flats, creeks and inshore bays, and the same pattern showed up every time: the angler who blames the electronics is almost always running a deep-water frequency, a narrow cone, or a transducer bolted too high on the transom. Swap in the right frequency band for the depth you actually fish and the display changes overnight.
Before the picks, one definition. When people argue about whether shallow water means 10 feet, 20 feet or 50 feet, they are all half right. For transducer selection it splits into three bands: 0-10 ft is skimmer and weed-bed work where close-in detail decides the day; 10-25 ft is creek, river and estuary fishing where 455 kHz imaging starts to earn its keep; 25-50 ft is still shallow enough that you want high-frequency clarity, but deep enough that a wide traditional band matters. Past 50 feet you are back in full conventional fish finder territory, and the shallow-water logic stops applying.
Everything below is sized to those three bands. If you have not chosen a display yet, start with our fish finder roundup first, because compatibility decides more than price does. And if your boat spends its weekends in the same kind of water, our shallow water anchor guide covers the other half of that setup problem.
Table of Contents
Top 3 Best Fish Finder Transducers for Shallow Water (October 2026)
These three cover most shallow-water boats: one that does everything well, one that costs very little and still reads bottom and temperature, and one that adds down imaging for weed and rock structure.
Humminbird XNT-9-HW-T
- Dual Spectrum CHIRP 150-220 kHz
- Wide cone high-frequency beam
- Built-in temperature sensor
- 20-foot cable
Lowrance 000-0106-72 Bullet Skimmer
- Dual-frequency 83/200 kHz
- Built-in temperature sensor
- 20-foot cable
- 1000 ft at 83 kHz
Garmin GT20-TM
- 77/200 kHz traditional
- 455 kHz ClearVu down imaging
- 20-foot cable with temperature
- Transom and trolling motor mounts
Quick Comparison of All 10 Shallow Water Transducers
Every transducer in this roundup, with its mount type, frequencies and the depth band it suits best. Use it to narrow the field, then read the full entry.
| Product | Specifications | Action |
|---|---|---|
| Humminbird XNT-9-HW-T |
|
Check Latest Price |
| Lowrance 000-0106-72 Bullet Skimmer |
|
Check Latest Price |
 Lowrance SplitShot Skimmer |
|
Check Latest Price |
 Humminbird XP-9-HW |
|
Check Latest Price |
| Garmin GT20-TM |
|
Check Latest Price |
 Lowrance Active Imaging 3-in-1 |
|
Check Latest Price |
 Humminbird XNT 9 DI T |
|
Check Latest Price |

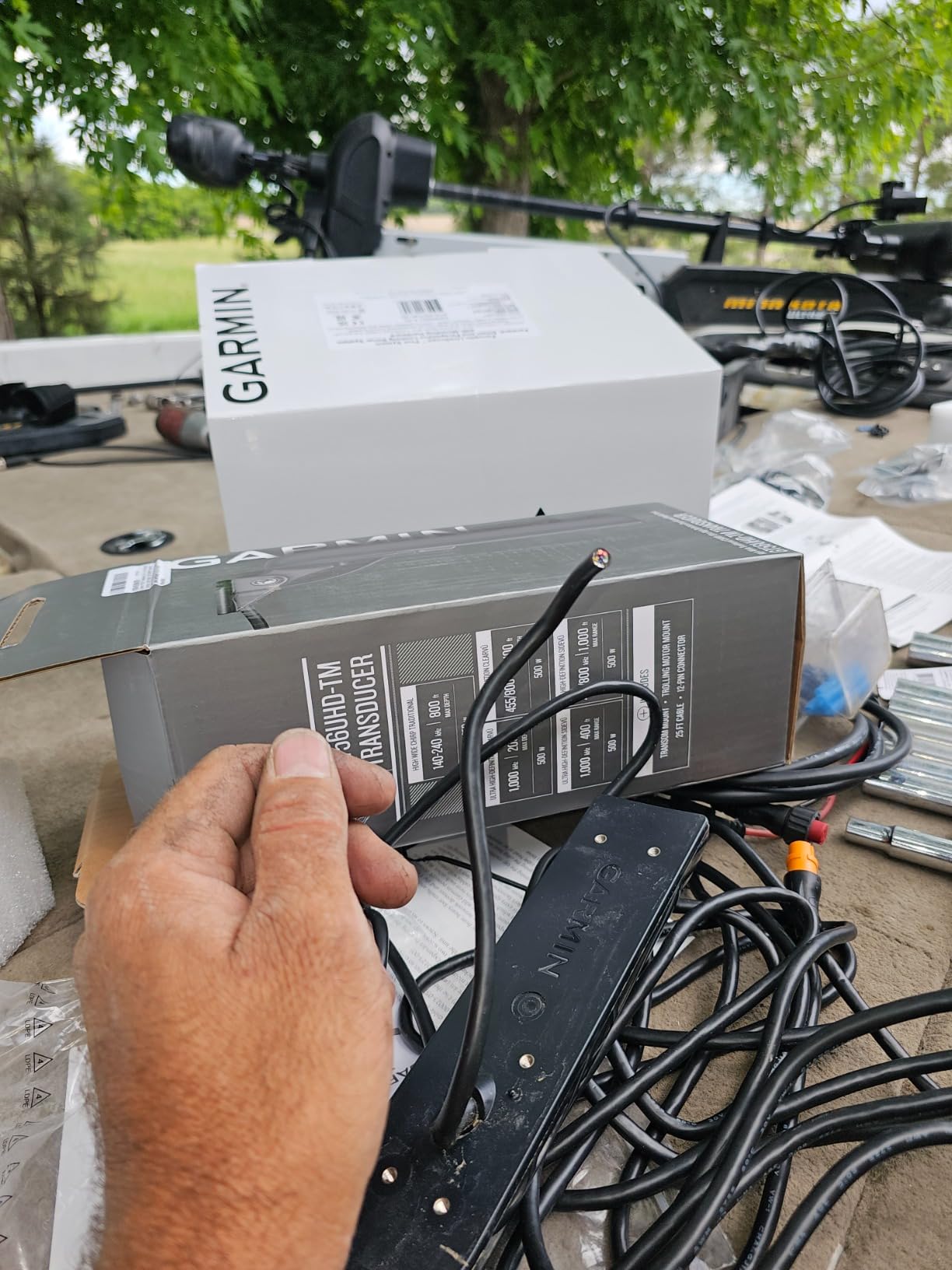

 Garmin GT56UHD-TM |
|
Check Latest Price |
 Humminbird XNT-9-HW-MSI-150-T |
|
Check Latest Price |
 Garmin GT23M-TM |
|
Check Latest Price |
1. Humminbird XNT-9-HW-T – Best Overall Shallow Water Transducer
The Humminbird XNT-9-HW-T is the best general-purpose shallow water transducer for Humminbird HELIX G2, G3 and G4 displays, and it is the one I fit first when someone asks for a single recommendation.
Humminbird XNT-9-HW-T Transom Mount Transducer W/Temp
Dual Spectrum CHIRP 150-220 kHz
Wide cone high-frequency beam
Built-in temperature
20 ft cable
Pros
- Dual Spectrum CHIRP 150-220 kHz with a wide cone reads shallow structure and fish arches cleanly
- Rated 4.7 stars across 492 reviews with 81 percent five-star
- Built-in temperature sensor for seasonal shallow water tracking
- Generous 20-foot cable for routing on most boats
- Exact drop-in replacement for the original OEM unit
Cons
- 2D sonar only with no Side Imaging or Down Imaging of its own
- Limited to GPS-equipped HELIX G2
- G3 and G4 models
- Transom mounting can lose the bottom at speed if not angled correctly
I ran the XNT-9-HW-T through two seasons on a 16-foot jon and a shallow bass boat, and the thing that stood out was how early it locked onto bottom in skinny water. The 150-220 kHz Dual Spectrum band returns fast, so a three-foot flat reads as a clean bottom line rather than a thick fuzzy band with phantom arches hanging in it.
The cone angle is the underrated part. A wide cone from a single mount covers a surprising amount of water in the first few feet off the transom, which is exactly the zone you need when you are working a grass edge and want to see whether the next cast is over the drop.
The built-in temperature sensor matters more in shallow water than most buyers expect. Bass and pike stack against temperature breaks and drop-offs, and having surface temperature on the same screen as the arches removes one more guess from the decision.
Where it falls short is imaging. This is a 2D source. It feeds a Side Imaging or Down Imaging capable HELIX as a conventional CHIRP channel, but it does not produce a picture of structure the way the MEGA and SideVu units further down this list do.
Who the XNT-9-HW-T suits
It suits anglers on a HELIX G2, G3 or G4 who want reliable arches, temperature and depth in water from a couple of feet up to about 25 feet. It is also the safest replacement buy, because most owners describe it as an identical stand-in for the transducer that came with the unit.
Reviewers consistently rate it the most dependable of the group for day-to-day shallow fishing, with the wide cone doing more work than the wattage number suggests.
Who should skip the XNT-9-HW-T
Skip it if your helm has a 12-pin connector and you want side imaging, and skip it if your fishing runs past 30 feet regularly. For weed-bed and rock-pile work, a down imaging channel in the 455-800 kHz range will show you things this unit physically cannot.
It is also the wrong answer if you do not own a GPS-equipped HELIX from those three generations. Compatibility, not performance, is what ends the conversation for a lot of buyers.
2. Lowrance 000-0106-72 Bullet Skimmer – Best Shallow Water Pick on a Budget
The Lowrance 000-0106-72 skimmer is the most affordable dependable answer in shallow water, and with more than a thousand reviews behind it, it is the transducer many anglers will meet first as a replacement part rather than a planned purchase.
Lowrance 000-0106-72 HST-WSBL Transom-Mount Skimmer Transducer – 83/200 kHz with Built-in Temperature Sensor, 7-Pin Connector, Black
Dual-frequency 83/200 kHz
1000 ft at 83 kHz
Built-in temperature
20 ft cable
Pros
- Dual-frequency 83/200 kHz handles both shallow and deep water
- Reliable depth readings and fish arches in shallow water
- Built-in water temperature sensor
- 20-foot cable allows flexible placement on boats of various sizes
- Works with virtually any hull type
Cons
- Basic dual-frequency only with no CHIRP or imaging capability

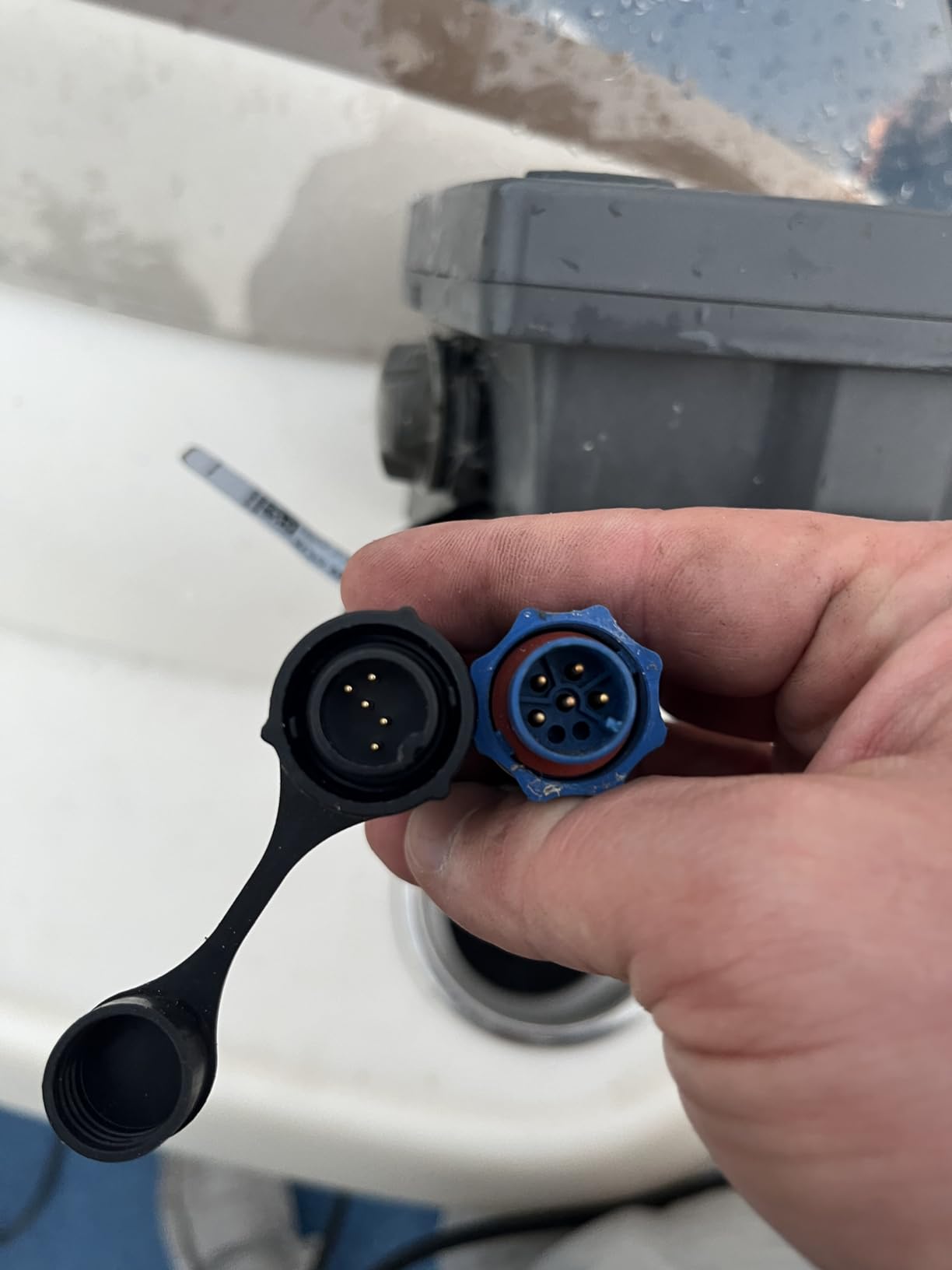

- Older 7-pin connector limits compatibility with newer Lowrance displays
- Some buyers report cable and housing degrading with age after years of UV exposure
On paper the 83/200 kHz pairing looks like a deep-water spec sheet. In practice the 200 kHz channel is the one doing the work under 10 feet, and it reads depth and arches consistently enough that plenty of anglers never leave the 83 kHz side switched on.
It weighs just under half a kilogram and its skimmer profile hangs off the transom without any fuss. On a jon boat or a small aluminium boat where a permanent install is not happening, that simplicity is the feature.
The 20-foot cable gives you real routing freedom, so you can run it up to a trolling motor, along a kayak track, or to a console-mounted display without an extension. Reviewers mention the temperature sensor most often as the reason it beats a bare depth sounder.
What you give up is detail. There is no CHIRP processing and no down imaging, so weed edges and rock piles show up as vague returns rather than structure you can read.
Who the Lowrance skimmer suits
It suits beginners, backup boats, rental setups and anyone fishing water under 15 feet who needs depth, temperature and arches without spending serious money. It is also the transducer to keep as a spare, because the 7-pin plug still fits a lot of older Lowrance displays.
If you fish a creek or a shallow bay and your display has an older connector, this is a genuinely complete answer for the money.
Who should skip the Lowrance skimmer
Skip it if you are trying to pick fish off weed beds, because that is an imaging job. The recurring complaint across reviews is not that it performs badly, it is that it lacks the resolution newer displays were designed to show.
Older reviews also flag long-term UV wear on the moulded cable and plug. If you store a boat outdoors in a hot climate, budget for a replacement cable eventually.
3. Lowrance SplitShot Skimmer – Best for Kayaks and Trolling Motor Mounts
The Lowrance SplitShot Skimmer is the best shallow water transducer when your boat is a kayak, a jon or a small boat where the display lives at the trolling motor, because it is a budget unit that pairs CHIRP with a down imaging view.
Lowrance SplitShot Skimmer Transducer, fits Lowrance HOOK2 Fish Finders,Gray
CHIRP plus DownScan in one body
Wide cone with about double coverage
Mounts transom, in-hull, trolling motor or scupper
Pros
- Combines CHIRP and DownScan in one compact unit
- ideal for shallow structure and weedbed viewing
- Wider sonar cone gives roughly double the coverage of a traditional fish finder
- Mounts transom
- in-hull
- on the trolling motor or through a scupper hole
- Built-in temperature sensor
- Easy
- quick installation
Cons
- Compatibility is limited to the Lowrance HOOK2 series
- The box sometimes arrives without the full set of washers and nuts so old hardware must be reused
- The moulded cable and plug can go brittle after a few years of UV exposure
DownScan is the reason this one stands above the plain skimmer. Instead of an arch and a number, you get a picture of what is directly beneath the boat, which is the whole game when you are over a weed bed in 4 feet of water.
The cone width is the other quiet advantage. Double the coverage of a traditional cone means fewer wasted casts before you find the edge, and in shallow water that translates into a lot more structure per hour.
Several owners in the reviews fitted it inside small fishing kayaks using the in-hull option, which is not something the budget skimmers usually allow. That flexibility is why it shows up on trolling motor brackets so often.
Installation takes minutes. Angle it slightly downward and level it side to side, and it will hold bottom lock at trolling speed on water only a few feet deep.
Who the SplitShot Skimmer suits
It suits HOOK2 5, 7, 9 and 12 inch owners who want real down imaging in water under 20 feet. Kayak and small jon anglers get the biggest benefit because the wide cone covers more water from a tiny boat.
If you are replacing a cracked original HOOK2 transducer, this is usually the identical part at a fair price.
Who should skip the SplitShot Skimmer

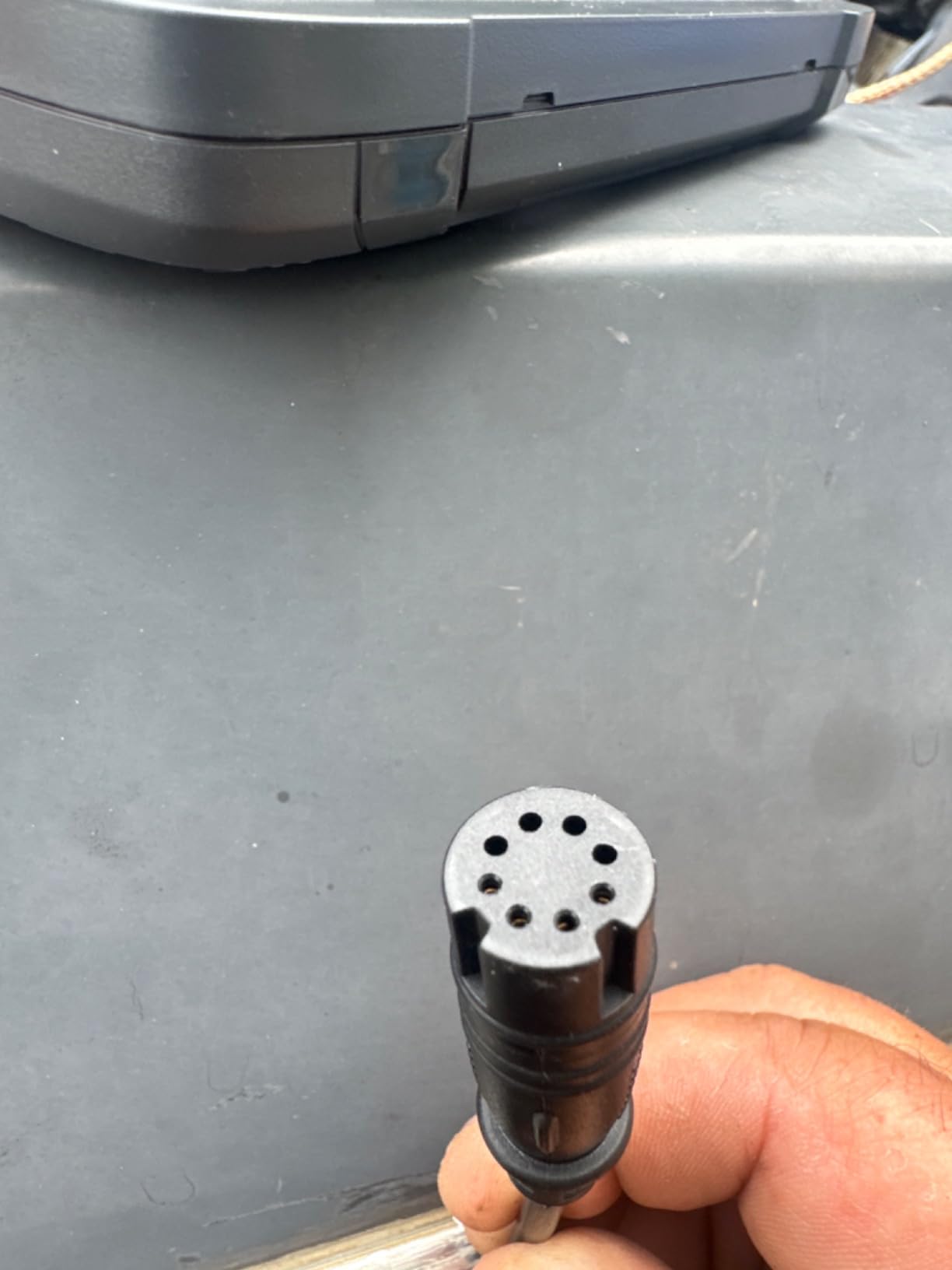

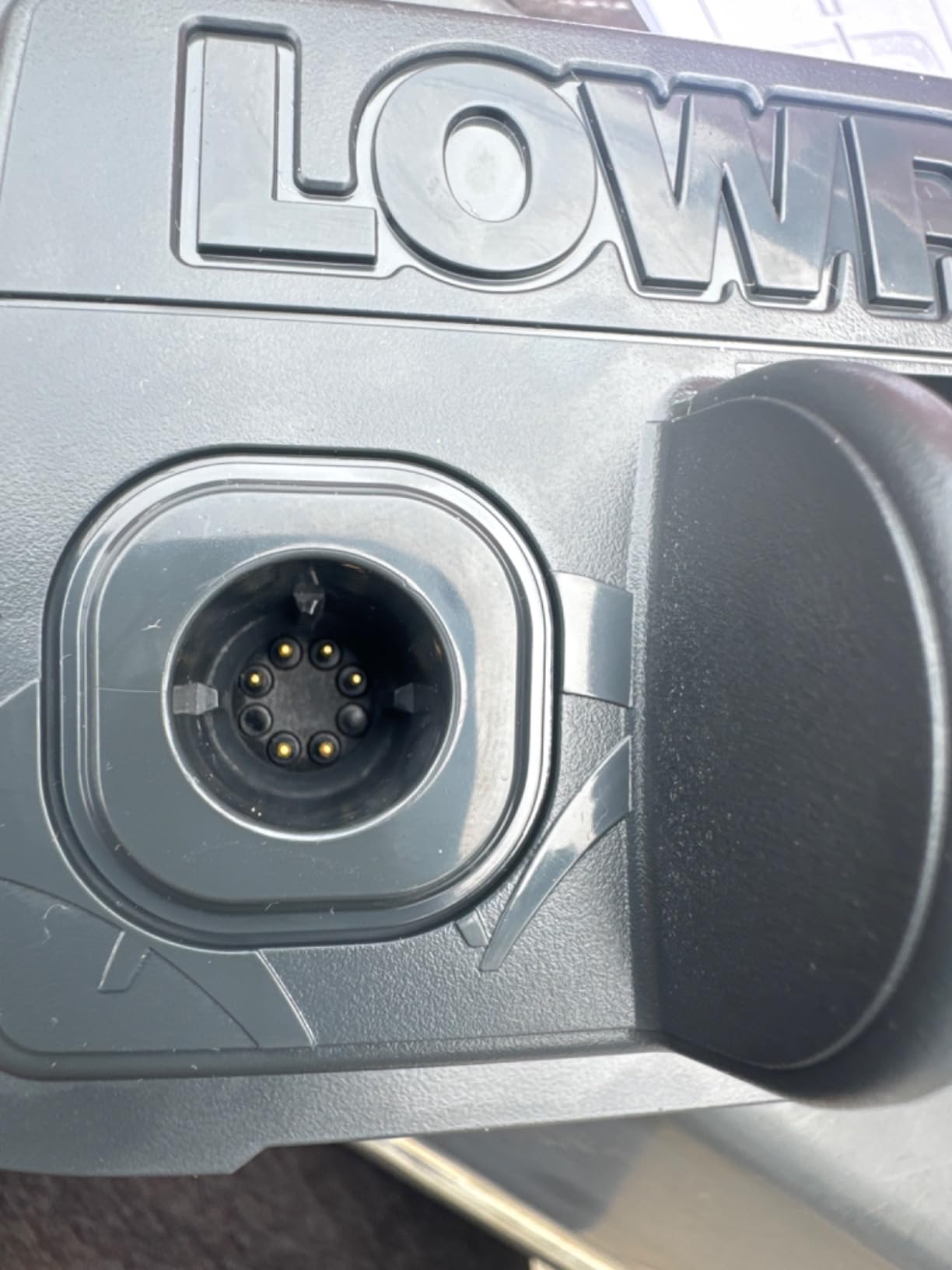

Skip it unless you run a HOOK2 display, because the connector and signalling do not carry over to other Lowrance lines. There is also no SideScan, so looking for structure out to the sides is off the table.
Check what is in the box on arrival. Missing washers and nuts are a recurring review theme, and reusing hardware from a ten-year-old install is where leaks start.
4. Humminbird XP-9-HW – Best for a Permanent In-Hull Install
The Humminbird XP-9-HW is the best shallow water transducer for a boat that already has an in-hull pocket or a plan to get one, because it keeps the transom clean and stops turbulence from breaking the picture at speed.
HUMMINBIRD XP-9-HW IN-HULL TRANSDUCER
In-hull mount inside single-layer fiberglass
Dual Spectrum CHIRP 150-220 kHz
15 ft cable
2D source only
Pros
- Dual Spectrum CHIRP across 150-220 kHz gives good target separation in shallow water
- In-hull install keeps the transom clean and eliminates bubbles at speed
- Wide cone angle covers a lot of water from a single mount
- Compatible with a wide range of GPS-equipped HELIX G2
- G3 and G4 models
Cons
- 2D sonar only with no Side Imaging
- Down Imaging or temperature sensor
- No temperature sensor included which matters for shallow-water anglers tracking temperature
- Only suitable for single-layer fiberglass hulls
- Requires epoxy mounting and is a semi-permanent install
The reason anglers move in-hull is turbulence. A transom-mounted unit sits in aerated water when you are running, and aerated water scatters the pulse. Inside the hull, filled with epoxy, that whole problem disappears.
The 150-220 kHz CHIRP band and wide cone do their job well in the first 25 feet, giving good separation on arches and a readable bottom line over sand, mud and short grass.
Be clear-eyed about what this is. It is a 2D source. If your HELIX has Side Imaging or Down Imaging, this feeds that display a conventional CHIRP channel, and you will still want a dedicated imaging element for structure work.
Who the XP-9-HW suits
It suits owners of a single-layer fiberglass boat who fish mostly at speed in protected shallow water and want a clean transom. It is also a sensible second sensor, giving you redundancy if the transom unit ever takes a strike.
HELIX G2, G3 and G4 owners are the compatible audience, and reviews confirm it works across that range.
Who should skip the XP-9-HW
Skip it if you need water temperature, because there is no sensor in this unit and tracking a spring temperature line matters a lot in shallow fishing. Also skip it on aluminium, cored or multi-layer hulls, where an epoxy in-hull pocket is not a safe idea.
It is a semi-permanent commitment. Swapping back to a removable mount later means patching the hull.
5. Garmin GT20-TM – Best Value Transducer for Most Shallow Boats
The Garmin GT20-TM is the best value transducer for most shallow water boats because it pairs a 77/200 kHz traditional channel with 455 kHz ClearVu down imaging, and it includes both transom and trolling motor mounts in the box.
Garmin 010-01960-00 GT20-TM Transducer
77/200 kHz traditional
455 kHz ClearVu down imaging
20 ft cable with temperature
500 W
Pros
- Reliable fish arches plus ClearVu down imaging of structure and cover below the boat
- 77/200 kHz traditional plus 455 kHz ClearVu covers both shallow detail and range
- 20-foot cable and included transom and trolling motor mounts make it versatile
- Frequently used as an exact drop-in replacement
- Works well on a trolling motor for kayak and small-boat setups
Cons
- Entry-level ClearVu imaging is lower resolution than Garmin's UHD scanning sonar models
- Can lose bottom lock at speed if mounted too high on the transom
- Cable routing to the helm can require extra work on larger boats
Having a down imaging channel on a mid-priced unit changes shallow fishing completely. At 455 kHz the ClearVu channel paints rock, sand bars, weed edges and ditches directly under the boat, which is exactly the information you cannot get by watching arches.
The traditional 77/200 kHz pair still handles depth and range, so if you run out into 30 feet you are not stranded. It is the only entry-level unit here that handles both close-in down imaging and deeper range in one purchase.
The included trolling motor mount is a genuinely useful inclusion. Move it from the transom to the trolling motor and you get a clean read in very shallow water where the transom sits deep or picks up bubbles.
Mounting height is the thing that trips people up. A minority of reviews found that dropping the unit lower on the transom is what finally made it hold bottom while running.
Who the GT20-TM suits
It suits the widest group in this roundup: bass anglers, kayak setups with a trolling motor mount, and anyone replacing a failed original Garmin unit. In a typical shallow lake it covers the whole 0-30 foot range in one purchase.
Owners rate it as a straightforward drop-in that restores arches and down imaging immediately.
Who should skip the GT20-TM
Skip it if you want side imaging or the crisp near-field detail of the newer UHD scanning sonar, because ClearVu at 455 kHz is entry-level by design. On very large boats, the 20-foot cable can be tight for routing to a forward helm.
It is also not the choice for saltwater anglers chasing 1 MHz resolution. That is a different product at a different level.
6. Lowrance Active Imaging 3-in-1 – Best SideScan and DownScan Bundle
The Lowrance Active Imaging 3-in-1 is the best shallow water transducer when you want both side scan and down scan in one transom unit, because it bundles CHIRP, SideScan and DownScan with a FishReveal target view in a single housing.
Lowrance Active Imaging 3-in-1 Transducer with CHIRP, SideScan, DownScan Sonar, 000-14489-001
CHIRP plus SideScan plus DownScan
Medium and High CHIRP 83/200 kHz plus 455 and 800 kHz
FishReveal target view
300 ft maximum depth
Pros
- Single transducer delivers CHIRP
- SideScan and DownScan in one transom housing
- FishReveal smart target view separates fish from weedbeds
- rockpiles and ditches
- The 800 kHz option delivers notably crisper images than older 455 kHz-only units
- Reported to outperform older StructureScan and TotalScan units
- Plug-and-play on compatible Lowrance and Simrad displays with no menu changes
Cons
- Maximum depth of 300 feet so it is aimed at shallow and mid-range fishing rather than deep water
- Not compatible with older Lowrance HOOK2 or HOOK Reveal units
- The cable is long so cable management matters on smaller boats
- Bulkier at 3.5 pounds compared with basic skimmer transducers
The 800 kHz channel is the shallow water story. Higher frequency means finer detail, and the difference between 455 kHz and 800 kHz down imaging is obvious when you are looking at the edge of a grass flat or the lip of a drop-off.
SideScan is what earns it a place on this list. Panning for structure to either side of the boat in 10 to 20 feet of water is a genuinely different way to fish, and having it in the same box as the down imaging avoids a second install.
FishReveal is a small feature that matters in exactly the situation this guide is about. When fish are sitting on weed in 5 feet, separating the fish return from the vegetation is the whole decision.
Reviews consistently compare it favourably against the older StructureScan and TotalScan elements it replaces, and several owners report the same performance on Simrad NSS evo3s and GO series displays.
One practical warning from the reviews: at 3.5 pounds with a long cable, this is not a kayak install. Plan the cable run and the transom space before you cut anything.
Who the Active Imaging 3-in-1 suits
It suits Lowrance HDS LIVE, Elite FS and Simrad NSS evo3s and GO series owners fishing water under about 40 feet who want picture-like structure on both sides and below.
If you have been living on a 455 kHz-only element, the 800 kHz channel is the upgrade you will actually feel.
Who should skip the Active Imaging 3-in-1
Skip it on HOOK2 or HOOK Reveal units, which use a different connector and signalling. Also skip it if you regularly fish past 200 feet, because the 300-foot ceiling and the imaging-first design are not built for that.
On a very small boat, the cable length and bulk are a real nuisance. A simple skimmer is the better tool there.
7. Humminbird XNT 9 DI T – Best for Older HELIX DI Combos
The Humminbird XNT 9 DI T is the best shallow water transducer if your boat has an older HELIX DI combo that shipped with a non-CHIRP down imaging element and you want 800 kHz detail back.
Humminbird Transom Transducer with Dual Beam Sonar and Down Imaging – 200/455 kHz, XNT 9 DI T
Down Imaging at 455/800 kHz
DualBeam PLUS traditional sonar
Built-in temperature
20 ft cable
Pros
- Down Imaging at 455/800 kHz plus DualBeam PLUS gives both a fish-eye view below and wide 2D coverage
- The 800 kHz frequency is well suited to fine detail in shallow water
- Built-in temperature sensor and 20-foot cable included
- Frequently described as an exact replacement for the unit that shipped with a HELIX DI combo
Cons
- Durability is the main complaint with several owners replacing a unit roughly every two years
- Compatibility is limited to older HELIX DI
- PiranhaMAX DI and legacy Down Imaging models
- No Side Imaging or CHIRP support
DualBeam PLUS fires two beams at once, one narrow for detail and one wide for coverage. That split is what makes it work in a creek where you want to see a ledge at range and also read what is happening right under the hull.
The 800 kHz down imaging channel is the shallow water reason to choose it. Against a 455 kHz-only original, the difference in line definition on a sandbar or a rock edge in 6 feet of water is easy to see.
Where the reviews get honest is longevity. Several owners describe replacing this class of unit roughly every two years, and one isolated report describes early failure. Budget for a spare if your season depends on it.
Who the XNT 9 DI T suits
It suits owners of HELIX DI combos, PiranhaMAX DI models and legacy Down Imaging displays who want more imaging detail than the original element. Built-in temperature and a 20-foot cable are included.
For a boat kept on a lake rather than in salt, that durability trade-off is usually acceptable.
Who should skip the XNT 9 DI T
Skip it on a current HELIX G3 or G4 with MEGA or Side Imaging, because it has no CHIRP and no side channel. It is also the wrong choice for saltwater, where repeated two-year replacement cycles get expensive fast.
If you want side scan for structure hunting, this unit cannot give it to you at any price.

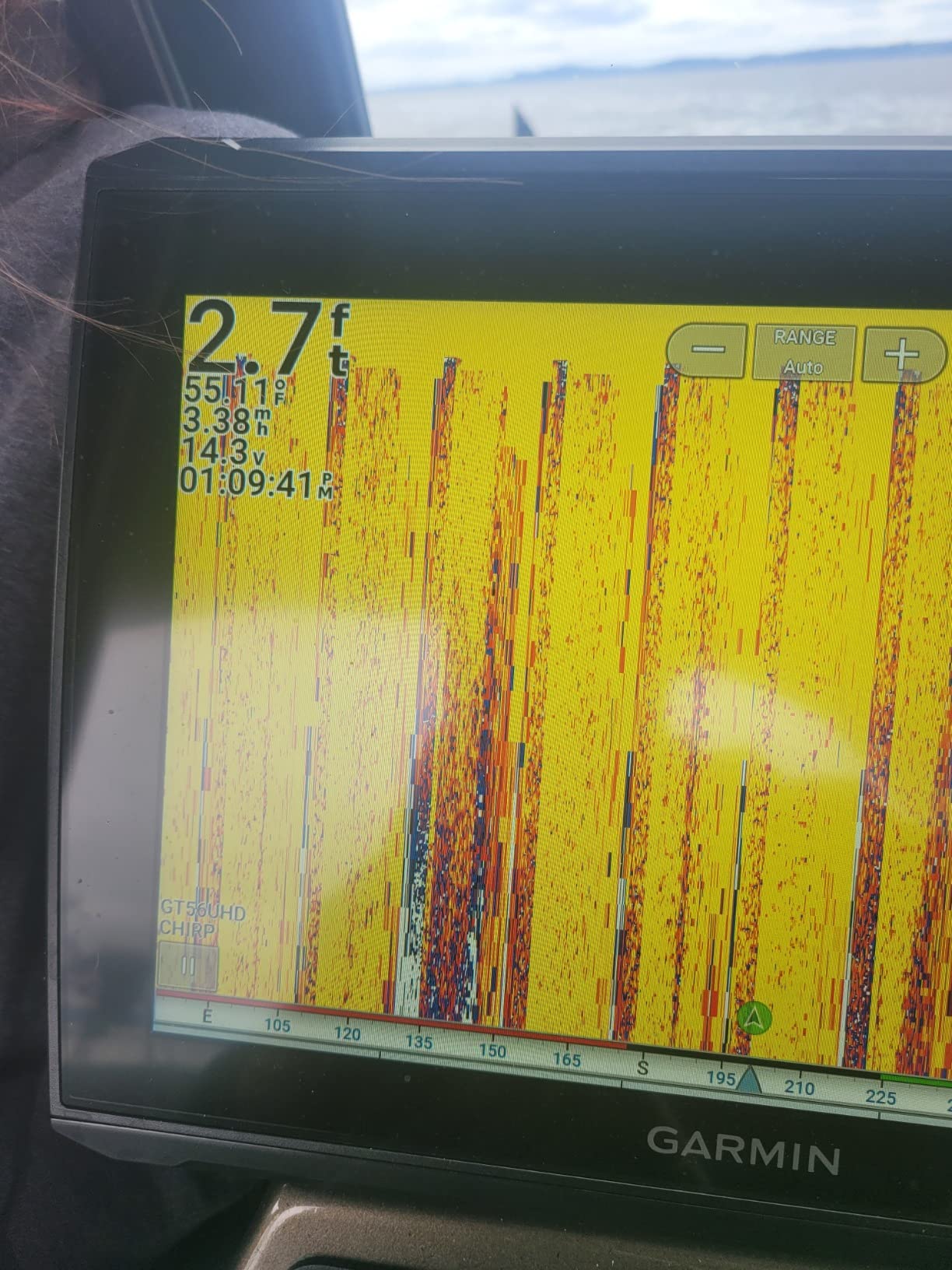

8. Garmin GT56UHD-TM – Best Picture-Like SideVu Imaging for Shallow Water
The Garmin GT56UHD-TM is the best transducer in this roundup for shallow structure hunting, because SideVu scanning sonar at 455, 800 and 1000 kHz renders fish-holding cover close to the boat with a detail level nothing else here matches.
Garmin GT56UHD-TM Transom Mount Transducer
SideVu and ClearVu scanning sonar
455 800 and 1000 kHz scanning frequencies
500 W
Transom and trolling motor mounts included
Pros
- SideVu scanning sonar provides genuinely picture-like detail
- the strongest option here for finding fish-holding structure in shallow water
- The 1000 kHz mode gives roughly 20 percent greater range and very crisp near-field detail
- Reads clearly at running speed when mounted correctly
- Fits directly into Garmin UHD displays without adapter cables and the cable is long enough for any install
- Transom and trolling motor mounts plus all mounting hardware included
Cons
- Loses bottom lock at roughly 35 km/h unless the transducer is angled slightly downward
- Susceptible to interference from non-brushless trolling motors such as the Minn Kota Terrova even after rerouting cables
- Installation is not plug-and-play for first-time installers so running a pull line is advised
- The unit is physically long because of the side-scan array which needs transom space
The 1000 kHz mode is where shallow water anglers get their money back. Because higher frequency resolves targets that lower bands blur together, a school holding tight to a mangrove root or a rock ledge reads as individual fish rather than a smear.
SideVu covers a lot of ground from one mount, 455 kHz SideVu reaching out to 500 feet on each side, and the UHD ClearVu channel gives you the picture straight down. Traditional High wide CHIRP handles arching out to 800 feet.
At 500 watts you also have the headroom to run it in a chop where a lower-power imaging element struggles. Owners of Garmin UHD displays report the step up in picture quality as dramatic, and it plugs straight in with no adapter cable.
Two practical problems show up repeatedly in the reviews. Angling the unit slightly downward fixes losing bottom at higher running speed, and a non-brushless trolling motor can produce interference that rerouting power and ground cables may not solve.
Who the GT56UHD-TM suits
It suits serious inshore and saltwater anglers on a boat with a 12-pin Garmin UHD display who want to hunt structure in 10 to 50 feet of water. It also suits anyone fishing shallow water full of timber, rocks and dense cover.
If you regularly run at speed, budget time to set the angle properly and to run a pull line for the cable.
Who should skip the GT56UHD-TM
Skip it on an 8-pin Garmin display, on a non-UHD older unit, or on a boat with a small transom. The side-scan array makes the housing long, and clearance is a real issue on small skiffs.
Skip it if you only need depth and temperature in water under 15 feet. You would be paying for imaging capacity you will never switch on.

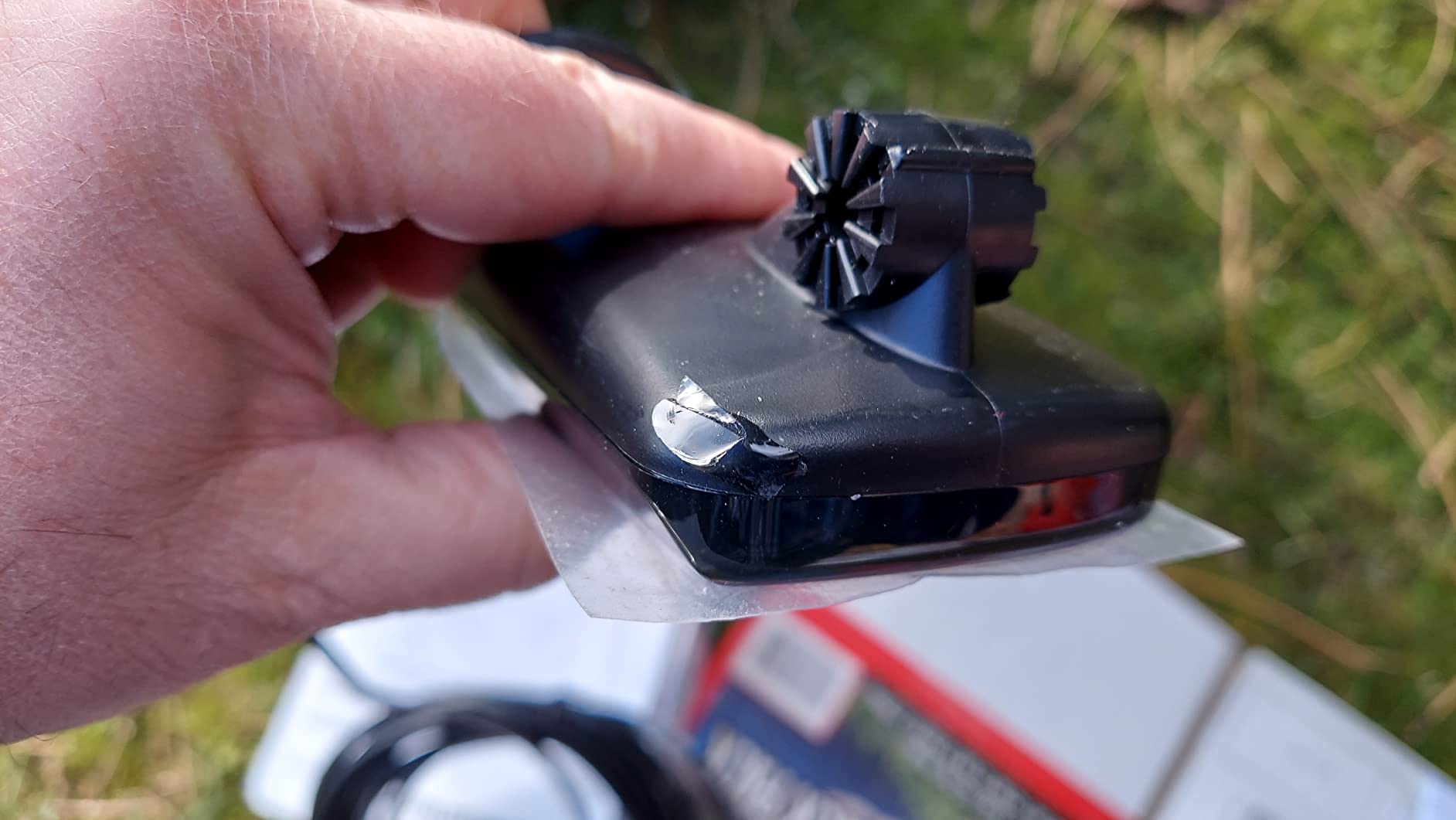

9. Humminbird XNT-9-HW-MSI-150-T – Best MEGA Imaging for Shallow Structure
The Humminbird XNT-9-HW-MSI-150-T is the best shallow water transducer for HELIX 7 owners who want MEGA Side Imaging and MEGA Down Imaging in a single transom mount without bolting on a second sensor.
HUMMINBIRD XNT-9-HW-MSI-150-T TRANSOM MOUNT TRANSDUCER
MEGA Side Imaging and MEGA Down Imaging plus Dual Spectrum CHIRP
250 ft side to side and 75 ft deep
Built-in temperature
20 ft cable
Pros
- Only option here that combines MEGA Side Imaging
- MEGA Down Imaging and Dual Spectrum CHIRP in one transom unit
- Rated 4.7 stars across 176 reviews with 85 percent five-star
- MEGA imaging at 250 feet to each side and 75 feet deep is well matched to shallow structure hunting
- Built-in temperature sensor and 20-foot cable with all mounting hardware included
- Frequently reported as an exact match for HELIX 7 DI SI and G4N units
Cons
- Limited to HELIX 7 G3
- G3N and G4N models
- The MEGA side and down channels are tuned for the 75 ft range and are less useful in deep water
- Higher cost than the 2D-only XNT-9-HW-T for the same CHIRP performance
MEGA imaging at 250 feet to each side and 75 feet deep is built for exactly the range most shallow anglers work. You can see a channel edge, a weed line or a stump field off the side of the boat and fish it immediately rather than marking it and circling back.
The Dual Spectrum CHIRP 2D channel runs alongside it, so you keep arching and depth capability while you are panning the side channels. Built-in temperature and a 20-foot cable round out a genuinely complete package.
Reviews confirm it as an exact match for HELIX 7 DI SI and G4N units, and the share of top ratings runs high. Lower-rated feedback tends to concern packaging condition on arrival rather than how the unit performs.
The honest limitation is tuning. Those MEGA channels are optimised for the 75-foot range, so if you routinely drop into water deeper than that you are carrying imaging you will not use.
Who the XNT-9-HW-MSI-150-T suits
It suits HELIX 7 G3, G3N and G4N owners fishing water under about 30 feet who want side imaging and down imaging from one mount. Bass, pike and inshore saltwater anglers all benefit.
If you have been thinking of adding a side imaging element later, this bundle avoids that second install entirely.
Who should skip the XNT-9-HW-MSI-150-T
Skip it unless you own a HELIX 7 from those exact generations. It is also overkill if you only want CHIRP arches, because the 2D-only XNT-9-HW-T delivers the same CHIRP performance for less money.
Deep-water anglers should look elsewhere. Imaging that stops being useful past 75 feet is not what a coastal boat needs.

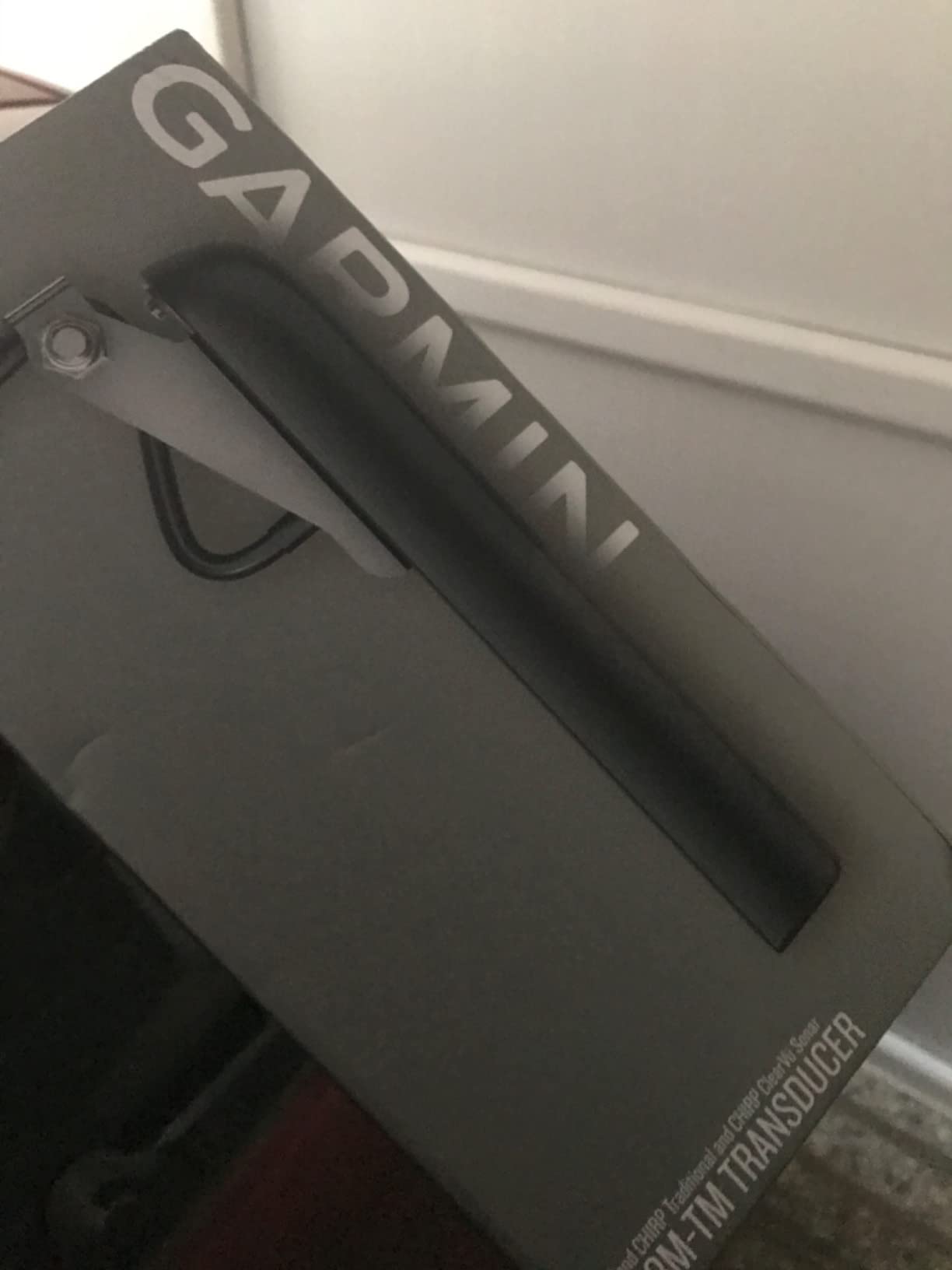

10. Garmin GT23M-TM – Best Mid-Band CHIRP for an 8-Pin Garmin Display
The Garmin GT23M-TM is the best shallow water transducer for an 8-pin Garmin display that does not take the newer 12-pin UHD elements, because it pairs mid-band CHIRP with CHIRP ClearVu at 600 W and a two-year warranty.
Garmin GT23M-TM Transducer
Mid-band CHIRP traditional 80-160 kHz
CHIRP ClearVu scanning sonar
600 W
8-pin connector
Pros
- CHIRP traditional plus CHIRP ClearVu in a single transom unit
- Mid-band 80-160 kHz CHIRP gives crisp fish arches and good target separation for structure definition
- 600 W power rating supports reliable readings in harder conditions
- 2 year limited warranty
Cons
- 8-pin connector limits it to compatible Garmin units and not the 12-pin UHD range
- No SideScan so it cannot show structure out to the sides
- Heavier at 2.5 pounds than a basic skimmer transducer
- Priced well above the entry-level GT20-TM for a narrower feature set
CHIRP is the point here. Mid-band 80-160 kHz sweeps a range rather than sitting on one frequency, which gives better target separation than a conventional 200 kHz channel and cleaner arches in clutter-heavy water.
CHIRP ClearVu adds the down imaging picture directly below the boat, so you can see the bottom type and any structure in the first few feet where you are most often fishing.
The 600 W rating gives it headroom in rough conditions, and the two-year warranty is longer than most transducers in this roundup offer. Saltwater anglers who already own an 8-pin Garmin head unit get a marine-grade option built for that job.
Who the GT23M-TM suits
It suits owners of 8-pin Garmin displays who want CHIRP quality and down imaging without moving to a 12-pin UHD system. It is a good fit for coastal and offshore anglers on older Garmin electronics.
Reviews describe the sentiment as performance-focused, centred on clean arches and solid structure definition from the mid-band CHIRP channel.
Who should skip the GT23M-TM
Skip it if your display is a 12-pin UHD unit, because the connector will not match. It also lacks SideScan entirely, so it cannot show structure out to the sides no matter how good the down channel is.
At 2.5 pounds it is heavy for a small boat, and it costs more than the GT20-TM while covering less. If you have an 8-pin display and want to save money, the GT20-TM still does the job.
How to Choose a Shallow Water Transducer?
Four decisions matter more than brand: frequency band, cone angle, imaging mode and connector compatibility. Get those right and the transducer choice becomes straightforward.
Match frequency to your depth, not your ambition
Higher frequency gives better resolution and shallower reach; lower frequency reaches deeper and smears close detail. That is the whole rule. A high-frequency shallow water transducer is not a weaker unit, it is a differently tuned one.
Use this depth-to-frequency lookup as your starting point, and read more about the hardware side in our fish finder roundup:
0-10 ft: 455 kHz to 1000 kHz for down and side imaging. This is where weed beds, stump fields and rock edges are read in detail. CHIRP in the 200 kHz range still works for arches.
10-25 ft: 455 kHz remains the sweet spot, with 800 kHz used for close structure. CHIRP traditional 150-220 kHz gives reliable fish arches across this band.
25-50 ft: widen to CHIRP 80-160 kHz or traditional 77/200 kHz for range, and keep an imaging channel for the bottom you are fishing over.
50 ft and deeper: stop optimising for shallow water. Conventional 50/200 kHz and 83/200 kHz pairs are the right tool there.
Read cone angle before you read brand
Cone angle decides how much water you see at a given depth. A narrow cone gives superb detail in a small area; a wide cone covers more water per pass. In shallow water you almost always want the wide option, because you are covering a flat rather than dropping into a deep channel.
The specs worth checking are the beam angle of the traditional channel and the width of the down imaging cone. Anything in the region of 20 degrees or wider for traditional sonar is sensible for flat-water work.
Decide whether you need side scan, down scan, or both
Down scan paints the bottom and structure directly beneath the boat, which is the most useful mode in water under 10 feet. Side scan looks out to either side and is how you find structure you have not driven over yet. LiveScope is a third category entirely, giving real-time imagery, and it needs a specific element rather than any of the units in this roundup.
If you can only choose one imaging mode, choose down scan for shallow water. It answers the question you actually have: what is under me right now.
Check the connector before you check anything else
This is the most common purchase mistake and it is entirely avoidable. Lowrance 7-pin, Lowrance HOOK2, Garmin 8-pin, Garmin 12-pin and Humminbird HELIX connections are not interchangeable, and an all-in-one element will not drive a display that only accepts a single frequency band.
Check your display model number against the transducer’s supported list before anything else. If your unit is single-band, an all-in-one transducer will not give you imaging, and you will be back to 2D only.
Do not ignore the temperature sensor
In shallow water, temperature is often more valuable than fish ID, because fish concentrate at temperature breaks and you can find those breaks without seeing a single fish. Several units here, including the XP-9-HW, leave the sensor out, and that is worth weighing against how you fish.
Mounting and Depth Offset Calibration in Shallow Water
Where the transducer sits and how you set its offset decide whether it reads cleanly or drops out, and both steps take about ten minutes.
Pick the mount for the boat. Transom mounts fit anything and are the sensible default for most small boats. Trolling motor mounts put the sensor higher and in cleaner water, which helps in very shallow spots but takes the unit off the transom. In-hull mounts are cleanest at speed but need a proper epoxy pocket in a single-layer fiberglass hull. Portable skimmers work from a suction cup or a scupper and suit rental and shore-based setups.
Check draft clearance before you commit. A protruding transducer on a shallow-keel boat can strike bottom in a couple of feet of water, and a trolling motor mount in the same conditions is a strike waiting to happen. Measure your draft and pick a mount that keeps the element clear of the lowest point of the hull.
Set depth offset so the number matches reality. The offset is the distance between the transducer and the location your display treats as the boat’s waterline. Measure from the transducer face to the transducer’s entry point on the hull, enter that number in the unit’s setup menu, and the depth reading will match what your pole says.
Angle and level the mount. A transducer angled slightly downward holds bottom lock at speed, and a mount that is not level side to side produces a lopsided picture. Tighten the bracket, check with a spirit level, then run the unit and adjust in small steps until the display stops dropping out.
Watch for aeration. If your picture cuts out at speed, the element is in bubbled water. Move it lower, angle it, or relocate it to the trolling motor. That single adjustment fixes most dropouts people blame on the transducer itself.
When a Transducer Upgrade Will Not Help
Plenty of anglers who fish shallow water are better off keeping the electronics they already own. This is the argument that runs through every old forum thread about fish finders in the shallows, and it deserves a straight answer.
In clear freshwater shallows over sand and short grass, you can often see the bottom and the fish with your own eyes. A transducer adds most of its value by showing structure you cannot see, temperature you cannot feel, and bottom composition in water that is dark or stained. If your water is clear and your bottom is featureless, an upgrade will disappoint you.
Conversely, a transducer cannot rescue a weak display. Screen resolution, processing speed and the ability to run side imaging come from the unit, and an expensive element plugged into a basic four-inch screen will still look basic. Fix the display first if yours is more than a few years old, then pick the transducer.
There is a third case: weed and rock clutter in 3 to 5 feet of water. No transducer eliminates that. High frequency reduces it, and lowering sensitivity or raising the noise rejection threshold helps more than any hardware swap. Treat clutter as something you filter, not something you buy your way out of.
Frequently Asked Questions
What is the best fishfinder for shallow water?
The best fish finder for shallow water is one running high frequency, not high power. In water under 10 feet, a down imaging channel at 455 kHz to 1000 kHz resolves weed edges, stumps and rock better than any wattage figure. Our top pick overall is the Humminbird XNT-9-HW-T, with the Garmin GT20-TM as the best value option and the Lowrance 000-0106-72 skimmer as the entry-level answer.
Is higher frequency for shallow water better?
Yes. Higher frequency gives better resolution and less reach, and shallow water is exactly the case where resolution wins. A 455 kHz or 800 kHz down imaging channel separates individual fish and weed edges in 5 feet of water that a 200 kHz or 83 kHz channel blurs together. Drop back to lower frequency only when you need to reach past 50 feet.
How deep does a transducer need to be in the water?
A transducer only needs enough immersion to flood its face and stay in clean water, which is usually a fraction of an inch to an inch for a skimmer. What matters is not depth but aeration and angle. Mount it where bubbled water from the hull cannot reach it, angle it slightly downward, and level it side to side for a reliable picture.
What is the best CHIRP frequency for shallow water fishing?
For water under 10 feet, aim for CHIRP in the 150-220 kHz range for fish arches, paired with an imaging channel at 455 kHz or higher. From 10 to 25 feet, 150-220 kHz CHIRP remains the sweet spot. Past 25 feet, widen to mid-band CHIRP around 80-160 kHz to keep enough reach while holding target separation.
Is side scan or livescope better?
In shallow water, down imaging and side scan serve you better than LiveScope, and they cost less. Side scan finds structure out to either side so you can fish it immediately, while down scan shows the bottom and cover directly under the boat. LiveScope gives real-time imagery of individual fish, but it requires a specific element and a compatible display, so check that support before shopping.
Are fish finders worth it in shallow water?
They are worth it when your water is dark, stained or full of structure you cannot see from the boat. In clear shallows over sand and short grass, you can often spot fish directly and a fish finder adds little. Even then, temperature and bottom composition readings still help, which is why many shallow anglers use one for structure and temperature rather than for finding fish.
Conclusion
If you take one thing from this guide, take the frequency rule. Shallow water rewards high frequency, wide cone angles and an imaging channel, and it punishes raw power. Start by confirming which connector your display actually takes, because that single check prevents the most common wasted purchase.
For most people, the Humminbird XNT-9-HW-T is the best fish finder transducer for shallow water, with the Garmin GT20-TM offering the strongest value and the Lowrance 000-0106-72 skimmer covering the entry-level end honestly. If you want pictures of structure rather than arches, the Lowrance Active Imaging 3-in-1 and Garmin GT56UHD-TM are the two to look at. All models covered here are current as of 2026.
Pick the one that matches your depth band, mount it level, set the offset, and go fish the water you are actually standing on.
