A hand drill is a pointing tool. A drill press is a boring tool, and for anyone cutting joinery that difference decides how the work goes. Clamp a board to the table, pull the quill down by hand, and the bit drops straight into the wood at a fixed depth with no wandering and no guessing. That single fact is why the best drill presses for woodworking sit at the top of most furniture shops’ tool lists.
Yes, a drill press is absolutely a woodworking tool. Most of them are sold as general-purpose machines for metal and plastic, but the boring accuracy they deliver, the quill travel that swallows a 2×4, and the depth stop that makes a mortise repeatable, all exist because woodworkers demanded them. A cordless driver is faster on screws. Nothing else in the shop bores a square 1-inch Forstner hole through 3 inches of white oak.
What follows is a comparison of eight presses, from a compact 8-inch benchtop cast iron model to a 20-inch floor-standing machine, rated on the specs that actually decide whether a hole is good: swing, quill travel, speed range, table, and how the machine handles runout. We also explain how to check runout with a dial indicator, when a benchtop is enough, and what to look for in a used Delta or Craftsman floor press if you would rather not buy new.
Table of Contents
Top 3 Picks for Best Drill Presses for Woodworking (October 2026)
WEN 4206T 8-Inch Benchtop
- 2.3 amp motor
- 8 inch swing
- 2 inch spindle travel
- 5 speeds 750-3200 RPM
The WEN 4206T takes the top slot on evidence rather than bells and whistles. It carries a 4.6 star average across the largest review base of anything we looked at, and the spec sheet is honest about what it is: 2 inches of spindle travel, a 1/2-inch chuck, five stepped speeds. It is a small machine that does small jobs well, and it will not pretend to be a floor model.
The SKIL DP9505-00 is the value pick. A 6.2 amp motor, a laser, an LED work light and a tilting table for a fraction of what the pro-grade benchtop presses cost. The SKIL is the one to buy if you are moving past screws and dowels into real cabinetry holes.
The BUCKTOOL DP12VL is the pick for anyone whose work does not fit on a 10-inch table. Twelve-inch swing, 580 to 3200 RPM on a lever, a digital readout and a cast iron base that weighs 86.5 pounds, which is why reviewers measuring it on a dial indicator report near-zero chuck runout.
All 8 Drill Presses at a Glance in 2026
| Product | Specifications | Action |
|---|---|---|
| WEN 4206T 8-Inch 5-Speed Benchtop Drill Press |
|
Check Latest Price |
| SKIL DP9505-00 10-Inch Benchtop Drill Press |
|
Check Latest Price |
| BUCKTOOL DP12VL 12-Inch Benchtop Drill Press |
|
Check Latest Price |
 VEVOR DP8 8-Inch Benchtop Drill Press |
|
Check Latest Price |
 JET JWDP-12 Variable Speed Benchtop Drill Press |
|
Check Latest Price |
 JET JDP-20MF 20-Inch Floor Drill Press |
|
Check Latest Price |
 WEN DP1263V 12-Inch Variable Speed Benchtop |
|
Check Latest Price |
 JET JDP-17 17-Inch Floor Drill Press |
|
Check Latest Price |
Two numbers in that table deserve attention before anything else. First, advertised press size is swing diameter, which is double the throat distance you actually work with. An 8-inch press gives you 4 inches from the spindle center to the column, so a 2×4 standing on edge will not fit. Second, quill travel is the real constraint on thick lumber, and anything under 4 inches means stopping to lower the table mid-drill.
Four of these eight presses have 2 inches of spindle travel or less. That is fine for dowels, shelf pins and small holes. It is a problem the moment you bore a 1-inch Forstner through thick hardwood.

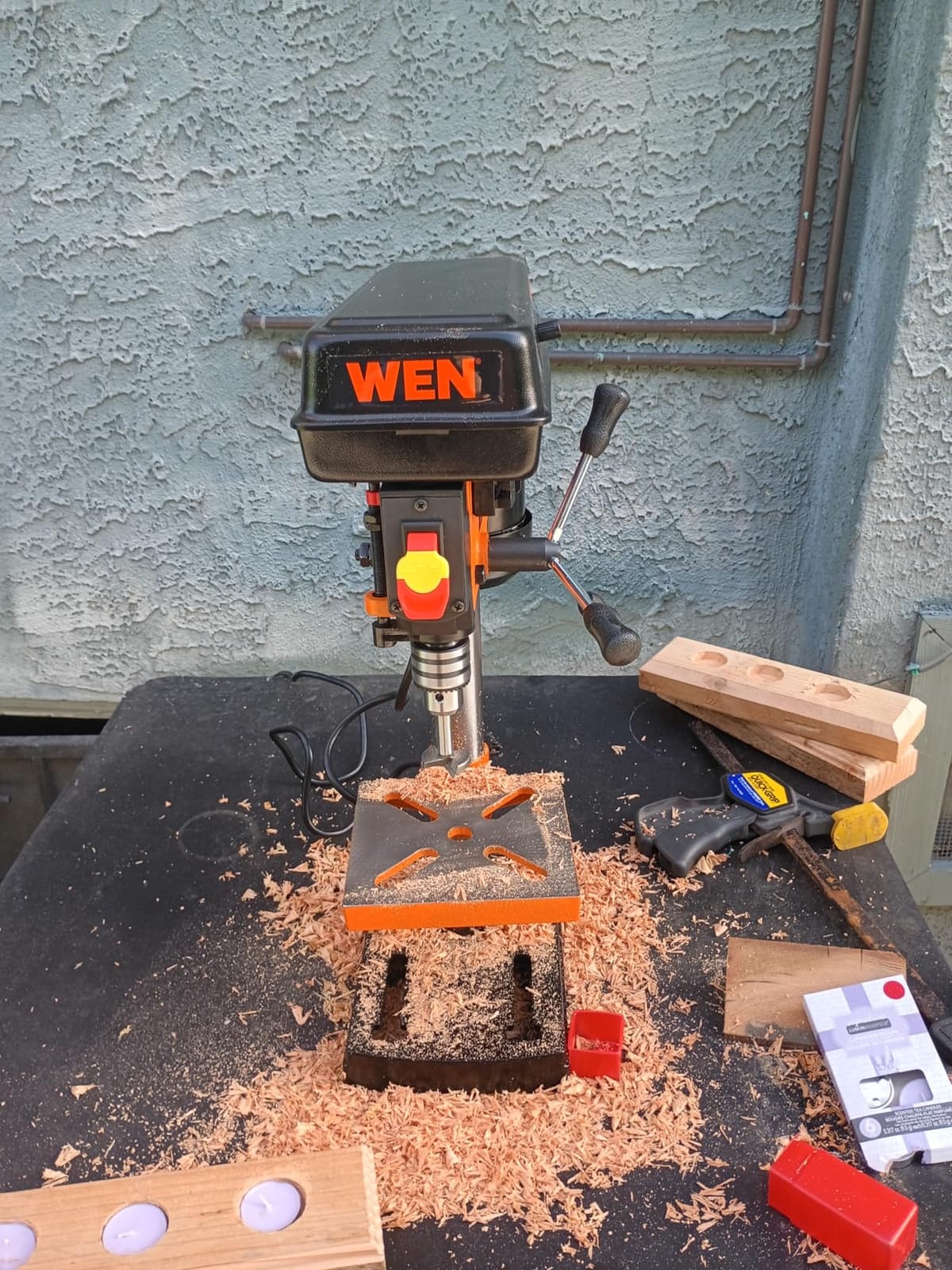

1. WEN 4206T 8-Inch 5-Speed Benchtop Drill Press – The Most Proven Small Press
WEN 2.3-Amp 8-Inch 5-Speed Cast Iron Benchtop Drill Press (4206T)
2.3 amp induction motor
8 inch swing
2 inch spindle travel
5 speeds 750-3200 RPM
Pros
- Compact cast iron build that fits a small bench
- Five stepped speeds cover dowels to Forstner bits
- Table bevels up to 45 degrees each direction
- Backing key stores on the machine
- 797 reviews averaging 4.6 stars
Cons
- 2.3 amp motor bogs down in hard material
- Only 2 inches of spindle travel
- Small 6.5 inch square table
I put the WEN 4206T first because the numbers behind it are the most solid in the group. A 4.6 star average across 797 owner reviews is a sample size most budget machines never reach, and reviewers consistently describe the same thing: a compact cast iron body, five speeds that are easy to select, and a table that tilts 45 degrees in each direction when you need to bore into a face or an angled surface.
Five speeds is fewer than the six or seven on some competitors, but the spread from 750 to 3200 RPM covers the range that matters. 750 RPM is slow enough to walk a 1/2 inch Forstner through oak without burning the rim, and 3200 RPM handles small twist bits in pine cleanly.
Specs worth writing down: 8-inch swing, 2-inch spindle travel, 1/2-inch keyed chuck with onboard key storage, a 6.5 by 6.5 inch height-adjustable table that bevels 45 degrees each way, and a machine that stands 23 inches tall on a 7 by 11 inch base. Total weight is 32 pounds, so moving it between benches is a one-hand job.
The 2.3 amp induction motor is the honest limit here. It has 253 watts of maximum power, which is plenty for pine, poplar and MDF, and marginal for repeated large-diameter boring in dense hardwood. Owners drilling thick oak with big Forstner bits report the motor working hard and needing pauses.
When the WEN 4206T is the right machine
This is the best drill press for a first shop, a apartment bench, or a classroom. It is the one I recommend for dowel joints, shelf pin holes, small hinge cup pilot holes, and any boring in boards up to about 1.5 inches thick. The tilt and the five speeds cover most of what a furniture maker does before the work gets large.
If your work is mostly small parts, drawers, boxes and face frame joinery, this press will not disappoint you. It also bolts or clamps to a bench easily because of the small base, so it can follow you rather than own a corner of the shop.
When the WEN 4206T is the wrong machine
Do not buy it if you bore mortise waste regularly. Two inches of spindle travel means you drill part way down, stop, drop the table, reposition the work, and finish. That breaks the repeatability that makes a press worth owning in the first place, and the bit can wander in the second half of the hole.
The 6.5 inch square table is also small for anything wider than a 1×6. You will be clamping overhang to the front edge, which is where runout turns into a broken bit. For thick hardwood, large Forstner work, or a production cabinet shop, step up to a 12-inch press with more travel.

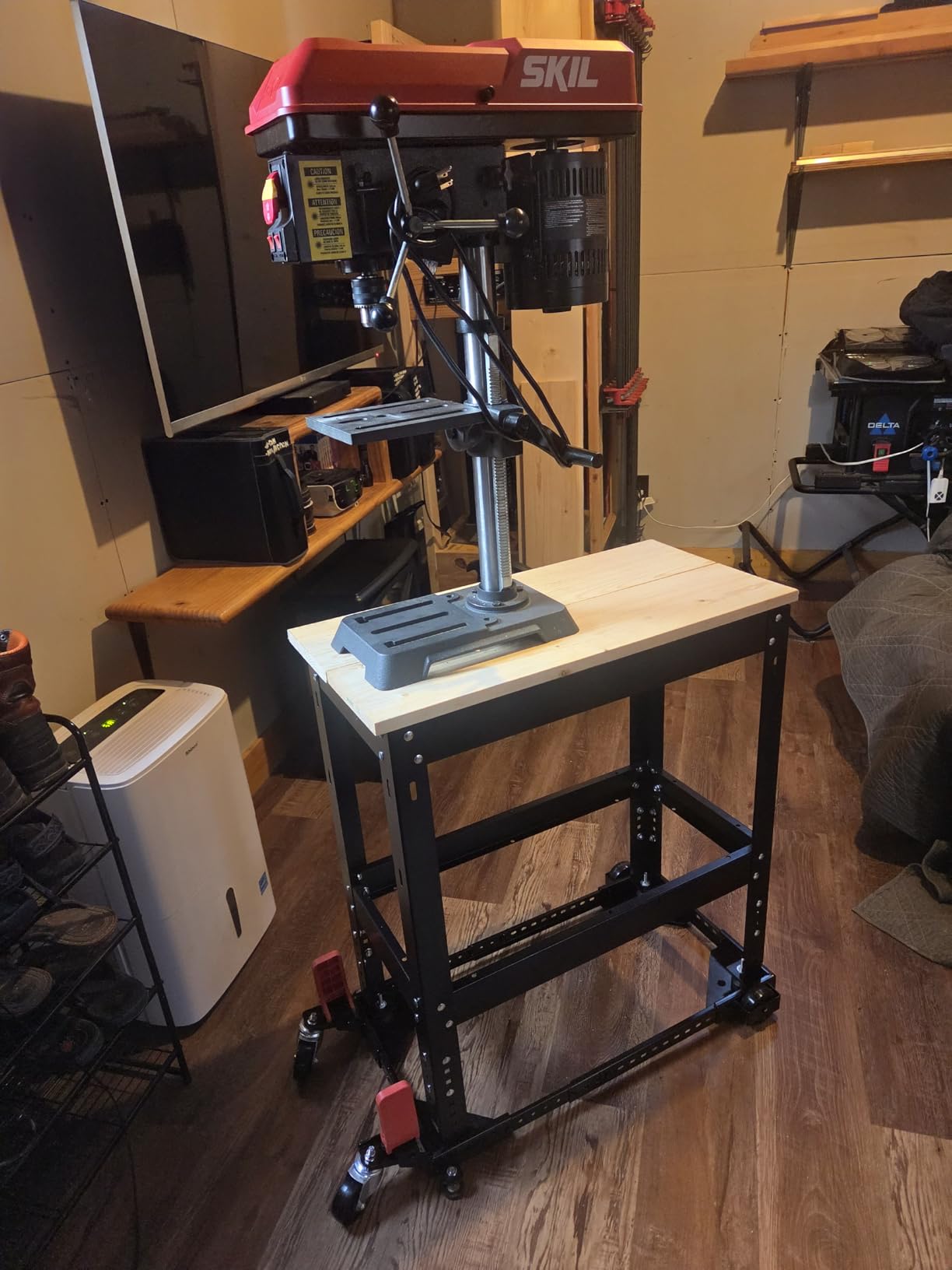

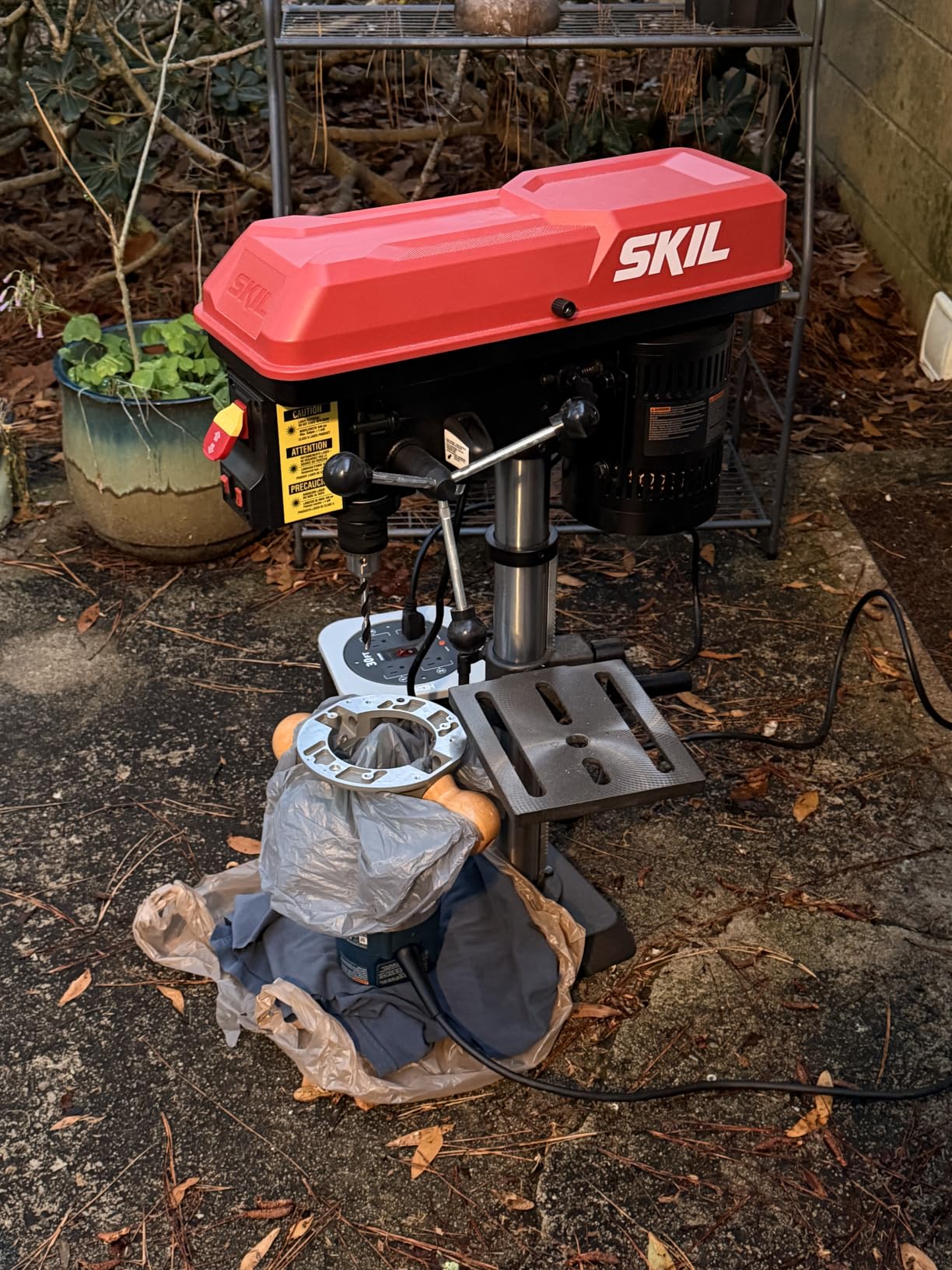

2. SKIL DP9505-00 10-Inch Benchtop Drill Press – Best Value for Real Cabinetry
SKIL 6.2 Amp 10 In. 5-Speed Benchtop Drill Press with Laser Alignment & Work Light – DP9505-00
6.2 amp induction motor
744 watts
5 speeds 610-2800 RPM
Laser and LED work light
Pros
- 6.2 amp motor handles wood and light metal
- Laser alignment plus LED work light aid accuracy
- Table tilts 0 to 45 degrees each direction
- Adjustable depth stop included
- Assembly takes 15 to 30 minutes
Cons
- Some machines arrive with a misaligned table
- Table can wander during height adjustment
- Included chuck shows slight runout at full quill extension
The SKIL DP9505-00 solves the single most common complaint about budget presses, which is not enough power. The 6.2 amp induction motor delivers 744 watts, roughly three times the WEN 4206T’s 253 watts, and owners consistently report it working through wood and light metal without complaint. It is the best benchtop drill press for someone moving from a hand drill to production holes.
Five speeds run from 610 to 2800 RPM, and the low end is genuinely useful. At 610 RPM a large Forstner bit has time to cut its own chip pocket instead of grinding the rim flat. Combined with the tilting table and the laser, that makes repeatable joinery on a budget.
The feature set is unusually generous for the money. A Class II laser alignment system rated at 0.83mW, an LED work light, an adjustable depth stop, a bump-off safety switch, and a table that tilts 0 to 45 degrees left and right. A three-year limited warranty is also longer than most machines in this class offer.
Be aware of the assembly quality control. A recurring theme in reviews is machines arriving with a table that is not square front to back, which then makes the table-zero adjustment bolt difficult to loosen, and a rack support plate that can wobble at the top. These are fixable with a spirit level and a shim, but you should plan for half an hour of setup.
When the SKIL DP9505-00 is the right machine
Choose this press when you drill hinge cups, shelf pins, dowels and face frame joinery every week and want a laser and a light without stepping up in class. The 6.2 amp motor absorbs the punishment of production drilling, and the 10-inch footprint is still small enough for a one-car garage.
It is also a good first press for someone who has never owned a drill press and plans to keep going. The power head is strong enough that you will not outgrow it in a year, and the depth stop and laser teach repeatable boring habits early.
When the SKIL DP9505-00 is the wrong machine
If accuracy is your first priority on a given machine, know that the included chuck is basic. Owners report slight runout at full quill extension, which is exactly where a big Forstner bit is most sensitive to wobble. Budget for a better keyed chuck, and re-check runout after installing it.
Also plan on aligning the table yourself before the first cut. A press that arrives out of square will make every angle boring slightly off, and the tilt mechanism is not refined enough to compensate for a table that is already crooked front to back.

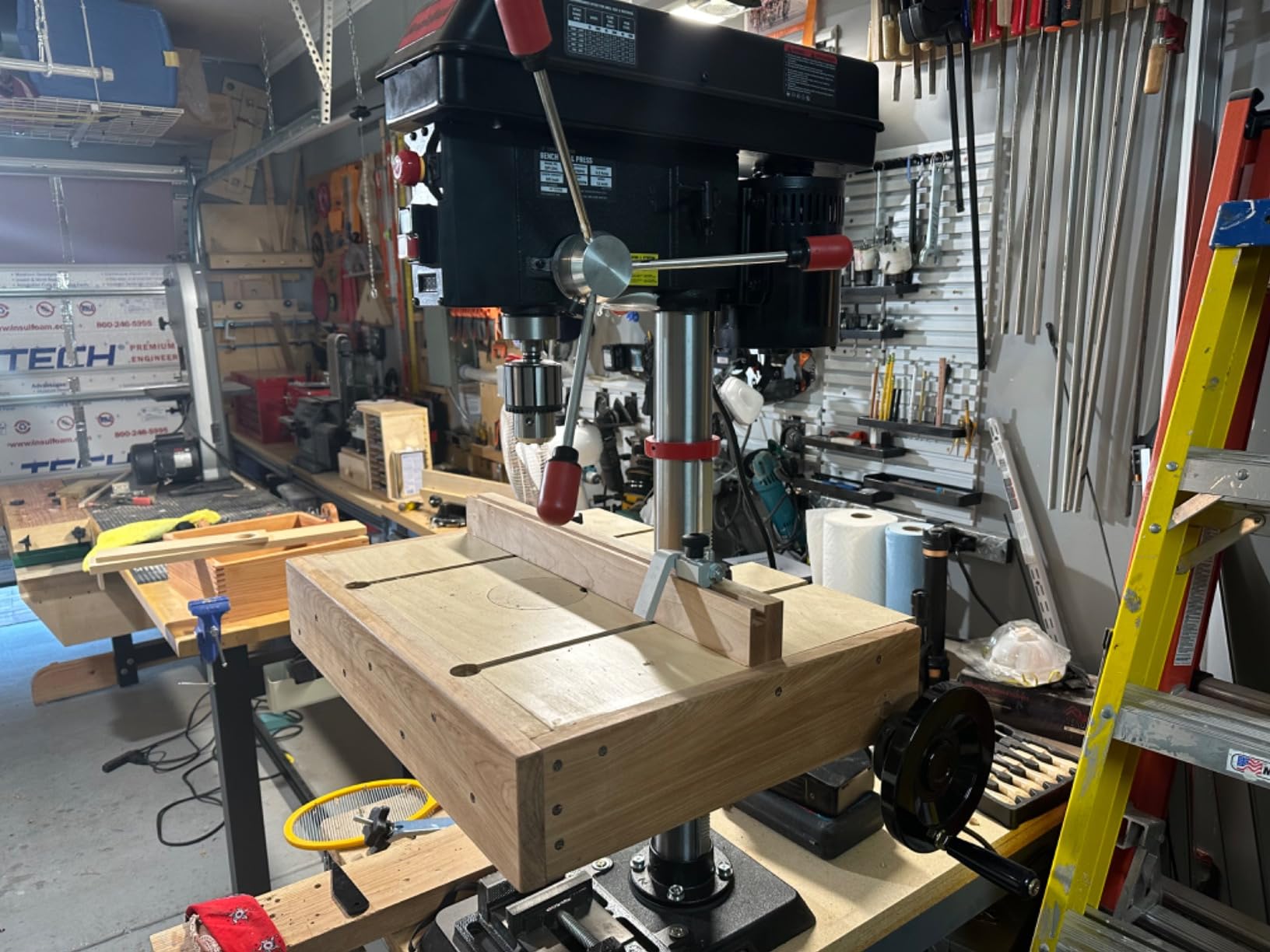

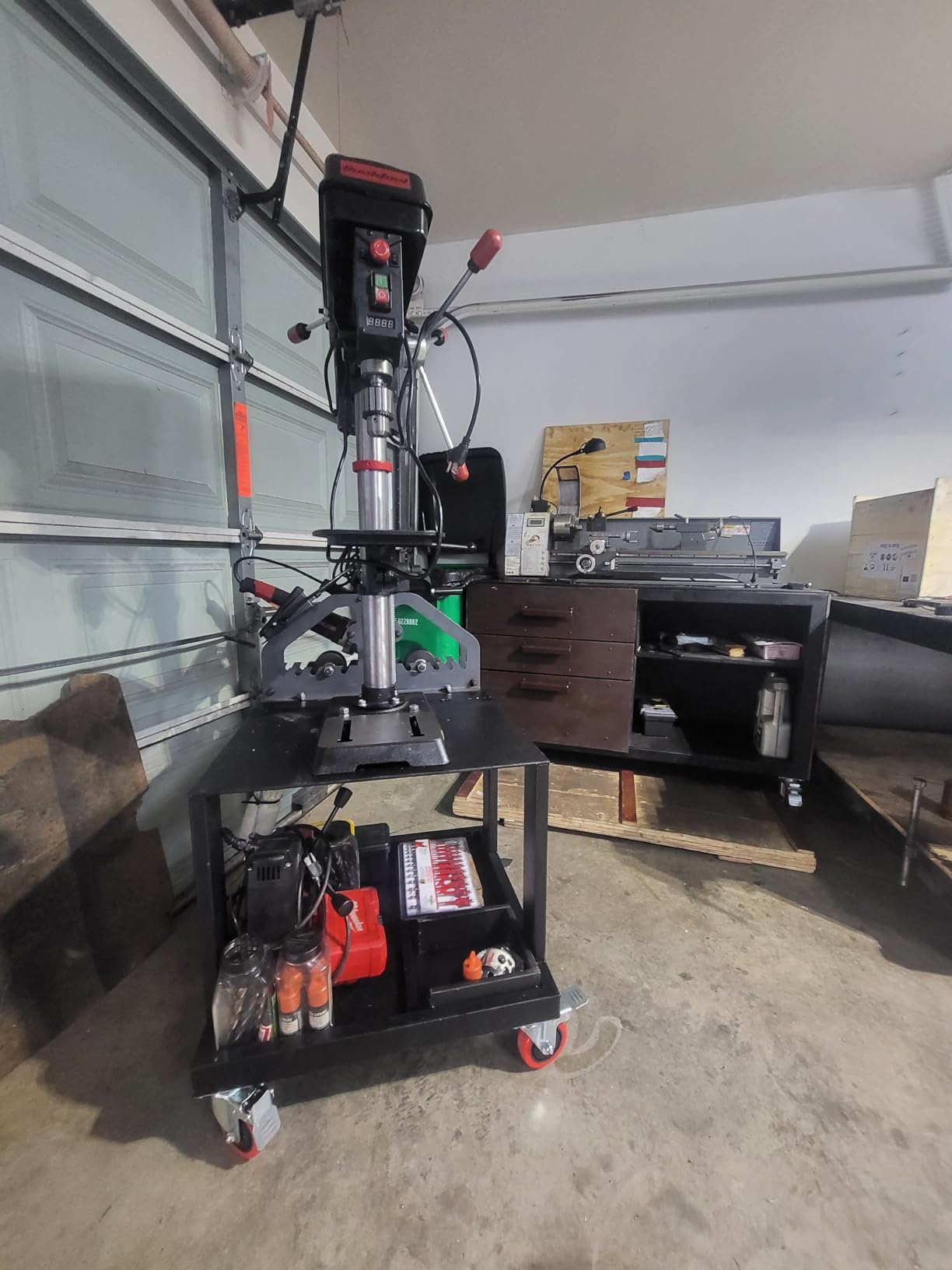

3. BUCKTOOL DP12VL 12-Inch Benchtop Drill Press – Best for 12-Inch Work
BUCKTOOL 12-Inch Benchtop Drill Press, 580-3200 RPM, 6.2A 3/4 HP Motor
3/4 HP induction motor
12 inch swing
2 inch spindle travel
Variable 580-3200 RPM
Pros
- Very heavy stable build with clean cast iron machining
- Lever speed changes with digital RPM readout are fast and accurate
- Laser stays accurate at any table height
- Flat table edge makes clamping easier
- Owners report near-zero runout on a dial indicator
Cons
- Nearly 40 inches tall and bulky on a bench
- Round table is small for a vise
- Quill cannot be locked in the down position
- No manual in the box
The BUCKTOOL DP12VL is the best benchtop drill press for anyone who wants floor-model rigidity in a benchtop package. It weighs 86.5 pounds and stands 38.98 inches tall on a cast iron base. That mass is not a marketing number. It is the reason owners who measured this chuck with a dial indicator report near-zero runout, and runout is the number that decides whether your holes are round.
Speed control is the other standout. Rather than stepped belt speeds, the DP12VL runs 580 to 3200 RPM on a lever with a digital readout, so you set an exact number instead of counting belt positions. The 6.2 amp motor is rated at 3/4 HP and 744 watts, which is real power for large-diameter boring in hardwood.
The chuck is a 1/32 to 5/8 inch keyed model, wider than the 1/2-inch chucks on the smaller presses, and the table rotates a full 360 degrees while beveling 45 degrees in either direction. Safety hardware is unusually complete for this class: a Class IIIA 2.5mW laser, a work light, an emergency stop switch, and a no-voltage-release switch that will not restart after a power interruption.
Those safety details are not padding. The no-voltage-release switch means a machine that loses power mid-cut stays off until you deliberately turn it back on, which is exactly what you want with a spinning bit in hardwood.
When the BUCKTOOL DP12VL is the right machine
Pick it when accuracy matters more than footprint. A chairmaker, a small production shop, or a serious hobbyist boring repeated mortises will feel the difference between a 32-pound machine and an 86-pound one every time a bit is loaded. The weight also lets you use a bigger Forstner than a small bench press would tolerate.
The digital readout and lever speed changes suit someone who works in several woods at once. Moving from walnut dowel holes to pine shelf pins takes seconds, and you know the exact RPM rather than estimating from a chart taped to the column.
When the BUCKTOOL DP12VL is the wrong machine
Two inches of spindle travel is short for the class, and the quill cannot be locked in the down position. On a 2×4 or thick hardwood you will still be resetting the table mid-hole. If mortising thick stock is your main job, look at the WEN DP1263V with 3-1/8 inches of travel, or a floor model.
Size is the other issue. At nearly 40 inches tall it will not sit under a low bench, and the round table is awkward for bolting on a vise. Owners planning to use a cross-slide or a drill press vise should confirm the table post fits before committing.

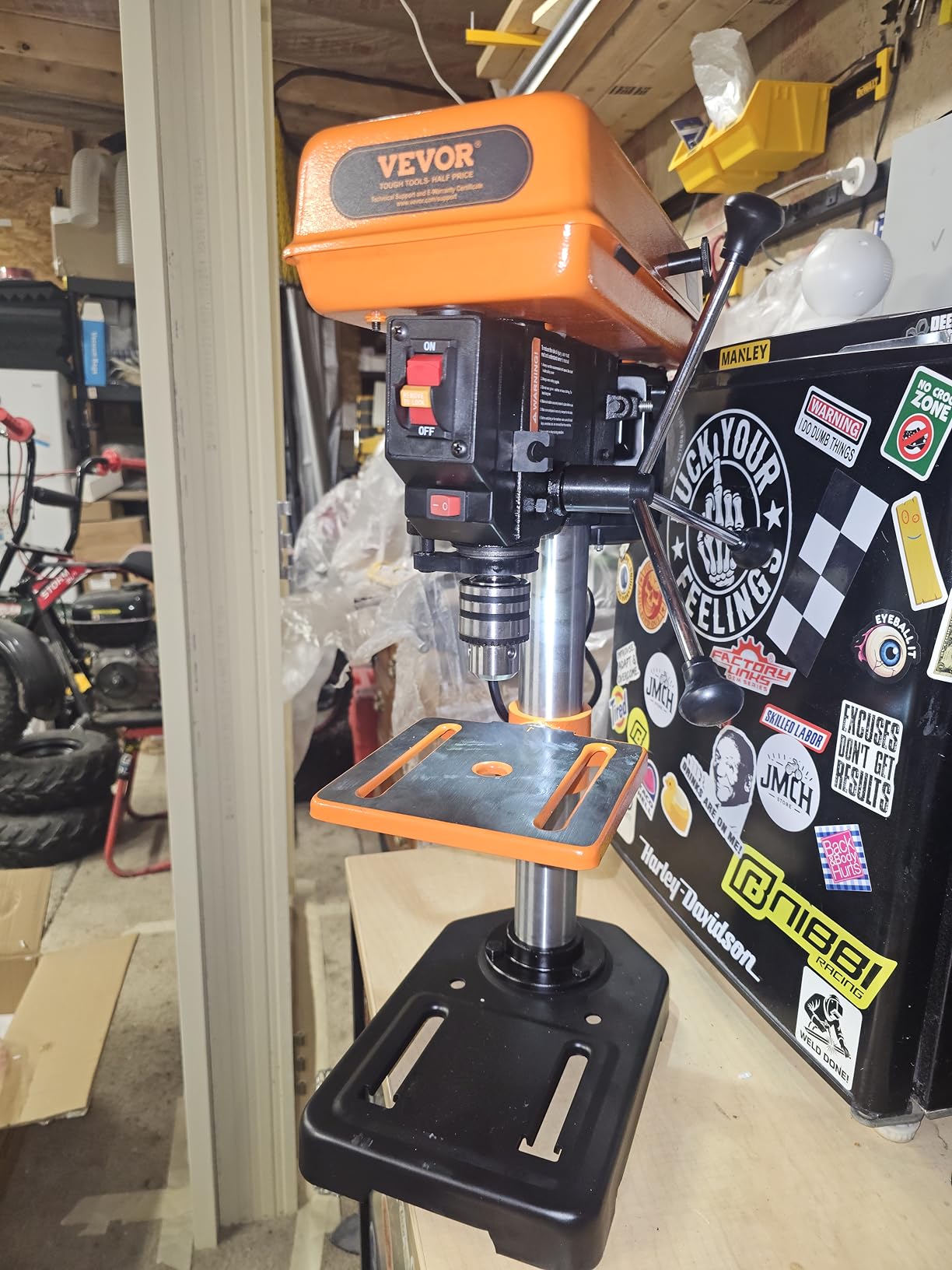

4. VEVOR DP8 8-Inch Benchtop Drill Press – The Cheapest Usable Machine Here
VEVOR 8 in Benchtop Drill Press, 2.5A Induction Motor, Tabletop Drilling Machine with 750/1140 / 1740/2340 / 3200 RPM Adjustable Speed, 0-45° Tilting Worktable, LED Work Light, for Wood Metal
2.5 amp induction motor
276 watts

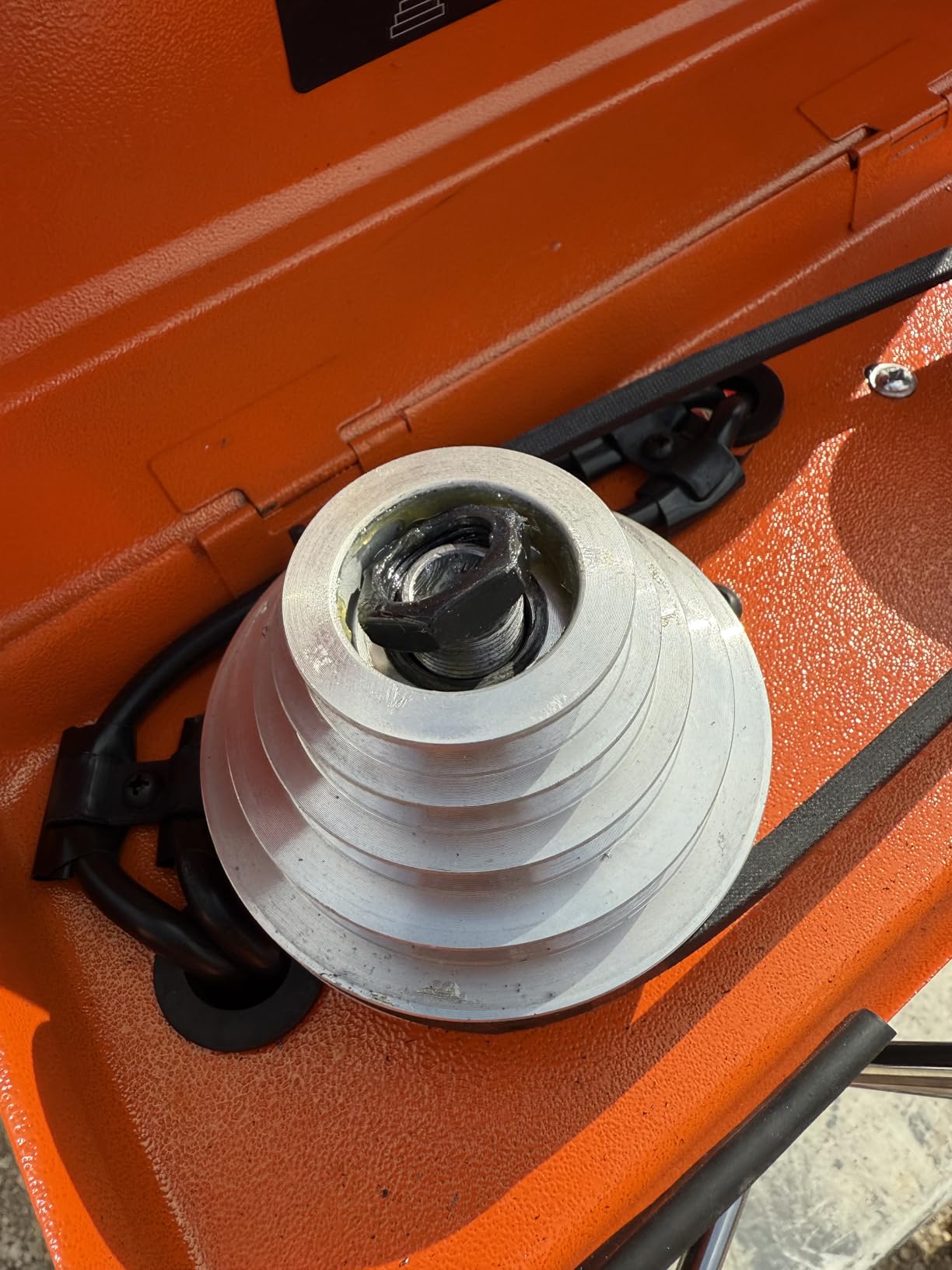

5 speeds 750-3200 RPM
Tilting worktable with LED light
Pros
- Lowest cost machine in this comparison
- Compact and quiet for a small bench
- Table adjusts in height and tilts 45 degrees
- Adjustable depth stop included
- Quick straightforward assembly
Cons
- Weak motor overheats in hard material
- No table accessories for small workpieces
- Thin sheet metal base bolts down poorly
- Not for sustained metal drilling
Nobody buys the VEVOR DP8 for its features. You buy it because it costs the least of the eight and still does the boring job. It has five belt-adjusted speeds from 750 to 3200 RPM, a 2-inch spindle travel, an integrated LED work light, an adjustable depth stop, and a table that adjusts in height and tilts up to 45 degrees. For a first press, a classroom, or a rental shop, that list is fine.
Owners mostly report satisfaction for light woodworking and craft work, and they report good stability once the machine is set down. Assembly is quick, and at 25.4 pounds it is the second-lightest machine here.
The spec sheet lists low radial runout and a 1/2 inch maximum drilling diameter, and the marketing calls the 2.5 amp motor suitable for stable extended drilling. Owners tell a more nuanced story. A minority report the motor overheating quickly in hard material, and the listed 276 watts is the weakest power figure in this group apart from the WEN 4206T.
The thin sheet-metal base is the detail most likely to bother you in a real shop. It does not bolt down well, which means a heavy boring job can walk the machine across the bench. If you buy this one, put a scrap of plywood and four bolts under it.
When the VEVOR DP8 is the right machine
This is the right press for dowels, small twist bits, model work, small parts, and anyone learning joinery on a budget. The tilting table and depth stop mean you can already do angled work and repeatable holes, which is more than many hobbyists expect at this level.
It is also a reasonable second machine for a shop that needs two drilling stations, where you do not want to wait for a single press to become free.
When the VEVOR DP8 is the wrong machine
Do not plan production work or hardwood boring on it. The motor does not recover quickly from a sustained load, and once it heats up you are waiting for it to cool. That behaviour suits occasional craft use and frustrates anyone boring a stack of mortise waste.
No table accessories are included for securing small workpieces, so you will be holding a small part with your hands near a spinning bit unless you buy clamps. That is a real safety problem, not a convenience problem.

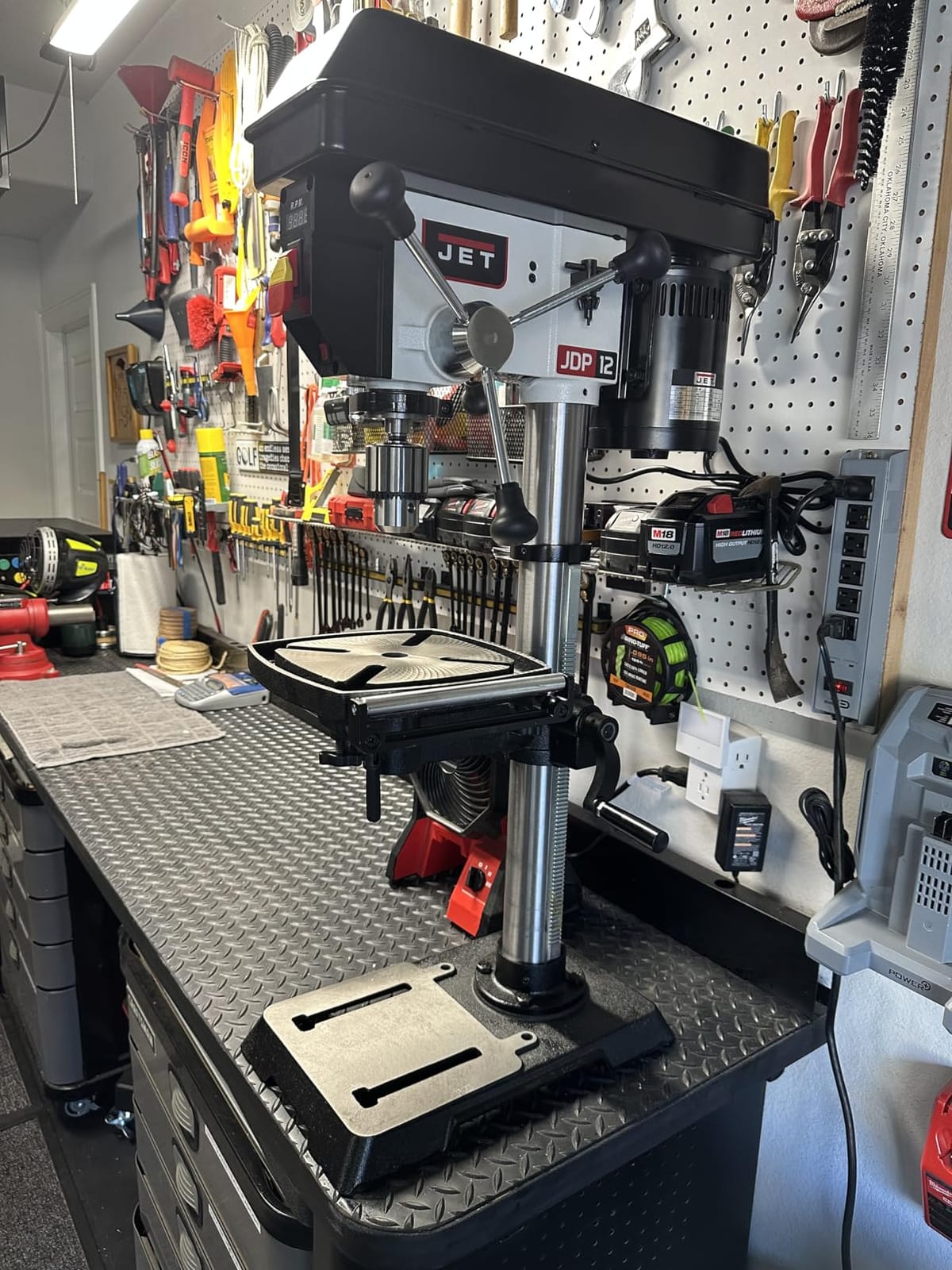

5. JET JWDP-12 Variable Speed Benchtop Drill Press – Best Pro-Grade Benchtop
JET 12-Inch Benchtop Drill Press, Variable Speed, 1/2 HP, 115V 1Ph (Model JWDP-12)
1/2 HP cast iron and steel build
Variable 530-3100 RPM
10 x 16-1/8 inch base
85 pounds
Pros
- Solid cast iron and steel construction
- Speed changes on the fly are quick and accurate
- XACTA laser is accurate once adjusted
- Table post accepts third-party cross-slide vises
- Easy to move off the bench when needed
Cons
- 1/2 HP motor bogs down with very large hole saws
- Spline rattle at certain RPMs until greased
- Table does not rotate a full 90 degrees
- Table rack play at the top of travel
The JET JWDP-12 is the benchtop press to buy when you want professional construction in a machine you can still lift off the bench. It is 85 pounds of cast iron and steel on a 10 by 16-1/8 inch base, 37 inches tall, with a 1/2 HP motor driving a variable speed system from 530 to 3100 RPM. Experienced woodworkers rate it as a durable, accurate press whose laser and speed control justify the premium.
Variable speed on the fly is the feature that changes daily work. On a stepped press you stop, move a belt, and start again. Here you can slow down for the breakthrough at the bottom of a Forstner hole, then speed back up. Reviewers also praise the oversized ergonomic control knobs, which matter when your hands are covered in sawdust.
Other details that separate it from budget machines: a retractable roller extension for workpiece support, a clear linear scale with a depth stop for repeatable depths, an LED work light, and an XACTA laser that owners report stays accurate and stable after a small initial adjustment. The 13-millimeter chuck is the smallest capacity here, but the table post accepting third-party cross-slide vises opens up mortising and heavy boring work.
The warranty is a five-year term, dropping to two years for commercial or industrial use. For a hobby shop that is the strongest coverage on the list.
When the JET JWDP-12 is the right machine
It suits a dedicated benchtop station in a shop that also has a floor press, or a one-man shop where a 85-pound bench machine is the only press that will fit. The roller extension supports long stock, and the cross-slide compatibility means you can add a vise later rather than replacing the press.
If you work in a mix of woods and change diameters often, the 530 RPM low end is a real advantage. It is the slowest turning speed in this group and it is the one that makes large boring bits behave in hardwood.
When the JET JWDP-12 is the wrong machine
The 1/2 HP motor is the constraint. Owners report it bogs down with very large hole saws, so if your work means boring 4-inch holes in thick stock all day, the JDP-20MF or a used Delta floor press is a better fit. The 13-millimeter chuck also limits the bit diameter you can hold without a step-up adapter.

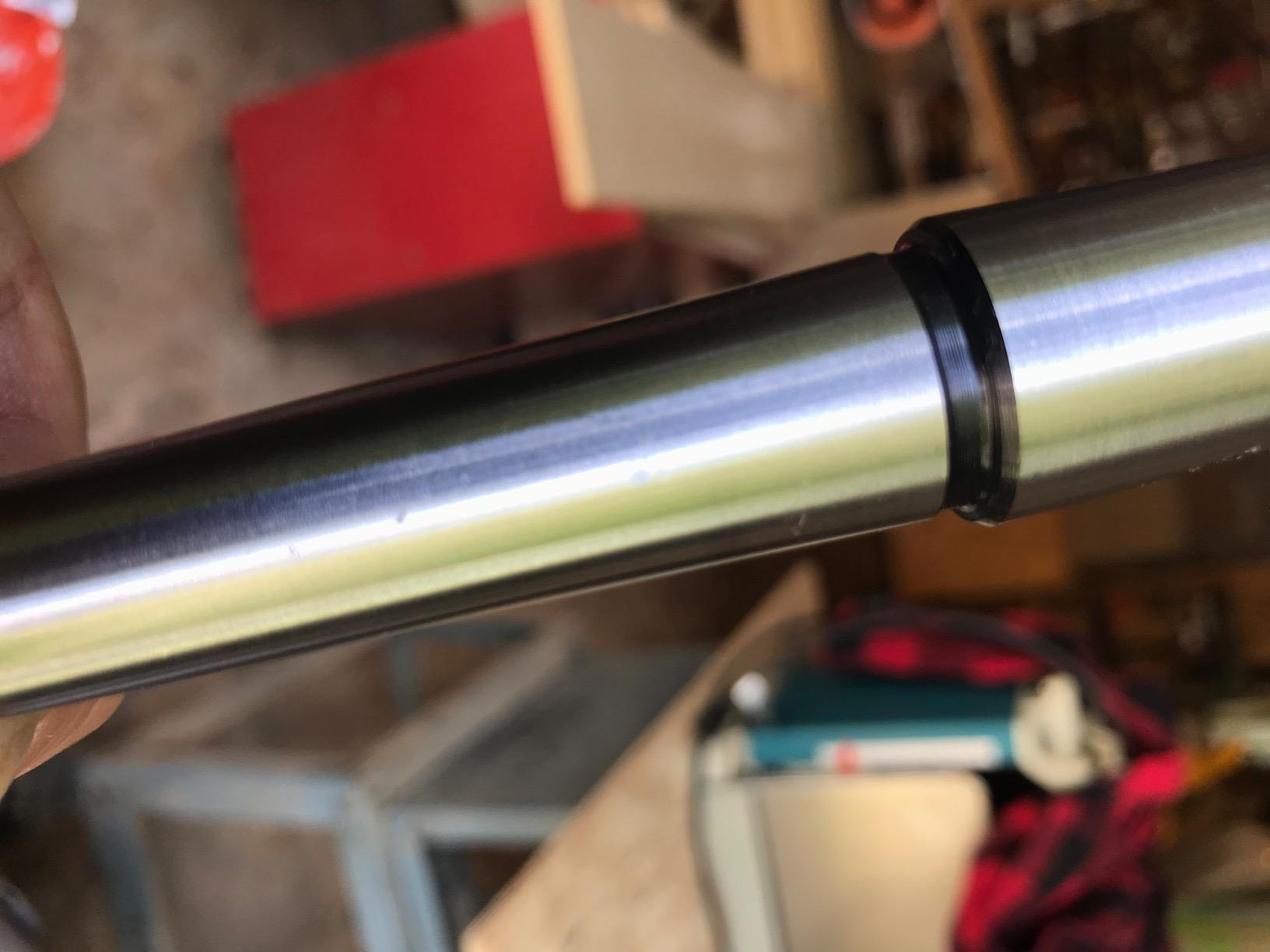

Two smaller annoyances: some owners report a rattling noise from spindle spline clearance at certain speeds until the assembly is greased, and the table-height rack is anchored only at the column base, so there is some play at the top of travel. Grease it after the first month and check the rack bolts periodically.
6. JET JDP-20MF 20-Inch Floor Drill Press – Best for Pro Shops
JET 20-Inch Floor Drill Press, 12 Speed, 1-1/2 HP, 115/230V 1Ph (JDP-20MF)
1-1/2 HP motor
12 speeds 150-4200 RPM
0.75 inch chuck
282 pounds floor model
Pros
- Heavy 1-1/2 HP motor handles demanding wood and metal
- Ball-bearing spindle supports load with low friction
- Hinged belt cover with quick-adjust motor mount
- Positive depth stop locks in three positions
- Rotating 45 degree tilting crank table
Cons
- Weighs 282 pounds and stays where it is placed
- Work lamp bulb sold separately
- Shortest owner feedback base of the group
The JDP-20MF is the machine you buy when the drill press has to be the centre of the shop rather than a corner machine. It has a 1-1/2 HP motor driving 12 speeds from 150 all the way to 4200 RPM, a spindle supported by fine ball bearings, and a 3/4 inch chuck that will hold almost anything. The 20-inch swing means a 10-inch throat, so a 2×4 on edge fits with room to spare.
The speed changes are fast because the belt and pulley cover is hinged and the motor mount adjusts quickly. That matters in a production shop where you move between a 150 RPM large-hole job and a 4200 RPM small-bit job repeatedly. The 1/2 inch external positive depth stop with a three-nut locking feature locks in three positions, which is the fastest way to get repeatable mortise depth.

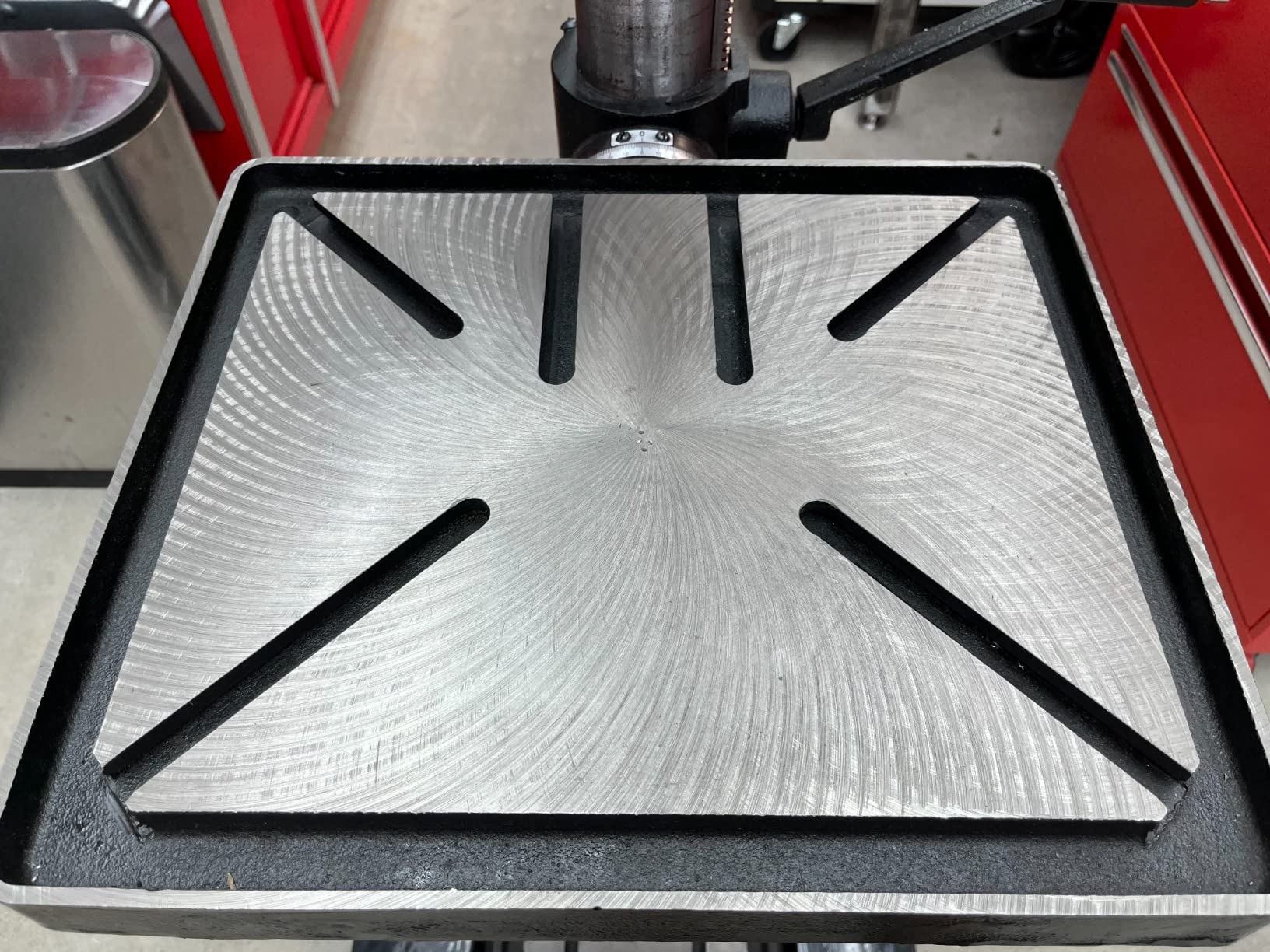

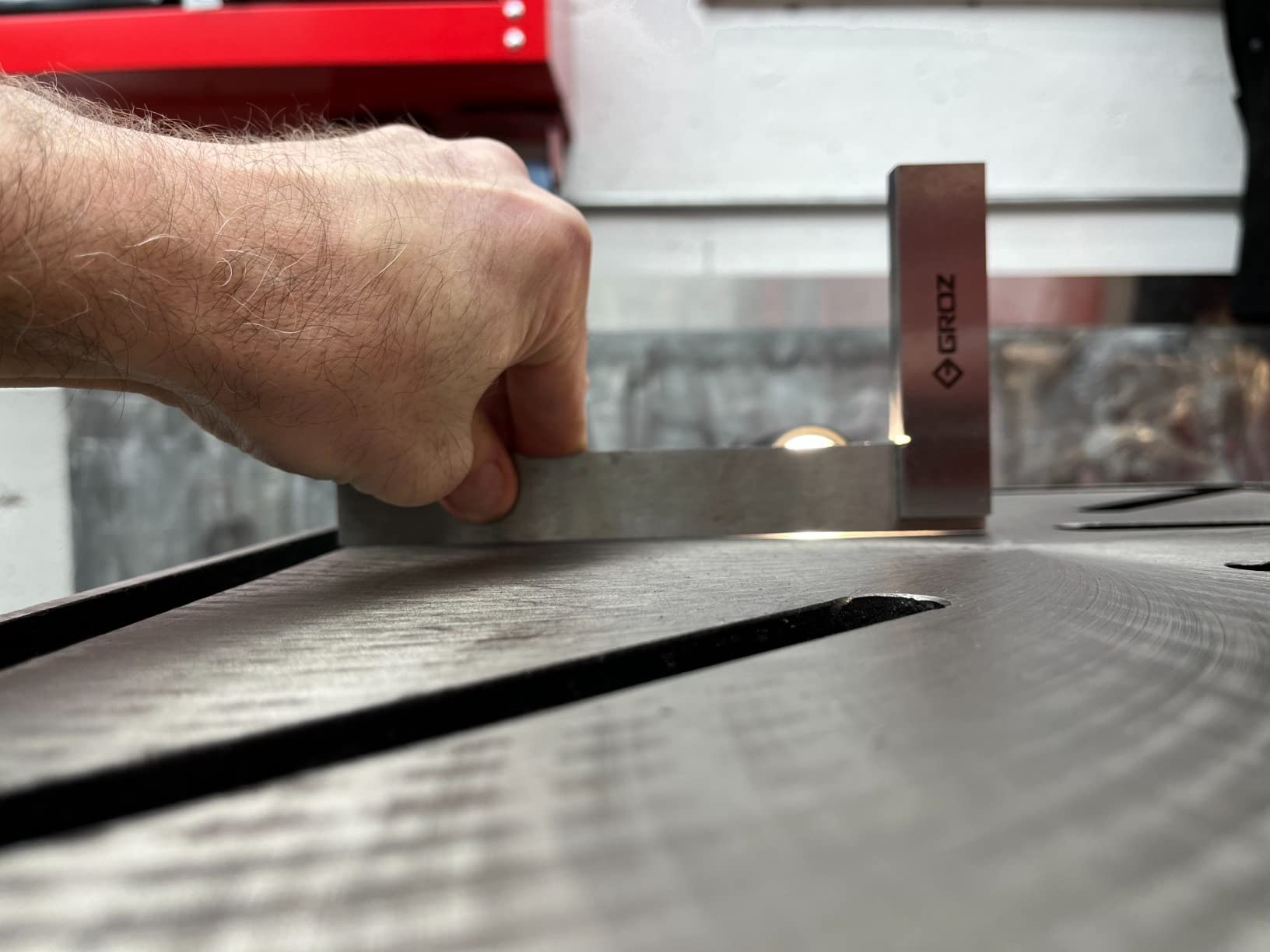

The table is crank-operated, rotates, and tilts 45 degrees, with a quick-release clamp for holding work. That combination is what makes a press like this usable for angled mortises in chairmaking rather than just straight drilling. An MT3 to JT4 arbor adapter is included, so it takes common accessories.
Plan the floor space before you order. It measures 31.5 by 18.5 inches and stands 66 inches tall, and at 282 pounds it is a fixed installation. For one-person furniture work this is plenty, but a small shop may find that footprint hard to give up.
When the JET JDP-20MF is the right machine
It is the best floor model drill press for a shop doing thick hardwood, large Forstner and auger work, and any volume of mortise work. The 1-1/2 HP motor has the headroom to keep spindle speed up when a large bit starts to load, which is what prevents burned edges and drill stalls.
At 150 RPM low speed it can drive big boring bits slowly enough to cut cleanly, and 4200 RPM covers small twist bits in hardwood and metal. Owners rate build quality highly, and the ball-bearing spindle is the part that will outlast the machine.
When the JET JDP-20MF is the wrong machine
It is far too much machine for dowel holes, shelf pins and pilot drilling. You will move a 282-pound machine’s head for a job a 32-pound bench press handles better, and the footprint is dead space in a small shop.
Two practical notes. The built-in work lamp does not include a bulb, and the owner feedback base is the thinnest of the eight at 90 reviews, so long-term experience data is thinner here than the machine’s construction would suggest. Budget for a separate shop vac or dust extraction for large boring operations, because a 20-inch press generates serious chip volume.

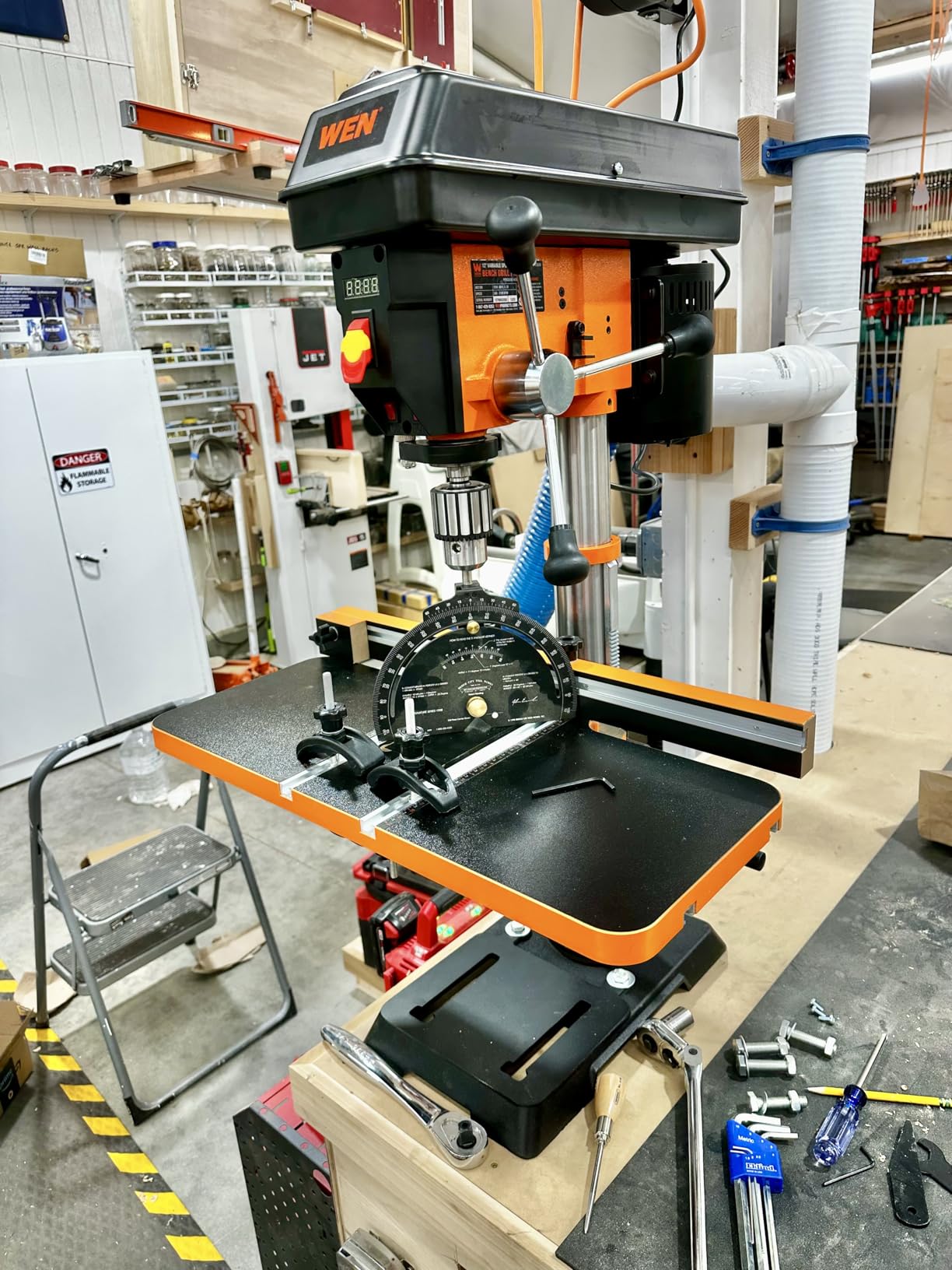

7. WEN DP1263V 12-Inch Variable Speed Benchtop Drill Press – Best Variable Speed Value
WEN 12-Inch Benchtop Drill Press, 6.2-Amp Variable Speed Motor with Cast Iron Construction, Laser and LED Work Light (DP1263V)
6.2 amp induction motor
12 inch swing
3-1/8 inch spindle travel
580-3100 RPM variable
Pros
- Heavy solidly built machine that resists wobble once bolted down
- Smooth operation with easy external speed adjustment
- Bright laser X and 4 digit LED RPM display
- Handles 3 inch round holes in a thick 2x4
- Assembly tools and clear instructions included
Cons
- Metal table arrived out of square and needed shimming
- 45 degree tilt mechanism is finicky
- Included knuckle clamps are weak
- Table can shift during height changes
The DP1263V solves the travel problem that limits most 12-inch benchtop presses. It has 3-1/8 inches of spindle travel, which is the most of any benchtop machine in this group, and a 6.2 amp induction motor. Furniture builders rate it as the best value in the 12-inch class against premium brands, and owners report it boring 3-inch round holes in a thick 2×4 without bogging down.
Speed is mechanical variable from 580 to 3100 RPM with a 4-digit LED readout on the head. The Class IIIA 2.5mW laser forms a visible X, and an overhead LED work light is integrated into the head assembly. The chuck is a 5/8-inch capacity keyed model with onboard key storage, wider than most machines at this size.
The work table bevels and measures 9-1/2 by 9-1/2 inches with a roller extension for supporting long workpieces. It ships with the special tools needed for assembly and clear English instructions, plus a two-year warranty.
Set aside time for setup. A recurring complaint is that the metal table arrived out of square front to back and needed shimming to level. The 45-degree tilt mechanism is also described as finicky to fine-tune, and the included knuckle clamps are weak for holding workpieces. The table can shift during height changes, which puts the hole off the laser mark.
When the WEN DP1263V is the right machine
This is the one to buy for benchtop mortising and thick stock work. With 3-1/8 inches of travel you can usually finish a hole in a 2×4 without lowering the table, which is what makes repeatable depth possible on a bench machine. At 88 pounds it stays put while it works.
The readout also helps if you have never thought about spindle speed. Set 580 RPM for a big Forstner in oak, set 3100 for a small twist bit in pine, and the machine tells you what you have rather than leaving you to guess from a belt position.
When the WEN DP1263V is the wrong machine
Budget an afternoon for commissioning. Check the table is square in both directions with a machinist square, shim it if it is not, and tighten the height rack before trusting the laser. Owners who skip this step report holes that drift from the mark.
Buy better clamps. The included knuckle clamps are not strong enough for a heavy workpiece, and a clamp failure with a large bit in hardwood is a genuinely dangerous combination. Once squared and properly clamped, though, the machine itself performs well above its price class.

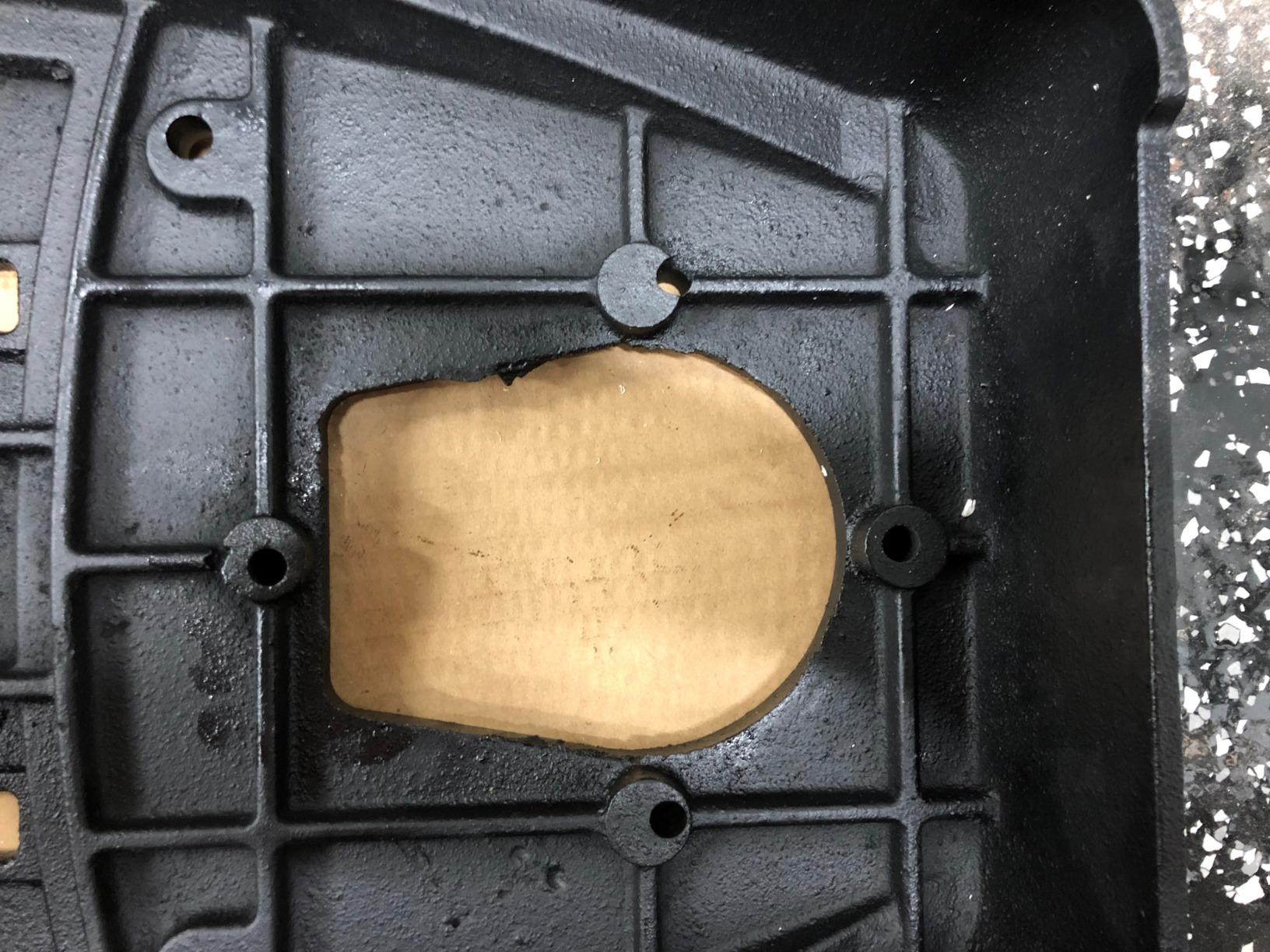

8. JET JDP-17 17-Inch Floor Drill Press – Best T-Slotted Table
JET 17-Inch Floor Drill Press, 16 Speed, 3/4 HP, 115V 1Ph (Model JDP-17)
3/4 HP TEFC motor
16 speeds to 3500 RPM
14 x 19 inch T-slotted cast iron table
187 pounds
Pros
- Large cast iron table with twin T-slots takes vises and fixtures
- One-handed belt tensioning across 16 speeds
- 187 pound cast iron base gives excellent stability
- Xacta-X laser and integrated depth stop
- Large 17 inch swing for thick stock
Cons
- Lowest average rating in this group at 4.0 stars
- 3/4 HP motor is modest for a floor model
- Bulky 56 inch long floor footprint
- Single phase 115V limits power headroom
The JDP-17 is distinguished by its table. At 14 by 19 inches of precision-ground cast iron with twin T-slot grooves and four table slots, it is the most accommodating surface here for jigs, fixtures and vises. If your work involves building and bolting down repeat jigs, no other machine in this group makes that as easy.
Speed changes are handled with one-handed belt tensioning across 16 speeds up to 3500 RPM, driven by a poly-V belt on a 3/4 HP 1Ph 115V TEFC motor. A safety-keyed power switch with a large paddle-style off button sits at hand height, and the Xacta-X laser identifies the drill centre. The integrated depth stop handles repetitive drilling without re-setting a stop rod each time.
Capacity figures are the largest of the floor models here, with 5-inch drilling capacity in wood and 4 inches in metal. The 17-inch swing gives roughly 8.5 inches of throat, so most stock fits without a creative arrangement.
It earns the lowest average rating in the group at 4.0 stars, and the reason is consistent in reviews: the 3/4 HP motor is modest for a machine of this size. The JDP-20MF carries 1-1/2 HP in a similar footprint. If you are buying for power rather than table size, the larger motor is the better use of floor space.
When the JET JDP-17 is the right machine
It is the pick for jigs, fixtures and production drilling where you want to bolt a fixture to the table and drill the same hole fifty times. T-slots accept standard hold-down hardware, and the depth stop plus laser make each cycle identical.
The 187-pound cast iron base also makes it one of the more stable machines here, which matters if you are boring end grain or drilling into a 4×4 post. Large-shop buyers gravitate to presses in this class for good reason.
When the JET JDP-17 is the wrong machine
Do not choose it for maximum power. A 3/4 HP single-phase 115V motor has limited headroom under load, and it will slow under a large bit where the JDP-20MF keeps turning. If your work is heavy boring rather than repeat drilling, prioritise the motor.
Also measure your floor. At 56 inches long by 23.5 inches wide, this is a large permanent fixture. Shop owners who regret buying a full-size floor press almost always regret the space, not the machine.
How We Picked and Tested These Drill Presses
Our approach is spec-first, because the published specifications for drill presses are unusually reliable and the meaningful differences are measurable. We read every product’s full specification sheet, then cross-checked it against the pattern of complaints and praises in the 2,200+ owner reviews behind these eight machines. Where reviewers reported something we could see in the numbers, we used both.
The criteria we applied, in order of weight. First, quill travel, because 2 inches of travel changes how you work on a 2×4. Second, runout, the wobble of the bit in the chuck, which no spec sheet publishes but which reviewers frequently measure with a dial indicator. Third, speed range and control, specifically whether you can reach slow speeds for large boring bits. Fourth, table size and tilt. Fifth, motor power. Sixth, safety hardware.
We also applied the form factor split that most roundups skip. A benchtop press, a bed or swing press, and a floor model are three different tools, not three sizes of the same tool. Benchtop machines win on footprint and cost. Floor models win on travel, table and power. A bed or swing press, where the head moves on a horizontal arm, is the answer for tall stock and oversized workpieces, and we flag where it makes sense in the buying guide.
One more test we consider non-negotiable for a shortlist: the boring jobs that break boring machines. Drilling a large-diameter hole in end grain, where the bit is pushed off centre by the fibres, and drilling deep into a thick board, where chips have nowhere to go. A press with a weak motor and a short travel shows both of these immediately.
How to Choose a Drill Press for Woodworking
1. Form factor: benchtop, bed or swing, or floor
Choose a benchtop press if floor space is tight and your workpieces fit a 9 to 10 inch table. Choose a floor model if you bore thick hardwood, build large furniture, or want a worktable you can stand beside at a comfortable height. Choose a bed or swing press if you work with tall stock such as 4×4 posts or long boards, because the head travels horizontally on an arm rather than the work being lifted to the bit.
The honest reason people outgrow a bench press is not power. It is that you end up lifting the work to the bit instead of lowering the bit to the work, and at that point the depth stop stops helping and a floor model takes over.
2. Swing is double the throat, and this is where buyers go wrong
An 8-inch press does not give you 8 inches of working space. It gives you 4 inches from the spindle centre to the column, because the advertised size is the full swing across the centre. Every woodworking buyer makes this mistake at least once. Before you buy, take your thickest typical workpiece, stand it on edge, and measure half of it. If that number is close to the throat distance, step up a size class.
3. Quill travel: 4 inches is the real threshold
Quill travel is how far the chuck and bit move down before the spindle bottoms out. Under 4 inches and you will be lowering the table mid-hole on a 2×4, which breaks repeatability and lets the bit wander. Four of the eight machines here have 2 inches or less, which is fine for small holes and wrong for large Forstner work. If you bore large-diameter holes, make this your single most important number.
4. Speed range: you need slow speeds, not just fast ones
Woodworkers need the bottom of the range far more than the top. A large Forstner or auger bit cutting in hardwood should run slow enough to build its own chip, usually between 300 and 800 RPM. A press that bottoms out at 1500 RPM will burn the rim of a 1-1/2 inch bit in oak. Variable speed from around 500 RPM upward covers this well, which is why four of the eight machines here are variable.
5. Table size, tilt and how it clamps
Look for a table that tilts 45 degrees in each direction if you bore angled mortises or drill into end grain at an angle. For clamping, a flat table edge beats a round one, because you can put a straightedge or a vise jaw on it. Anything under 9 inches square will make you clamp overhang off the front edge, which is where a straight hole becomes a broken bit.
6. Motor power, and why it is the last criterion
Horsepower gets the marketing attention and settles the least arguments. Between 1/2 HP and 3/4 HP, a press will do all normal woodworking. The real constraints on accuracy are quill travel, table size, chuck quality and runout. Buy power when you are boring large holes repeatedly or driving big hole saws, and otherwise spend the difference on a better chuck.
7. How to check spindle runout with a dial indicator
Runout is the wobble you see when a spinning bit describes a circle instead of a point. It is the accuracy killer that no spec sheet publishes, and it takes five minutes to measure. Mount a dial indicator in the quill with the plunger touching the chuck or arbor nose, set the indicator to zero with the spindle stopped, then hand-rotate the chuck a full turn while watching the needle.
Under about 0.003 inch total indicator reading is good for general woodworking, and under 0.001 is excellent. Between 0.003 and 0.008 means the chuck is worn or the spindle is bent, and a bigger bit will wander. Above 0.008, look for a bent arbor, a dirty taper, or a chuck that needs replacing. Forum woodworkers consistently recommend measuring this on a new press before the first cut, because a press that arrives out of alignment is easier to return than to live with.
8. Variable speed: do you need it?
If you drill mostly small bits in softwood, stepped belt speeds are enough and you can save money. If you bore Forstner and auger bits in hardwood, or work in several species, variable speed is a genuine advantage because it removes the stop-and-move-a-belt step from the middle of a cut. A digital readout makes it easy to build a speed table for your own bits and woods and stick to it.
9. Buying used: when a used Delta or Craftsman floor press makes sense
Used floor-standing presses from Delta, Rockwell and Craftsman are heavily discussed on woodworking forums, and the recurring view is that a good used cast iron floor press delivers comparable quality to a new premium machine for a fraction of the outlay, partly because you avoid paying for the retailer’s margin. The trade-off is that you inherit the machine’s history.
Inspect before you commit. Check the table for rust pits and surface warping, run a finger along the ways, verify the quill drops smoothly and returns under spring load, and look at the motor for a hot-burning smell. Most important, spend five minutes with a dial indicator on the spindle before you pay. Grease the quill and check the belts while you are there. A used press that needs a belt and a bushing is still a bargain; one with a bent spindle is not.
10. Speed guidance by bit and material
As a starting point for woodwork, run large Forstner and auger bits in hardwood between 300 and 800 RPM, mid-size twist bits in hardwood between 800 and 1500 RPM, small twist bits in hardwood between 1500 and 3000 RPM, and everything in softwood or MDF roughly one and a half to two times faster. If a bit smokes, chips are not forming, or your ear picks up a rising whine, you are too fast. If the bit is polishing the wall instead of cutting, you are too slow. Test on an offcut and write the number on the machine with a pencil.
11. Safety habits that matter more than features
Never hold work by hand. Use a vise, clamps, or a hold-down and keep every finger on the safe side of the bit line. Lower the bit so the cutting edge clears the table before you switch it on, and stop the machine before your hands go near the chuck. Wear eye protection, keep the bit guard fitted, use the oversize power switch rather than reaching, and never fit a router bit in a drill press. Large boring operations produce a lot of chip, so connect dust extraction or plan to clear the table every few holes.
Frequently Asked Questions
What size drill press is best for woodworking?
A 12-inch press with 3 or more inches of quill travel covers most furniture and cabinetry work. A 10-inch machine suits dowels, shelf pins and face frame joinery, while 15 to 20 inch floor models are worth it once you bore thick hardwood regularly. Remember that the advertised size is swing diameter, so the working throat distance is half of it.
Should I buy a benchtop or floor model drill press?
Buy a benchtop press if your workpieces fit a 9 to 10 inch table and floor space is tight. Buy a floor model when you bore thick hardwood or want a worktable you can stand beside. You will outgrow a bench press when you start lifting work up to the bit, not when you need more power.
Do I need a variable speed drill press?
Variable speed matters most if you bore Forstner and auger bits in hardwood, because large bits need roughly 300 to 800 RPM to cut a chip instead of burning. If you mostly drill small bits in softwood, stepped belt speeds are adequate and cheaper. A digital readout also makes it easy to repeat a setting that worked.
What speed should a drill press be set to?
Use about 300 to 800 RPM for large Forstner and auger bits in hardwood, 800 to 1500 RPM for mid-size twist bits in hardwood, and 1500 to 3000 RPM for small twist bits. In softwood and MDF, run roughly one and a half to two times faster. If chips do not form, slow down.
Are Harbor Freight drill presses any good?
Opinions on budget Bauer and Harbor Freight presses vary widely because the same model can be rated very differently by different buyers. The consistent pattern is that they are adequate for light drilling and dowel work, while runout, table alignment and assembly quality are the recurring complaints. Measure runout with a dial indicator on arrival, and keep your return option open.
Which Drill Press Should You Buy in 2026
For most woodworkers, the best drill presses for woodworking come down to how big the work gets. If you are building small parts, dowel joints and boxes in a small shop, the WEN 4206T is the pick: a 4.6 star average across 797 owner reviews, a cast iron body, and a table that tilts 45 degrees each way. It is the most proven machine in this comparison.
The moment you start boring holes that matter, the calculus changes. If you are doing cabinetry and want power plus a laser at a sensible outlay, take the SKIL DP9505-00. If you are chasing accuracy and do not mind the weight and height, the BUCKTOOL DP12VL is the one owners measure with a dial indicator and find dead true. If you want a 12-inch bench machine that can finish a hole in a 2×4 without resetting the table, the WEN DP1263V has the most spindle travel of the group.
For a shop with floor to spare, the JET JDP-20MF is the strongest machine here, with 1-1/2 HP, 12 speeds and a 20-inch swing for thick hardwood. Choose the JET JDP-17 instead when your work is jigs, fixtures and repeat drilling, where its T-slotted cast iron table earns its place.
Whatever you buy, spend the first five minutes with a dial indicator before the first cut. That single habit separates a drill press that makes square holes from one that surprises you, and it applies to every machine on this list.
Related buying guides: our best drill combo kit reviews cover the cordless side of the shop, and if you are planning a garage build, our guide to the best cheese presses and French presses covers the other half of any serious workshop.
